040 384203531 MILLING MACHINE 路面铣刨机-- XCMG Road Milling Machine XM200 Spare Parts Catalog

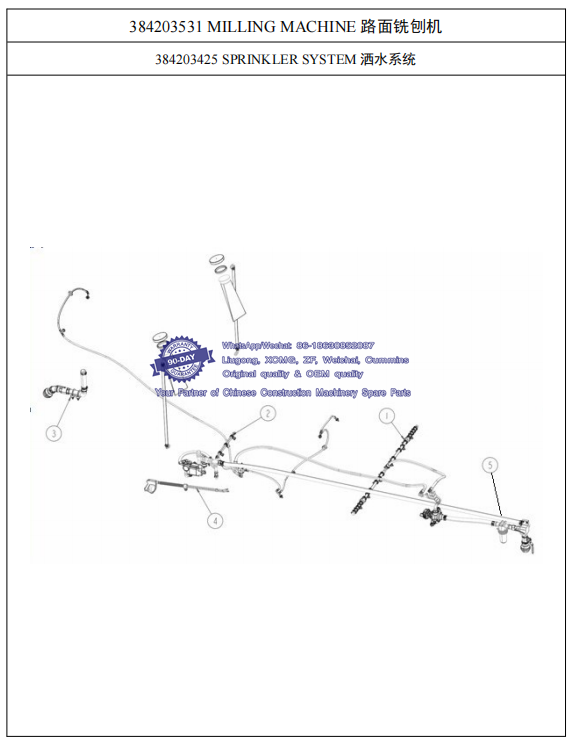

384203425 SPRINKLER SYSTEM 洒水系统
序号 零部件代号 名称 数量 备注
No. Part No. Part name Q'ty Remark
1 384203005 铣刨室洒水管装配 MILLING ROOM SPRINKLER SYSTEM 1
2 384203328 一级输料带管路装配WATER SYSTEM FOR FIRST CLASS CONVEYOR BELT AND EXPORT 1
3 384203006 水箱附件 WATER TANK ACCESSORIES 1 Whatsapp: 86-18630852087
4 384105364 高压水管路装配HIGH PRESSURE WASHING PIPELINE SYSTEM 1
5 384105369 水泵管路装配 WATER PUMP PIPELINE SYSTEM 1 Whatsapp: 86-18630852087
041 384203425 SPRINKLER SYSTEM 洒水系统-- XCMG Road Milling Machine XM200 Spare Parts Catalog

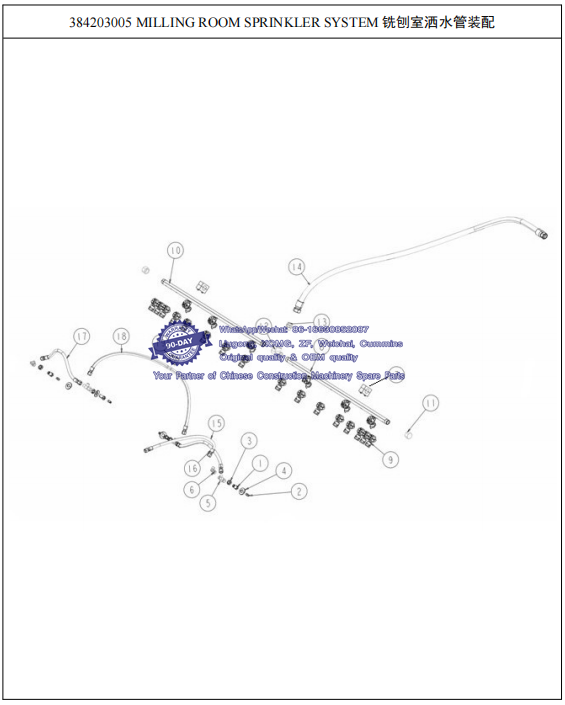

384203005 MILLING ROOM SPRINKLER SYSTEM 铣刨室洒水管装配
序号 零部件代号 名称 数量 备注
No. Part No. Part name Q'ty Remark
1 384200611 隔壁接头 CONNECTOR 4
2 800788502 喷嘴 NOZZLE 4
3 805238944 螺母 M16×1.5(达克罗) NUT M16×1.5 4 GB/T6173-2000
4 805301377 垫圈 16(达克罗) WASHER 16 4 DIN6796
5 803162089 接头 CONNECTOR 3
6 803103351 接头 CONNECTOR 2 Whatsapp: 86-18630852087
7 803301422 管夹 PIPE CLIP 2
8 384202816 右洒水管 RIGHT SPRINKLER TUBE 1
9 800787751 洒水喷头 NOZZLE 22
10 384202815 左洒水管 LEFT SPRINKLER TUBE 1
11 800752706 管帽 T1-3/4-Zn-B PIPE CAP T1-3/4-ZN-B 2 GB/T3287-2011
12 800787347 三通 B1-3/4-Zn-B THREE DIRECT LINKS B1-3/4-ZN-B 1 GB/T3287-2011
13 803191588 接头 CONNECTOR 1
14 803112828 软管总成 RUBBER HOSE 1
15 803371167 软管总成 RUBBER HOSE 1 Whatsapp: 86-18630852087
16 803371007 软管总成 RUBBER HOSE 1
17 803371007 软管总成 RUBBER HOSE 1
18 803195990 软管总成 RUBBER HOSE 1 Whatsapp: 86-18630852087
19 803163323 管夹 PIPE CLIP 1
042 384203425 SPRINKLER SYSTEM 洒水系统-- XCMG Road Milling Machine XM200 Spare Parts Catalog

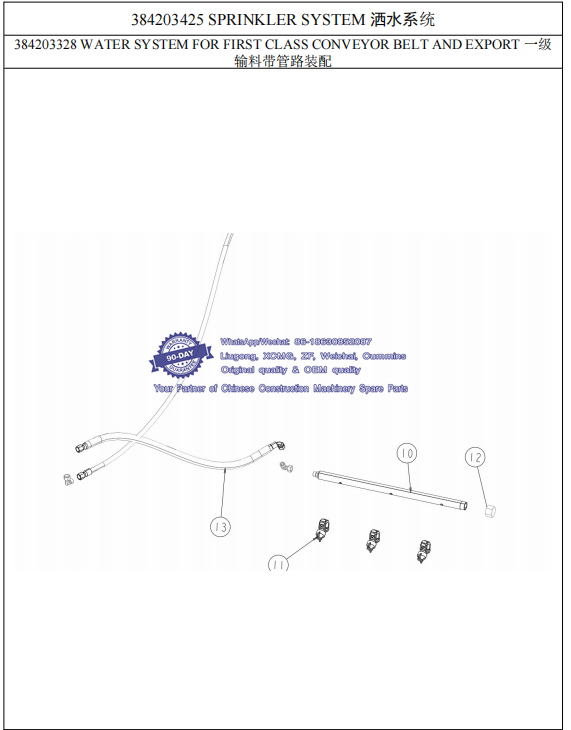

384203328 WATER SYSTEM FOR FIRST CLASS CONVEYOR BELT AND EXPORT一级输料带管路装配
序号 零部件代号 名称 数量 备注
No. Part No. Part name Q'ty Remark
1 384200611 隔壁接头 CONNECTOR 2
2 800788502 喷嘴 NOZZLE 2
3 805238940 螺母 M16×1.5(达克罗) NUT M16×1.5 2 GB/T6171-2000
4 805301377 垫圈 16(达克罗) WASHER 16 2 DIN6796
5 803105353 接头 CONNECTOR 1
6 803103351 接头 CONNECTOR 3 Whatsapp: 86-18630852087
7 803163323 管夹 PIPE CLIP 1
8 803103489 软管总成 RUBBER HOSE 1
9 803382131 软管总成 RUBBER HOSE 1
10 384203418 洒水管 DISTRIBUTOR PIPE 1 Whatsapp: 86-18630852087
11 800787751 洒水喷头 NOZZLE 3
12 800752706 管帽 T1-3/4-Zn-B PIPE CAP T1-3/4-ZN-B 1 GB/T3287-2011
13 803195039 软管总成 RUBBER HOSE 1
043 384203425 SPRINKLER SYSTEM 洒水系统-- XCMG Road Milling Machine XM200 Spare Parts Catalog

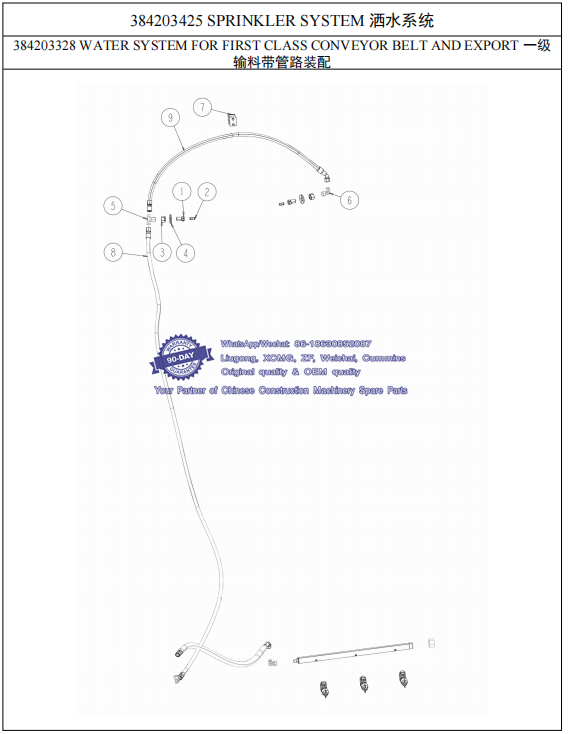

384203328 WATER SYSTEM FOR FIRST CLASS CONVEYOR BELT AND EXPORT一级输料带管路装配
044 384203425 SPRINKLER SYSTEM 洒水系统-- XCMG Road Milling Machine XM200 Spare Parts Catalog

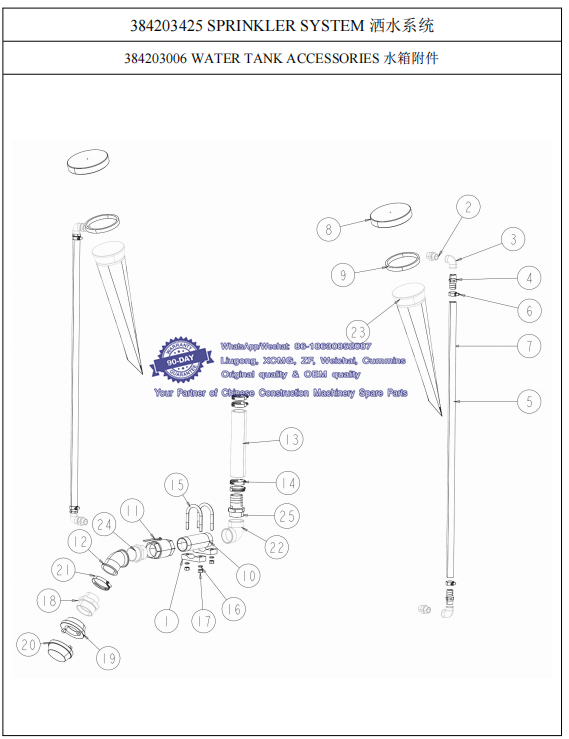

384203006 WATER TANK ACCESSORIES 水箱附件
序号 零部件代号 名称 数量 备注
No. Part No. Part name Q'ty Remark
1 384200621 垫板 BASEPLATE 2
2 800752707 内接头 N8-3/4-Zn-A INNER JIONT N8-3/4-ZN-A 4 GB/T3287-2011
3 803048234 弯头 A1-3/4-Zn-B FITTING A1-3/4-ZN-B 4 GB/T3287-2011
4 384200615 软管接头 3/4 HOSE FITTING 3/4 4
5 384200616 透明软管 TRANSPARENT HOSE 2
6 805801461 喉箍 d32 HOOP D32 4 JB/T8870-1999
7 384105743 红色小球 RED BALL 2
8 384401165 水箱盖 WATER COVER 2 Whatsapp: 86-18630852087
9 384401173 橡胶垫圈 RUBBER WASHER 2
10 384200620 双头螺纹管 SCREWED PIPE 1
11 800752712 球阀 Rc2 HIGH PRESSURE BALL VALVE RC2 1
12 800783068 45°弯头 A1/45°-2-Zn-A FITTING 45°-2-ZN-A 1 GB/T3287-2011
13 925603599 胶管 B50×280 HOSE B50×280 1
14 805801311 喉箍 d60 HOOP D60 4 JB/T8870-1999 Whatsapp: 86-18630852087
15 384105365 U 型螺栓 60 U-BOLT 60 2
16 805338261 垫圈 12(达克罗) WASHER 12 4 GB/T93-1987
17 805238367 螺母 M12(达克罗) NUT M12 4 GB/T6170-2000
18 800788269 异径内接头 N8-2_1/2×2 REDUCING INNER JOINTS N8-2_1/2×2 1 GB/T3287-2011
19 800788267 螺纹接口 KN65 CONNECTOR KN65 1 GB12514.2-2006
20 800788266 闷盖 KM65(带链) COVERS KM65 1 GB12514.2-2006 Whatsapp: 86-18630852087
21 801905597 喉箍 d80 HOOP D80 1 JB/T8870-1999
22 800752580 弯头 A1-2-Zn-B FITTING A1-2-ZN-B 1 GB/T3287-2011
045 384203425 SPRINKLER SYSTEM 洒水系统-- XCMG Road Milling Machine XM200 Spare Parts Catalog

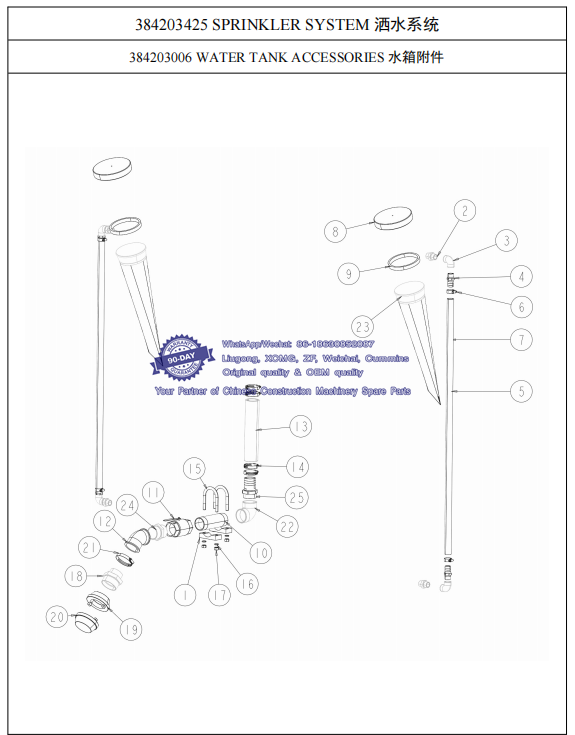

384203006 WATER TANK ACCESSORIES 水箱附件
序号 零部件代号 名称 数量 备注
No. Part No. Part name Q'ty Remark
23 800787453 水箱滤袋 WATER FILTER 2 Whatsapp: 86-18630852087
24 800752568 内接头 N8-2-Zn-B INNER JIONT N8-2-ZNB 1 GB/T3287-2011
25 384200619 软管接头 2″ JIONT 2 1
046 384203425 SPRINKLER SYSTEM 洒水系统-- XCMG Road Milling Machine XM200 Spare Parts Catalog

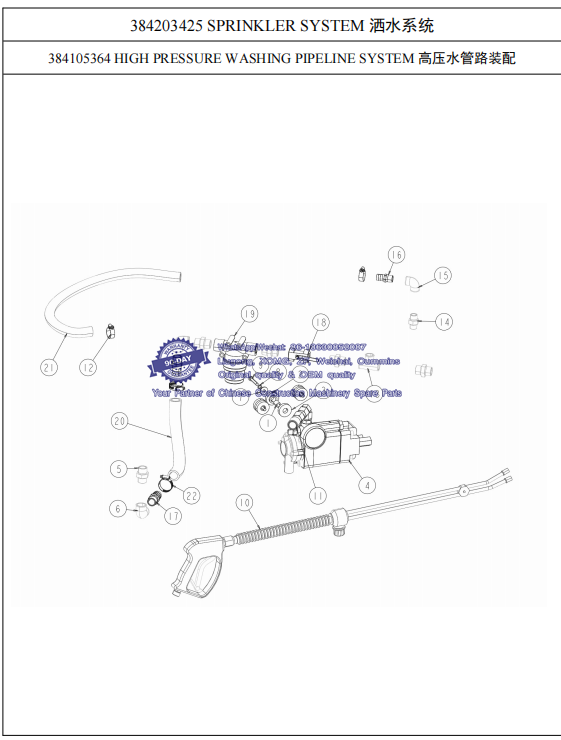

384105364 HIGH PRESSURE WASHING PIPELINE SYSTEM 高压水管路装配
序号 零部件代号 名称 数量 备注
No. Part No. Part name Q'ty Remark
1 384501265 垫子 STEEL PIPE CUSHION 3
2 384501264 橡胶垫一 RUBBER MAT 3
3 384501263 橡胶垫二 RUBBER MAT 3 Whatsapp: 86-18630852087
4 380901286 高压水泵HIGH PRESSURE WATER PUMP 1
5 800752707 内接头 N8-3/4-Zn-A INNER JIONT N8-3/4-ZN-A 5 GB/T3287-2011
6 803048234 弯头 A1-3/4-Zn-B FITTING A1-3/4-ZN-B 2 GB/T3287-2011
7 805338265 垫圈 8(达克罗) WASHER 8 3 GB/T96.1-2002
8 805338259 垫圈 8(达克罗) WASHER 8 3 GB/T93-1987
9 805046514 螺栓 M8×45(达克罗) SCREW M8×45 3 GB/T5783-2000
10 800752786 喷枪组件 SPRAY GUN COMPONENTS 1
11 800787850 快速自封接头 CONNECTOR 1
12 805801461 喉箍 d32 HOOP D32 2 JB/T8870-1999
13 800788055 中 小 异 径 三 通 B1-3/4×1/2-Zn-B SMALL AND MEDIUM REDUCING TEE B1-3/4×1/2-ZN-B 1 GB/T3287-2011
14 803164043 内接头 N8-1/2-Zn-B INNER JIONT N8-1/2-ZN-B 1 GB/T3287-2011
15 800787430 弯头 A1-1/2-Zn-B FITTING A1-1/2-ZN-B 1 GB/T3287-2011
16 384201365 软管接头 1/2 HOSE FITTING 1/2 1
17 384200615 软管接头 3/4 HOSE FITTING 3/4 2
18 800752713 球阀 HIGH PRESSURE BALL VALVE 1 Whatsapp: 86-18630852087
19 800752809 水过滤器 WATER FILTER 1
20 925601414 低压胶管 Φ25×320 HOSE Φ25×320 1
21 925111185 低 压 胶 管 总 成B19×5×640 HOSE B19×5×640 1
22 805801470 喉箍 d40 HOOP D40 2 JB/T8870-1999 Whatsapp: 86-18630852087
047 384203425 SPRINKLER SYSTEM 洒水系统-- XCMG Road Milling Machine XM200 Spare Parts Catalog

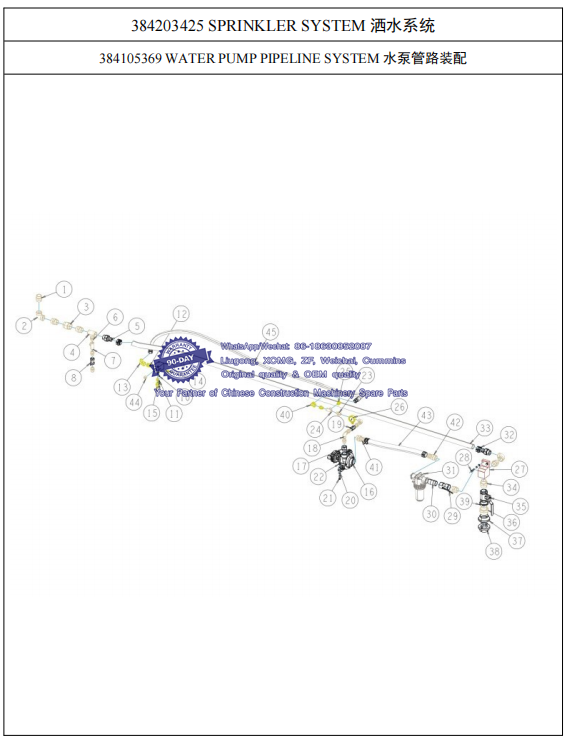

384105369 WATER PUMP PIPELINE SYSTEM 水泵管路装配
序号 零部件代号 名称 数量 备注
No. Part No. Part name Q'ty Remark
1 803600966 内接头 N8-1_1/2-Zn-B INNER JIONT N8-1_1/2-ZN-B 5 GB/T3287-2011
2 800702576 弯头 A1-1_1/2-Zn-B FITTING A1-1_1/2-ZN-B
2 GB/T3287-2011
3 800752566 活接头 U1-1_1/2-Zn-B FLEXIBLE CONNECTOR U1-1_1/2-ZN-B 1 GB/T3287-2011
4 800752740 中 小 异 径 三 通 B1-1_1/2×3/4-Zn-D SMALL AND MEDIUM REDUCING TEE B1-1_1/2×3/4-ZN-D 1 GB/T3287-2011
5 384200623 软管接头 1_1/2″ TIE-IN 2
6 800752707 内接头 N8-3/4-Zn-A INNER JIONT N8-3/4-ZN-A 6 GB/T3287-2011
7 800787347 三通 B1-3/4-Zn-B THREE DIRECT LINKS B1-3/4-ZN-B 1 GB/T3287-2011
8 800752713 球阀 HIGH PRESSURE BALL VALVE 1
9 384200458 多路块MULTI-PASSAGE BLOCK 1 Whatsapp: 86-18630852087
10 805338260 垫圈 10(达克罗) WASHER 10 6 GB/T93-1987
11 805140650 螺钉 M10×65(达克罗) SCREW M10×65 2 GB/T70.1-2008
12 803191588 接头 CONNECTOR 1
13 803173684 接头 CONNECTOR 1
14 803390647 接头 CONNECTOR 2
15 803162089 接头 CONNECTOR 1 Whatsapp: 86-18630852087
16 803202971 水泵(带液压马达) PUMP 1
17 384202269 转换接头一 CONNECTOR 1
18 803048234 弯头 A1-3/4-Zn-B FITTING A1-3/4-ZN-B 2 GB/T3287-2011
19 384204395 过渡阀块 INTERMEDIATE VALUE BLOCK 1
20 805338278 垫圈 10(达克罗) WASHER 10 4 GB/T97.1-2002 Whatsapp: 86-18630852087
21 805046529 螺栓 M10×40(达克罗) BOLT M10×40 2 GB/T5783-2000
22 805239103 螺母 M10(达克罗) NUT M10 2 GB/T889.1-2000
