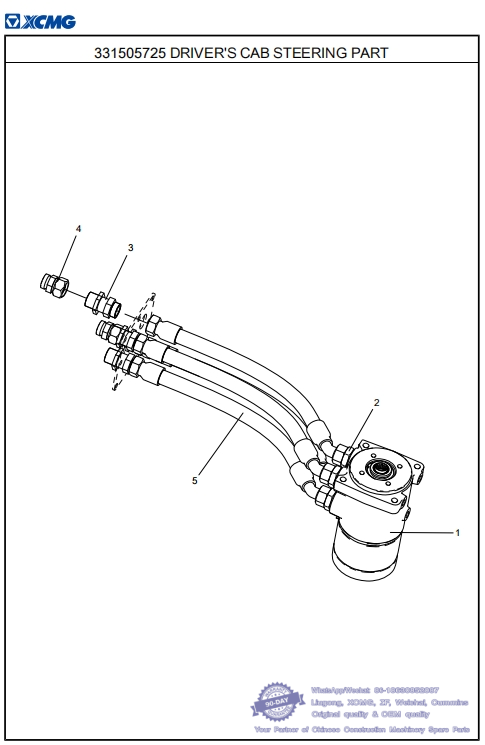

041 331505725 DRIVER'S CAB STEERING PART-- XCMG Mining Dump Truck XDR100 Parts Catalog
331505728 STEERING SYSTEM
No. PART NUMBER QTY NAME NOTE PAGE
1 803406971 1 STEERING GEAR 90 whatsapp 86-18630852087
2 813402258 4 CONNECTOR
3 803269341 4 CONNECTOR whatsapp 86-18630852087
4 813402757 2 CONNECTOR
5 803417589 4 HOSE ASS'Y

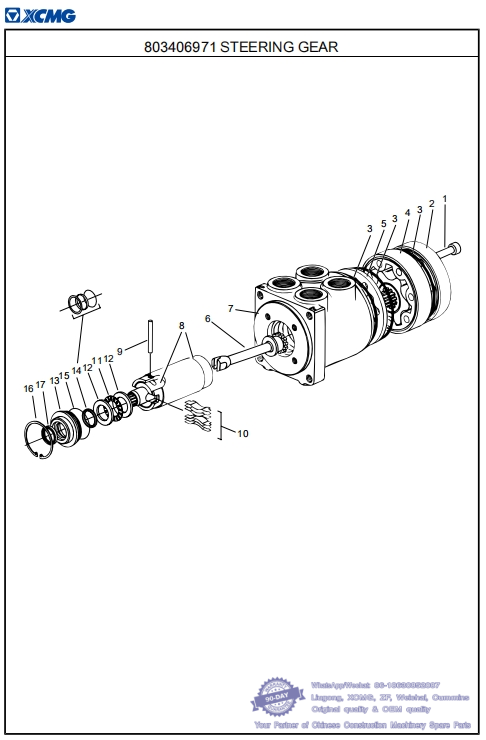

042 803406971 STEERING GEAR-- XCMG Mining Dump Truck XDR100 Parts Catalog
331505725 DRIVER'S CAB STEERING PART
No. PART NUMBER QTY NAME NOTE PAGE
1 805052226 7 BOLT
2 804200153 1 REAR COVER whatsapp 86-18630852087
3 803498522 3 ORING3
4 804200154 1 STATOR AND ROTOR PAIR
5 804200155 1 SPACING PLATE
6 804200156 1 UNIVERSAL DRIVING SHAFT
7 804200157 1 VALVE
8 804200158 2 SPOOL VALVE SLEEVE PAIR
9 804200159 1 PIN
10 801737709 8 LEAF SPRING whatsapp 86-18630852087
11 804200160 1 PLANE BEARING
12 803498523 2 SHAFT SEALING RING
13 804200161 1 FRONT COVER
14 803498524 1 ORING14
15 803498525 1 ORING17 whatsapp 86-18630852087
16 804200162 1 BAFFLE RING
17 804200163 1 DUSTPROOF WASHER

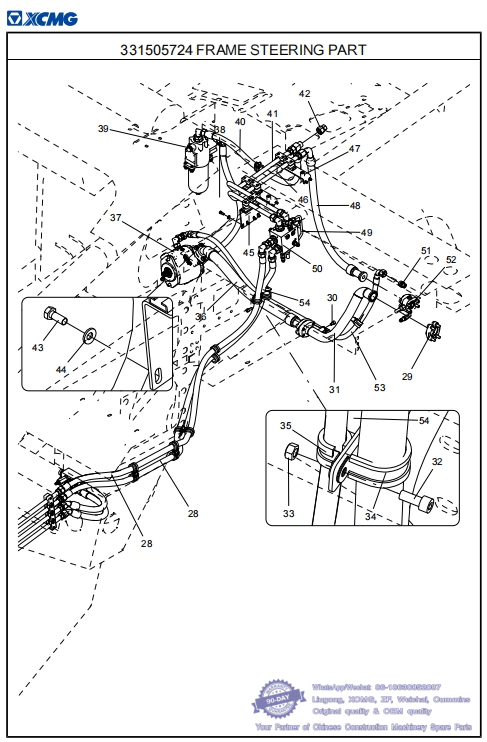

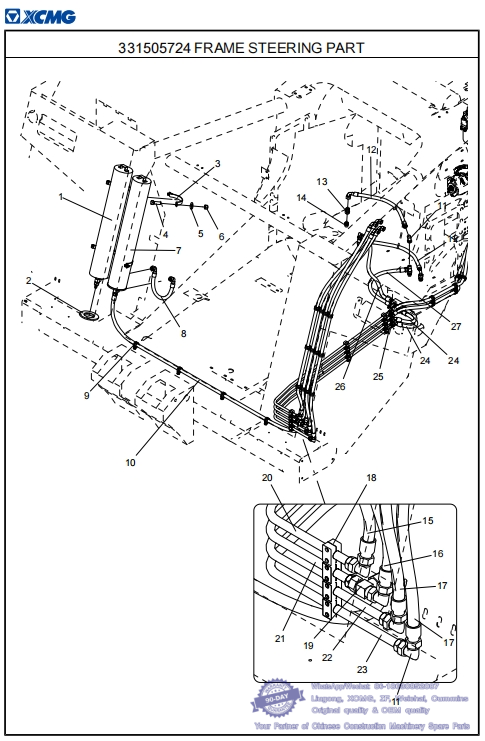

043 331505724 FRAME STEERING PART-- XCMG Mining Dump Truck XDR100 Parts Catalog
331505728 STEERING SYSTEM
No. PART NUMBER QTY NAME NOTE PAGE
1 331505741 1 ACCUMULATOR ASSEMBLY 96
2 331502197 2 ACCUMULATOR SHOCK PAD whatsapp 86-18630852087
3 331502200 4 PLATE
4 805006413 8 BOLT M12×35 GB/T5783-2000
5 805301374 8 WASHER 12 DIN6796
6 805238372 8 NUT M12 GB/T6170-2000
7 331505737 1 ACCUMULATOR ASSEMBLY 100
8 803417594 1 HOSE ASS'Y
9 800104639 27 RUBBER SLEEVE HOOP
10 803442700 1 HOSE ASS'Y
11 803424611 6 CONNECTOR
12 803449451 2 HOSE ASS'Y whatsapp 86-18630852087
13 813402757 1 CONNECTOR
14 813402773 4 CONNECTOR
15 803417592 1 HOSE ASS'Y
16 803442702 1 HOSE ASS'Y
17 803175400 2 HOSE ASS'Y
18 803437792 22 PIPE CLIP
19 803452464 4 CONNECTOR
20 331502204 1 STEEL PIPE ASSEMBLY
21 331502203 1 STEEL PIPE ASSEMBLY
22 331502202 1 STEEL PIPE ASSEMBLY whatsapp 86-18630852087
23 331502201 1 STEEL PIPE ASSEMBLY
24 803442703 2 HOSE ASS'Y
25 331505757 1 STEERING BUFFER VALVE GROUP ASSEMBLY 104
26 803449782 1 HOSE ASS'Y
27 803453471 1 HOSE ASS'Y whatsapp 86-18630852087
044 331505724 FRAME STEERING PART-- XCMG Mining Dump Truck XDR100 Parts Catalog
331505728 STEERING SYSTEM
No. PART NUMBER QTY NAME NOTE PAGE
28 803449783 2 HOSE ASS'Y
29 813402739 2 FLANGE ASSEMBLY
30 805139924 2 SCREW M10×16 GB/T70.1-2008
31 331502214 1 STEEL PIPE ASSEMBLY
32 805139858 17 SCREW M10×25 GB/T70.1-2008 whatsapp 86-18630852087
33 805238371 1 NUT M10 GB/T6170-2000
34 801968465 1 RUBBER SLEEVE HOOP
35 801905725 3 RUBBER SLEEVE HOOP
36 803417575 1 HOSE ASS'Y
37 331505727 1 STEERING PUMP COMPONENT 108
38 803450003 1 HOSE ASS'Y
39 331505739 1 PRESSURE OIL FILTER ASSEMBLY 114
40 803180931 1 HOSE ASS'Y
41 331505882 1 STEEL PIPE ASSEMBLY whatsapp 86-18630852087
42 813402733 1 CONNECTOR
43 805046508 8 BOLT M8×20 GB/T5783-2000
44 805301384 8 WASHER 8 DIN6796
45 331502210 1 BRACKET
46 331505872 1 STEEL PIPE ASSEMBLY
47 331502215 2 BRACKET
48 803417576 1 HOSE ASS'Y
49 331505863 1 STEEL PIPE ASSEMBLY
50 331505756 1 STEERING VALVE ASSEMBLY 116
51 803413579 1 CONNECTOR
52 331505738 1 HEIGHTENING FLANGE COMPONENT 120
53 803199601 1 HOSE ASS'Y whatsapp 86-18630852087
54 331502213 1 BOARD DROP

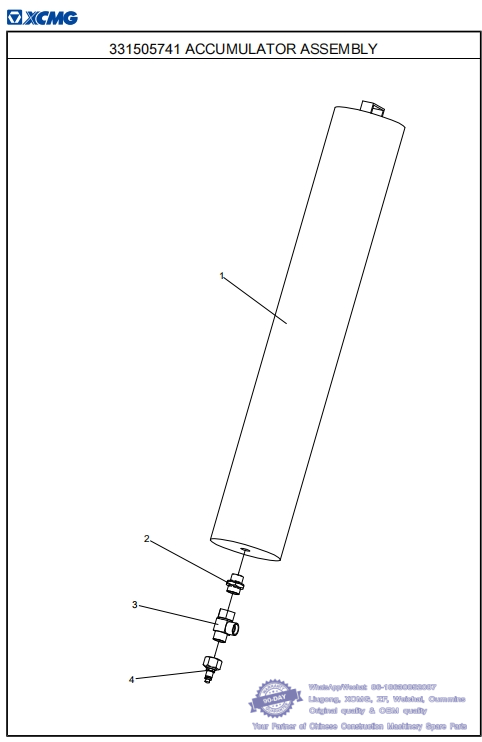

045 331505741 ACCUMULATOR ASSEMBLY-- XCMG Mining Dump Truck XDR100 Parts Catalog
331505724 FRAME STEERING PART
No. PART NUMBER QTY NAME NOTE PAGE
1 803084417 1 STEERING ACCUMULATOR 98 whatsapp 86-18630852087
2 803433471 1 CONNECTOR
3 803452464 1 CONNECTOR whatsapp 86-18630852087
4 813402737 1 CONNECTOR
