041 382301594 STEERING HYDRAULIC SYSTEM-- XCMG Motor Grader GR2205T Spare Parts Catalog
382301591 HYDRAULIC SYSTEM
No. PART NUMBER QTY NAME NOTE PAGE

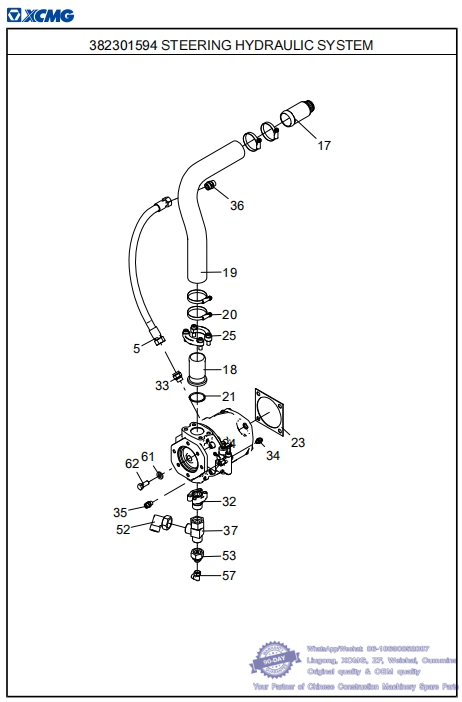

5 803410358 1 HOSE ASSEMBLY whatsapp 86-18630852087
17 380605436 1 OIL SUCTION RIGID PIPE
18 381202425 1 OIL SUCTION RIGID PIPE
19 382301696 1 OIL SUCTION HOSE
20 800159728 4 SCREW CLAMP
21 801100128 1 ORING 53×3.55 GB/T3452.1-2005
23 381202957 1 FIBREBOARD 2
24 804018269 1 PLUNGER PUMP
25 803164258 1 FLANGE
32 803191005 1 FLANGE whatsapp 86-18630852087
33 803182654 1 JOINT
34 803190999 1 JOINT
35 803105414 1 JOINT
36 803103340 1 JOINT
37 803107237 1 JOINT
52 803105384 1 JOINT
53 804001768 1 JOINT
57 803107607 1 JOINT
61 329900983 4 THICKENED FLAT WASHER
62 805048398 4 BOLT M14×1.5×35 GB/T5786-2000 whatsapp 86-18630852087
042 382301594 STEERING HYDRAULIC SYSTEM-- XCMG Motor Grader GR2205T Spare Parts Catalog
382301591 HYDRAULIC SYSTEM
No. PART NUMBER QTY NAME NOTE PAGE

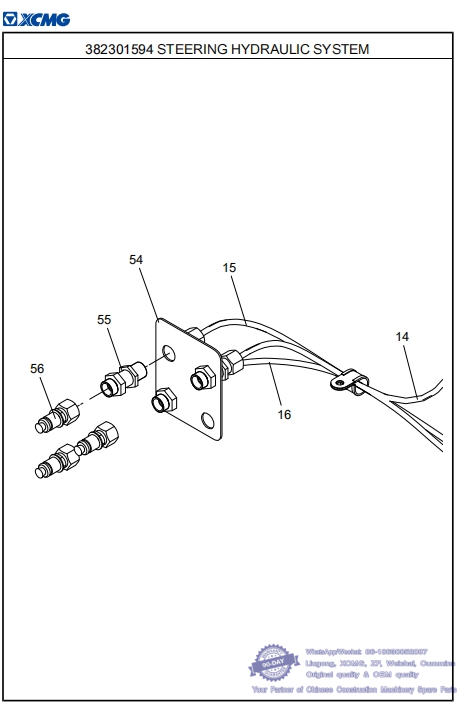

14 803198195 1 PRESSURE SENSOR whatsapp 86-18630852087
15 803424730 1 PRESSURE SENSOR
16 804003119 1 PRESSURE MEASURING HOSE
54 380401886 1 PRESSURE PLATE NAMEPLATE
55 803175896 3 JOINT whatsapp 86-18630852087
56 803183237 5 JOINT
043 382301594 STEERING HYDRAULIC SYSTEM-- XCMG Motor Grader GR2205T Spare Parts Catalog
382301591 HYDRAULIC SYSTEM
No. PART NUMBER QTY NAME NOTE PAGE

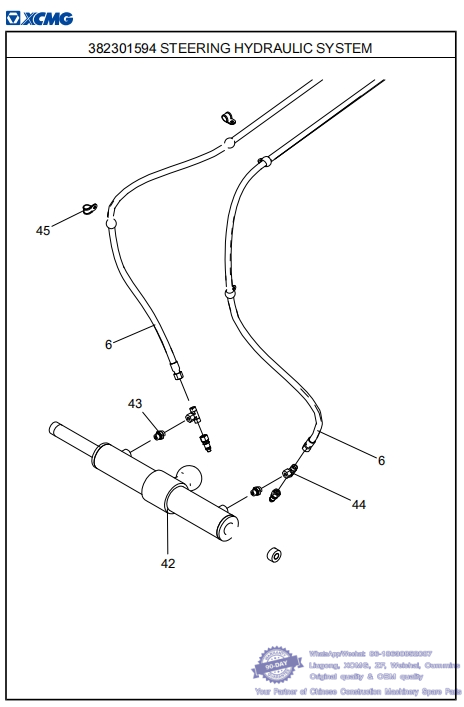

6 803398620 2 HOSE ASSEMBLY whatsapp 86-18630852087
42 803087366 1 FRONT WHEEL STEERING CYLINDER 96
43 803103852 2 JOINT
44 803184017 2 JOINT
45 803199327 7 CUTTING SLEEVE Φ20 TJBC whatsapp 86-18630852087

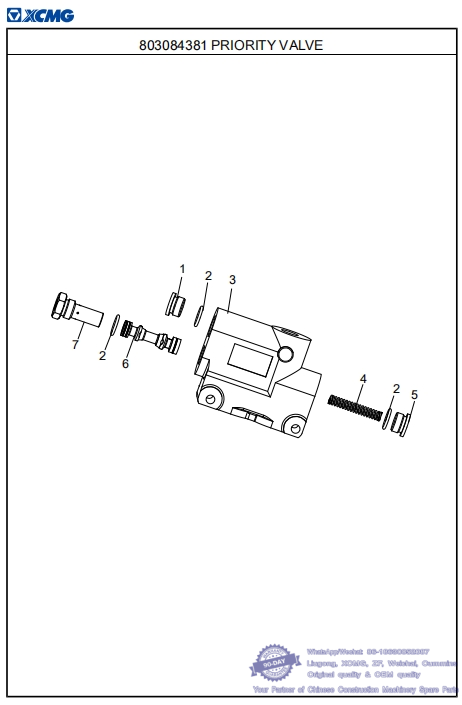

044 803084381 PRIORITY VALVE-- XCMG Motor Grader GR2205T Spare Parts Catalog
382301594 STEERING HYDRAULIC SYSTEM
No. PART NUMBER QTY NAME NOTE PAGE
1 860541269 1 PLUG whatsapp 86-18630852087
2 860541270 3 O-SHAPE SEALING RING
3 860541271 1 VALVE BODY
4 860541272 1 SPRING
5 860541273 1 PLUG
6 860541274 1 VALVE CORE
7 860541275 1 PLUG whatsapp 86-18630852087

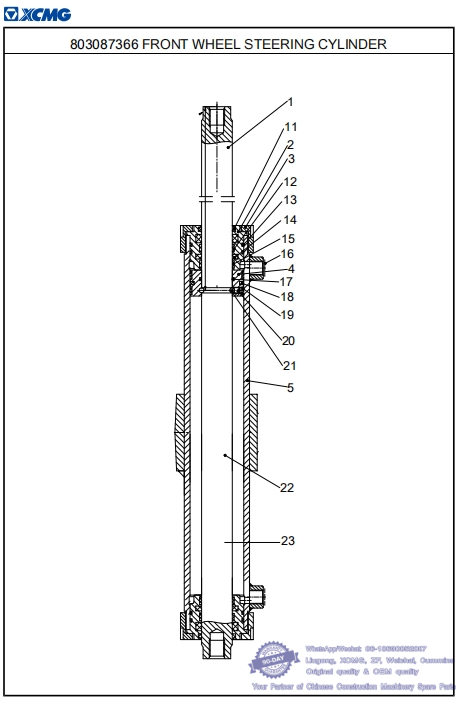

045 803087366 FRONT WHEEL STEERING CYLINDER-- XCMG Motor Grader GR2205T Spare Parts Catalog
382301594 STEERING HYDRAULIC SYSTEM
No. PART NUMBER QTY NAME NOTE PAGE
1 860500597 1 ROD whatsapp 86-18630852087
2 860500598 1 CYLINDER SLEEVE
3 860500599 1 LOCKING RING
4 860500600 1 PISTON
5 860500601 1 CYLINDER STRUCTURAL COMPONENT
11 860500602 2 DA22SCRAPER SEAL 40×48.6×5.3
12 860500573 2 RUJSEALING RING 40×55×11
13 860500604 4 O RING 70×3.1
14 860500572 2 STEP SEAL 40×55.1×6.3
15 860500569 4 BACK-UP RING GBS-5809-40
16 860500606 2 OIL PLUG M18×1.5
17 860500607 1 O RING 45×3.1 whatsapp 86-18630852087
18 860500608 1 GLYD RING 70×59×4.2
19 860500609 2 SUPPORT RING GBS-5909-70
20 860500610 1 SCREW M8×10
21 860500611 2 STEEL BALL SΦ6.35
22 860500612 1 NAMEPLATE DEDICATED FOR XCMG
23 801142080 1 CYLINDER SEALING PACKAGE whatsapp 86-18630852087
