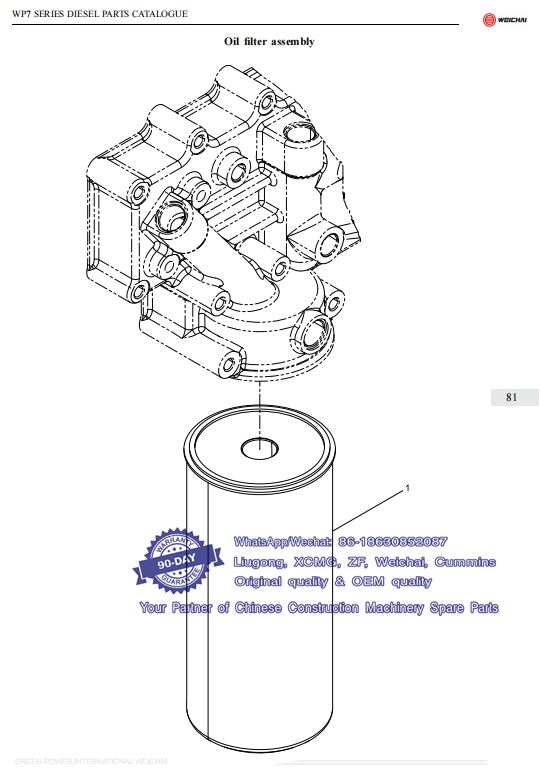

041 Oil filter assembly——Weichai WP7 SERIES DIESEL PARTS CATALOGUE
Pos. Teile.Number Amount Designation
1 1000442627 1 Oil Filter Element Whatsapp: 86-18630852087

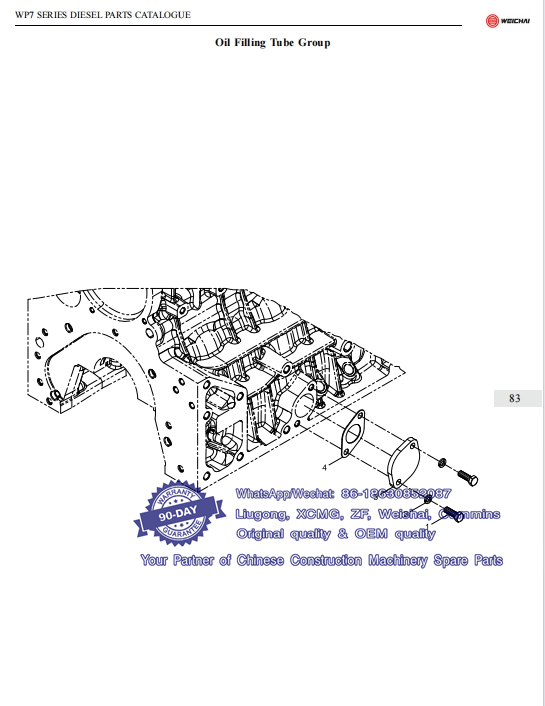

042 Oil Filling Tube Group——Weichai WP7 SERIES DIESEL PARTS CATALOGUE
Pos. Teile.Number Amount Designation
1 90003802424 2 Hexagon Head Bolt
2 90003931102 2 Spring Washer Whatsapp: 86-18630852087
3 612630010175 1 Cover
4 610800010099 1 Gasket

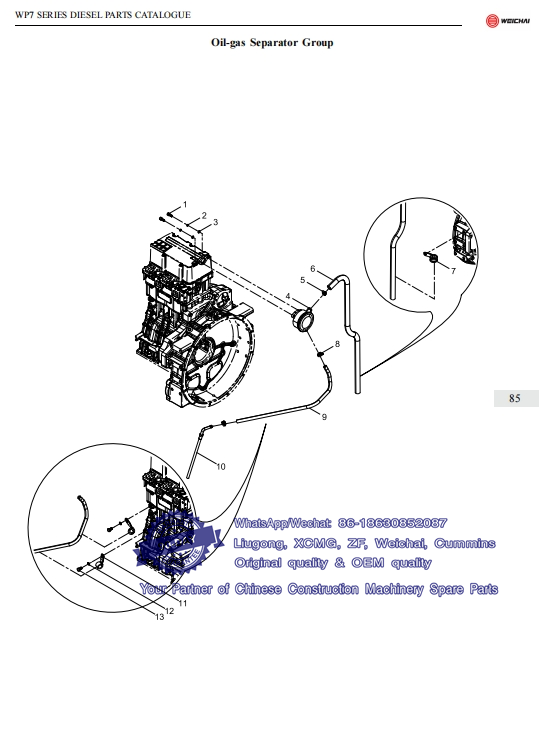

043 Oil-gas Separator Group——Weichai WP7 SERIES DIESEL PARTS CATALOGUE
Pos. Teile.Number Amount Designation
1 90003862327 2 Inner Hexagon Socket Head Cap Screw
2 90014350003 2 Spring Washer Whatsapp: 86-18630852087
3 90014040006 2 Plain Washer
4 610800040024 1 Oil-gas Separator Assembly
5 90003989340 1 Clamp
6 610800040354 1 Air Connecting Rubber Pipe
7 612600011361 1 Pipe Clamp Assembly
8 90003989300 2 Clamp Whatsapp: 86-18630852087
9 610800040064 1 Oil Connecting Rubber Pipe
10 610800010072 1 Pipe Joint
11 13038248 2 Pipe Clamp Whatsapp: 86-18630852087
12 90003932024 2 Wave Spring Washer
13 90003802511 2 Hexagon Head Bolt

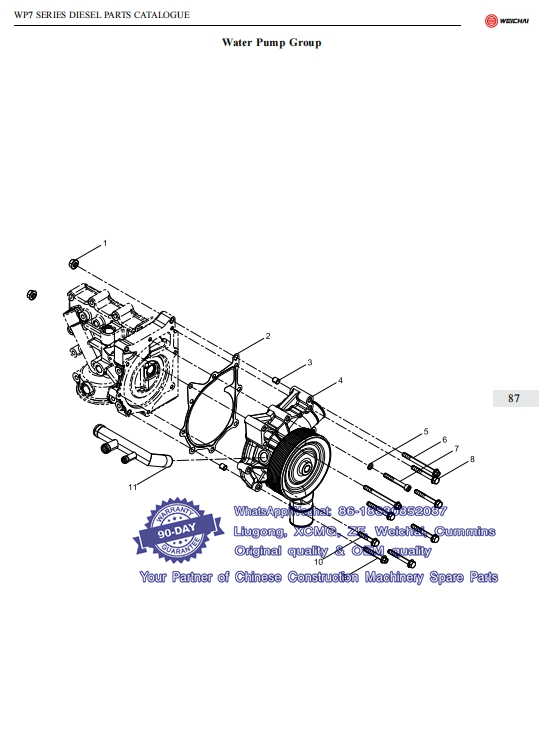

044 Water Pump Group——Weichai WP7 SERIES DIESEL PARTS CATALOGUE
Pos. Teile.Number Amount Designation
1 90012290001 2 Hexagon Flange Nut
2 610800060204 1 Gasket Whatsapp: 86-18630852087
3 610800060215 2 Dowel Pin
4 610800060207 1 Water Pump
5 90003932023 1 Wave Spring Washer
6 9000000634 2 Hexagon Flange Bolt
7 90003862466 1 Inner Hexagon Socket Head Cap Screw
8 90011420001 5 Hexagon Flange Bolt
9 9000000003 1 Hexagon Flange Bolt Whatsapp: 86-18630852087
10 9000000591 1 Hexagon Flange Bolt
11 1001073782 1 Water Pipe Connector

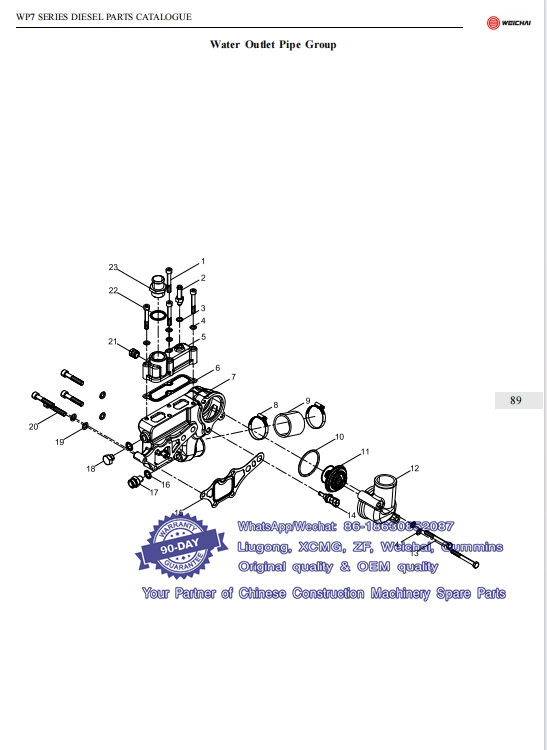

045 Water Outlet Pipe Group——Weichai WP7 SERIES DIESEL PARTS CATALOGUE
Pos. Teile.Number Amount Designation
1 90003862456 4 Inner Hexagon Socket Head Cap Screw
2 610800060333 1 Conversion Adapter
3 610800060191 1 Gasket
4 90003932023 10 Wave Spring Washer
5 610800060280 1 Plug Whatsapp: 86-18630852087
6 610800060123 1 Pipe Joint
7 610800060217 1 Water-outlet Pipe
8 90003989308 2 Clamp
9 610800060198 1 Coolant Connecting Rubber Pipe
10 680340065 1 Seal Ring
11 61800060172 1 Internal Thermostat Whatsapp: 86-18630852087
12 610800060346 1 Thermostat Cover
13 90003800467 2 Hexagon Head Bolt
14 612630060035 1 Temperature Sensor
15 610800060196 1 Water-outlet pipe gasket
16 13023360 1 Assembled Sealing Washer
17 1001047552 1 Water Pipe Connector Whatsapp: 86-18630852087
18 9000000483 1 Hexagon Taper Screw Plug
19 13057039 1 Assembled Sealing Washer
20 90013550012 4 Inner Hexagon Socket Head Cap Screw
21 1000964214 1 Water Pipe Connector
22 1000858439 1 Assembled Sealing Washer
23 610800060573 1 Pipe Joint

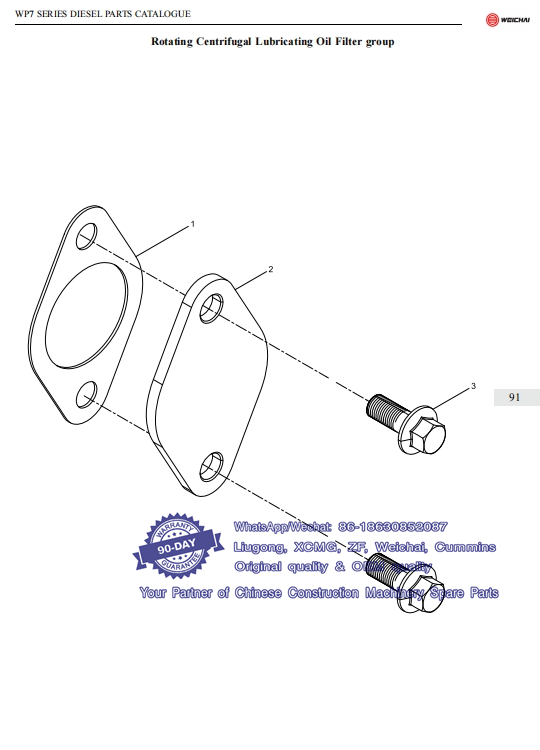

046 Rotating Centrifugal Lubricating Oil Filter group——Weichai WP7 SERIES DIESEL PARTS CATALOGUE
Pos. Teile.Number Amount Designation
1 610800070381 1 Gasket Whatsapp: 86-18630852087
2 610800070382 1 Cover
3 90011410011 2 Hexagon Flange Bolt

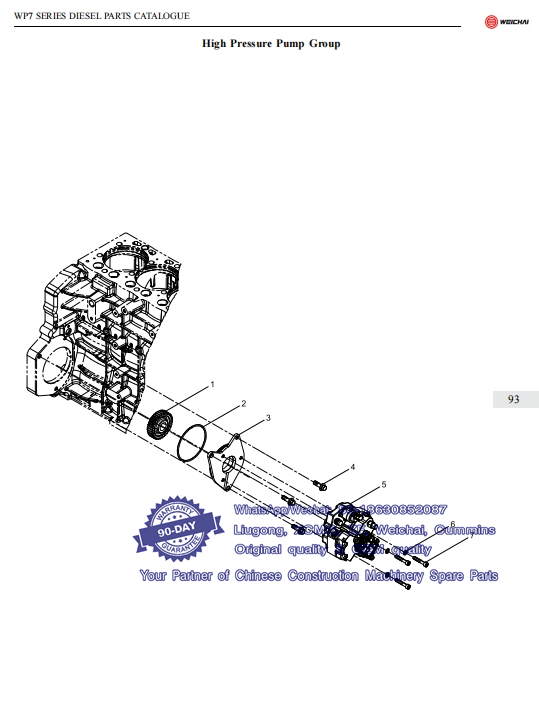

047 High Pressure Pump Group——Weichai WP7 SERIES DIESEL PARTS CATALOGUE
Pos. Teile.Number Amount Designation
1 610800080161 1 Fuel Injection Pump Gear
2 610800080887 1 O-ring Whatsapp: 86-18630852087
3 610800080980 1 Fuel Injection Pump Flange
4 9000000044S 3 Hexagon Flange Bolt
5 610800080979 1 Fuel Injection Pump
6 90003932023 3 Wave Spring Washer
7 90013550012S 3 Inner Hexagon Socket Head Cap Screw

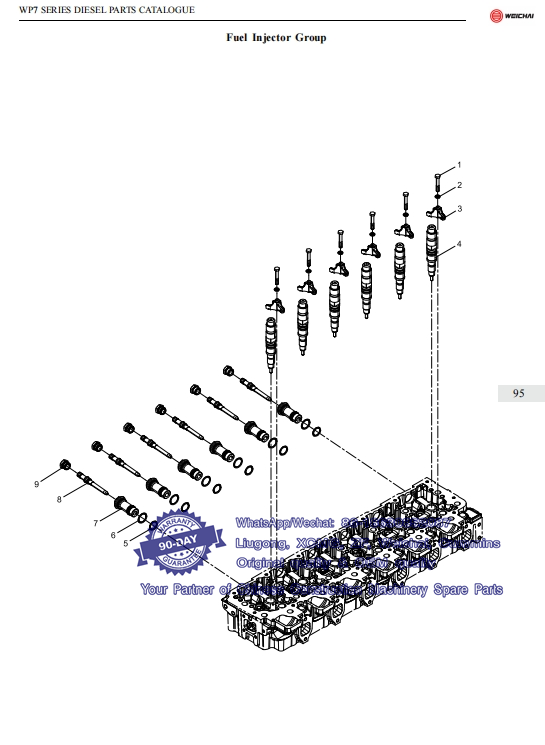

048 Fuel Injector Group——Weichai WP7 SERIES DIESEL PARTS CATALOGUE
Pos. Teile.Number Amount Designation
1 610800080084 6 Hexagon Head Bolt
2 610800080031 6 Washer with Ball Face
3 1000728483 6 Fuel Injector Clamp
4 1000035955 6 Fuel Injector Whatsapp: 86-18630852087
5 610800080534 6 O-ring
6 610800080533 6 O-ring
7 610800080532 6 Thread Sleeve
8 610800080002 6 High-pressure Connector
9 610800080006 6 Tight Nut

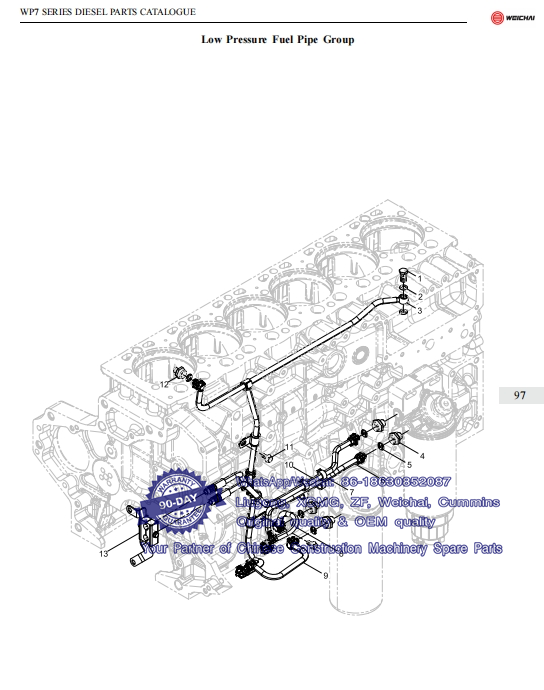

049 Low Pressure Fuel Pipe Group——Weichai WP7 SERIES DIESEL PARTS CATALOGUE
Pos. Teile.Number Amount Designation
1 90003962612 1 Hollow screw
2 612600050042 3 Sealing Washer
3 610800081141 1 Fuel Return Pipe Assembly
4 610800080869 4 Pipe Joint Whatsapp: 86-18630852087
5 13023361 4 Assembled Sealing Washer
6 610800081124 1 Fuel-inlet Pipe Assembly
7 612600080948 3 Pipe Clamp Assembly
8 610800081126 1 Fuel-inlet Pipe
9 610800081128 1 Fuel-inlet Pipe Whatsapp: 86-18630852087
10 610800081122 1 Fuel-inlet Pipe
11 90011400020 2 Hexagon Flange Bolt
12 610800080822 1 Pipe Joint
13 610800081135 1 Pipe Clamp Assembly

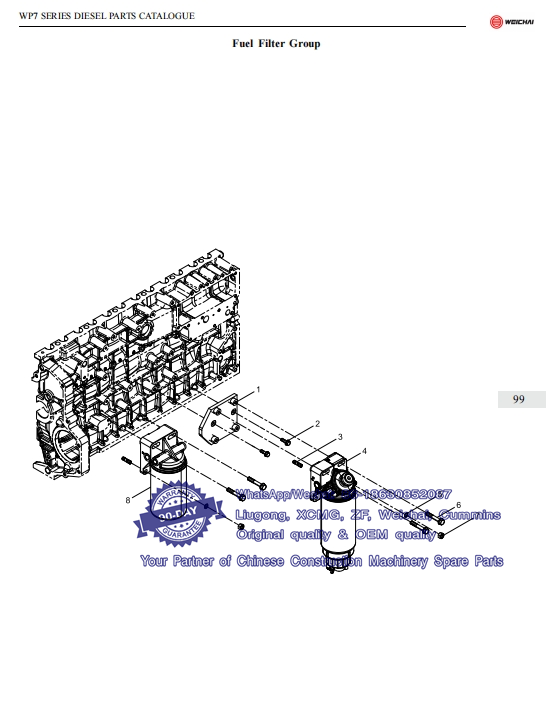

050 Fuel Filter Group——Weichai WP7 SERIES DIESEL PARTS CATALOGUE
Pos. Teile.Number Amount Designation
1 610800081130 1 Fuel Filter Bracket
2 90011400020 2 Hexagon Flange Bolt Whatsapp: 86-18630852087
3 90003813523 2 Double End Stud
4 1000955413 1 Fuel Coarse Filter Whatsapp: 86-18630852087
5 90003932024 2 Wave Spring Washer
6 612639000090 4 Hexagon Head Bolt
7 90003871305 2 Hexagon Nuts, Style 1
8 1000447499 1 Fuel Fine Filter
