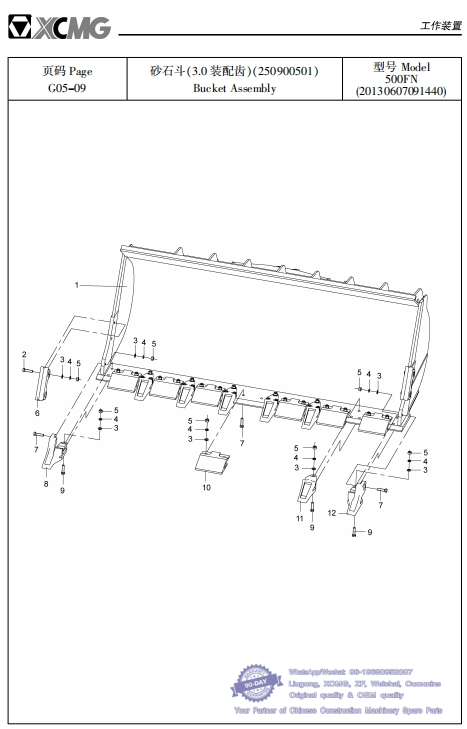

042 砂石斗（3.0 装配齿）（250900501）型号 500FN (20130607091440)
Bucket Assembly Model 500FN (20130607091440)-- XCMG Loader LW500FN Parts Catalog
件号 部件号 零件名称 数量 备注
Item Part No. Part Name Qty Remarks
1 252101783 铲斗 Bucket 1
3 805301276 垫圈 20 Washer 38 GB/T95-2002
4 805300023 垫圈 20 Washer 38 GB/T93-1987
5 805200052 螺母 M20-10 Nut 42 GB/T6170-2000
6 252101005 护套 Protection Sleeve 2
7 805000379 螺栓 M20伊70 Bolt 20 GB/T5783-2000
8 252101232 右边齿 Right Tooth 1
9 805000374 螺栓M20*90 10.9 级 Bolt 22 GB/T5783-2000
10 252101235 刀片 Blade 7
11 252101234 铲齿 Tooth 6
12 252101231 左边齿 Left Tooth 1
043 轻物料铲斗3.5(253000542) 型号 500FN (20130607091440)
Bucket Assembly(For Light Material) Model 500FN (20130607091440)-- XCMG Loader LW500FN Parts Catalog
件号 部件号 零件名称 数量 备注
Item Part No. Part Name Qty Remarks
1 252101791 铲斗 Bucket 1
2 805000113 螺栓 M20伊80 Bolt 16 GB/T5783-2000
3 252101727 切削板 Cutting Edge 4
4 805300112 垫圈 20 Washer 16 GB/T97.1-2002
5 805300023 垫圈 20 Washer 16 GB/T93-1987
6 805200052 螺母 M20-10 Nut 16 GB/T6170-2000

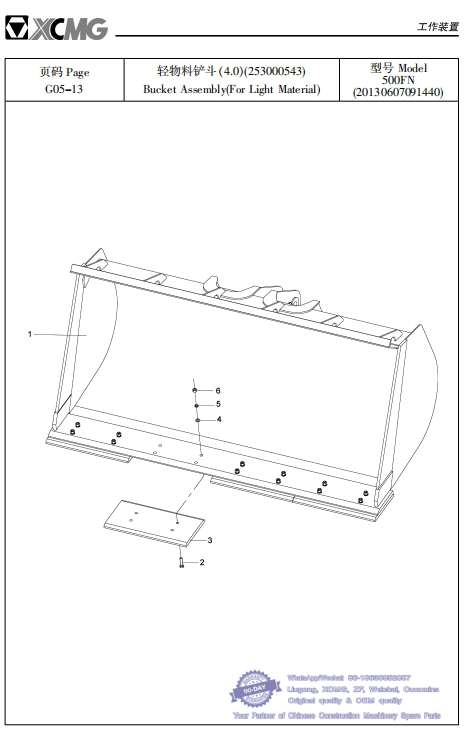

044 轻物料铲斗4.0(253000543) 型号 500FN (20130607091440)
Bucket Assembly(For Light Material) Model 500FN (20130607091440)-- XCMG Loader LW500FN Parts Catalog
件号 部件号 零件名称 数量 备注
Item Part No. Part Name Qty Remarks
1 252101793 铲斗 Bucket 1
2 805000136 螺栓 M20伊70 Bolt 16 GB/T5782-2000
3 252100734 切削板 Cutting Edge 4
4 805300112 垫圈 20 Washer 16 GB/T97.1-2002
5 805300023 垫圈 20 Washer 16 GB/T93-1987
6 805200052 螺母 M20-10 Nut 16 GB/T6170-2000

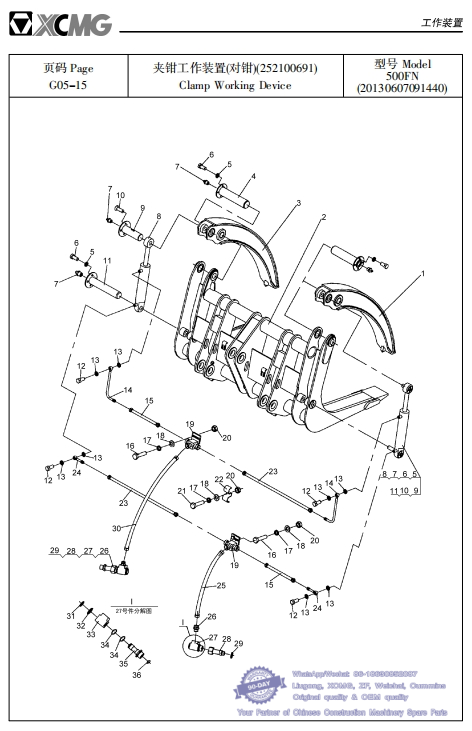

045 夹钳工作装置(对钳)(252100691) 型号 500FN (20130607091440)
Clamp Working Device Model 500FN (20130607091440)-- XCMG Loader LW500FN Parts Catalog
件号 部件号 零件名称 数量 备注
Item Part No. Part Name Qty Remarks
1 250400396 上钳体渊右冤 Upper Clamp(Right) 1
2 252100692 下钳体 Lower Clamp 1
3 250400387 上钳体渊左冤 Upper Clamp(Left) 1
4 252101972 铰接销 Pin 2
5.1 805300011 垫圈 16 Washer 4 GB/T93-1987
5.2 805300013 垫圈 16 Washer 4 GB/T 97.1-2002
6 805000022 螺栓 M16伊25 Bolt 4 GB/T5783-2000
7 801100336 油杯 M10伊1 Oil Cup 2 JB/T7940.1-1995
8 803004051 (夹木钳) 油缸 Shaft 2
9 252101966 油缸上销轴 Upper Shaft Pin 2
10.2 805300018 垫圈 12 Washer 2 GB/T93-1987
10.1 805000715 螺栓 M12伊25 Bolt 2 GB/T5783-2000
10.3 805300113 垫圈 12 Washer 2 GB/T 96.1-2002
11 250300219 油缸下销轴 Lower Shaft Pin 2
12 252101970 油缸下销轴 Lower Shaft Pin 4
13 805301414 垫圈 22 Washer 8 Q/SC1294-2000
14 252101210 钢管 Steel Tube 2
15 252101212 软管总成 Tube 2
16 805000089 螺栓 M8伊35 Bolt 4
17 805300010 垫圈 8 Washer 5 GB/T 93-1987
18 805300069 垫圈 8 Washer 5 GB/T 97.1-2002
19 252101424 三通块 Tee Joint t 2
20 805200045 螺母 M8 Nut 5 GB/T6170-2002
21 805000020 螺栓 M8伊30 Bolt 1 GB/T5783-2000
22 250400383 管夹 Tube Clamp 1
23 252101211 软管总成 Tube 2
24 252101209 钢管 Steel Tube 2
25 252101041 胶管总成 Hose 1
26 805002287 接头 Connector 2
27 252101043 回转接头 Joint 2
28 252100660 钢管 Steel Tube 2
29 805301417 垫圈 30 Washer 2 Q/SC1294-2000
30 252101042 胶管总成 Tube 1
31 805400001 挡圈 25 Circlip 2 GB/T894.1-1986
32 250100606 垫圈 Washer Joint 2
33 252101044 接头座 O-Ring 2
34 803164127 O 形密封圈 25.8伊3.55 Rotative Joint 4
35 250100605 回转接头体 O-Ring 2
36 801100117 O 型圈 18伊2.65 O-Ring 2
