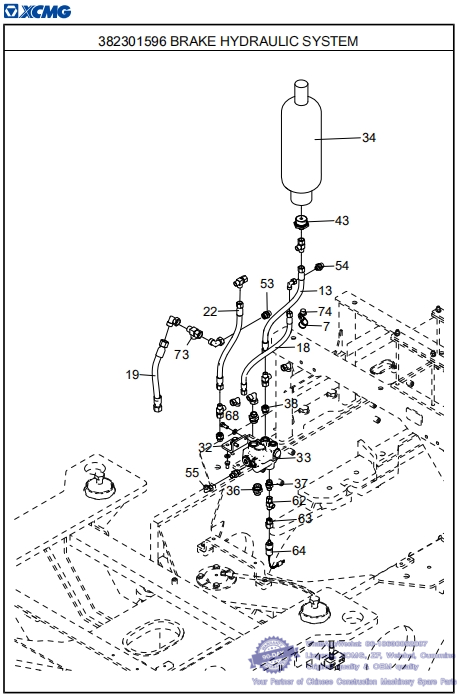

046 382301596 BRAKE HYDRAULIC SYSTEM-- XCMG Motor Grader GR2205T Spare Parts Catalog
382301591 HYDRAULIC SYSTEM
No. PART NUMBER QTY NAME NOTE PAGE
7 803300798 1 CUTTING FERRULE Φ24-11 TJBC whatsapp 86-18630852087
13 803373496 2 HOSE ASSEMBLY
18 803374481 1 HOSE ASSEMBLY
19 803432905 1 HOSE ASSEMBLY
22 803300730 1 HOSE ASSEMBLY
32 382301595 1 MOUNTING PLATE
33 804009800 1 DOUBLE-CIRCUIT REFILL VALVE
34 800937644 1 ENERGY ACCUMULATOR
36 803164733 2 JOINT whatsapp 86-18630852087
37 803192034 2 JOINT
38 803164255 2 JOINT
43 804003121 1 JOINT
53 803103818 1 JOINT
54 803103529 1 JOINT
55 803103351 5 JOINT
62 803162089 1 JOINT
63 803398324 1 TRANSITION JOINT
64 803752180 1 PRESSURE ALARM SWITCH
68 805011330 2 BOLT M10×25 (DACROMET) GB/T5783-2000
73 803172037 1 JOINT
74 803183080 1 PLUG whatsapp 86-18630852087

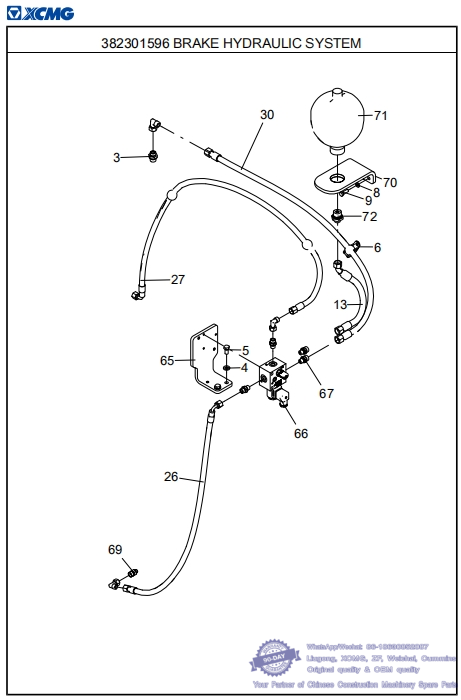

047 3823011596 BRAKE HYDRAULIC SYSTEM-- XCMG Motor Grader GR2205T Spare Parts Catalog
382301591 HYDRAULIC SYSTEM
No. PART NUMBER QTY NAME NOTE PAGE
3 803103852 2 JOINT whatsapp 86-18630852087
4 329900302 6 THICKENED FLAT WASHER
5 805046525 4 BOLT M10×20 (DACROMET) GB/T5783-2000
6 803300794 1 CUTTING SLEEVE Φ35 TJBC
8 329900301 5 THICKENED FLAT WASHER
9 805046509 5 BOLT M8×25 (DACROMET) GB/T5783-2000
13 803373496 2 HOSE ASSEMBLY
26 803309717 1 HOSE ASSEMBLY
27 803182983 1 HOSE ASSEMBLY
30 803102438 1 HOSE ASSEMBLY
65 381101335 1 MOUNTING PLATE OF SOLENOID VALVE
66 801504498 1 PARK VALVE 114 whatsapp 86-18630852087
67 803105414 2 JOINT
69 803164420 1 JOINT
70 381100792 1 BASE PLATE
71 803190055 1 ENERGY ACCUMULATOR
72 803106731 1 JOINT whatsapp 86-18630852087

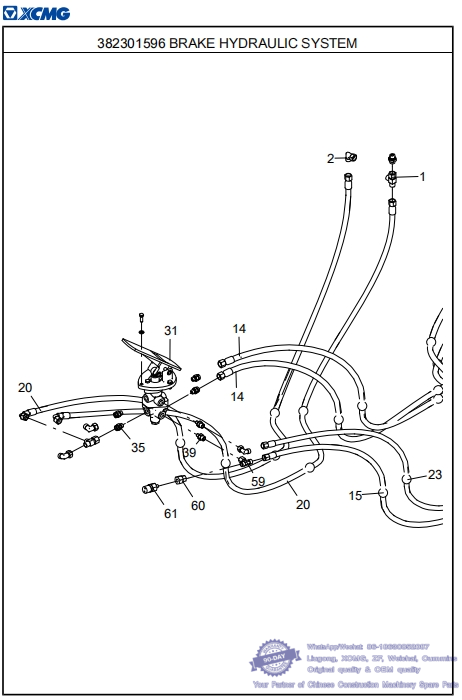

048 382301596 BRAKE HYYDRAULIC SYSTEM-- XCMG Motor Grader GR2205T Spare Parts Catalog
382301591 HYDRAULIC SYSTEM
No. PART NUMBER QTY NAME NOTE PAGE
1 803105415 6 JOINT whatsapp 86-18630852087
2 803107607 6 JOINT
14 803436025 2 HOSE ASSEMBLY
15 803176870 1 HOSE ASSEMBLY
20 803304137 2 HOSE ASSEMBLY
23 803175670 1 HOSE ASSEMBLY
31 804009799 1 DOUBLE-CIRCUIT BRAKE VALVE 110
35 803164730 4 JOINT
39 803111704 2 JOINT whatsapp 86-18630852087
59 803105353 1 JOINT
60 380500404 1 TRANSITION JOINT
61 803754263 1 PRESSURE ALARM SWITCH whatsapp 86-18630852087

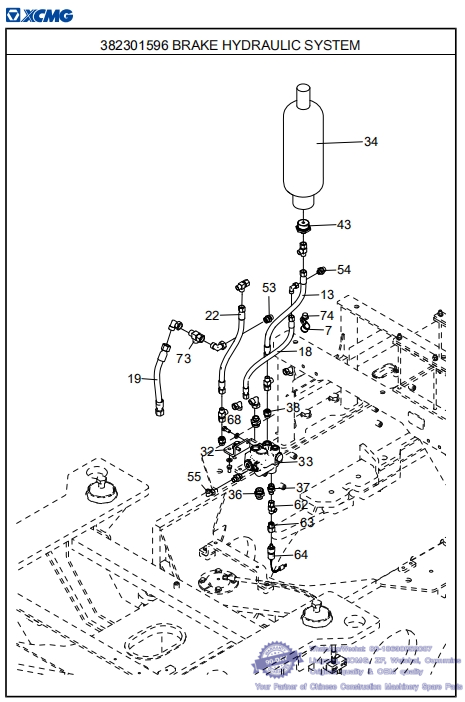

049 382301596 BRAKE HYDRAULIC SYSTEM-- XCMG Motor Grader GR2205T Spare Parts Catalog
382301591 HYDRAULIC SYSTEM
No. PART NUMBER QTY NAME NOTE PAGE
7 803300798 1 CUTTING FERRULE Φ24-11 TJBC whatsapp 86-18630852087
13 803373496 2 HOSE ASSEMBLY
18 803374481 1 HOSE ASSEMBLY
19 803432905 1 HOSE ASSEMBLY
22 803300730 1 HOSE ASSEMBLY
32 382301595 1 MOUNTING PLATE
33 804009800 1 DOUBLE-CIRCUIT REFILL VALVE
34 800937644 1 ENERGY ACCUMULATOR
36 803164733 2 JOINT whatsapp 86-18630852087
37 803192034 2 JOINT
38 803164255 2 JOINT
43 804003121 1 JOINT
53 803103818 1 JOINT
54 803103529 1 JOINT
55 803103351 5 JOINT
62 803162089 1 JOINT
63 803398324 1 TRANSITION JOINT
64 803752180 1 PRESSURE ALARM SWITCH
68 805011330 2 BOLT M10×25 (DACROMET) GB/T5783-2000
73 803172037 1 JOINT
74 803183080 1 PLUG whatsapp 86-18630852087

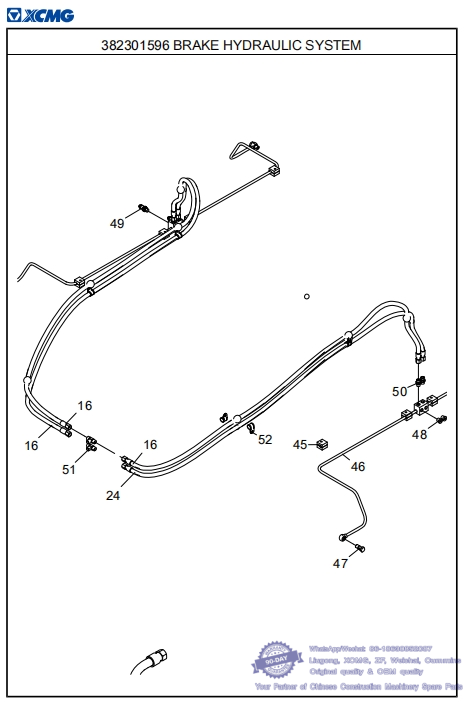

050 382301596 BRAKE HYDRAULIC SYSTEM-- XCMG Motor Grader GR2205T Spare Parts Catalog
382301591 HYDRAULIC SYSTEM
No. PART NUMBER QTY NAME NOTE PAGE
16 803433357 3 HOSE ASSEMBLY whatsapp 86-18630852087
24 803300463 1 HOSE ASSEMBLY
45 803190339 8 PIPE CLAMP
46 803440625 2 METAL PIPE ASSEMBLY
47 805009809 4 BOLT M14×1.5×32 JB/T999-1977
48 803103961 2 PLUG whatsapp 86-18630852087
49 803163524 2 JOINT
50 803103341 6 JOINT
51 803103959 2 JOINT
52 803199326 8 CUTTING SLEEVE Φ18 TJBC whatsapp 86-18630852087
