046 803084417 STEERING ACCUMULATOR-- XCMG Mining Dump Truck XDR100 Parts Catalog
331505737 ACCUMULATOR ASSEMBLY
No. PART NUMBER QTY NAME NOTE PAGE
1 804200008 1 CYLINDER TUBE whatsapp 86-18630852087
2 804200009 1 OIL SECTION END COVER
3 804200010 1 AIR END COVER
4 804200011 1 PISTON
5 803497869 1 V-SHAPED SEAL RING (H)
6 805408177 2 HOLD WASHER8
7 803497870 2 WEAR RING whatsapp 86-18630852087
8 803497871 2 COVERORING
9 805408178 2 HOLD WASHER7
10 804013247 1 AIR VALVE ASSEMBLY
11 804200012 1 AIR VALVE PROTECTIVE COVER
12 805052179 2 BOLT whatsapp 86-18630852087
13 804200013 1 NAMEPLATE
14 804200014 1 OIL END PROTECTIVE COVER

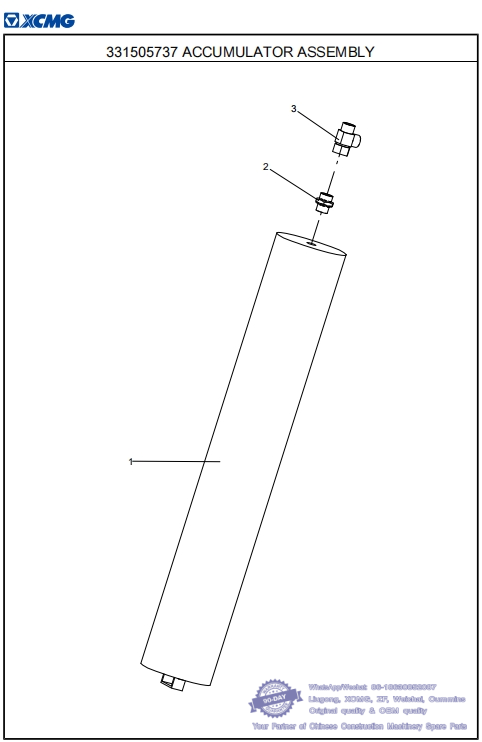

047 331505737 ACCUMULATOR ASSEMBLY-- XCMG Mining Dump Truck XDR100 Parts Catalog
331505724 FRAME STEERING PART
No. PART NUMBER QTY NAME NOTE PAGE
1 803084417 1 STEERING ACCUMULATOR 98 whatsapp 86-18630852087
2 803433471 1 CONNECTOR
3 803452464 1 CONNECTOR whatsapp 86-18630852087

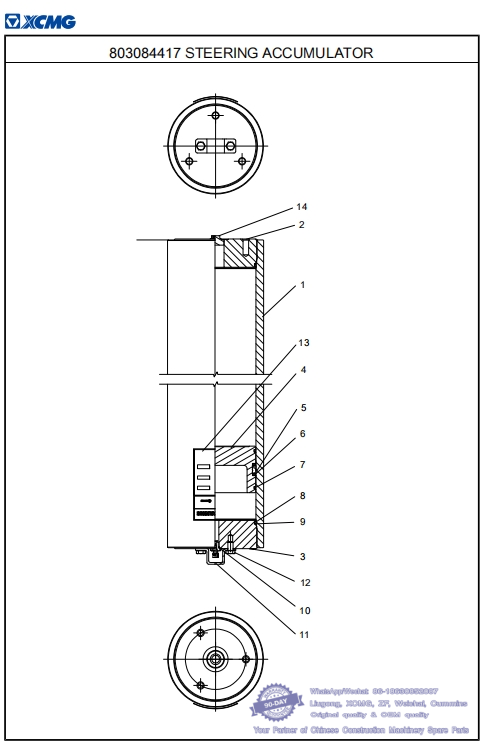

048 803084417 STEERING ACCUMULATOR-- XCMG Mining Dump Truck XDR100 Parts Catalog
331505737 ACCUMULATOR ASSEMBLY
No. PART NUMBER QTY NAME NOTE PAGE
1 804200008 1 CYLINDER TUBE whatsapp 86-18630852087
2 804200009 1 OIL SECTION END COVER
3 804200010 1 AIR END COVER
4 804200011 1 PISTON
5 803497869 1 V-SHAPED SEAL RING (H)
6 805408177 2 HOLD WASHER8
7 803497870 2 WEAR RING
8 803497871 2 COVERORING whatsapp 86-18630852087
9 805408178 2 HOLD WASHER7
10 804013247 1 AIR VALVE ASSEMBLY
11 804200012 1 AIR VALVE PROTECTIVE COVER
12 805052179 2 BOLT
13 804200013 1 NAMEPLATE whatsapp 86-18630852087
14 804200014 1 OIL END PROTECTIVE COVER

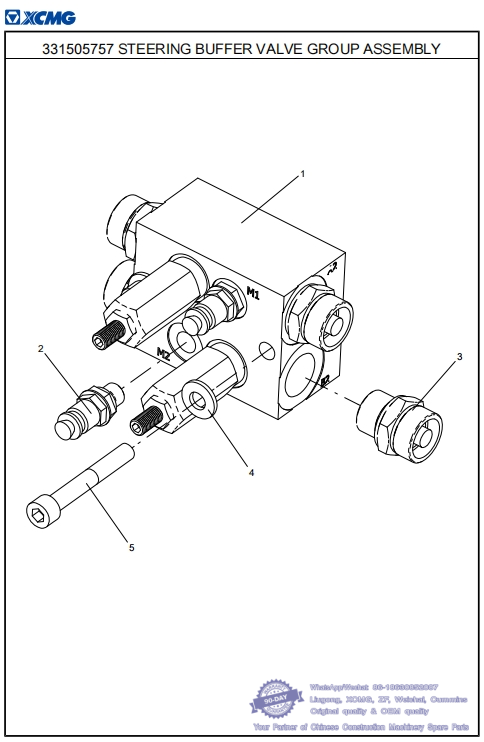

049 331505757 STEERING BUFFER VALVE GROUP ASSEMBLY-- XCMG Mining Dump Truck XDR100 Parts Catalog
331505724 FRAME STEERING PART
No. PART NUMBER QTY NAME NOTE PAGE
1 803406962 1 STEERING BUFFER VALVE GROUP 106
2 813402945 2 CONNECTOR whatsapp 86-18630852087
3 803424639 4 CONNECTOR
4 805301373 2 WASHER 10 DIN6796
5 805139867 2 SCREW M10×70 GB/T70.1-2008 whatsapp 86-18630852087

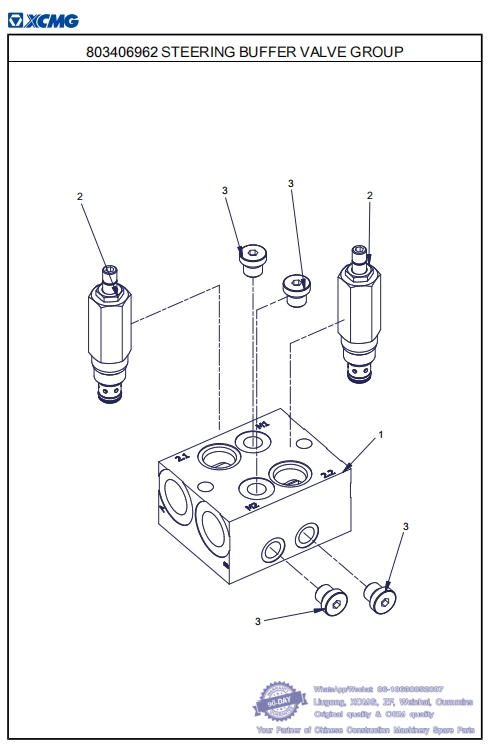

050 803406962 STEERING BUFFER VALVE GROUP-- XCMG Mining Dump Truck XDR100 Parts Catalog
331505757 STEERING BUFFER VALVE GROUP ASSEMBLY
No. PART NUMBER QTY NAME NOTE PAGE
1 804200076 1 FORGE PIECE 105 X 85 X 55 whatsapp 86-18630852087
2 860150593 2 PRESSURE RELIEF VALVE
3 803103958 4 PLUG whatsapp 86-18630852087
