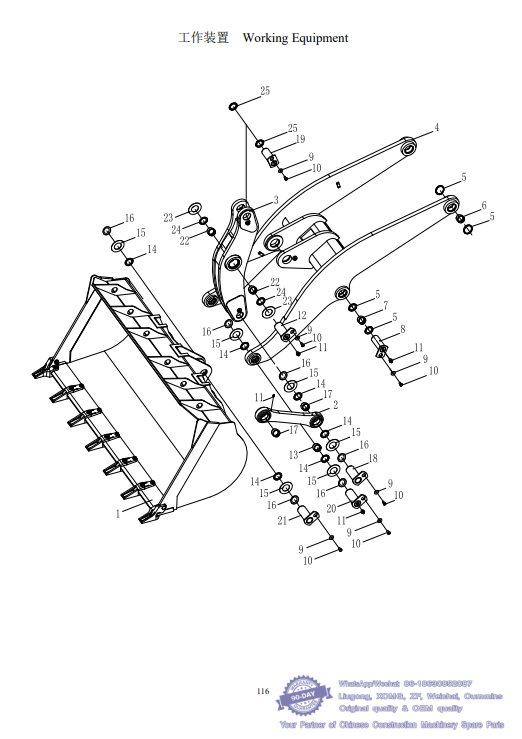

十三、工作装置 Working Equipment - Changlin Wheel Loader 957H Cummins engine Spare Parts Catalog
051 工作装置 Working Equipment - Changlin Wheel Loader 957H Cummins engine Spare Parts Catalog
序号 零件代号 版本 名称 数量 适用车号 是否配件 选装
No. Part No. Ver. Part Name Q’ty Suit Num. Spare Parts Cho
1 Z-956-310-00531 1 铲斗 956.31.D1 Tooth bucket 1 957H0556-
2 Z-956-130-00032 1 连杆 956.13.2A.1 Linkage 1 957H0556-
3 Z-956-130-00028 1 焊接摇臂 956.13.3A.1 Rocker arm 1 957H0556-
4 Z-956-13A-00002 1 焊接动臂 956.13A.1.1 Lift arm 1 957H0556-
5 Z-15B-130-00022 1 内防尘圈 110 Z50B.13.13 Inner dust ring 8 957H0556-
6 Z-15B-130-00036 1 动臂后轴套 Z50B.13.7-1A Tail bushing 2 957H0556-
7 Z-15B-130-00036 1 动臂中轴套 Z50B.13.7-3A Mid bushing 2 957H0556-
8 Z-15B-130-00048 1 销轴组件 Z50B.13.5A Shaft assembly 2 957H0556-
9 B-Q01201E-00003 1 垫圈 16 Washer 8 957H0556-
10 B-G057830-00066 1 螺栓 M16×25ZnD Bolt 8 957H0556-
11 B-J07940A-00001 1 油杯 M10×1 Grease cup 7 957H0556-
12 Z-956-130-00025 1 销轴组件 956.13.4 Shaft assembly 1 957H0556-
13 Z-15E-13P-00011 1 动臂前轴套 Z50E.13P.1-1 Frontal bushing 2 957H0556-
14 Z-15B-130-00018 1 内防尘圈 100 Z50B.13.1 Inner dust ring 8 957H0556-
15 Z-15B-130-00016 1 垫片 Z50B.13-2 Pad 8 957H0556-
16 Z-15B-130-00015 1 外防尘圈 115 Z50B.13-1 Outer dust ring 8 957H0556-
17 Z-15B-130-00059 1 轴套 Z50B.13.8-2A Bushing 2 957H0556-
18 Z-956-130-00034 1 销轴组件 956.13.5 Shaft assembly 1 957H0556-
19 Z-15E-13N-00011 1 销轴组件 Z50E.13N.6 Shaft assembly 1 957H0556-
20 Z-15E-13N-00006 1 销轴组件 Z50E.13N.3 Shaft assembly 2 957H0556-
21 Z-956-130-00036 1 销轴组件 956.13.6 Shaft assembly 1 957H0556-
22 Z-15B-130-00065 1 轴套 Z50B.13.9-1A Bushing 2 957H0556-
23 Z-15B-130-00042 1 垫片 Z50B.13-15 Pad 2 957H0556-
24 Z-15B-130-00025 1 内防尘圈 135 Z50B.13.11 Inner dust ring 2 957H0556-
25 Z-15B-130-00046 1 内防尘圈 115 Z50B.13.12 Inner dust ring 2 957H0556-

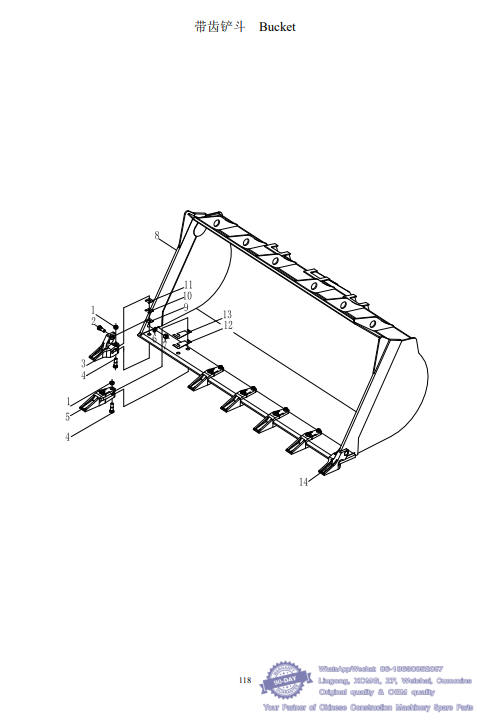

052 带齿铲斗 Bucket - Changlin Wheel Loader 957H Cummins engine Spare Parts Catalog
序号 零件代号 版本 名称 数量 适用车号 是否配件 选装
No. Part No. Ver. Part Name Q’ty Suit Num. Spare Parts Cho
1 Z-15B-130-00005 1 螺母 Z50B.13-5 Nut 12 957H0556-
2 Z-15B-130-00011 1 螺栓 Z50B.13-6 Bolt 2 957H0556-
3 Z-15B-130-00002 1 右边齿 Z50B.13-11A Right tooth 1 957H0556-
4 Z-15B-130-00004 1 螺栓 Z50B.13-4 Bolt 12 957H0556-
5 Z-15B-130-00007 1 中间齿 Z50B.13-10A Bucket tooth 5 957H0556-
6 B-Q020490-00015 1 垫圈 24 Washer 2 957H0556-
7 B-G051750-00001 1 螺母 M24ZnD Nut 2 957H0556-
8 Z-956-310-00002 1 通用铲斗 956.31.G0.1 Universal bucket 1 957H0556-
9 Z-15B-130-00066 1 垫片 Z50B.13-16 Pad 4 957H0556-
10 Z-15B-130-00006 1 垫片 Z50B.13-14 Pad 2 957H0556-
11 Z-15B-130-00010 1 垫片 Z50B.13-13 Pad 2 957H0556-
12 Z-15B-130-00009 1 垫片 Z50B.13-9 Pad 5 957H0556-
13 Z-15B-130-00008 1 垫片 Z50B.13-8 Pad 5 957H0556-
14 Z-15B-130-00003 1 左边齿 Z50B.13-12A Left tooth 1 957H0556-

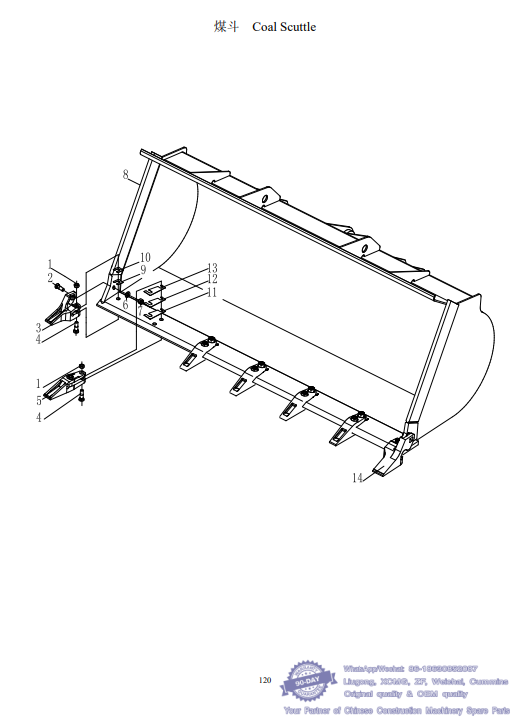

053 煤斗 Coal Scuttle - Changlin Wheel Loader 957H Cummins engine Spare Parts Catalog
序号 零件代号 版本 名称 数量 适用车号 是否配件 选装
No. Part No. Ver. Part Name Q’ty Suit Num. Spare Parts Cho
1 Z-15B-130-00005 1 螺母 Z50B.13-5 Nut 12 957H0556-
2 Z-15B-130-00011 1 螺栓 Z50B.13-6 Bolt 2 957H0556-
3 Z-15B-130-00002 1 右边齿 Z50B.13-11A Right tooth 1 957H0556-
4 Z-15B-130-00004 1 螺栓 Z50B.13-4 Bolt 12 957H0556-
5 Z-15B-130-00007 1 中间齿 Z50B.13-10A Bucket tooth 5 957H0556-
6 B-Q020490-00015 1 垫圈 24 Washer 2 957H0556-
7 B-G051750-00001 1 螺母 M24ZnD Nut 2 957H0556-
8 Z-956-310-00171 1 焊接煤斗 956.31.G9.1 Welded coal scuttle 1 957H0556-
9 Z-15B-130-00066 1 垫片 Z50B.13-16 Pad 4 957H0556-
10 Z-15B-130-00006 1 垫片 Z50B.13-14 Pad 2 957H0556-
11 Z-15B-130-00010 1 垫片 Z50B.13-13 Pad 2 957H0556-
12 Z-15B-130-00009 1 垫片 Z50B.13-9 Pad 5 957H0556-
13 Z-15B-130-00008 1 垫片 Z50B.13-8 Pad 5 957H0556-
14 Z-15B-130-00003 1 左边齿 Z50B.13-12A Left tooth 1 957H0556-

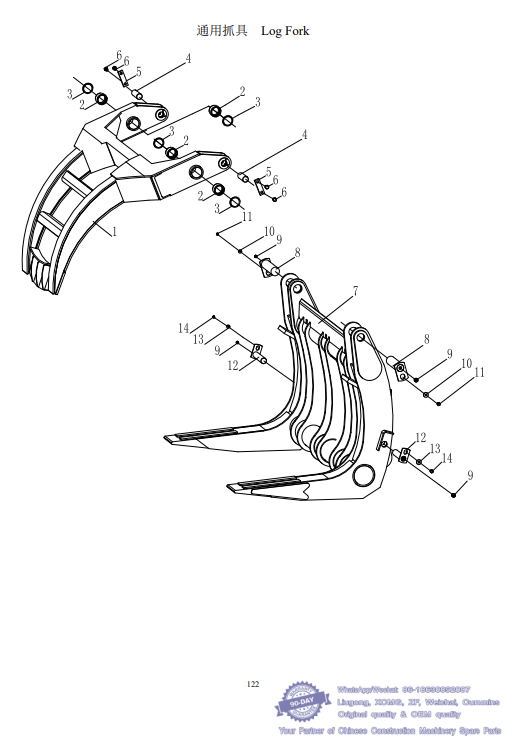

054 通用抓具 Log Fork - Changlin Wheel Loader 957H Cummins engine Spare Parts Catalog
序号 零件代号 版本 名称 数量 适用车号 是否配件 选装
No. Part No. Ver. Part Name Q’ty Suit Num. Spare Parts Cho
1 Z-956-310-00324 1 上爪 956.31.G1A.2 Upper fork 1 957H0556-
2 Z-15B-310-00156 1 轴套 75×55A Z50B.31.G1-1 Bushing 4 957H0556-
3 B-Q01201B-00008 1 内防尘圈 90 I n n er dust ring 4 957H0556-
4 Z-956-310-00116 1 销轴 956.31.G1-1 Shaft assembly 2 957H0556-
5 Z-956-310-00117 1 限位板 956.31.G1-2 Location-limited plate 2 957H0556-
6 B-G057830-00003 1 螺栓 M10×20ZnD Bolt 4 957H0556-
7 Z-956-310-00301 1 下爪 956.31.G1A.1 Lower fork 1 957H0556-
8 Z-15B-310-00163 1 销轴 75x290A Z50B.31.G1.4 Shaft assembly 2 957H0556-
9 B-J07940A-00001 1 油杯 M10×1 Grease fitting 4 957H0556-
10 B-Q01201E-00003 1 垫圈 16 Washer 2 957H0556-
11 B-G057830-00066 1 螺栓 M16x25ZnD Bolt 2 957H0556-
12 Z-15B-310-00161 1 销轴 50×245B Z50B.31.G1.5 Shaft assembly 2 957H0556-
十四、工作液压系统 Hydraulic System - Changlin Wheel Loader 957H Cummins engine Spare Parts Catalog

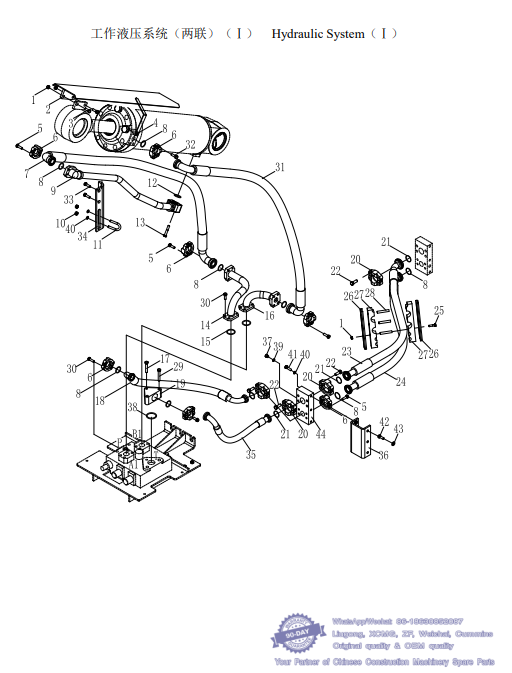

055 工作液压系统（两联）（Ⅰ） Hydraulic System（Ⅰ） - Changlin Wheel Loader 957H Cummins engine Spare Parts Catalog
序号 零件代号 版本 名称 数量 适用车号 是否配件 选装
No. Part No. Ver. Part Name Q’ty Suit Num. Spare Parts Cho
1 B-G061700-00003 1 螺母 M10ZnD Nut 5 957H0556-
2 Z-95T-140-00062 2 罩板 955T.14.15 Plate 1 957H0556-
3 B-G16674A-00006 1 螺栓 M10×40ZnD Bolt 2 957H0556-
4 Z-15E-44M-00005 4 标尺 Z50E.44M-1 Plate 1 957H0556-
5 B-G16674A-00033 1 螺栓 M10×30-10.9ZnD Bolt 23 957H0556-
6 B-Q020140-00003 1 分离式法兰 AΦ44.1-21 Separated flange 16 957H0556-
7 Z-96T-140-00030 2 软管总成 956T.14.15 Hose 1 957H0556-
8 B-G03452A-00014 1 O 形圈 37.5×3.55 O-ring 8 957H0556-
9 Z-95T-140-00065 2 油管 955T.14.16 Oil pipe 1 957H0556-
10 B-G061760-00001 1 螺母 M10x1.25ZnD Nut 5 957H0556-
11 B-Q020120-00004 1 U 形管夹 A34 U-pipe clamp 1 957H0556-
12 B-Q020710-00065 1 O 形圈 41×3.5 O-ring 1 957H0556-
13 B-G16674A-00010 1 螺栓 M10×60-10.9ZnD Bolt 4 957H0556-
14 Z-956-14A-00063 1 油管 956.14A.19 Oil pipe 1 957H0556-
15 B-Q020710-00071 1 O 形圈 48×3.5 O-ring 2 957H0556-
16 Z-956-14A-00066 1 油管 956.14A.20 Oil pipe 1 957H0556-
17 B-G16674A-00013 1 螺栓 M10×70-10.9ZnD Bolt 1 957H0556-
18 Z-96T-140-00075 2 软管总成 956T.14.22 Oil changing pipe 1 957H0556-
19 Z-96T-140-00078 1 多路阀回油阀块 956T.14-5 Oil return pipe 1 957H0556-
20 B-Q020140-00004 1 分离式法兰 AΦ51.2-21 Separated flange 8 957H0556-
21 B-G03452A-00025 1 O 形圈 47.5×3.55 O-ring 4 957H0556-
22 B-G16674A-00020 1 螺栓 M12×30-10.9ZnD Bolt 16 957H0556-
23 Z-96T-140-00055 3 软管总成 956T.14.8 Hose 1 957H0556-
24 Z-96T-140-00054 1 软管总成 956T.14.7 Hose 1 957H0556-
25 B-G16674A-00017 1 螺栓 M10×110ZnD Bolt 3 957H0556-
26 Z-956-14A-00117 1 板 956.14A-6 Plate 2 957H0556-
27 Z-956-14A-00118 1 橡胶夹 956.14A-7 Rubber clamp 2 957H0556-
28 Z-956-14A-00116 1 套管 956.14A-5 pipe 3 957H0556-
29 B-G16674A-00025 1 螺栓 M12×180-10.9ZnD Bolt 2 957H0556-
30 B-G16674A-00033 1 螺栓 M10×30-10.9ZnD Bolt 20 957H0556-
31 Z-96T-140-00029 2 软管总成 956T.14.14 Hose 1 957H0556-
32 B-G16674A-00026 1 螺栓 M10×40-10.9ZnD Bolt 1 957H0556-
33 B-G16674A-00002 1 螺栓 M10×25ZnD Bolt 2 957H0556-
34 Z-96T-140-00084 1 板 956T.14-7 Plate 1 957H0556-
35 Z-96T-140-00076 1 软管总成 956T.14.23 Hose 1 957H0556-
36 Z-96T-140-00041 1 支板 956T.14.21 Plate 1 957H0556-
37 B-J010000-00002 1 螺塞 M14×1.5 Plug screw 1 957H0556-
38 B-Q020710-00072 1 O 形圈 50×3.1 O-ring 1 957H0556-
39 W-12-00802 1 组合垫圈-316 Washer 1 957H0556-
40 B-Q020490-00001 1 垫圈 10 Washer 8 957H0556-
41 B-G057820-00003 1 螺栓 M10×110ZnD Bolt 3 957H0556-
42 B-G057820-00027 1 螺栓 M12×20-10.9ZnD Bolt 3 957H0556-
43 B-Q020490-00003 1 垫圈 12 Washer 3 957H0556-
44 Z-956-14A-00114 2 联接板 956.14A-3 Plate 1 957H0556-

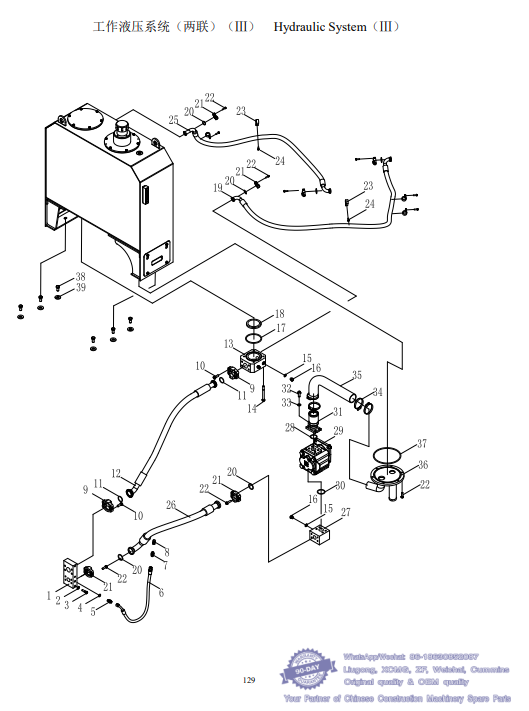

056 工作液压系统（两联）（Ⅲ） Hydraulic System（Ⅲ）- Changlin Wheel Loader 957H Cummins engine Spare Parts Catalog
序号 零件代号 版本 名称 数量 适用车号 是否配件 选装
No. Part No. Ver. Part Name Q’ty Suit Num. Spare Parts Cho
1 Z-956-14A-00114 2 联接板 956.14A-3 Plate 1 957H0556-
2 B-Q020490-00001 1 垫圈 10 Washer 3 957H0556-
3 B-G057820-00003 1 螺栓 M10×110ZnD Bolt 3 957H0556-
4 W-12-00802 1 组合垫圈-316 Washer 1 957H0556-
5 Z-16H-100-00012 1 接头体 Z60H.10-4 Joint 1 957H0556-
6 Z-96T-140-00036 2 软管总成 956T.14.19 Hose 1 957H0556-
7 W-15-01697 1 直通过板接头 S6C-16LN Joint 1 957H0556-
8 W-15-01083 1 测压接头 SMK20-10L-PK Joint 1 957H0556-
9 Z-96T-140-00053 3 软管总成 956T.14.6 Hose 1 957H0556-
10 B-G03452A-00025 1 O 形圈 47.5×3.55 O-ring 2 957H0556-
11 B-Q020140-00004 1 分离式法兰 AΦ51.2-21 Flange 4 957H0556-
12 B-G16674A-00018 1 螺栓 M12×35ZnD Bolt 8 957H0556-
13 Z-96T-140-00046 1 油箱回油阀块 956T.14.3 Valve 1 957H0556-
14 B-G16674A-00027 1 螺栓 M10×95-10.9ZnD Bolt 4 957H0556-
15 W-12-00802 1 组合垫圈-316 Washer 5 957H0556-
16 Z-16H-140-00056 1 接头 Z60H.14-5 Joint 1 957H0556-
17 B-Q020710-00168 1 O 形圈 115×3.5 O-ring 1 957H0556-
18 Z-96T-140-00059 2 阻尼孔板 956T.14-2 Plate 1 957H0556-
19 Z-95M-140-00005 2 软管总成 956M.14.4 Hose 1 957H0556-
20 B-G03452A-00014 1 O 形圈 37.5×3.55 O-ring 6 957H0556-
21 B-Q020140-00003 1 分离式法兰 AΦ44.1-21 Flange 12 957H0556-
22 B-G16674A-00005 1 螺栓 M10×35-10.9ZnD Bolt 30 957H0556-
23 Z-95T-140-00171 1 线夹 955T.14.35 Pipe clamp 5 957H0556-
24 B-G16674A-00002 1 螺栓 M10×25ZnD Bolt 5 957H0556-
25 Z-95M-140-00006 1 软管总成 956M.14.5 Hose 1 957H0556-
26 Z-95M-140-00004 2 软管总成 956M.14.3 Hose 1 957H0556-
27 Z-95T-140-00137 1 出油阀块 955T.14-3 Joint 1 957H0556-
28 B-Q020710-00071 1 O 形圈 48×3.5 O-ring 1 957H0556-
29 W-01-00251 1 齿轮油泵（左旋）JHP3100A Pump 1 957H0556-
30 B-Q020710-00077 1 O 形圈 54×3.5 O-ring 1 957H0556-
31 Z-95M-140-00001 1 工作泵进油管 956M.14.1 Oil pipe 1 957H0556-
32 B-Q020490-00003 1 垫圈 12 Washer 4 957H0556-
33 B-G057830-00037 1 螺栓 M12×35ZnD Bolt 4 957H0556-
34 B-J088700-00018 1 喉箍 d70 Pipe clamp 4 957H0556-
35 Z-95M-140-00007 1 吸油波纹管 956M.14-1 Hose 957H0556-
36 Z-95M-140-00002 2 油箱出油管 956M.14.2 Oil pipe 1 957H0556-
37 B-Q020710-00030 1 O 形圈 200×5.7 O-ring 1 957H0556-
38 B-G057830-00067 1 螺栓 M16×30-10.9ZnD Bolt 6 957H0556-
39 Z-96T-140-00060 1 垫圈 956T.14-3 Washer 6 957H0556-

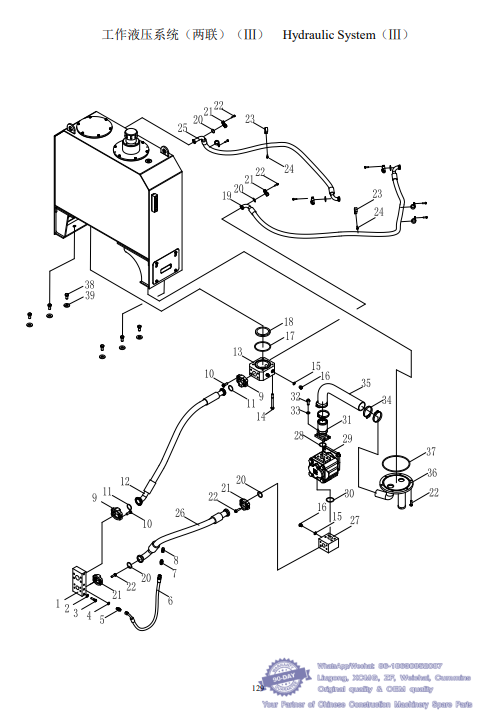

057 工作液压系统（两联）（Ⅲ） Hydraulic System（Ⅲ）- Changlin Wheel Loader 957H Cummins engine Spare Parts Catalog
序号 零件代号 版本 名称 数量 适用车号 是否配件 选装
No. Part No. Ver. Part Name Q’ty Suit Num. Spare Parts Cho
1 Z-956-14A-00114 2 联接板 956.14A-3 Plate 1 957H0556-
2 B-Q020490-00001 1 垫圈 10 Washer 3 957H0556-
3 B-G057820-00003 1 螺栓 M10×110ZnD Bolt 3 957H0556-
4 W-12-00802 1 组合垫圈-316 Washer 1 957H0556-
5 Z-16H-100-00012 1 接头体 Z60H.10-4 Joint 1 957H0556-
6 Z-96T-140-00036 2 软管总成 956T.14.19 Hose 1 957H0556-
7 W-15-01697 1 直通过板接头 S6C-16LN Joint 1 957H0556-
8 W-15-01083 1 测压接头 SMK20-10L-PK Joint 1 957H0556-
9 Z-96T-140-00053 3 软管总成 956T.14.6 Hose 1 957H0556-
10 B-G03452A-00025 1 O 形圈 47.5×3.55 O-ring 2 957H0556-
11 B-Q020140-00004 1 分离式法兰 AΦ51.2-21 Flange 4 957H0556-
12 B-G16674A-00018 1 螺栓 M12×35ZnD Bolt 8 957H0556-
13 Z-96T-140-00046 1 油箱回油阀块 956T.14.3 Valve 1 957H0556-
14 B-G16674A-00027 1 螺栓 M10×95-10.9ZnD Bolt 4 957H0556-
15 W-12-00802 1 组合垫圈-316 Washer 5 957H0556-
16 Z-16H-140-00056 1 接头 Z60H.14-5 Joint 1 957H0556-
17 B-Q020710-00168 1 O 形圈 115×3.5 O-ring 1 957H0556-
18 Z-96T-140-00059 2 阻尼孔板 956T.14-2 Plate 1 957H0556-
19 Z-95M-140-00005 2 软管总成 956M.14.4 Hose 1 957H0556-
20 B-G03452A-00014 1 O 形圈 37.5×3.55 O-ring 6 957H0556-
21 B-Q020140-00003 1 分离式法兰 AΦ44.1-21 Flange 12 957H0556-
22 B-G16674A-00005 1 螺栓 M10×35-10.9ZnD Bolt 30 957H0556-
23 Z-95T-140-00171 1 线夹 955T.14.35 Pipe clamp 5 957H0556-
24 B-G16674A-00002 1 螺栓 M10×25ZnD Bolt 5 957H0556-
25 Z-95M-140-00006 1 软管总成 956M.14.5 Hose 1 957H0556-
26 Z-95M-140-00004 2 软管总成 956M.14.3 Hose 1 957H0556-
27 Z-95T-140-00137 1 出油阀块 955T.14-3 Joint 1 957H0556-
28 B-Q020710-00071 1 O 形圈 48×3.5 O-ring 1 957H0556-
29 W-01-00251 1 齿轮油泵（左旋）JHP3100A Pump 1 957H0556-
30 B-Q020710-00077 1 O 形圈 54×3.5 O-ring 1 957H0556-
31 Z-95M-140-00001 1 工作泵进油管 956M.14.1 Oil pipe 1 957H0556-
32 B-Q020490-00003 1 垫圈 12 Washer 4 957H0556-
33 B-G057830-00037 1 螺栓 M12×35ZnD Bolt 4 957H0556-
34 B-J088700-00018 1 喉箍 d70 Pipe clamp 4 957H0556-
35 Z-95M-140-00007 1 吸油波纹管 956M.14-1 Hose 957H0556-
36 Z-95M-140-00002 2 油箱出油管 956M.14.2 Oil pipe 1 957H0556-
37 B-Q020710-00030 1 O 形圈 200×5.7 O-ring 1 957H0556-
38 B-G057830-00067 1 螺栓 M16×30-10.9ZnD Bolt 6 957H0556-
39 Z-96T-140-00060 1 垫圈 956T.14-3 Washer 6 957H0556-

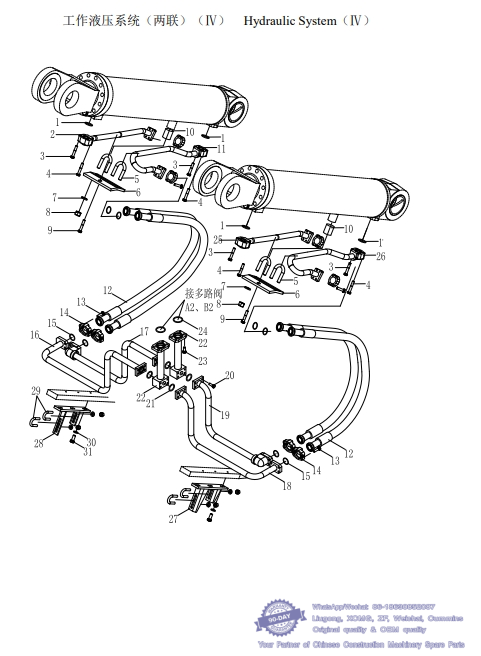

058 工作液压系统（两联）（Ⅳ） Hydraulic System（Ⅳ）- Changlin Wheel Loader 957H Cummins engine Spare Parts Catalog
序号 零件代号 版本 名称 数量 适用车号 是否配件 选装
No. Part No. Ver. Part Name Q’ty Suit Num. Spare Parts Cho
1 B-Q020710-00063 1 O 形圈 40×3.5 O-Ring 1 957H0556-
2 Z-95T-140-00093 2 油管 955T.14.29 Oil pipe 1 957H0556-
3 B-G16674A-00008 1 螺栓 M10×55ZnD Bolt 8 957H0556-
4 B-G16674A-00009 1 螺栓 M10×60ZnD Bolt 8 957H0556-
5 B-Q020120-00003 1 U 形管夹 A28 U-pipe clamp 4 957H0556-
6 Z-95T-140-00134 1 板 955T.14-16 Plate 2 957H0556-
7 B-Q020490-00001 1 垫圈 10 Washer 8 957H0556-
8 B-G061760-00001 1 螺母 M10x1.25ZnD Nut 8 957H0556-
9 B-G16674A-00024 1 螺栓 M12×70ZnD Bolt 2 957H0556-
10 Z-95T-140-00133 1 座 955T.14-15 Pedestal 2 957H0556-
11 Z-95T-140-00091 2 油管 955T.14.28 Oil pipe 1 957H0556-
12 Z-96T-140-00028 1 软管总成 956T.14.13 Hose 4 957H0556-
13 B-G16674A-00001 1 螺栓 M8×30ZnD Bolt 32 957H0556-
14 B-Q020140-00001 1 分离式法兰 AΦ32.6-35 Flange 16 957H0556-
15 B-G03452A-00009 1 O 形圈 25×3.55 O-Ring 8 957H0556-
16 Z-96T-140-00020 1 油管 956T.14.10 Oil pipe 1 957H0556-
17 Z-96T-140-00056 1 油管 956T.14.9 Oil pipe 1 957H0556-
18 Z-96T-140-00022 1 油管 956T.14.11 Oil pipe 1 957H0556-
19 Z-96T-140-00025 1 油管 956T.14.12 Oil pipe 1 957H0556-
20 B-G16674A-00001 1 螺栓 M8×30ZnD Bolt 16 957H0556-
21 B-Q020710-00060 1 O 形圈 38×3.5 O-Ring 4 957H0556-
22 Z-956-14A-00109 1 油管 956.14A.8 Oil pipe 2 957H0556-
23 B-G16674A-00002 1 螺栓 M10×25ZnD Bolt 8 957H0556-
24 B-Q020710-00071 1 O 形圈 48×3.5 O-Ring 2 957H0556-
25 Z-95T-140-00076 2 油管 955T.14.22 Oil pipe 1 957H0556-
26 Z-95T-140-00074 2 油管 955T.14.21 Oil pipe 1 957H0556-
27 Z-956-14A-00060 1 右支板 956.14A.18 Plate 1 957H0556-
28 Z-956-14A-00056 1 左支板 956.14A.17 Plate 1 957H0556-
29 W-12-00825 1 碳钢 U 型管夹KSTGJU3C-20 U-pipe clamp 4 957H0556-
30 B-Q020490-00001 1 垫圈 10 Washer 6 957H0556-
31 B-G057830-00010 1 螺栓 M10×30ZnD Bolt 6 957H0556-

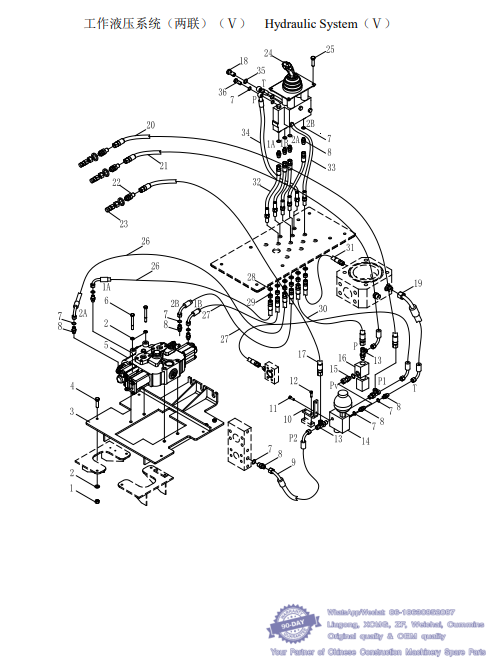

059 工作液压系统（两联）（Ⅴ） Hydraulic System（Ⅴ）- Changlin Wheel Loader 957H Cummins engine Spare Parts Catalog
序号 零件代号 版本 名称 数量 适用车号 是否配件 选装
No. Part No. Ver. Part Name Q’ty Suit Num. Spare Parts Cho
1 B-G061700-00007 1 螺母 M12ZnD Nut 4 957H0556-
2 B-Q020490-00003 1 垫圈 12 Washer 6 957H0556-
3 Z-96T-140-00039 4 多路阀安装板 956T.14.20.1 Plate 1 957H0556-
4 B-G16674A-00023 1 螺栓 M12×45ZnD Bolt 4 957H0556-
5 W-07-00536 1 多路换向阀 YGDF-32-YL18 Value 1 957H0556-
6 B-G057830-00031 1 螺栓 M12×120ZnD Bolt 4 957H0556-
7 W-12-00802 1 组合垫圈-316 Washer 20 957H0556-
8 Z-16H-140-00056 1 接头 Z60H.14-5 Joint 1 957H0556-
9 Z-96T-140-00036 2 软管总成 956T.14.19 Hose 2 957H0556-
10 Z-96T-14A-00029 1 板 956T.14A-1 Plate 1 957H0556-
11 B-G16674A-00045 1 螺栓 M8×20ZnD Bolt 2 957H0556-
12 B-G16674A-00032 1 螺栓 M10×20ZnD Bolt 2 957H0556-
13 W-15-00729 1 接头 SACCH-16-16-140G Joint 2 957H0556-
14 W-07-00172 1 先导供油阀 DGF-00 Value 1 957H0556-
15 Z-959-140-00075 1 接头 959.14.32 Joint 1 957H0556-
16 W-07-00382 1 电磁换向阀 EMDV-07-24DL Value 1 957H0556-
17 Z-96T-14A-00004 2 软管总成 956T.14A.12 Hose 1 957H0556-
18 B-J009990-00005 1 螺栓 M18×1.5×38 Bolt 1 957H0556-
19 Z-96T-14A-00005 1 软管总成 956T.14A.13 Hose 1 957H0556-
20 Z-96T-14A-00003 1 软管总成 956T.14A.11 Hose 1 957H0556-
21 Z-96T-14A-00020 1 软管总成 956T.14A.22 Hose 1 957H0556-
22 W-15-01697 1 直通过墙接头 Joint 3 957H0556-
23 W-15-01083 1 测压接头 SMK20-10L-PK Joint 3 957H0556-
24 W-07-00209 1 单手柄先导阀 DXS-00 Value 1 957H0556-
25 B-G16674A-00002 1 螺栓 M10×25ZnD Bolt 4 957H0556-
26 Z-96T-14K-00004 1 胶管接头（A）956T.14K.6 Hose 2 957H0556-
27 Z-96T-14K-00003 1 胶管接头（B）956T.14K.5 Hose 2 957H0556-
28 B-G000930-00006 1 垫圈 16 Washer 6 957H0556-
29 B-Q020430-00006 1 螺母 M16×1.5ZnD Nut 6 957H0556-
30 Z-96T-14K-00001 1 胶管接头（P）956T.14K.3 Hose 1 957H0556-
31 Z-96T-14K-00002 2 胶管接头（T）956T.14K.4 Hose 1 957H0556-
32 Z-97T-140-00012 1 软管总成 966T.14.2 Hose 4 957H0556-
33 Z-97T-140-00014 1 胶管接头（T）966T.14.4 Hose 1 957H0556-
34 Z-97T-140-00013 1 胶管接头（P）966T.14.3 Hose 1 957H0556-
35 W-12-00799 1 组合垫圈-320 Washer 1 957H0556-
36 B-J009990-00005 1 螺栓 M14×1.5×35 Bolt 1 957H0556-

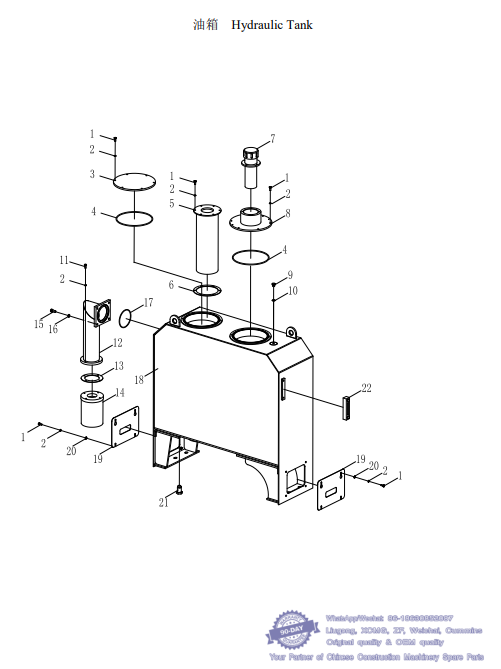

060 油箱 Hydraulic Tank - Changlin Wheel Loader 957H Cummins engine Spare Parts Catalog
序号 零件代号 版本 名称 数量 适用车号 是否配件 选装
No. Part No. Ver. Part Name Q’ty Suit Num. Spare Parts Cho
1 B-G057830-00138 1 螺栓 M8×20 Bolt 26 957H0556-
2 B-G000930-00017 1 弹簧垫圈- 8 Washer 30 957H0556-
3 Z-956-14A-00182 2 压盖 956.14A.1-4A Cover 1 957H0556-
4 B-G03452A-00118 1 O 形圈 243×5.3 O-Ring 2 957H0556-
5 W-15-01696 1 回油过滤器 01049804 Return oil filter 1 957H0556-
6 Z-956-14A-00044 1 密封垫 956.14A.1-3 Sealing gasket 1 957H0556-
7 W-15-00390 1 空气滤清器 QL-10C-00 Air cleaner 1 957H0556-
8 Z-96T-140-00026 1 加油口座 956T.14.1-2 Gas holder 1 957H0556-
9 B-J010000-00002 1 螺塞 M14×1.5 Drain plug 1 957H0556-
10 B-J010020-00003 1 垫圈 14 Washer 1 957H0556-
11 B-G057830-00146 1 螺栓 M8×30ZnD Bolt 4 957H0556-
12 Z-96T-140-00017 1 油管组件 956T.14.1.2 Oil pipe 1 957H0556-
13 Z-956-14A-00041 1 密封垫 956.14A.1-2 Sealing gasket 1 957H0556-
14 W-15-00519 1 吸油过滤器 WU-1500×120F-J Filter cover 1 957H0556-
15 B-G057830-00034 1 螺栓 M12×30ZnD Bolt 4 957H0556-
16 B-G000930-00003 1 弹簧垫圈 - 12 Washer 4 957H0556-
17 B-Q020710-00161 1 O 形圈 130×3.5 O-Ring 1 957H0556-
18 Z-96T-140-00002 2 箱体 956T.14.1.1 Case 1 957H0556-
19 Z-96T-140-00023 2 盖板 956T.14.1-1 Plate 2 957H0556-
20 B-G00097B-00023 1 垫圈 8ZnD Washer 8 957H0556-
21 Z-15B-140-00003 2 螺塞 Z50B.14.21-5 Drain plug 1 957H0556-
22 W-15-00168 1 液位计总成 YWZ-127 Liquid-level meter 1 957H0556-
