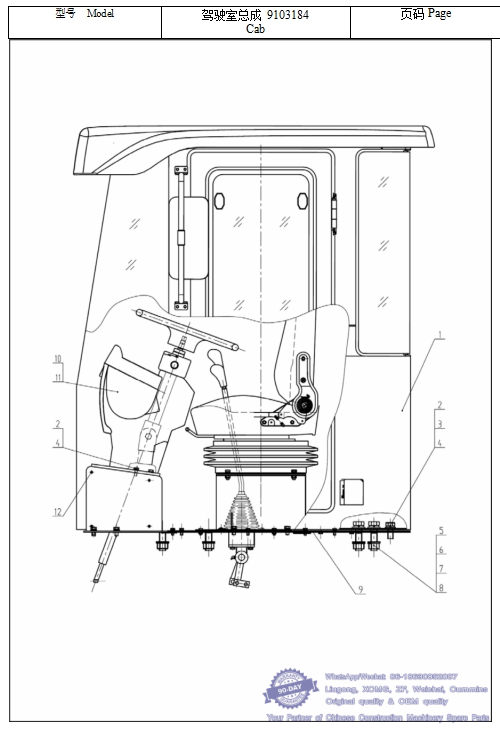

051 驾驶室总成 9103184 Cab-- XCMG Wheel Loader LW300F Parts Catalog
序号 | 零件代号 | 名称 | 数量 | 备注
Sr.No. | Part No. | Part Description | Q'ty | Remark
1 | 9363527 | 实验室 | Cab | …… |
2 | 4005053 | 螺栓 M10×25 | Blot | 6 | GB5783-86
3 | 4401008 | 垫圈 10 | Washer | 6 | GB93-87
4 | 4403006 | 垫圈 10 | Washer | 2 | GB396-85
5 | 4005071 | 螺栓 M12×50 | Blot | 8 | GB5783-86
6 | 4401009 | 垫圈 12 | Washer | 8 | GB93-87
7 | 4404010 | 垫圈 12 | Washer | 16 | GB97.1-85
8 | 4301010 | 螺母 M12 | Nut | 8 | GB6170-86
9 | 936545 | 地板总成 | Floor | 1 |
10 | 9365111 | 仪表台总成 | Instrument Box | 1 | 含仪表、线束
11 | 9365112 | 仪表台总成 | Instrument Box | 1 | 选配
12 | 4211066 | 螺钉 M5X16 | Boh | 8 |

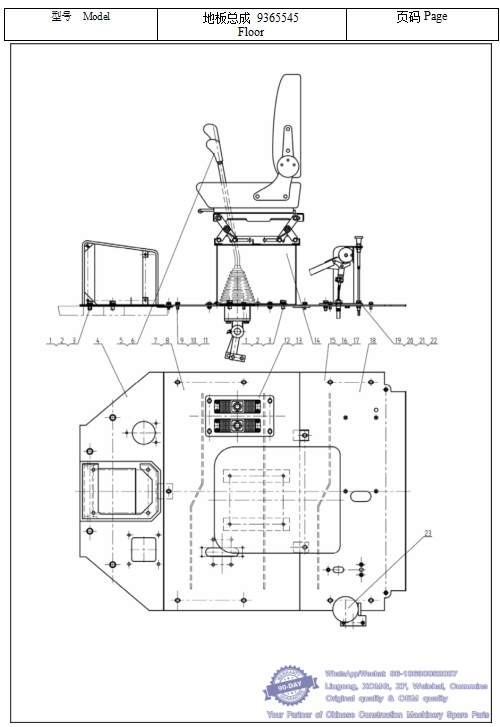

052 地板总成 9365545 Floor-- XCMG Wheel Loader LW300F Parts Catalog
序号 | 零件代号 | 名称 | 数量 | 备注
Sr.No. | Part No. | Part Description | Q'ty | Remark
1 | 4005066 | 螺栓 M12×25 | Blot | 8 | GB5783-86
2 | 4401009 | 垫圈 12 | Wadar | 8 | GB93-87
3 | 4404010 | 垫圈 12 | Wadar | 8 | GB97.1-85
4 | 9365562 | 前支架 | FrontBracket | 1 |
5 | 9364693 | 三联操纵杆系 | Control Shank System | 1 |
6 | 9364697 | 三联操纵杆系 | Control Shank System | 1 | 配三联
7 | 9365546 | 中底板 | Middle Plate | 1 |
8 | 9365548 | 三联中底板 | Middle Plate | 1 | 配三联操纵
9 | 4005040 | 螺栓 M8×20 | Blot | 15 | GB5783-86
10 | 4404008 | 垫圈 8 | Wadar | 15 | GB97.1-85
11 | 4401007 | 垫圈 8 | Wadar | 15 | GB93-87
12 | 9365736 | 挡机盖板 | Plate | 1 |
13 | 9365737 | 三联操纵盖板 | Plate | 1 | 配三联操纵
14 | 5006088 | 座椅总成 | Seat Assembly | 1 |
15 | 9365550 | 后底板 I | Rear Plate | 1 |
16 | 9365552 | 后底板 II | Rear Plate | 1 | 配暖风
17 | 9365554 | 后底板 III | Rear Plate | 1 | 配空调
18 | 9365556 | 橡胶地板 | Latex Plate | 1 |
19 | 4005054 | 螺栓 M10×30 | Blot | 3 | GB5783-86
20 | 4401008 | 垫圈 10 | Wadar | 3 | GB93-87
21 | 4404009 | 垫圈 10 | Wadar | 3 | GB97.1-85
22 | 9364999 | 手控制棒 | Parking Brake | 1 |
23 | 9357726 | 灭火装置 | Extinguisher | 1 | 选配

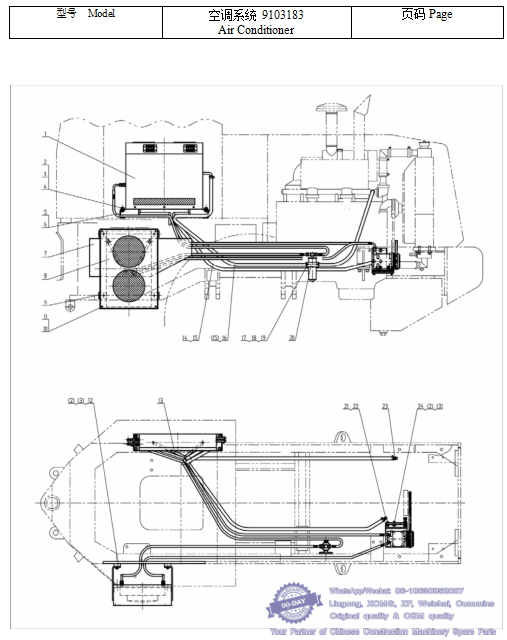

053 空调系统 9103183 Air Conditioner-- XCMG Wheel Loader LW300F Parts Catalog
序号 | 零件代号 | 名称 | 数量 | 备注
Sr.No. | Part No. | Part Description | Q'ty | Remark
1 | 500600 | 空调总成 | Air Conditioner | 1 |
| | 空调压缩机 | Compressor | 1 |
| | 储液罐 | Liquid-Tank | 1 |
| | 冷凝器 | Condenser | 1 |
| | 蒸发器 | Evaporator | 1 |
| | A 型皮带 17430 | A-Strap | 1 |
2 | 400066 | 螺栓 M12×25 | Blot | 12 | GB5783-86
3 | 4401099 | 垫圈 12 | Washer | 12 | GB93-87
4 | 4404010 | 垫圈 12 | Washer | 4 | GB971-85
5 | 9364702 | 前支架 | Front Bracket | 1 |
6 | 9364705 | 后支架 | Rear-Bracket | 1 |
7 | 9347549 | 左挡板 | Left Plate | 1 |
8 | 9332422 | 挡板 | Plate | 1 |
9 | 9347544 | 冷凝器固定支架 | Condenser.Bracket | 1 |
10 | 4202093 | 螺钉 M8X16 | Bolt | 4 | GB67-85
11 | 4404008 | 垫圈 8 | Washer | 4 | GB971-85
12 | 9348299 | 固定块 | Fixing block | 4 |
13 | 9348299 | 流水管 | Pipe | 2 |
14 | 9348260 | 碳水水管 | Water Pipe | 1 |
15 | 4A05024 | 双钢丝环箍 28~32 | Double Steel Hoop | 4 | JB3616.1-1984
16 | 9348261 | 碳水水管 | Water Pipe | 1 |
17 | 4005030 | 螺栓 M6X20 | Bolt | 2 | GB5783-86
18 | 4401006 | 垫圈 6 | Washer | 2 | GB93-87
19 | 4301007 | 螺钉 M6 | Nut | 2 | GB6170-86
20 | 9332421 | 储液罐安装板 | Fixing Plate | 1 |
21 | 5001309 | 碳风热水开关 | Switch | 1 |
22 | 9309930 | 水温接头 | Joint | 1 |
23 | 9302347 | 接头 | Joint | 1 |
24 | 9332430 | 空调压缩机支架 | Compressor Bracket | 1 |
054 空调系统 9103102 Heating system-- XCMG Wheel Loader LW300F Parts Catalog
序号 | 零件代号 | 名称 | 数量 | 备注
Sr.No. | Part No. | Part Description | Q'ty | Remark
1 | 5005125 | 水暖式暖风机 | Haster | 1 |
2 | 4A05003 | 双钢丝环箱22~26 | Double Steel Hoop | 8 |JB3616.1-1984
3 | 9349247 | 水管 | Water Pipe | 2 |
4 | 4005031 | 螺栓M6X25 | Bolt | 4 |GB5783-86
5 | 4401006 | 垫圈6 | Washer | 1 |GB93-87
6 | 4404007 | 垫圈6 | Washer | 4 |GB97.1-85
7 | 4401007 | 垫圈8 | Washer | 2 |GB93-87
8 | 4404008 | 垫圈8 | Washer | 2 |GB97.1-85
9 | 4005042 | 螺栓M8X30 | Bolt | 2 |GB5783-86
10 | 4301008 | 螺母M8 | Nut | 2 |GB6170-86
11 | 9349246 | 暖风接头 | Joint | 1 |
12 | 5000551 | 放水阀 | Water Valve | 2 |
13 | 9366011 | 进水管 | Water Pipe | 1 |
14 | 9366012 | 回水管 | Water Pipe | 1 |
15 | 9302347 | 接头 | Joint | 1 |
16 | | 截止阀 | Cut-off Valve | 1 |暖风机带
17 | 9309930 | 水温接头 | Joint | 1 |

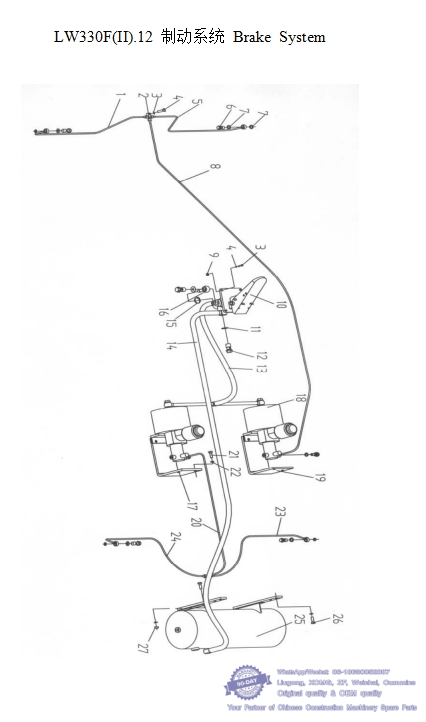

055 LW330F(II).12 制动系统 Brake System-- XCMG Wheel Loader LW300F Parts Catalog
序号 | 零件代号 | 名称 | 数量 | 备注
Sr.No. | Part No. | Part Description | Q'ty | Remark
1 Z3.12.12B 前桥左油管 Left oil Pipe 1
2 ZL40.12.1 前桥油路三通接头 Tee Connector 2
3 GB93-87 垫圈 8 Washer 6
4 GB5783-86 螺栓 M8×30 Bolt 6
5 Z3.12.1B 前桥右油管 Right Oil Pipe 1
6 ZL40.12.4-14A 管接头 Connector 4
7 GB1235-76 O 形密封圈 8×1.9 O-Ring 8
8 LW330F(II).12.1 前桥刹车软管 Braking Pipe 1
9 GB6170-86 螺母 M8 Nut 4
10 SLZD-3514002 制动控制阀 Braking Control Valve 1
11 JB982-77 垫圈 22 Washer 8
12 ZL40.12.5-1 螺栓 Bolt 5
13 LW330F(II).12.4 制动阀出气管 Rubber Pipe 1
14 LW330F(II).12.3 制动阀出气管 Rubber Pipe 1
16 ZL50.12.9A-1 直通接头 Joint 1
17 Z3.12-5A 左支架 Left Bracket 1
18 Z3.12.7 加力泵组 Air Master 1
19 Z3.12-1A 右支架 Right Bracket 1
20 LW330F(II).12.2A 后桥刹车软管 Braking Hose 1
21 GB5783-86 螺栓 M10×20 Bolt 4
22 GB93-87 垫圈 10 Washer 12
23 Z3.12.16A 后桥右油管 Right Oil Pipe 1
24 Z3.12.9B 后桥左油管 Left Oil Pipe 1
25 Z3.12.11A 储气缸 Air Tank 1
26 GB5783-86 螺栓 M10×30 Bolt 8
27 GB6170-86 螺母 M8 Nut 4
Full range of spare parts for XCMG Wheel Loader LW128,LW300F,LW300FN,LW300KN,ZL30G,LW400F, LW500F,LW500FN,LW500KN,ZL50G, ZL50GN,
LW700KN, LW820G, LW1200KN, WZ30-25, XC740RU, XC7-TV12, XC968-EV, XC975-EV, XC958-EV, XC936, XC956, XC958,XC975
XCMG Wheel Loader Spare parts, whatsapp 86-18630852087
LW300F WHEEL LOADER PARTS MANUAL
LW300F 轮式装载机零件手册
XUGONG SCIENCE & TECHNOLOGY CO.,LTD.
徐州工程机械科技股份有限公司
This manual can provide you reference when you purchasing the XCMG LW300F Wheel Loader
This manual mainly introduces the parts, component structures and assemblies of every system of the loader, which can help users, sellers and technicians purchase and service the loader.
In this manual, those parts (including welded parts or riveted parts) which can't be dismantled furthermore have been numbered, so no separate number is given to their composite parts.
When you need to purchase some parts from us, please inform us of the following information clearly to ensure we can deliver you the right staffs you just need.
ex-work date and serial number of the Wheel Loader. Part No. and Part Description of the parts that you need. quantity of the parts that you wish to buy..
