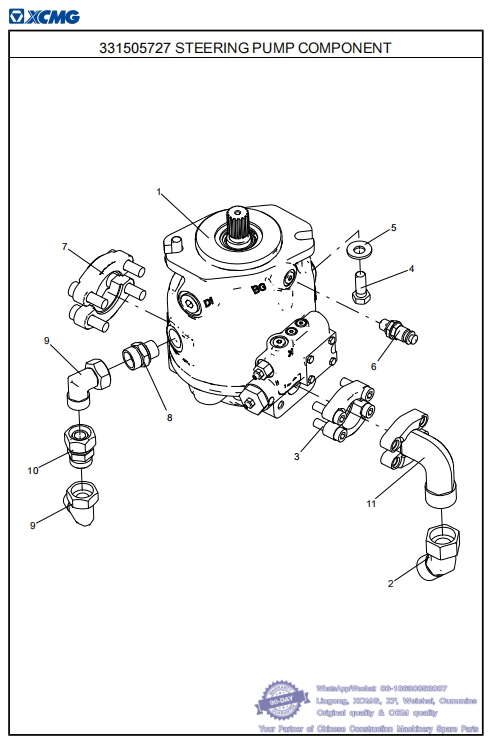

051 331505727 STEERING PUMP COMPONENT-- XCMG Mining Dump Truck XDR100 Parts Catalog
331505724 FRAME STEERING PART
No. PART NUMBER QTY NAME NOTE PAGE
1 803406958 1 STEERING PUMP 110 whatsapp 86-18630852087
2 813402759 1 CONNECTOR
3 813402734 1 FLANGE ASSEMBLY
4 805049370 2 BOLT 1/2-13UNC×1-1/4
5 805301374 2 WASHER 12 DIN6796
6 813402945 1 CONNECTOR whatsapp 86-18630852087
7 813402739 1 FLANGE ASSEMBLY
8 803413654 1 CONNECTOR
9 803413580 2 CONNECTOR whatsapp 86-18630852087
10 813402762 1 CONNECTOR
11 803452473 1 BLIND FLANGE

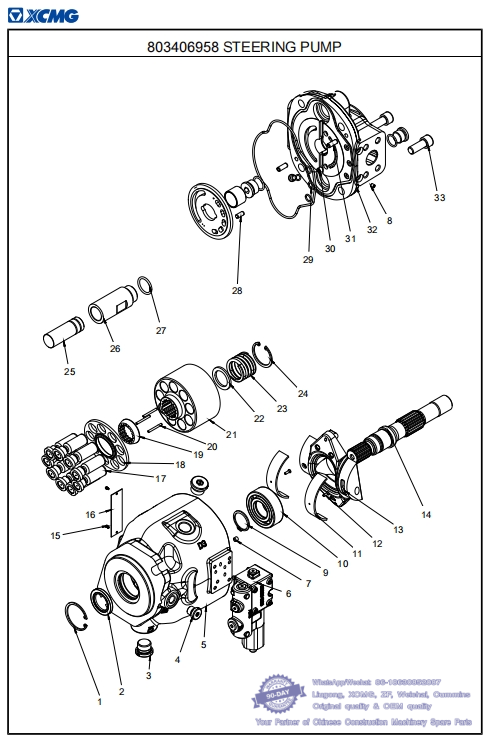

052 803406958 STEERING PUMP- XCMG Mining Dump Truck XDR100 Parts Catalog
331505727 STEERING PUMP COMPONENT
No. PART NUMBER QTY NAME NOTE PAGE
1 803497873 1 SNAP RING whatsapp 86-18630852087
2 803497874 1 OIL SEAL
3 803497875 2 BLOCKAGE
4 803497876 1 BLOCKAGE whatsapp 86-18630852087
5 804200052 1 HOUSING
6 804200053 1 PRESSURE COMPENSATORY SUB ASSEMBLY
7 805100123 1 SCREW M6×6 GB/T77-2007
8 805141232 1 SCREW M5×6 GB/T77-2007
9 805408181 1 HOLD WASHER
10 800557129 1 BEARING
11 800557130 2 SWASH PLATE BEARING
12 803497877 2 THROTTLE SCREW PLUG
13 804200054 1 SWASH PLATE SUB ASSEMBLY
14 804200055 1 SPLINE COUPLING SHAFT
15 804200056 2 RIVET whatsapp 86-18630852087
16 804200057 1 SIGNAGE
17 804200058 9 PISTON SHOE SUB ASSEMBLY
18 804200059 1 SET PLATE
19 804200060 1 SPHERICAL WASHER
20 804200061 3 SPRING PIN
21 804200062 1 CYLINDER BODY
22 804200063 1 CYLINDER BLOCK WASHER
23 804200064 1 CYLINDER BLOCK SPRING
24 805408182 1 HOLD WASHER
25 804200065 1 CONTROL PLUNGER
26 804200066 1 CONTROL PLUNGER GUIDE SLEEVE
27 803497878 2 O-RING
28 805640040 1 PIN 6×14 whatsapp 86-18630852087
29 803497879 3 ZORING
30 803497880 1 BLOCKAGE
31 805640057 2 SPRING PIN
32 804200067 1 REAR COVER OF SIDE OIL PORT whatsapp 86-18630852087
33 805142355 4 SCREW

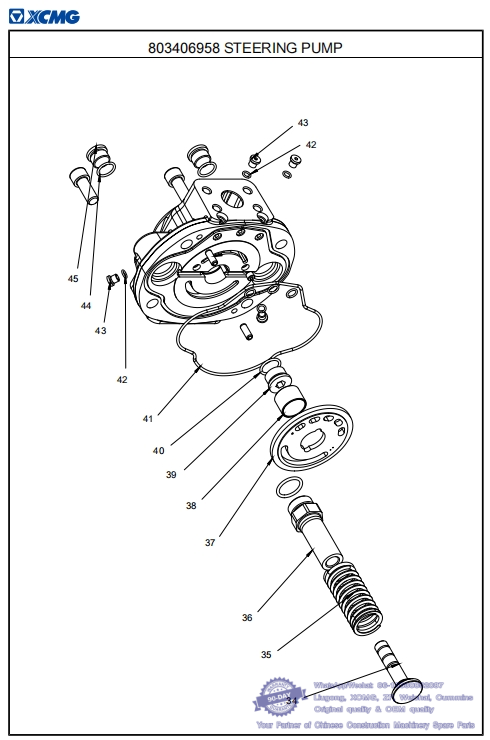

053 803406958 STEERING PUMP-- XCMG Mining Dump Truck XDR100 Parts Catalog
331505727 STEERING PUMP COMPONENT
No. PART NUMBER QTY NAME NOTE PAGE
34 804200068 1 OFFSET PLUNGER whatsapp 86-18630852087
35 801737704 2 SPRING
36 804200069 1 OFFSET PLUNGER GUIDE SLEEVE
37 804200070 1 VALVE PLATE
38 804200071 1 DUSLEEVE
39 804200072 1 BLOCKAGE
40 803497881 1 O-RING whatsapp 86-18630852087
41 803497882 1 O-RING
42 803497883 4 O-RING
43 804200073 2 BLOCKAGE
44 803497884 2 O-RING whatsapp 86-18630852087
45 804200074 2 BLOCKAGE

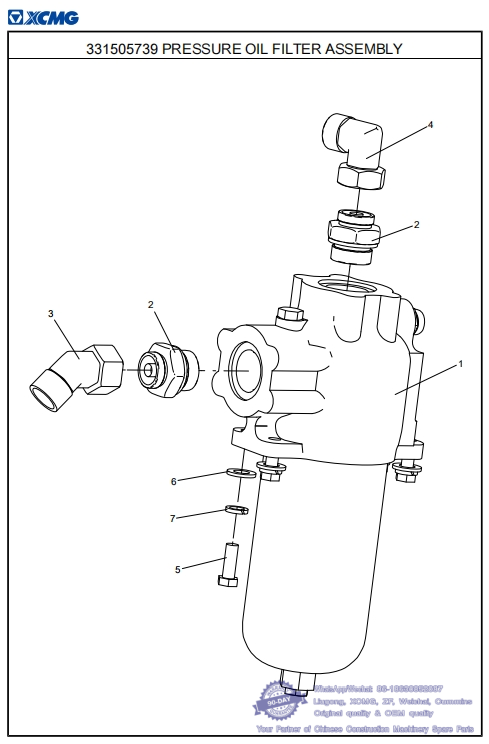

054 331505739 PRESSURE OIL FILTER ASSEMBLY-- XCMG Mining Dump Truck XDR100 Parts Catalog
331505724 FRAME STEERING PART
No. PART NUMBER QTY NAME NOTE PAGE
1 803406974 1 HIGH PRESSURE FILTER whatsapp 86-18630852087
2 813402258 2 CONNECTOR
3 813402759 1 CONNECTOR
4 803424611 1 CONNECTOR whatsapp 86-18630852087
5 805048492 4 BOLT L=28
6 805338281 4 WASHER 12 GB/T97.1-2002
7 805338261 4 WASHER 12 GB/T93-1987 whatsapp 86-18630852087

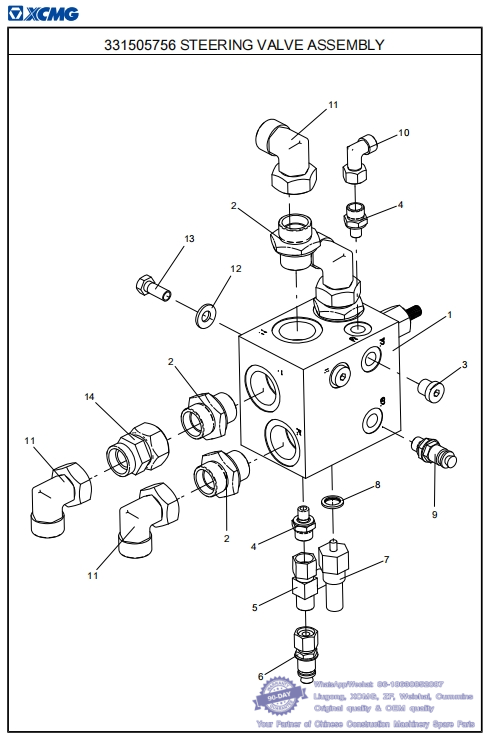

055 331505756 STEERING VALVE ASSEMBLY-- XCMG Mining Dump Truck XDR100 Parts Catalog
331505724 FRAME STEERING PART
No. PART NUMBER QTY NAME NOTE PAGE
1 803406961 1 STEERING VALVE GROUP 118
2 803433471 4 CONNECTOR whatsapp 86-18630852087
3 803439441 2 PLUG
4 803413569 2 CONNECTOR
5 803413505 1 CONNECTOR
6 803452474 1 CONNECTOR
7 803686737 1 PRESSURE SWITCH (8.8MPA)
8 805300024 1 WASHER 14 JB/T982-1977 whatsapp 86-18630852087
9 813402945 1 CONNECTOR
10 803413568 1 CONNECTOR
11 803424611 4 CONNECTOR
12 805301373 2 WASHER 10 DIN6796 whatsapp 86-18630852087
13 805011330 2 BOLT M10×25 GB/T5783-2000
14 813402757 1 CONNECTOR
