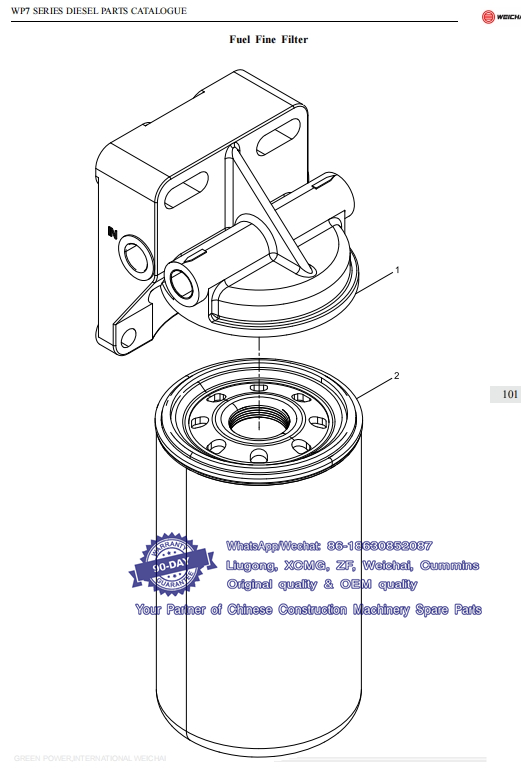

051 Fuel Fine Filter——Weichai WP7 SERIES DIESEL PARTS CATALOGUE
Pos. Teile.Number Amount Designation
1 612630080554 1 Fuel Filter Seat Whatsapp: 86-18630852087
2 1000447498 1 Fuel Fine Filter Element

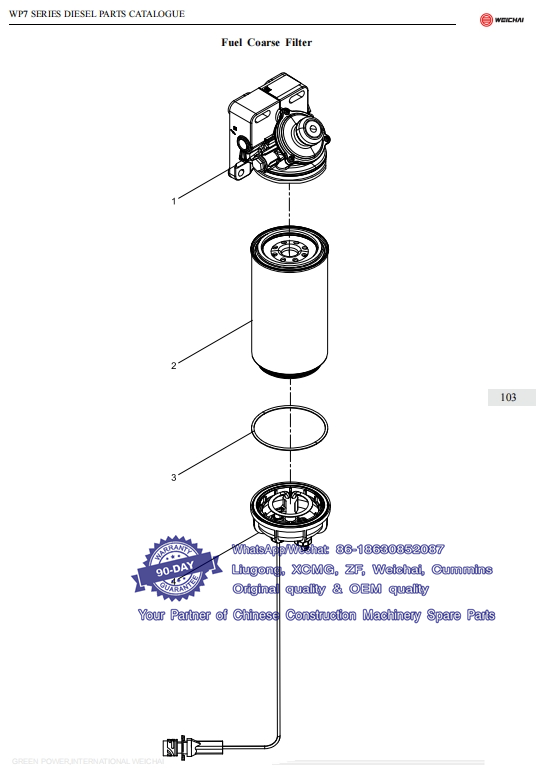

052 Fuel Coarse Filter——Weichai WP7 SERIES DIESEL PARTS CATALOGUE
Pos. Teile.Number Amount Designation
1 612630080371 1 Fuel Filter Seat
2 1000495963 1 Fuel Coarse Filter Element
3 612600081327 1 Seal Ring Whatsapp: 86-18630852087
4 612630080580 1 Water Cup Assembly

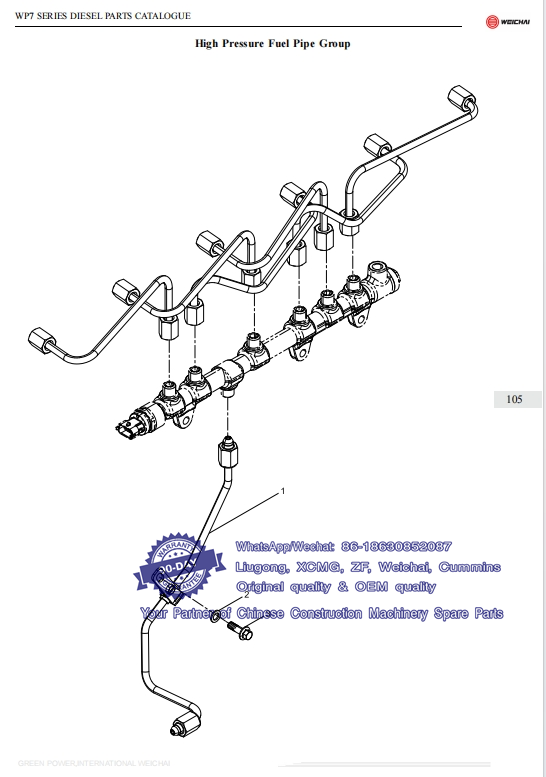

053 High Pressure Fuel Pipe Group——Weichai WP7 SERIES DIESEL PARTS CATALOGUE
Pos. Teile.Number Amount Designation
1 610800080995 1 High-pressure Fuel Pipe Assembly
2 90003932023 1 Wave Spring Washer Whatsapp: 86-18630852087
3 90011400019 1 Hexagon Flange Bolt

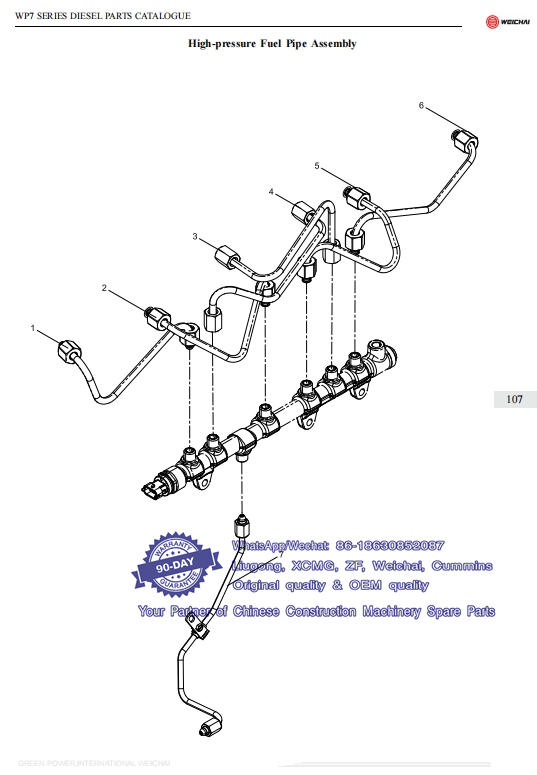

054 High-pressure Fuel Pipe Assembly——Weichai WP7 SERIES DIESEL PARTS CATALOGUE
Pos. Teile.Number Amount Designation
1 610800080149 1 High-pressure Fuel Pipe Assembly
2 610800080150 1 High-pressure Fuel Pipe Assembly Whatsapp: 86-18630852087
3 610800080151 1 High-pressure Fuel Pipe Assembly
4 610800080152 1 High-pressure Fuel Pipe Assembly
5 610800080153 1 High-pressure Fuel Pipe Assembly Whatsapp: 86-18630852087
6 610800080154 1 High-pressure Fuel Pipe Assembly
7 610800080985 1 Pump to Rail High-pressure Fuel Pipe Assembly
055 Common Rail Group——Weichai WP7 SERIES DIESEL PARTS CATALOGUE
Pos. Teile.Number Amount Designation
1 610800080061 1 Rail
2 610800080654 1 Sleeve Whatsapp: 86-18630852087
3 90013550039 1 Inner Hexagon Socket Head Cap Screw
4 90003932023 1 Wave Spring Washer
5 90011410003 2 Hexagon Flange Bolt Whatsapp: 86-18630852087

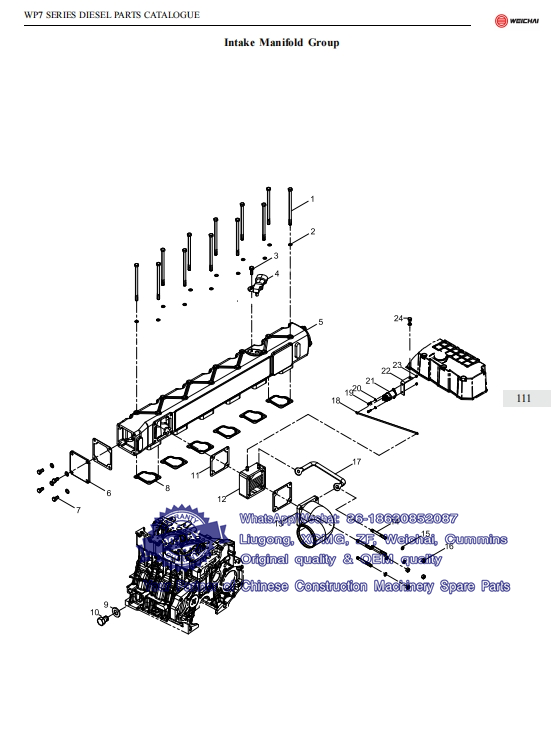

056 Intake Manifold Group——Weichai WP7 SERIES DIESEL PARTS CATALOGUE
Pos. Teile.Number Amount Designation
1 614110064 12 Intake Manifold Bolt
2 90003932023 17 Wave Spring Washer
3 612639000004 1 Hexagon Head Bolt
4 612630120004 1 Pressure and Temperature Sensor
5 610800110235 1 Intake Manifold Assembly
6 610800110184 1 Intake Cover Whatsapp: 86-18630852087
7 90003802415 4 Hexagon Head Bolt
8 610800110554 6 Intake Manifold Gasket
9 612600012629 1 Gasket
10 612600012631 1 Hexagon Head Bolt
11 612630120002 3 Gasket
12 612630120003 1 Heater Whatsapp: 86-18630852087
13 1001378644 1
14 90003813470 4 Double End Stud
15 90003931102 4 Spring Washer
16 90003871252 4 Hexagon Nuts, Style 1
17 1001044693 1
18 612630080522 1 Glow plug harness
19 90013050033 2 Inner Hexagon Socket Head Cap Screw
20 90014350002 2 Spring Washer
21 612630080076 1 Relay Whatsapp: 86-18630852087
22 610800110125 1 Bracket
23 90003871222 2 Hexagon Nuts, Style 1
24 90003802402 1 Hexagon Head Bolt

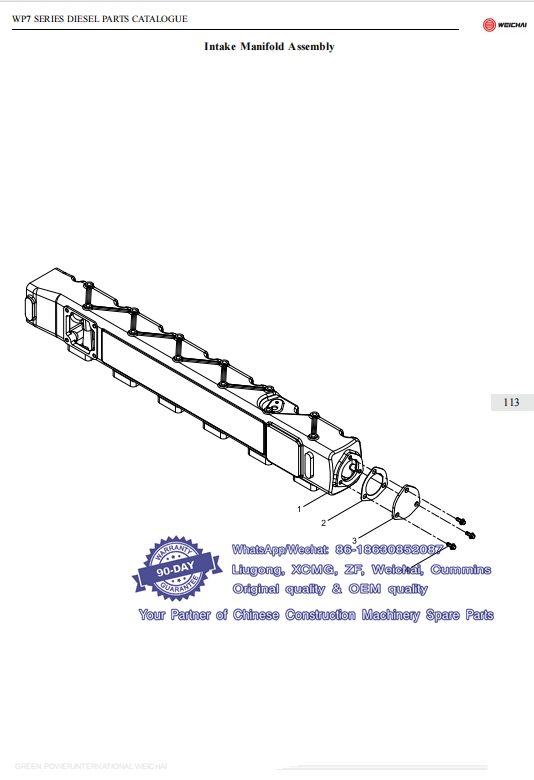

057 Intake Manifold Assembly——Weichai WP7 SERIES DIESEL PARTS CATALOGUE
Pos. Teile.Number Amount Designation
1 610800110234 1 Intake Manifold
2 612600110456 1 Gasket Whatsapp: 86-18630852087
3 612600112469 1 Cover
4 90011400002 3 Hexagon Flange Bolt

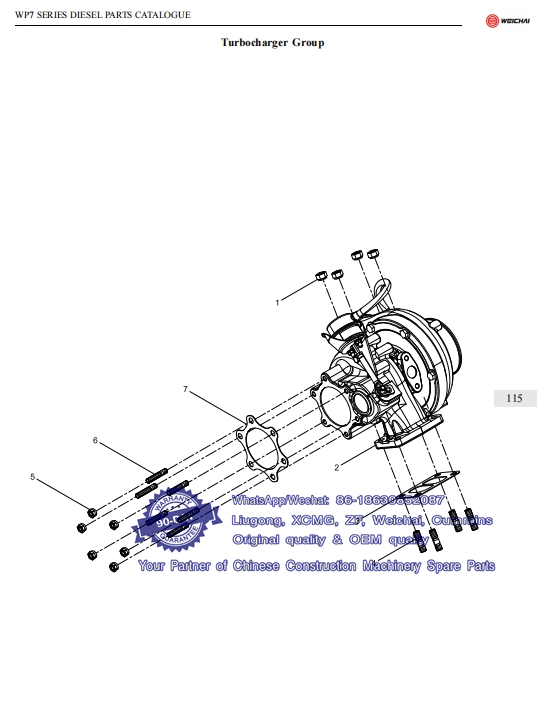

058 Turbocharger Group——Weichai WP7 SERIES DIESEL PARTS CATALOGUE
Pos. Teile.Number Amount Designation
1 90003888470 4 Prevailing Torque Type All-metal Hexagon Nut,
2 1000129290 1 Turbocharger
3 610800110006 1 Gasket Whatsapp: 86-18630852087
4 612600110282 4 Double End Stud
5 610800110349 6 Locknut
6 610800110040 6 Double End Stud
7 610800110324 1 Gasket

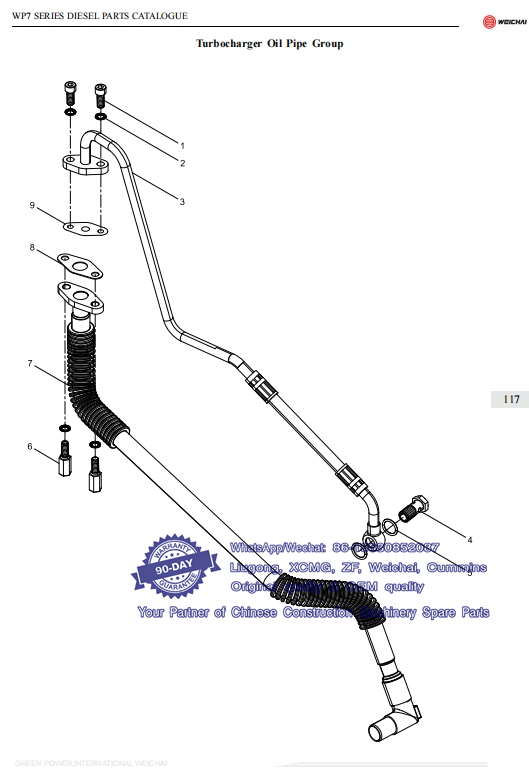

059 Turbocharger Oil Pipe Group——Weichai WP7 SERIES DIESEL PARTS CATALOGUE
Pos. Teile.Number Amount Designation
1 90003862427 2 Inner Hexagon Socket Head Cap Screw
2 188250083 4 Washer
3 610800110011 1 Turbocharger Oil Pipe Assembly
4 01119243 1 Hollow screw
5 612600080200 2 Washer Whatsapp: 86-18630852087
6 61460070014 2 Bolt
7 610800110594 1 Turbocharger Oil Pipe Assembly
8 61260110048 1 Gasket
9 612600114275 1 Gasket Whatsapp: 86-18630852087

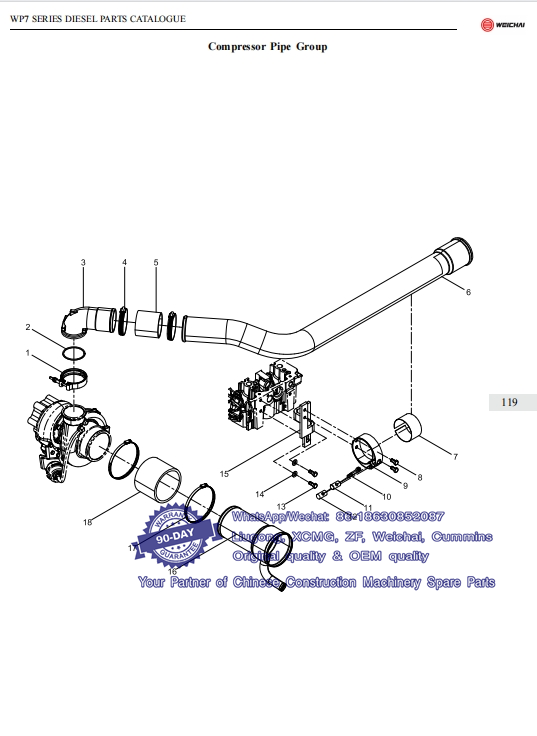

060 Compressor Pipe Group——Weichai WP7 SERIES DIESEL PARTS CATALOGUE
Pos. Teile.Number Amount Designation
1 61560110226 1 Clamp
2 190320035 1 Seal Ring
3 61560110165 1 Connecting elbow
4 90003989312 2 Clamp Whatsapp: 86-18630852087
5 612600110962 1 Air Connecting Rubber Pipe
6 610800110590 1 Intercool Pipe
7 610800120013 1 Pipe Clamp
8 90003802411 2 Hexagon Head Bolt
9 610800120012 1 Clamp
10 90013550012 1 Inner Hexagon Socket Head Cap Screw
11 209190017 1 Locking Pin Whatsapp: 86-18630852087
12 1700550013 1 Tension pin
13 90003802419 2 Hexagon Head Bolt
14 90014040007 2 Plain Washer
15 610800120011 1 Inter-cool Pipe Bracket
16 610800110104 1 Compressor Air-inlet Assembly
17 90003989318 2 Clamp Whatsapp: 86-18630852087
18 61560110117 1 Air Connecting Rubber Pipe
