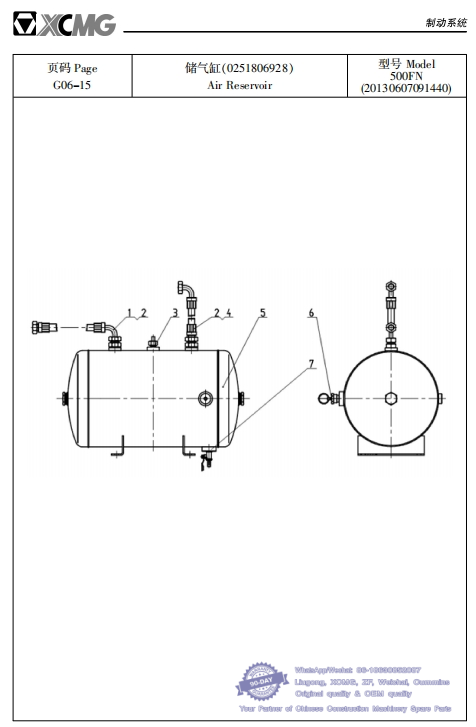

052 储气缸 0251806928 型号 500FN (20130607091440)
Air Reservoir Model 500FN (20130607091440)-- XCMG Loader LW500FN Parts Catalog
件号 部件号 零件名称 数量 备注
Item Part No. Part Name Qty Remarks
1 252904206 储气缸进气管 Hose 1
2 803164613 接头 Joint 2
3 803004050 安全阀 Relief Valve 1 HF150
4 251805342 储气缸出气管 Pipe 1
5 250200681 储气缸 Air Reservoir 1
6 800787367 锥阀开关 R1/4 Switch 1
7 227301565 1/4 球阀 Valve 1

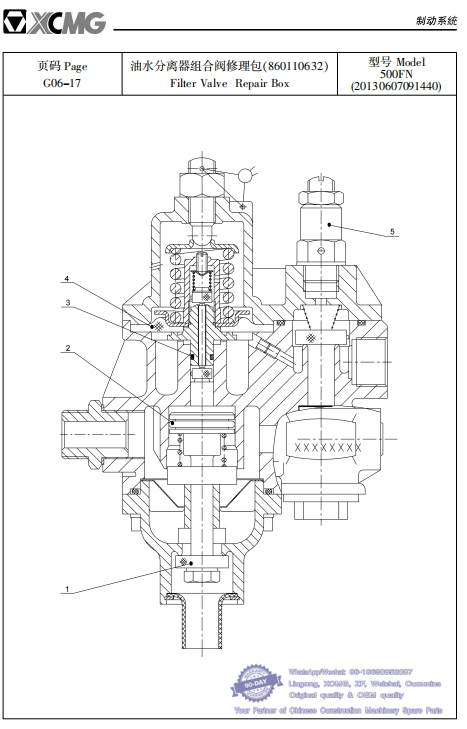

053 油水分离器组合阀修理包860110632 型号 500FN (20130607091440)
Filter Valve Repair Bo Model (20130607091440)-- XCMG Loader LW500FN Parts Catalog
件号 部件号 零件名称 数量 备注
Item Part No. Part Name Qty Remarks
1 放水阀门 Drain Valve 1 SH380A-3511038
2 O 形密封圈 O-Ring 1 SH380A-3511061
3 O 形密封圈 O-Ring 1 SH380A-3511071
4 膜片 Rubber 1 SH380A-3511078
5 安全阀 Safety Valve 1 150-3511050
7. 操纵与驾驶室Controls and Cab

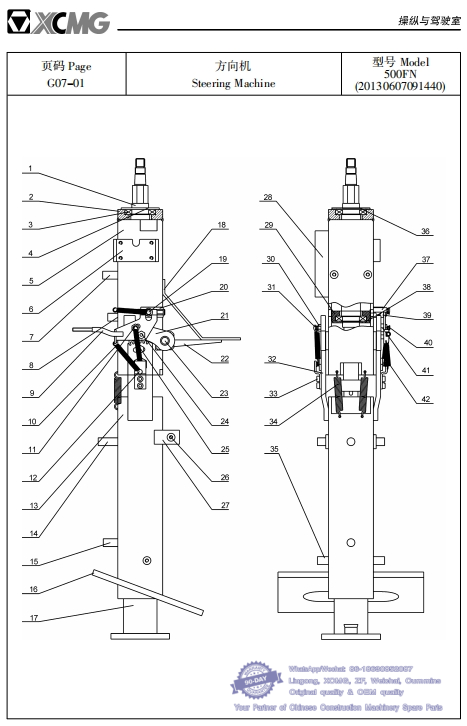

054 方向机 型号 500FN (20130607091440)
Steering Machine Model (20130607091440)-- XCMG Loader LW500FN Parts Catalog
件号 部件号 零件名称 数量 备注
Item Part No. Part Name Qty Remarks
1 转轴组件 Shaft 1 RC3400-1010-01
2 上轴承座 Bearing Block 1 RC3400-1010-02
3 轴承 16006 Bearing 2 GB/T276-1994
4 轴承盖板 Cover 1 RC3400-1010-03
5 上支架 Bracket 1 RC3400-1010-04
6 小支架组件 Bracket 1 RC3400-1010-05
7 27 固定套 Fixed Tube 2 RC3400-1010-06
8 18 固定套 Fixed Tube 2 RC3400-1010-07
9 把手组件 Handle 1 RC3400-1010-08
10 拉簧 Tension Spring 3 RC3400-1010-09
11 转板螺栓 Bolt 1 RC3400-1010-10
12 旋转轴压板 Plate 2 RC3400-1010-11
13 下支架 Bracket 1 RC3400-1010-12
14 35 固定套 Fixed Tube 1 RC3400-1010-13
15 26 固定套 Fixed Tube 1 RC3400-1010-14
16 底板 Bottom-Board 1 RC3400-1010-15
17 底座组合 Bearer 1 RC3400-1010-16
18 大包壳固定板 Plate 1 RC3400-1010-17
19 滑杆组件 Sliding Rod 1 RC3400-1010-18
20 滑槽 Slideway 1 RC3400-1010-19
21 上齿板 Plate 2 RC3400-1010-20
22 加强板 Plate 2 RC3400-1010-21
23 转轴 Shaft 1 RC3400-1010-22
24 转板螺栓 II Bolt 1 RC3400-1010-23
25 旋转轴小螺栓 Bolt 2 RC3400-1010-24
26 15 固定套 Fixed Tube 2 RC3400-1010-25
27 15 固定套支撑板 Plate 2 RC3400-1010-26
28 侧支架 Bracket 1 RC3400-1010-27
29 下轴承座 Bearing Block 1 RC3400-1010-28
30 M6 螺母 Nut 1 GB/T6170-2000
31 M6伊16 螺钉 Screw 1 GB/T823
32 下齿板 Plate 2 RC3400-1010-29
33 M6伊12 螺栓 Bolt 4 GB/T70.1-2000
34 拉簧 Tension Spring 2 RC3400-1010-30
35 20 固定套 Fixed Tube 2 RC3400-1010-31
36 档圈 Check Ring 2 GB/T894.1-1986
37 弹簧挂勾柱 Spring Hook Column 1 RC3400-1010-32
38 下轴承座盖板 Cover 1 RC3400-1010-33
39 上齿板支撑座 Bearer 2 RC3400-1010-34
40 旋转轴螺栓 Bolt 2 RC3400-1010-35
41 拉簧 Tension Spring 1 RC3400-1010-36
42 垫圈 Washer 2 RC3400-1010-37

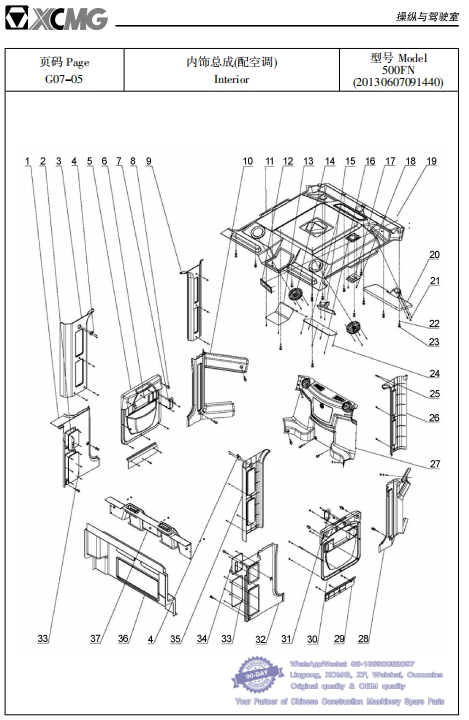

055 内饰总成(配空调) 型号 500FN (20130607091440)
Interior Model 500FN (20130607091440)-- XCMG Loader LW500FN Parts Catalog
件号 部件号 零件名称 数量 备注
Item Part No. Part Name Qty Remarks
1 252604424 左后侧围下护板 Left Rear Panel 1
2 252604423 左侧碰锁盖板 Lock Cover 1
3 252901214 左后立柱护板 Left Rear Pillar 1
4 252901205 衣帽钩 Clothes Hook 2
5 252604426 左门护板总成 Left Door Panel 1
6 十字槽盘头螺钉 Screws 4 Q2140612
7 左门扣手盖板 Door Lock Cover 1
8 门护板装饰帽 Fastener Cap 4
9 252901212 左前立柱护板 Left Front Pillar 1
10 252604409 左前侧护板 Left Front Panel 1
11 252604407 顶棚 Ceiling 1
12 组合开关支架 Switch Bracket 1
13 顶棚后检修盖板 Ceiling Back Cover 1
14 喇叭罩 Speaker Cover 2
15 252901206 内视镜 Rearview Mirror 1
16 顶棚前检修盖板 Ceiling Front Cover 1
17 252901208 顶灯 Head Lamp 1
18 十字槽盘头自攻螺钉 Tapping Screws 2 Q2715525
19 螺母 Nut 4 Q340B04
20 252901207 遮阳板 Sun Visors 1
21 十字槽盘头螺钉 Screws 6 Q2540520
22 十字槽盘头自攻螺钉 Tapping Screws 102 Q2714219
23 大装饰帽 Fastener Cap 30
24 大半圆头自攻螺钉 Tapping Screws 10 Q2735516
25 小装饰帽 Fastener Cap 28
26 252901213 右前立柱护板 Right Front Pillar 1
27 252604414 前围护板总成 Front Panel 1
28 252604410 右前侧护板 Right Front Panel 1
29 252901203 下门槛护板 Doorsill Panel 2
30 252901211 右门护板总成 Right Door Panel 1
31 右门扣手盖板 Door Lock Cover 1
32 252604425 右后侧护板 Right Rear Panel 1
33 侧维修盖板 Side Repair Cover 2
34 右侧碰锁盖板 Lock Cover 1
35 252901215 右后立柱护板 Right Rear Pillar 1
36 252604415 空调罩总成 Rear Wall 1
37 252901218 后横梁总成 Rear Beam 1

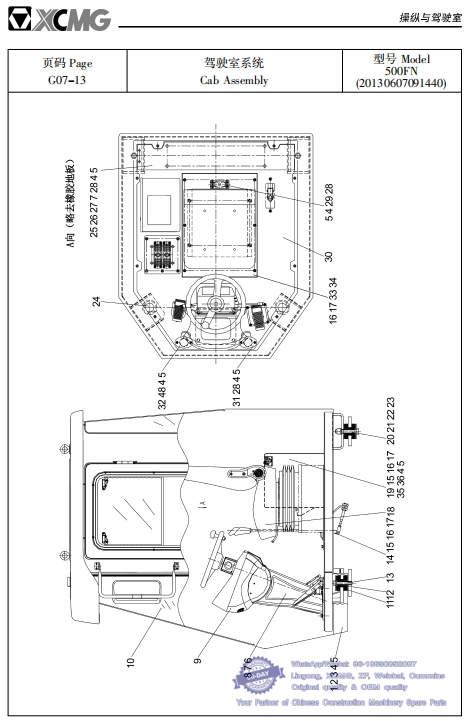

056 驾驶室系统 型号 500FN (20130607091440)
Cab Assembly Model 500FN (20130607091440)-- XCMG Loader LW500FN Parts Catalog
件号 部件号 零件名称 数量 备注
Item Part No. Part Name Qty Remarks
1 251806148 前围板焊接总成 Front Cover 1
2 805000021 螺栓 M8伊50 Bolt M8伊50 4 GB/T5783-2000
3 251806253 垫片 Washer 4 GB/T 97.1-2002
4 805300117 垫圈 8 Washer 18 GB/T96.1-2002
5 805300010 垫圈 8 Washer 18 GB/T 93-1987
6 805000048 螺栓 M12伊35 Bolt 4 GB/T5783-2000
7 805300020 垫圈 12 Washer 8 GB/T97.1-2002
8 805300018 垫圈 12 Washer 8 GB/T93-1987
9 251806248 仪表箱总成 Instrument Panel 1
10 251805547 驾驶室总成 Cab 1 配暖风
251805875 驾驶室总成 Cab 1 配空调
11 252800192 减震器组件 Absorber 4
12 252800195 隔板 Plate 8
13 805002042 螺栓 M20伊110 Bolt 2
14 252904026 两联操纵杆系 Joy Stick 1 配两联
252904031 三联操纵杆系 Joy Stick 1 配三联
15 805000043 螺栓 M10伊30 Bolt 13 GB/T5783-2000
16 805300017 垫圈 10 Washer 19 GB/T97.1-2002
17 805300014 垫圈 10 Washer 19 GB/T93-1987
18.1 801968889 座椅 Seat 1 XGZY01-V配暖风冤
18.2 801968890 座椅 Seat 1 XGZY03-AII(配空调)
19 251806762 操纵箱 Control Box 1
20 805001909 螺栓 M24伊140 Bolt 2 GB/T 5782-2000
21 805300034 垫圈 24 Washer 2 GB/T93-1987
22 805300021 垫圈 24 Lock Washer 2 GB/T97.1-2002
23 805201519 螺母 M24 Nut 2 GB/T6182-1986
24 801938261 封盖 Cover 2
25 252605924 暖风盖板 Plate 1 配暖风
26 252605925 暖风盖板密封垫 Seal 1 配暖风
27 805000716 螺栓 M12伊30 Bolt 4 GB/T 5783-2000
28 805000020 螺栓 M8伊30 Bolt 10 GB/T5783-2000
29 251805058 压板 Plate 2
30 251805826 地板橡胶 Rubber Cushion 1 配暖风
251805876 地板橡胶 Rubber Cushion 1 配空调
31 251806156 暖风风管总成 I Pipe 1
32 251806159 暖风风管总成 II Pipe 1
33 251805675 座椅安装板总成 Seat Fixing Plate 1 配暖风
251805764 座椅安装板总成 Seat Fixing Plate 1 配空调
34 80500727 螺栓 M10伊25 Bolt 6 GB/T5783-2000
35 251806251 压板 Plate 1 配空调
36 80500017 螺栓 M8伊25 Bolt 4 GB/T5783-2000
Full range of spare parts for XCMG Wheel Loader ZL50G, ZL50GN, LW500F, LW500FN, LW500K,LW500KN
XCMG Wheel Loader Spare parts, whatsapp 86-18630852087
LW500FN WHEEL LOADER PARTS MANUAL
LW500FN 轮式装载机零件手册
XUGONG SCIENCE & TECHNOLOGY CO.,LTD.
徐州工程机械科技股份有限公司
