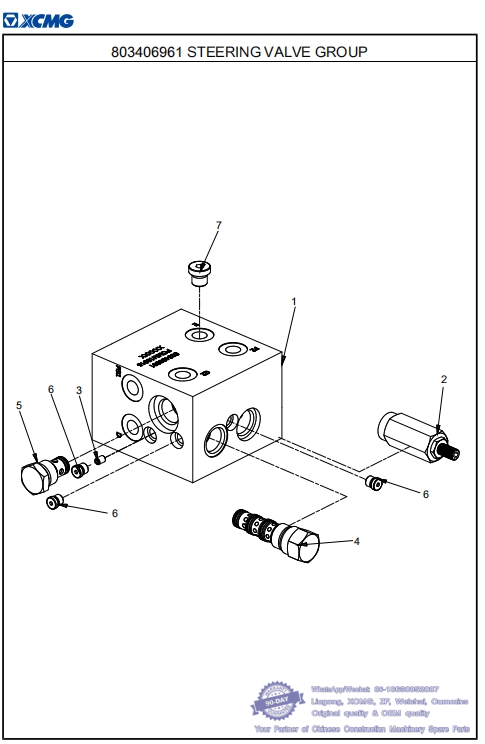

056 803406961 STEERING VALVE GROUP-- XCMG Mining Dump Truck XDR100 Parts Catalog
331505756 STEERING VALVE ASSEMBLY
No. PART NUMBER QTY NAME NOTE PAGE
1 804200075 1 FORGE PIECE 120 X 115 X 85 whatsapp 86-18630852087
2 804013251 1 PRESSURE RELIEF VALVE
3 803280234 1 DAMPER
4 804013252 1 HYDRAULIC OPERATED DIRECTIONAL VALVE
5 804013253 1 CHECK VALVE whatsapp 86-18630852087
6 803405010 3 PLUG
7 803103958 1 PLUG whatsapp 86-18630852087

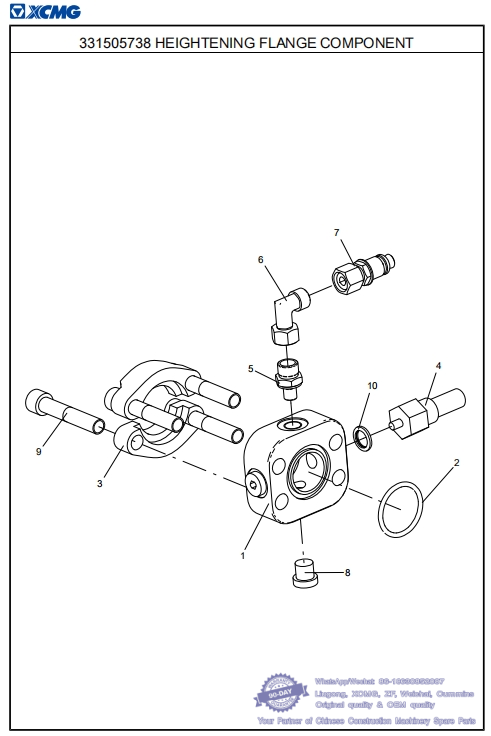

057 331505738 HEIGHTENING FLANGE COMPONENT-- XCMG Mining Dump Truck XDR100 Parts Catalog
331505724 FRAME STEERING PART
No. PART NUMBER QTY NAME NOTE PAGE
1 331502222 1 HEIGHTENING FLANGE whatsapp 86-18630852087
2 813402700 2 BLIND FLANGEORING 37.69×3.53
3 803380677 1 BLIND FLANGE
4 803686738 1 PRESSURE SWITCH (0.27MPA)
5 803413569 1 CONNECTOR
6 803413568 1 CONNECTOR whatsapp 86-18630852087
7 803452474 1 CONNECTOR
8 803439441 2 PLUG
9 805139883 4 SCREW M12×65 GB/T70.1-2008
10 805300024 1 WASHER 14 JB/T982-1977 whatsapp 86-18630852087

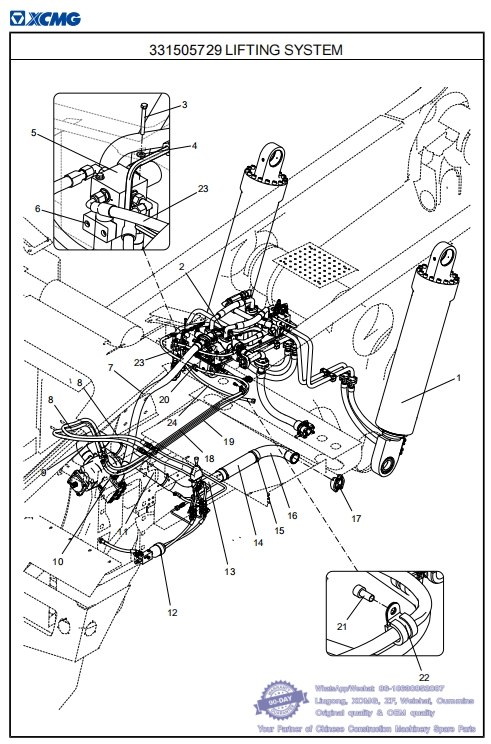

058 331505729 LIFTING SYSTEM- XCMG Mining Dump Truck XDR100 Parts Catalog
331504658 HYDRAULIC SYSTEM
No. PART NUMBER QTY NAME NOTE PAGE
1 331500034 1 LIFTING CYLINDER 126 whatsapp 86-18630852087
2 331505751 1 MIDDLE LIFTING PIPING 134
3 805048070 2 BOLT M6×55 GB/T5783-2000
4 805301383 2 WASHER 6 DIN6796
5 331505745 1 LIFTING PILOT CONTROL VALVE GROUP 140
6 803437791 6 PIPE CLIP
7 803450064 1 HOSE ASS'Y
8 803449789 2 HOSE ASS'Y
9 331502223 1 STEEL PIPE ASSEMBLY
10 331505740 1 LIFTING PUMP COMPONENT 144
11 803447244 1 OIL ABSORPTION HOSE
12 331505736 1 DRIVER’S CAB PIPE LAYING 146
13 331502224 1 SEAMLESS STEEL TUBE
14 803447245 1 OIL ABSORPTION HOSE whatsapp 86-18630852087
15 800141597 4 HOSE CLAMP
16 331502225 1 STEEL PIPE ASSEMBLY
17 813402890 1 FLANGE ASSEMBLY
18 803451724 1 HOSE ASS'Y whatsapp 86-18630852087
19 803449987 1 HOSE ASS'Y
20 800104621 1 RUBBER SLEEVE HOOP
21 805139925 1 SCREW M10×20 GB/T70.1-2008
22 801905725 1 RUBBER SLEEVE HOOP
23 803450669 1 HOSE ASS'Y whatsapp 86-18630852087
24 803450002 1 HOSE ASS'Y

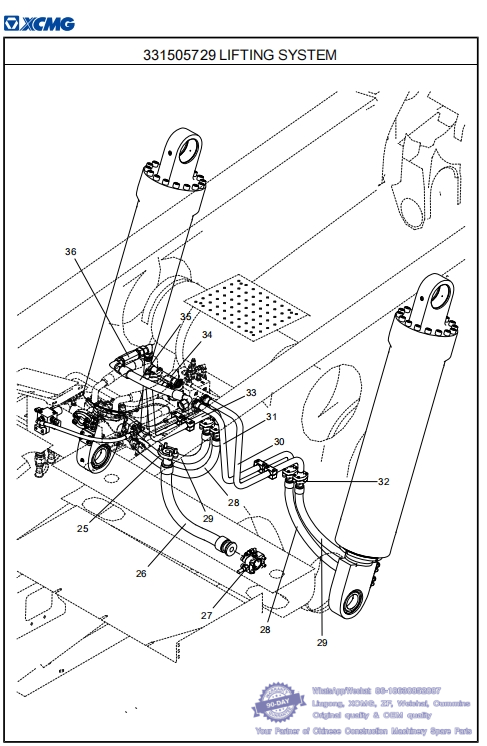

059 331505729 LIFTING SYSTEM-- XCMG Mining Dump Truck XDR100 Parts Catalog
331504658 HYDRAULIC SYSTEM
No. PART NUMBER QTY NAME NOTE PAGE
25 813402739 2 FLANGE ASSEMBLY whatsapp 86-18630852087
26 803417586 1 HOSE ASS'Y
27 331505752 1 HEIGHTENING FLANGE COMPONENT 152
28 803417579 2 HOSE ASS'Y
29 803417580 2 HOSE ASS'Y
30 331502228 1 STEEL PIPE ASSEMBLY
31 331502227 1 STEEL PIPE ASSEMBLY whatsapp 86-18630852087
32 813402734 8 FLANGE ASSEMBLY
33 331502230 1 STEEL PIPE ASSEMBLY
34 331503301 1 STEEL PIPE ASSEMBLY
35 803439052 1 HOSE ASS'Y whatsapp 86-18630852087
36 331505733 1 PIPE CHECK VALVE GROUP 154

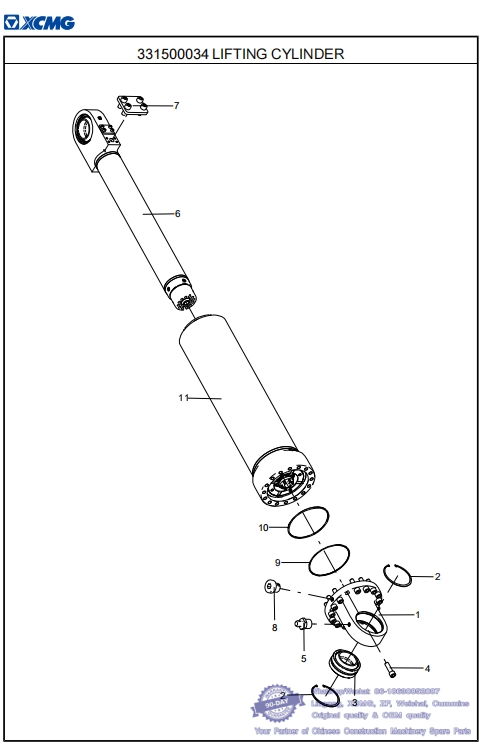

060 331500034 LIFTING CYLINDER- XCMG Mining Dump Truck XDR100 Parts Catalog
331505729 LIFTING SYSTEM
No. PART NUMBER QTY NAME NOTE PAGE
1 804200218 1 CYLINDER BASE whatsapp 86-18630852087
2 805403128 4 HOLD WASHER1
3 800500267 2 BEARING
4 805140490 16 SCREW M20×70 GB/T70.1-2008
5 801103157 2 GB/T1152-2000OIL CUPM10×1 whatsapp 86-18630852087
6 804200223 1 PISTON ROD
7 804200229 2 FLANGE DUST COVER SAE1-3000PSI
8 804200240 1 HEXAGONAL BLEED SCREW G1/8
9 804200236 1 HOLD WASHER240×231.3×1.5
10 803499185 1 ORING227.97×5.33
11 804200224 1 CYLINDER BODY whatsapp 86-18630852087
