057 384203531 MILLING MACHINE 路面铣刨机-- XCMG Road Milling Machine XM200 Spare Parts Catalog

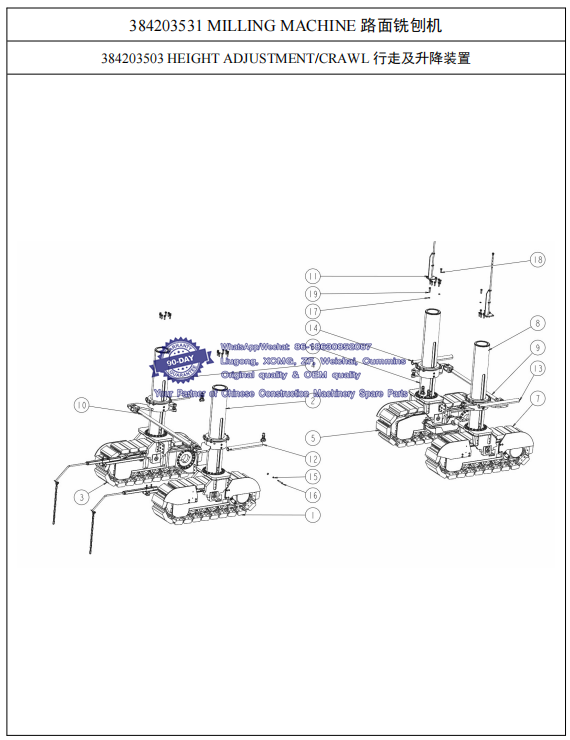

384203503 HEIGHT ADJUSTMENT/CRAWL 行走及升降装置
序号 零部件代号 名称 数量 备注
No. Part No. Part name Q'ty Remark
1 384203508 左前行走履带LEFT FRONT CRAWLER UNIT 1
2 384203342 左前支腿 LEFT FRONT OUTRIGGER 1 Whatsapp: 86-18630852087
3 384203507 右前行走履带RIGHT FRONT CRAWLER UNIT 1
4 384203345 右前支腿 RIGHT FRONT OUTRIGGER 1
5 384203506 右后行走履带RIGHT REAR CRAWLER UNIT 1
6 384203344 右后支腿 RIGHT REAR OUTRIGGER 1
7 384203504 左后行走履带LEFT REAR CRAWLER UNIT 1
8 384203349 左后支腿 LEFT REAR OUTRIGGER 1
9 384201718 后腿连动总成 REAR LEG LINKAGE 1
10 384201717 前腿连动总成 FRONT LEG LINKAGE 1 Whatsapp: 86-18630852087
11 384201719 后腿高度标尺 SURVEYOR'S POLE 2
12 384200507 支撑杆 I KNIGHTHEAD I 2
13 384200508 支撑杆Ⅱ KNIGHTHEAD Ⅱ 2
14 805338280 垫圈 12(达克罗) WASHER 12 4 GB/T97.1-2002
15 805338261 垫圈 12(达克罗) WASHER 12 4 GB/T93-1987 Whatsapp: 86-18630852087
16 805046463 螺栓 M12×120(达克罗) BOLT M12×120 4 GB/T5782-2000
17 805338263 垫圈 16(达克罗) WASHER 16 34 GB/T93-1987
18 805006290 螺栓 M16×50(达克罗) BOLT M16×50 30 GB/T5783-2000
19 805006288 螺栓 M16×65(达克罗) BOLT M16×65 4 GB/T5783-2000
058 384203503 HEIGHT ADJUSTMENT/CRAWL 行走及升降装置-- XCMG Road Milling Machine XM200 Spare Parts Catalog

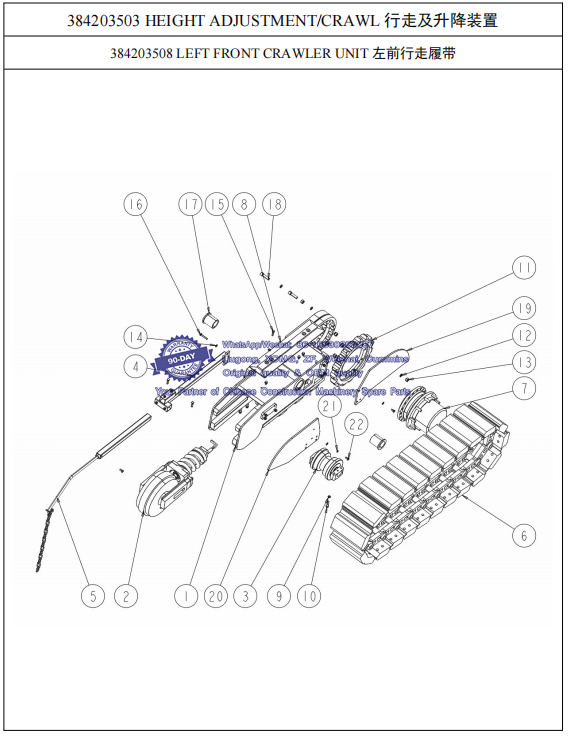

384203508 LEFT FRONT CRAWLER UNIT 左前行走履带
序号 零部件代号 名称 数量 备注
No. Part No. Part name Q'ty Remark
1 384203655 左前履带梁LEFT FRONT CRAWLER BEAM 1
2 384203341 前轮导向轮及张紧 FRONT GUIDING AND TENSIONING SYSTEM 1
3 800307732 支重轮 LOWER ROLLER 4
4 384200471 标尺杆座 RULER BRACKET 1
5 384203340 标尺杆 RULER POLE 1
6 800357149 履带总成 CRAWLER WITH RUBBER PAD 1
7 800307355 减速机 REDUCER 1 Whatsapp: 86-18630852087
8 384200481 垫板 BASEPLATE 1
9 805338261 垫圈 12(达克罗) WASHER 12 16 GB/T93-1987
10 805048392 螺 栓 M12×1.5×50( 达 克罗)BOLT 16 GB/T5785-2000
11 384200675 链轮 CHAIN WHEEL 1
12 805338263 垫圈 16(达克罗) WASHER 16 27 GB/T93-1987 Whatsapp: 86-18630852087
13 384400336 美标螺母 AMERICAN STANDARD NUT 9
14 805338278 垫圈 10(达克罗) WASHER 10 14 GB/T97.1-2002
15 805046529 螺栓 M10×40(达克罗) BOLT M10×40 6 GB/T5783-2000
16 805046536 螺栓 M10×60(达克罗) BOLT M10×60 2 GB/T5783-2000
17 800515197 自润翻边轴套SELF LUBRICATING FLANGING BEARING 2
18 805048263 螺栓 L=60(10.9)(达克罗) BOLT L=60 18 Whatsapp: 86-18630852087
19 384203759 防护板一 GUARD PLATE NO.1 1
20 384203758 防护板二 GUARD PLATE NO.2 1 Whatsapp: 86-18630852087
21 805338260 垫圈 10(达克罗) WASHER 10 8 GB/T93-1987
22 805046472 螺栓 M10×20(达克罗) BOLT 8 GB/T5783-2000
059 384203508 LEFT FRONT CRAWLER UNIT 左前行走履带-- XCMG Road Milling Machine XM200 Spare Parts Catalog

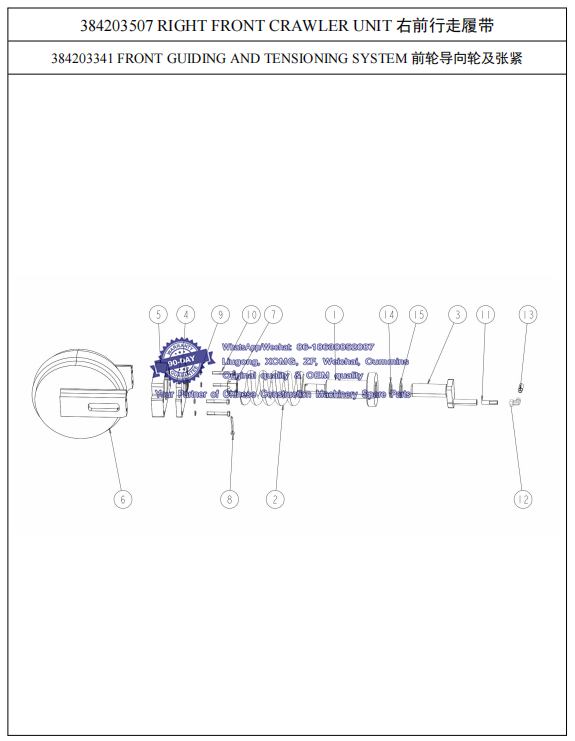

384203341 FRONT GUIDING AND TENSIONING SYSTEM 前轮导向轮及张紧
序号 零部件代号 名称 数量 备注
No. Part No. Part name Q'ty Remark
1 384200405 外滑筒OUTSIDE SLIDING BARREL 1
2 384200512 压簧 COMPRESSED SPRING 1 Whatsapp: 86-18630852087
3 384200510 张紧杆 TENSIONING POLE 1
4 384200511 连接板Ⅰ PLANK Ⅰ 1
5 384200531 连接板Ⅱ PLANK Ⅱ 1
6 800307707 导向轮总成 PULLEY 1
7 805238894 螺母 M36(达克罗) NUT M36 1 GB/T6181-1986
8 805600351 销 8×63 PIN 8×63 1 GB/T91-2000 Whatsapp: 86-18630852087
9 805338261 垫圈 12(达克罗) WASHER 12 4 GB/T93-1987
10 805046645 螺栓 M12×80(达克罗) BOLT M12×80 4 GB/T5782-2000
11 800309261 单向阀 CHECK VALVE 1
12 803107607 接头 CONNECTOR 1 Whatsapp: 86-18630852087
13 803130486 测压接头 PRESSURE GAUGE ADAPTOR 1
14 803192133 O 形圈 50×5.3 O-RING 50×5.3 1 GB/T3452.1-2005
15 801907072 防尘圈 DUSTPROOF WASHER 1
060 384203508 LEFT FRONT CRAWLER UNIT 左前行走履带-- XCMG Road Milling Machine XM200 Spare Parts Catalog
384203340 RULER POLE 标尺杆
序号 零部件代号 名称 数量 备注
No. Part No. Part name Q'ty Remark

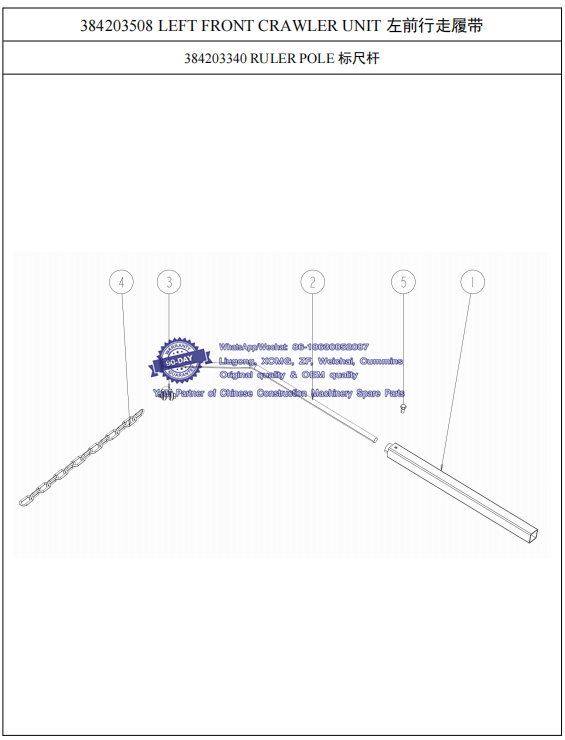

1 384200403 固定架 SUPPORT 1
2 384200482 延长杆 EXTENDING POLE 1 Whatsapp: 86-18630852087
3 801301939 卸扣 M-DX0.63 BUCKLE M-DX0.63 1 JB/T8112-1999
4 800307704 链 CHAINS 1 JB/T8108.2-1999 链d=7L=600 Whatsapp: 86-18630852087
5 805046472 螺栓 M10×20(达克罗) BOLT 1 GB/T5783-2000
061 384203503 HEIGHT ADJUSTMENT/CRAWL 行走及升降装置-- XCMG Road Milling Machine XM200 Spare Parts Catalog

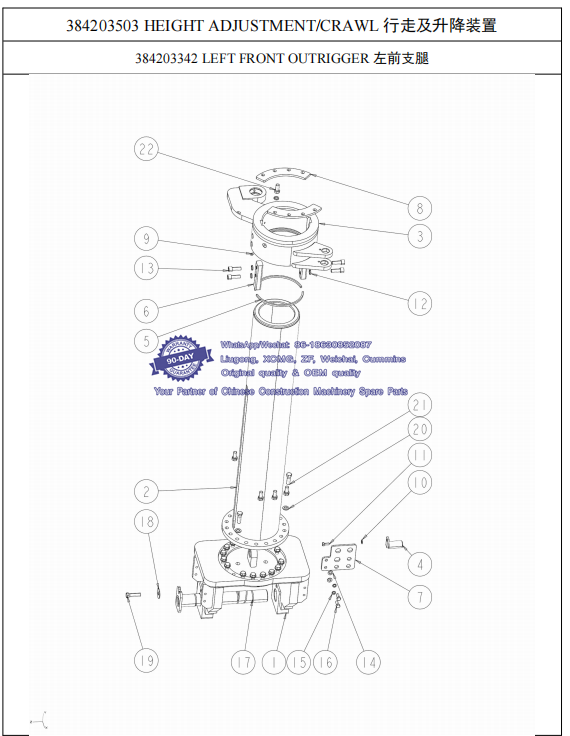

384203342 LEFT FRONT OUTRIGGER 左前支腿
序号 零部件代号 名称 数量 备注
No. Part No. Part name Q'ty Remark
1 384202150 脚叉 HOLD-DOWN SUPPORT 1
2 384200106 升降支腿 LIFTING LANDING LEG 1
3 384200459 左前转向牵引 STEERING RING LF 1
4 805604570 销轴 SHAFT 1
5 384200478 密封毛毡 SEALINGT KIT 2
6 384200479 导向块 GUIDE MAT 2
7 384200476 过壁板CUT-THROUGH WALL PLANK 1
8 384200475 固定板 PLATE 2 Whatsapp: 86-18630852087
9 801100336 油杯 M10×1 GREASE CUP 2 JB/T7940.1-1995
10 805338278 垫圈 10(达克罗) WASHER 10 1 GB/T97.1-2002
11 805046462 螺栓 M10×25(达克罗) BOLT M10×25 1 GB/T5783-2000
12 805338263 垫圈 16(达克罗) WASHER 16 12 GB/T93-1987
13 805139947 螺钉 M16×45(达克罗) SCREW M16×45 4 GB/T70.1-2008
14 805338280 垫圈 12(达克罗) WASHER 12 2 GB/T97.1-2002
15 805338261 垫圈 12(达克罗) WASHER 12 2 GB/T93-1987 Whatsapp: 86-18630852087
16 805046482 螺栓 M12×30(达克罗) BOLT 2 GB/T5783-2000
17 384200477 转轴 SPINDLE 1 Whatsapp: 86-18630852087
18 805338273 垫圈 16(达克罗) WASHER 16 1 GB/T96.1-2002
19 805047089 螺栓 M16×60(达克罗) BOLT M16×60 1 GB/T5783-2000
20 805338284 垫圈 16(达克罗) WASHER 16 18 GB/T97.1-2002 Whatsapp: 86-18630852087
21 805011131 螺栓 M16×50(达克罗) BOLT M16×50 18 GB/T5782-2000
22 805046661 螺栓 M16×35(达克罗) BOLT M16×35 8 GB/T5782-2000
062 384203503 HEIGHT ADJUSTMENT/CRAWL 行走及升降装置-- XCMG Road Milling Machine XM200 Spare Parts Catalog
384203507 RIGHT FRONT CRAWLER UNIT 右前行走履带
序号 零部件代号 名称 数量 备注
No. Part No. Part name Q'ty Remark

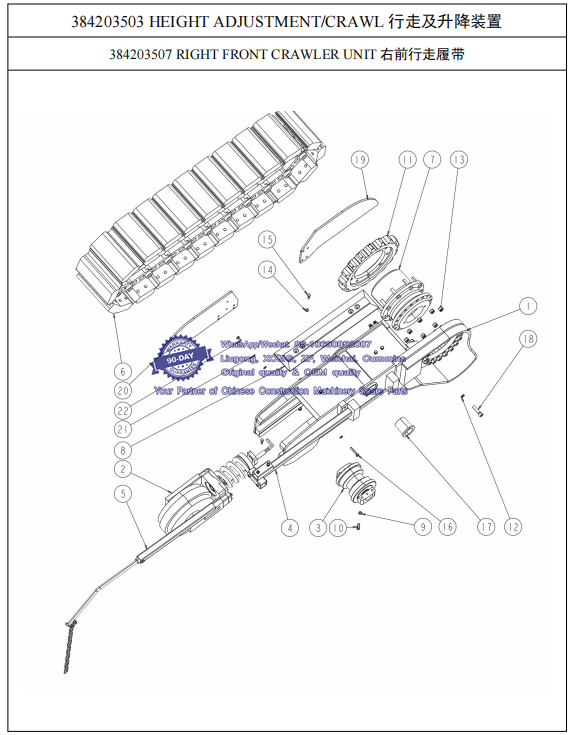

1 384203654 右前履带梁RIGHT FRONT CRAWLER BEAM 1
2 384203341 前轮导向轮及张紧 FRONT GUIDING AND TENSIONING SYSTEM 1
3 800307732 支重轮 LOWER ROLLER 4
4 384200404 标尺杆座 RULER BRACKET 1 Whatsapp: 86-18630852087
5 384203340 标尺杆 RULER POLE 1
6 800357149 履带总成 CRAWLER WITH RUBBER PAD 1
7 800307355 减速机 REDUCER 1
8 384200481 垫板 BASEPLATE 1 Whatsapp: 86-18630852087
9 805338261 垫圈 12(达克罗) WASHER 12 16 GB/T93-1987
10 805048392 螺 栓 M12×1.5×50( 达 克罗)BOLT 16 GB/T5785-2000
11 384200675 链轮 CHAIN WHEEL 1
12 805338263 垫圈 16(达克罗) WASHER 16 27 GB/T93-1987
13 384400336 美标螺母 AMERICAN STANDARD NUT 9
14 805338278 垫圈 10(达克罗) WASHER 10 14 GB/T97.1-2002
15 805046529 螺栓 M10×40(达克罗) BOLT M10×40 6 GB/T5783-2000
16 805046536 螺栓 M10×60(达克罗) BOLT M10×60 2 GB/T5783-2000
17 800515197 自润翻边轴套SELF LUBRICATING FLANGING BEARING 2
18 805048263 螺栓 L=60(10.9)(达克罗) BOLT L=60 18
19 384203759 防护板一 GUARD PLATE NO.1 1 Whatsapp: 86-18630852087
20 384203758 防护板二 GUARD PLATE NO.2 1
21 805338260 垫圈 10(达克罗) WASHER 10 8 GB/T93-1987
22 805046462 螺栓 M10×25(达克罗) BOLT M10×25 8 GB/T5783-2000
063 384203507 RIGHT FRONT CRAWLER UNIT 右前行走履带-- XCMG Road Milling Machine XM200 Spare Parts Catalog
384203341 FRONT GUIDING AND TENSIONING SYSTEM 前轮导向轮及张紧
序号 零部件代号 名称 数量 备注
No. Part No. Part name Q'ty Remark
1 384200405 外滑筒OUTSIDE SLIDING BARREL 1
2 384200512 压簧 COMPRESSED SPRING 1
3 384200510 张紧杆 TENSIONING POLE 1 Whatsapp: 86-18630852087
4 384200511 连接板Ⅰ PLANK Ⅰ 1
5 384200531 连接板Ⅱ PLANK Ⅱ 1
6 800307707 导向轮总成 PULLEY 1
7 805238894 螺母 M36(达克罗) NUT M36 1 GB/T6181-1986
8 805600351 销 8×63 PIN 8×63 1 GB/T91-2000
9 805338261 垫圈 12(达克罗) WASHER 12 4 GB/T93-1987
10 805046645 螺栓 M12×80(达克罗) BOLT M12×80 4 GB/T5782-2000
11 800309261 单向阀 CHECK VALVE 1
12 803107607 接头 CONNECTOR 1 Whatsapp: 86-18630852087
13 803130486 测压接头 PRESSURE GAUGE ADAPTOR 1
14 803192133 O 形圈 50×5.3 O-RING 50×5.3 1 GB/T3452.1-2005
15 801907072 防尘圈 DUSTPROOF WASHER 1
064 384203507 RIGHT FRONT CRAWLER UNIT 右前行走履带
384203340 RULER POLE 标尺杆-- XCMG Road Milling Machine XM200 Spare Parts Catalog
序号 零部件代号 名称 数量 备注
No. Part No. Part name Q'ty Remark

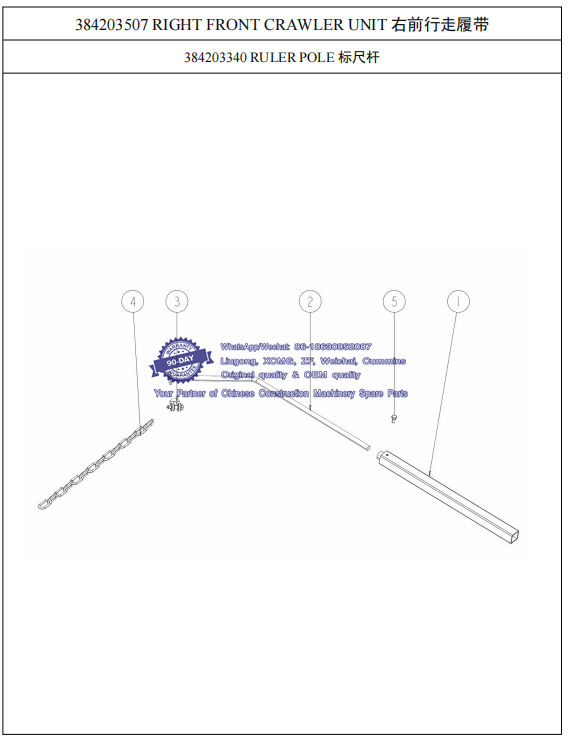

1 384200403 固定架 SUPPORT 1
2 384200482 延长杆 EXTENDING POLE 1 Whatsapp: 86-18630852087
3 801301939 卸扣 M-DX0.63 BUCKLE M-DX0.63 1 JB/T8112-1999
4 800307704 链 CHAINS 1 JB/T8108.2-1999 链d=7L=600
5 805046472 螺栓 M10×20(达克罗) BOLT 1 GB/T5783-2000 Whatsapp: 86-18630852087
