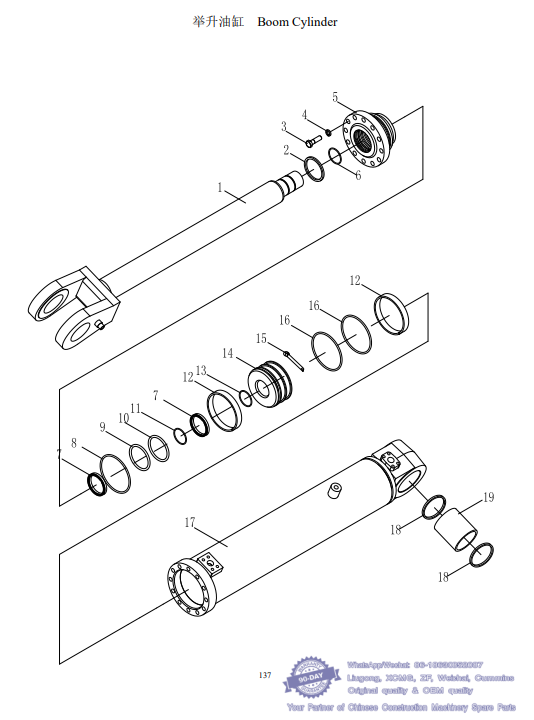

061 举升油缸 Boom Cylinder - Changlin Wheel Loader 957H Cummins engine Spare Parts Catalog
序号 零件代号 版本 名称 数量 适用车号 是否配件 选装
No. Part No. Ver. Part Name Q’ty Suit Num. Spare Parts Cho
955T.14.3 1 举升油缸（包含下述所有零件） Boom Cylinder 2 957H0556-
1 Z50E.34F.1.1 1 活塞杆 Piston rod 1 957H0556-
2 14090003 1 防尘圈 Dustproof ring 1 957H0556- N
3 40018001 1 螺栓 Bolt 8 957H0556-
4 45018001 1 弹垫 Washer 8 957H0556-
5 Q/D160d090-02 1 缸头 Guide sleeve 1 957H0556-
6 11090001 1 U 形圈 U-Ring 1 957H0556- N
7 18090003 1 支承环 Support ring 2 957H0556- N
8 10160002 1 O 形圈 O-Ring 1 957H0556- N
9 13160001 1 挡圈 Support ring 1 957H0556-
10 10160001 1 O 形圈 O-Ring 1 957H0556- N
11 16090002 1 斯特封 Seal circle 1 957H0556- N
12 18154001 1 支承环 Support ring 2 957H0556- N
13 10095001 1 O 形圈 O-Ring 1 957H0556- N
14 Q/D160-01 1 活塞 Piston 1 957H0556-
15 41012019 1 锥端螺钉 Bolt 1 957H0556-
16 17160001 1 活塞密封 Seal circle 2 957H0556-
17 956.14A.10 1 缸体 Cylinder body 1 957H0556-
18 14095002 1 防尘圈 Dustproof ring 2 957H0556- N
19 Z50E.34F.1-001 1 轴套 bushing 1 957H0556-

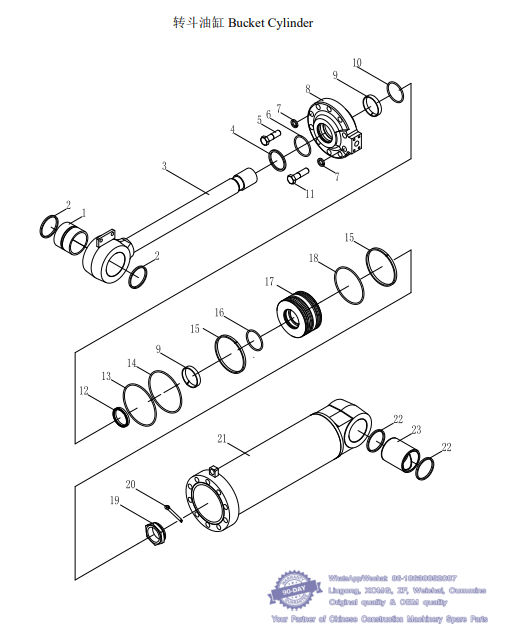

062 转斗油缸 Bucket Cylinder - Changlin Wheel Loader 957H Cummins engine Spare Parts Catalog
序号 零件代号 版本 名称 数量 适用车号 是否配件 选装
No. Part No. Ver. Part Name Q’ty Suit Num. Spare Parts Cho
955T.14.2 1 转斗油缸（包含下述所有零件） Bucket Cylinder 1 957H0556-
1 Z50E.34F.2-001 1 轴套 bushing 1 957H0556-
2 14100002 1 防尘圈 Dustproof ring 2 957H0556- N
3 955T.14.2-100 1 活塞杆 Piston rod 1 957H0556-
4 14090003 1 防尘圈 Dustproof ring 1 957H0556- N
5 51020008 1 螺栓 Bolt 10 957H0556-
6 11090001 1 U 形圈 U-Ring 1 957H0556- N
7 45020001 1 弹垫 Washer 12 957H0556-
8 Z50E.34F.2-003 1 缸头 Guide sleeve 1 957H0556-
9 18090003 1 支承环 Support ring 2 957H0556- N
10 10185001 1 O 形圈 O-Ring 1 957H0556- N
11 51020011 1 螺栓 Bolt 2 957H0556-
12 16090001 1 斯特圈 Seal circle 1 957H0556- N
13 13180002 1 挡圈 Support ring 1 957H0556-
14 10180002 1 O 形圈 O-Ring 1 957H0556- N
15 18174001 1 支承环 Support ring 2 957H0556- N
16 10095001 1 O 形圈 O-Ring 1 957H0556- N
17 Q/D180-03 1 活塞 Piston 1 957H0556-
18 17180001 1 活塞密封 Seal circle 1 957H0556- N
19 Q06.068035.1 1 锁紧螺母 Nut 1 957H0556-
20 41008021 1 锥端螺钉 Bolt 1 957H0556-
21 955T.14.2-211 1 缸体 Cylinder body 2 957H0556-
22 14095002 1 防尘圈 Dustproof ring 2 957H0556- N
23 Z50E.34F.2-002 1 轴套 bushing 1 957H0556-
十五、驾驶室 Cab - Changlin Wheel Loader 957H Cummins engine Spare Parts Catalog

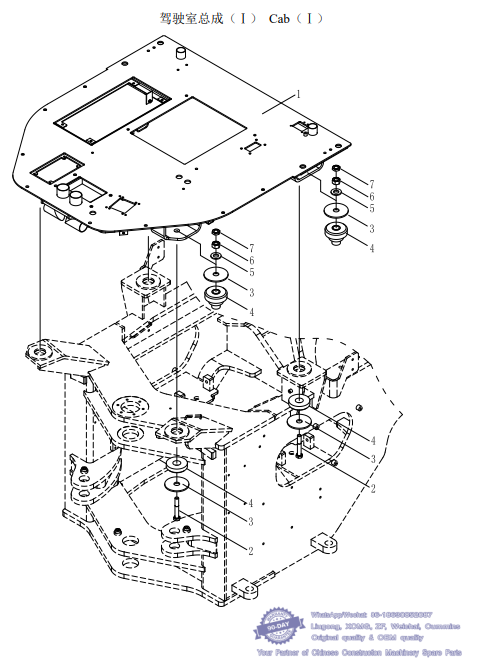

063 驾驶室总成（Ⅰ） Cab（Ⅰ） - Changlin Wheel Loader 957H Cummins engine Spare Parts Catalog
序号 零件代号 版本 名称 数量 适用车号 是否配件 选装
No. Part No. Ver. Part Name Q’ty Suit Num. Spare Parts Cho
1 Z-96T-160-00051 1 底板架 956T.16.4A Lower plate rack 1 957H0556-
2 B-G057850-00036 1 螺栓 M22×1.5×140-10.9ZnD Bolt 4 957H0556-
3 Z-95T-160-00040 1 大垫圈 955T.16-2 Washer 8 957H0556-
4 Z-95N-160-00093 1 驾驶室橡胶减振垫 955N.16.13 Cushion 4 957H0556-
5 B-Q020490-00013 1 垫圈 22 Washer 4 957H0556-
6 B-G061710-00017 1 螺母 M22×1.5-10ZnD Nut 4 957H0556-
7 B-G061730-00020 1 螺母 M22×1.5-10ZnD Nut 4 957H0556-

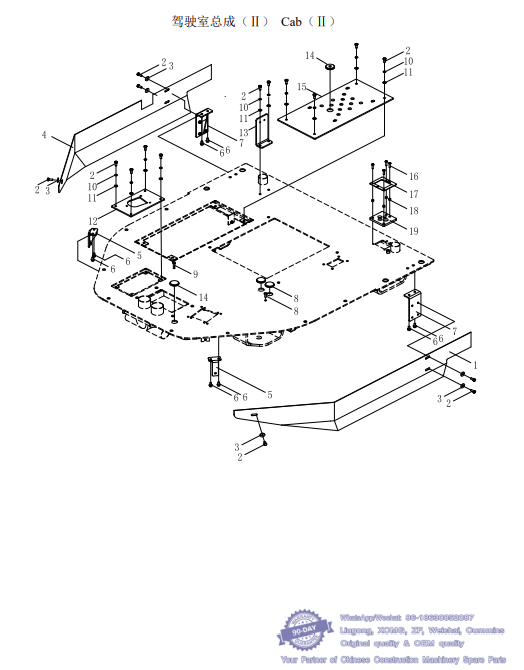

064 驾驶室总成（Ⅱ）Cab（Ⅱ） - Changlin Wheel Loader 957H Cummins engine Spare Parts Catalog
序号 零件代号 版本 名称 数量 适用车号 是否配件 选装
No. Part No. Ver. Part Name Q’ty Suit Num. Spare Parts Cho
1 Z-96T-160-00036 1 左围板 956T.16.1A Cover-LH 1 957H0556-
2 B-G057830-00139 1 螺栓 M8×20ZnD Bolt 16 957H0556-
3 B-G000960-00002 1 垫圈 8ZnD Washer 6 957H0556-
4 Z-96T-160-00037 1 右围板 956T.16.2A Cover-RH 1 957H0556-
5 Z-96T-160-00134 1 围板安装支架 956T.16.10 Bracket 2 957H0556-
6 B-G16674A-00039 1 螺栓 M8×16ZnD Bolt 8 957H0556-
7 Z-96T-160-00129 1 围板安装支架 956T.16.9 Bracket 2 957H0556-
8 Z-95N-16G-00001 1 塞 955N.16G-2 Rubber stopper 2 957H0556-
9 B-Q021010-00005 1 橡胶塞 BM8 Rubber stopper 2 957H0556-
10 B-G000930-00017 1 垫圈 8 Washer 10 957H0556-
11 B-G00097B-00023 1 垫圈 8ZnD Washer 10 957H0556-
12 Z-95H-16C-00001 1 油门连接板 957H.16C.1 Cover 1 957H0556-
13 Z-96T-160-00082 1 安装板 956T.16.11 Cover 1 957H0556-
14 Z-96T-160-00076 1 出线圈 956T.16-9 Rubber ring 2 957H0556-
15 Z-966-16B-00035 1 连接板 966.16B.3A Cover sheet 1 957H0556-
16 B-G008180-00031 1 螺钉 M6×25ZnD Bolt 4 957H0556-
17 Z-96T-160-00029 1 压板 956T.16-4 Cover sheet 2 957H0556-
18 Z-96T-160-00028 1 套 956T.16-3 Sleeve 4 957H0556-
19 Z-96T-160-00027 1 橡胶板 956T.16-2 Rubber plate 1 957H0556-

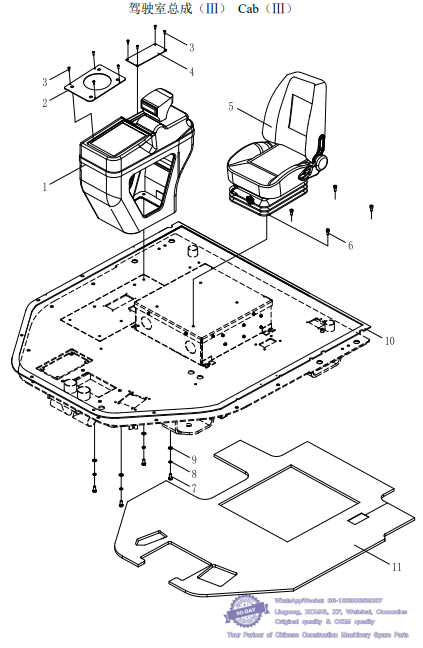

065 驾驶室总成（Ⅲ） Cab（Ⅲ）- Changlin Wheel Loader 957H Cummins engine Spare Parts Catalog
序号 零件代号 版本 名称 数量 适用车号 是否配件 选装
No. Part No. Ver. Part Name Q’ty Suit Num. Spare Parts Cho
1 Z-966-16B-00015 1 先导箱 966.16B.4 Operation box 1 957H0556-
2 Z-966-16B-00026 1 先导手柄安装板 966.16B-7 Cover 1 957H0556-
3 B-G008180-00018 1 螺钉 M5×16ZnD Bolt 8 957H0556-
4 Z-96T-16B-00002 1 安装板 956T.16B-2 Cover 1 957H0556-
5 W-09-00342 1 座椅 XFZY-2AF Seat assay 1 957H0556-
6 B-G000700-00035 1 螺钉 M8×20ZnD Bolt 4 957H0556-
7 B-G057830-00006 1 螺栓 M10×25ZnD Bolt 4 957H0556-
8 B-G000930-00001 1 垫圈 10 Washer 4 957H0556-
9 B-Q020490-00001 1 垫圈 10 Washer 4 957H0556-
10 Z-956-160-00154 1 密封条 956.16-4 Sealed slip 1 957H0556-
11 Z-94H-16N-00001 1 底板垫 947H.16N-1 Carpet 1 957H0556-

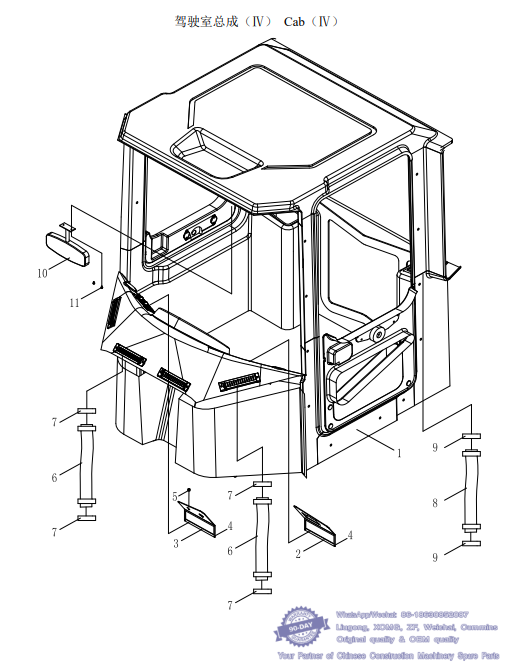

066 驾驶室总成（Ⅳ） Cab（Ⅳ） - Changlin Wheel Loader 957H Cummins engine Spare Parts Catalog
序号 零件代号 版本 名称 数量 适用车号 是否配件 选装
No. Part No. Ver. Part Name Q’ty Suit Num. Spare Parts Cho
1 Z-96T-160-00137 1 内饰组件 956T.16.5A Carpet 1 957H0556-
2 Z-96T-160-00145 1 左仪表安装板 956T.16-14A Cover 1 957H0556-
3 Z-96T-160-00141 1 右仪表安装板 956T.16-15 Cover 1 957H0556-
4 B-G008180-00042 1 螺钉 M3×10ZnD Bolt 8 957H0556-
5 B-Q021010-00002 1 橡胶塞 A12 Rubber stopper 1 957H0556-
6 Z-96T-160-00149 1 风管 φ60×800 956T.16-17 Bellows 2 957H0556-
7 B-J088700-00017 1 喉箍 d60 Hoseclamp 4 957H0556-
8 Z-96T-160-00150 1 风管 φ45×800 956T.16-18 Bellows 2 957H0556-
9 B-J088700-00016 1 喉箍 d50 Hoseclamp 4 957H0556-
10 W-09-00119 1 室内反光镜 YZ26-16 Mirror 1 957H0556-
11 B-G008180-00012 1 螺钉 M4×35ZnD Bolt 2 957H0556-

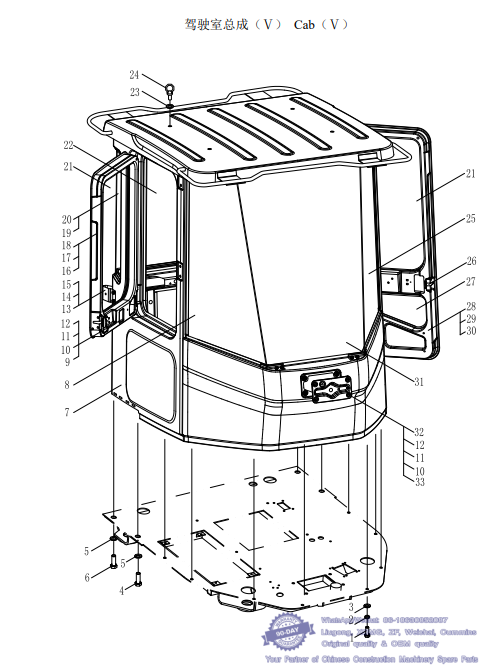

067 驾驶室总成（Ⅴ） Cab（Ⅴ）- Changlin Wheel Loader 957H Cummins engine Spare Parts Catalog
序号 零件代号 版本 名称 数量 适用车号 是否配件 选装
No. Part No. Ver. Part Name Q’ty Suit Num. Spare Parts Cho
1 B-G057830-00041 1 螺栓 M12×40ZnD Bolt 8 957H0556-
2 B-G000930-00003 1 垫圈 12 Washer-spring 8 957H0556-
3 B-G00097B-00004 1 垫圈 12ZnD Washer-plain 8 957H0556-
4 B-G057830-00193 1 螺栓 M24×45ZnD Bolt 1 957H0556-
5 B-Q020490-00015 1 垫圈 24 Washer 4 957H0556-
6 B-G057830-00116 1 螺栓 M24×65ZnD Bolt 3 957H0556-
7 Z-96T-160-00067 1 驾驶室骨架 956T.16.7.1 Cab frame 1 957H0556-
8 Z-956-160-00143 1 右前侧玻璃 956.16.1-6 Glass 1 957H0556-
9 W-09-00197 1 碰锁|NBS526 Lock 2 957H0556-
10 B-G057830-00131 1 螺栓 M6×20ZnD Bolt 10 957H0556-
11 B-G00097B-00021 1 垫圈 6ZnD Washer 10 957H0556-
12 B-G000930-00015 1 垫圈 6 Washer 10 957H0556-
13 Z-956-160-00129 1 碰锁头安装板 956.16.1.6 Latch mounting plate 2 957H0556-
14 B-G057830-00143 1 螺栓 M8×25ZnD Bolt 8 957H0556-
15 B-Q020490-00023 1 垫圈 8 Washer 8 957H0556-
16 Z-956-160-00115 1 小门 956.16.1.4 Door RH 1 957H0556-
17 Z-956-160-00138 1 右门框密封条 956.16.1-15 Seal 1 957H0556-
18 Z-956-160-00121 1 铰链 956.16.1.4.2 Hinge 2 957H0556-
19 Z-956-160-00132 1 左侧后玻璃 956.16.1-1 Glass 1 957H0556-
20 Z-956-160-00139 1 右侧后玻璃 956.16.1-2 Glass 1 957H0556-
21 Z-956-160-00106 1 方窗玻璃 956.16.1.2-1 Glass 2 957H0556-
22 Z-956-160-00140 1 后玻璃 956.16.1-3 Glass 1 957H0556-
23 B-J010020-00004 1 垫圈 16 Washer 4 957H0556-
24 B-G008250-00005 1 螺钉 M16ZnD Bolt 4 957H0556-
25 Z-956-160-00142 1 左前侧玻璃 956.16.1-5 Glass 1 957H0556-
26 W-09-00198 1 门锁|NBS502B Lock 1 对 957H0556-
27 Z-956-160-00108 1 三角窗玻璃 956.16.1.2-3 Glass 1 957H0556-
28 Z-956-160-00087 1 左门 956.16.1.2 Door-LH 1 957H0556-
29 Z-956-160-00137 1 左门框密封条 956.16.1-14 Seal 1 957H0556-
30 Z-956-160-00096 1 铰链 956.16.1.2.2 Hinge 2 957H0556-
31 Z-956-160-00141 1 前玻璃 956.16.1-4 Glass 1 957H0556-
32 Z-956-160-00144 1 前雨刷安装板 956.16.1-8 Wiper mounting plate 1 957H0556-
33 Z-956-160-00136 1 前雨刷安装板密封条956.16.1-13 Seal 1 957H0556-
十六、车身附件 Automobile Body & Accessories - Changlin Wheel Loader 957H Cummins engine Spare Parts Catalog

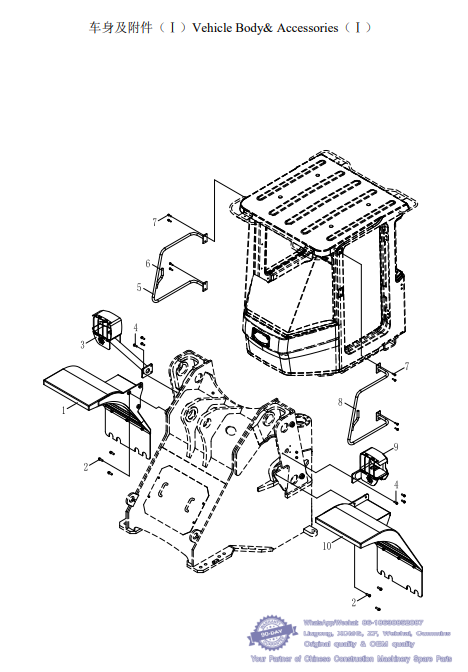

068 车身及附件（Ⅰ）Vehicle Body & Accessories（Ⅰ） - Changlin Wheel Loader 957H Cummins engine Spare Parts Catalog
序号 零件代号 版本 名称 数量 适用车号 是否配件 选装
No. Part No. Ver. Part Name Q’ty Suit Num. Spare Parts Cho
1 Z-96T-170-00122 1 右挡泥板 956T.17.8 Right front dashboard 1 957H0556-
2 B-G16674A-00021 1 螺栓 M12×35ZnD Bolt 6 957H0556-
3 Z-96T-170-00002 1 右灯支架 956T.17.10 Right lamp supporting 1 957H0556-
4 B-G16674A-00003 1 螺栓 M10×30ZnD Bolt 6 957H0556-
5 Z-95T-170-00068 1 右反光镜支架 955T.17.19 Right reflector supporting 1 957H0556-
6 W-09-00330 1 室外反光镜 Viewfinder 2 957H0556-
7 B-G16674A-00001 1 螺栓 M8×30ZnD Bolt 8 957H0556-
8 Z-95T-170-00065 1 左反光镜支架 955T.17.18 Left reflector supporting 1 957H0556-
9 Z-96T-170-00124 1 左灯支架 956T.17.9 Left lamp supporting 1 957H0556-
10 Z-96T-170-00113 1 左挡泥板 956T.17.7 Left front dashboard 1 957H0556-

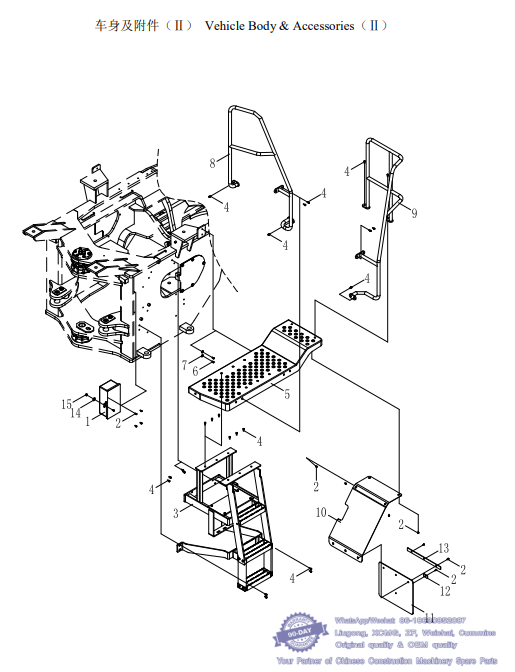

069 车身及附件（Ⅱ）Vehicle Body & Accessories（Ⅱ） - Changlin Wheel Loader 957H Cummins engine Spare Parts Catalog
序号 零件代号 版本 名称 数量 适用车号 是否配件 选装
No. Part No. Ver. Part Name Q’ty Suit Num. Spare Parts Cho
1 Z-95Z-17A-00042 1 中 央 控 制 盒 安 装 盒 957Z.17A.7 Central control box 1 957H0556-
2 B-G16674A-00002 1 螺栓 M10×25ZnD Bolt 11 957H0556-
3 Z-96T-170-00043 1 左梯支架 956T.17.4 Left ladder bracket 1 957H0556-
4 B-G16674A-00019 1 螺栓 M12×30ZnD Bolt 23 957H0556-
5 Z-96T-170-00027 1 左踏板 956T.17.2 Left pedal 1 957H0556-
6 B-G16674A-00018 1 螺栓 M12×25ZnD Bolt 2 957H0556-
7 B-Q020490-00003 1 垫圈 12ZnD Washer 2 957H0556-
8 Z-96T-170-00009 1 左前扶手 956T.17.11 Left front handrail 1 957H0556-
9 Z-96T-170-00015 1 左后扶手 956T.17.12 Left rear handrail 1 957H0556-
10 Z-96T-170-00136 1 左后挡泥板 956T.17-2 Left rear dashboard 1 957H0556-
11 Z-96T-170-00138 1 橡胶板 956T.17-4 Rubber slab 1 957H0556-
12 Z-96T-170-00155 1 压板 956T.17-6 Platen 1 957H0556-
13 Z-96T-170-00139 1 压板 956T.17-5 Platen 1 957H0556-
14 B-Q020490-00001 1 垫圈 10 Washer 1 957H0556-
15 B-G061700-00003 1 螺母 M10ZnD Nut 1 957H0556-

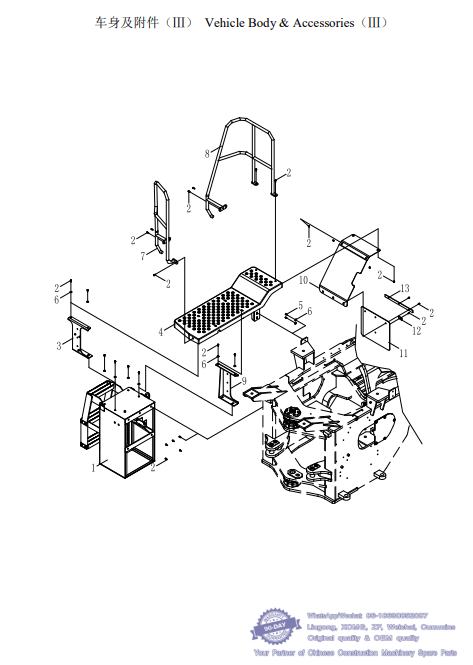

070 车身及附件（Ⅲ）Vehicle Body & Accessories（Ⅲ） - Changlin Wheel Loader 957H Cummins engine Spare Parts Catalog
序号 零件代号 版本 名称 数量 适用车号 是否配件 选装
No. Part No. Ver. Part Name Q’ty Suit Num. Spare Parts Cho
1 Z-96T-170-00068 1 辅助箱 956T.17.6 1 957H0556-
2 B-G16674A-00019 1 螺栓 M12×30ZnD Bolt 27 957H0556-
3 Z-96T-170-00064 1 安装座 956T.17.5 Mount 1 957H0556-
4 Z-96T-170-00040 1 右踏板 956T.17.3 Right pedal 1 957H0556-
5 B-G16674A-00018 1 螺栓 M12×25ZnD Bolt 2 957H0556-
6 B-Q020490-00003 1 垫圈 12ZnD Washer 10 957H0556-
7 Z-96T-170-00021 1 右前扶手 956T.17.13 Right front handrail 1 957H0556-
8 Z-96T-170-00024 1 右后扶手 956T.17.14 Right rear handrail 1 957H0556-
9 Z-96T-170-00148 1 安装座 956T.17.15 Mount 1 957H0556-
10 Z-96T-170-00137 1 右后挡泥板 956T.17-3 Right rear dashboard 1 957H0556-
11 Z-96T-170-00138 1 橡胶板 956T.17-4 Rubber slab 1 957H0556-
12 Z-96T-170-00155 1 压板 956T.17-6 Platen 1 957H0556-
13 Z-96T-170-00139 1 压板 956T.17-5 Platen 1 957H0556-
