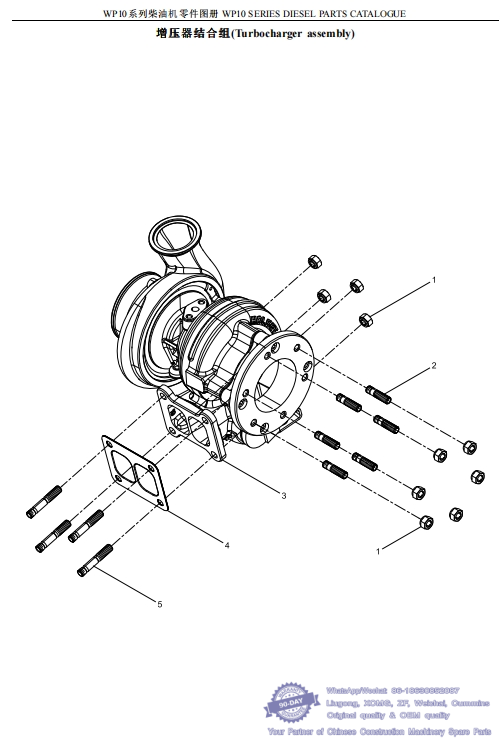

061 增压器结合组(Turbocharger assembly)-- Weichai Diesel Engine WP10.270-E3 Spare Parts Catalog
图序号 件号 数量 中文名称 英文名称
Pos. Teile.Number Amount Denomination Designation
1 90003888470 10 2型全金属六角锁紧螺母Prevailing Torque Type All-metal Hexagon Nut,
2 81560110187 6 双头螺柱 Stud whatsapp 86-18630852087
3 612600118895 1 HX50增压器 HX50 turbocharger whatsapp 86-18630852087
4 612600111113 1 增压器垫片 Turbocharger washer
5 612600111745 4 双头螺柱 Stud

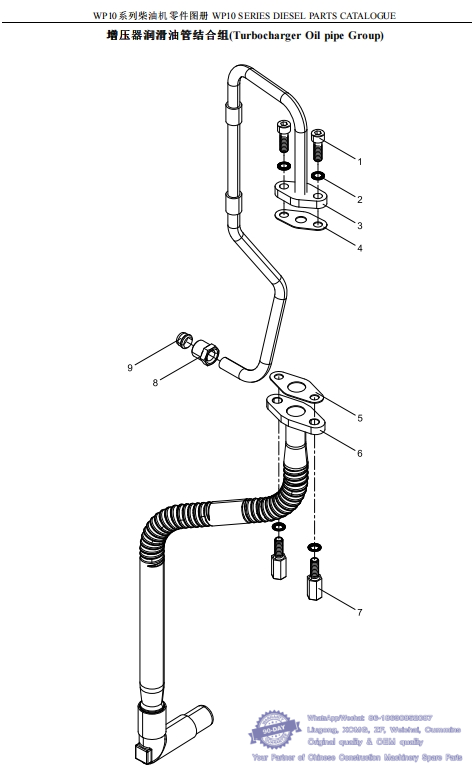

062 增压器润滑油管结合组(Turbocharger Oil pipe Group)-- Weichai Diesel Engine WP10.270-E3 Spare Parts Catalog
图序号 件号 数量 中文名称 英文名称
Pos. Teile.Number Amount Denomination Designation
1 90003862428 2 内六角圆柱头螺钉 Inner hexagon screw whatsapp 86-18630852087
2 188250083 4 自锁垫圈 Washer
3 612600114218 1 增压器进油管组件 Oil inlet pipe assembly of turbocharger
4 612600114275 1 进油管垫片 Fuel inlet pipe gasket whatsapp 86-18630852087
5 61260110048 1 回油管法兰垫片 Fuel return pipe flange washer
6 612600112310 1 波纹回油管 Wave fuel return pipe
7 61460070014 2 回油管螺栓 Bolt for oil return pipe whatsapp 86-18630852087
8 90003559513 1 管接头螺母 Pipe coupling nut
9 90003559563 1 卡套 Cutting sleeve

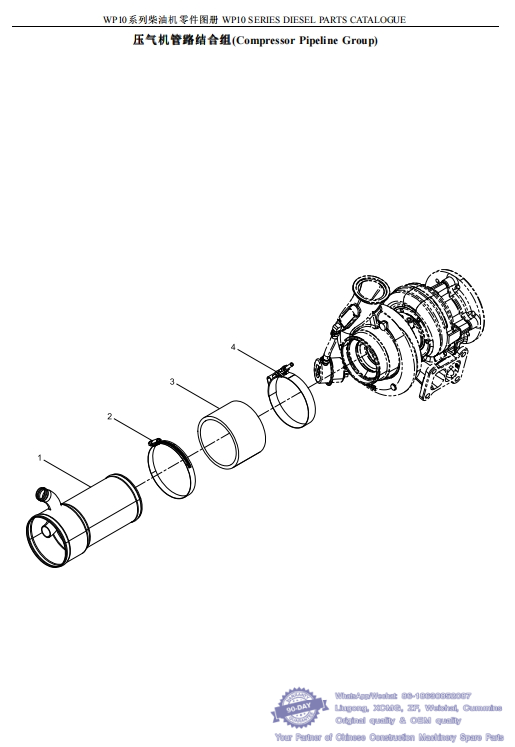

063 压气机管路结合组(Compressor Pipeline Group)-- Weichai Diesel Engine WP10.270-E3 Spare Parts Catalog
图序号 件号 数量 中文名称 英文名称
Pos. Teile.Number Amount Denomination Designation
1 612600112443 1 压气机进气管组件 Air intake pipe assembly whatsapp 86-18630852087
2 90003989315 1 软管卡箍 Hose clip
3 612600115640 1 气路连接胶管 Air Connecting Rubber Pipe whatsapp 86-18630852087
4 612600113794 1 卡箍 Clamp

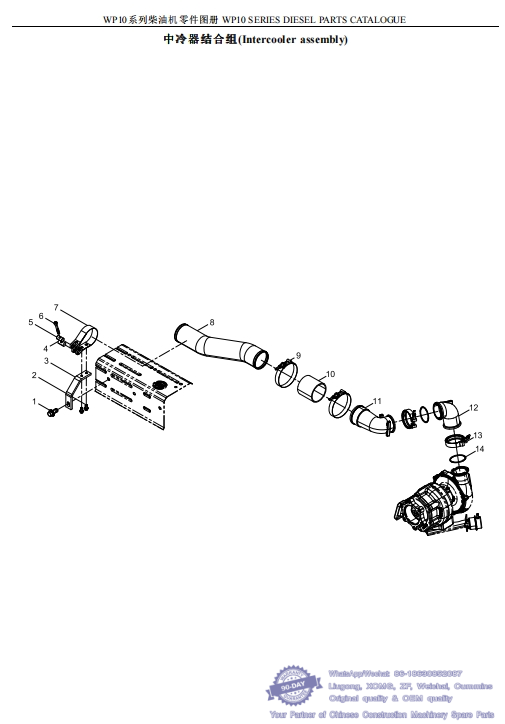

064 中冷器结合组(Intercooler assembly)-- Weichai Diesel Engine WP10.270-E3 Spare Parts Catalog
图序号 件号 数量 中文名称 英文名称
Pos. Teile.Number Amount Denomination Designation
1 612600115145 1 六角法兰面承面带齿螺栓 Hexagon Flange Bolt
2 90011430040 2 六角法兰面承面带齿螺栓 Hexagon Flange Bolt
3 612600111590 1 支架 Bracket whatsapp 86-18630852087
4 1700550013 1 张紧销 Tension pin
5 209190017 1 拉紧销 Pin
6 90003862462 1 内六角圆柱头螺钉 Inner hexagon screw
7 612600110317 1 卡箍带 Clamp whatsapp 86-18630852087
8 612600111892 1 中冷器进气管 Air intake pipe of intercooler
9 612600112232 2 卡箍 Clamp
10 612600111086 1 气路连接胶管 Air Connecting Rubber Pipe
11 612600110365 1 接管 Adapter whatsapp 86-18630852087
12 612600110364 1 中冷器进气弯管 Intake elbow
13 61560110226 2 卡箍 Clamp
14 190320035 2 密封圈 Seal washer

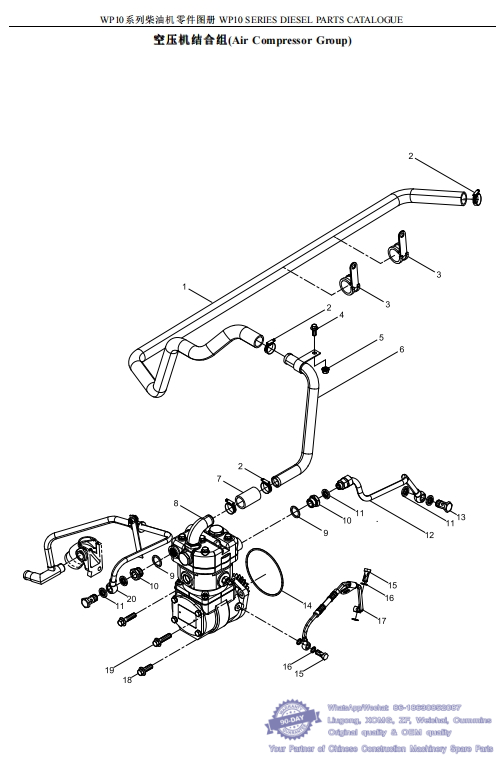

065 空压机结合组(Air Compressor Group)-- Weichai Diesel Engine WP10.270-E3 Spare Parts Catalog
图序号 件号 数量 中文名称 英文名称
Pos. Teile.Number Amount Denomination Designation
1 612600130653 1 空压机进气管 Air inlet pipe of air compressor
2 90003989301 4 软管卡箍 Hose clip whatsapp 86-18630852087
3 612600112639 2 管夹总成 Pipe Clamp Assembly
4 90011430016 1 六角法兰承面带齿螺栓 Toothed bolt
5 612600061719 1 六角法兰面承面带齿螺母 Hexagon Flange Nut
6 612600130363 1 空压机进气管 Air inlet pipe of air compressor
7 612630060017 1 油路连接胶管 Oil Connecting Rubber Pipe
8 612600130927 1 空压机总成 Air compressor assembly
9 13023364 2 组合密封垫圈 Unit seal washer
10 99100360161 2 接头体 Adapter body whatsapp 86-18630852087
11 13023361 5 组合密封垫圈 Unit seal washer
12 612600130316 1 空压机进水管 Water inlet pipe of air compressor
13 90003962627 2 空心螺栓 Hollow bolt
14 30800010003 1 密封圈 Seal washer
15 612600130333 2 空心螺栓 Hollow bolt whatsapp 86-18630852087
16 612600080246 4 密封垫圈 Seal washer
17 612600130326 1 空压机润滑油管总成 Oil pipe of air compressor assembly
18 90011430017S 1 六角法兰面承面带齿螺栓 Hexagon Flange Bolt
19 90011430032 2 六角法兰面承面带齿螺栓 Hexagon Flange Bolt
20 612600130355 1 空压机回水管总成Water return pipe assembly of air compressor
