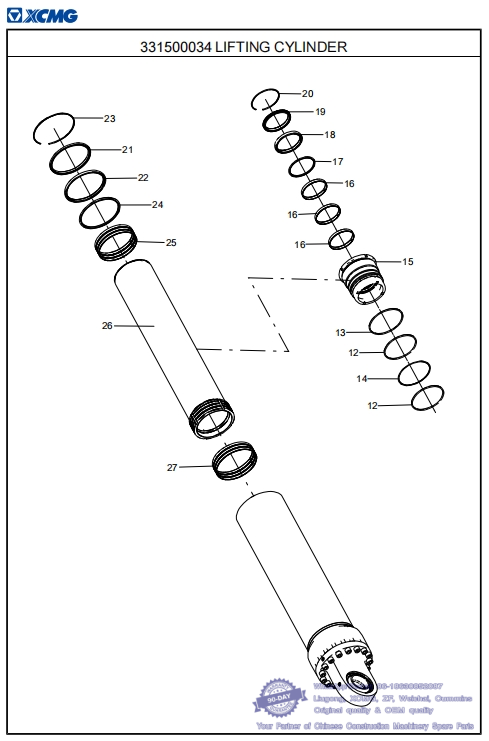

061 331500034 LIFTING CYLINDER-- XCMG Mining Dump Truck XDR100 Parts Catalog
331505729 LIFTING SYSTEM
No. PART NUMBER QTY NAME NOTE PAGE
12 860200813 2 SEAL RING whatsapp 86-18630852087
13 803499184 1 ORING189.87×5.33
14 804200235 1 HOLD WASHER191×182.3×1.5
15 804200225 1 SLEEVE GUIDE
16 804200230 3 GUIDE RING145×140×15
17 804200228 1 BUFFER RING140×155.1×6.3 whatsapp 86-18630852087
18 860138505 1 SHAFT SEAL
19 860138507 1 DUSTPROOF WASHER 140×160×10/14
20 804200238 1 DUST-PROOF LOOP CHECK RINGD140/166×2.5
21 860138506 1 DUSTPROOF WASHER220×240×10/14
22 860138504 1 SEALING RING FOR ROD220×240×13
23 804200237 1 STEEL CABLE BAFFLE RING FOR HOLED240
24 860138510 1 SITEFENG SEAL whatsapp 86-18630852087
25 804200232 3 GUIDE RING 225×220×15
26 804200222 1 INNER CYLINDER BARREL whatsapp 86-18630852087
27 804200233 3 GUIDE RING 240×235×15

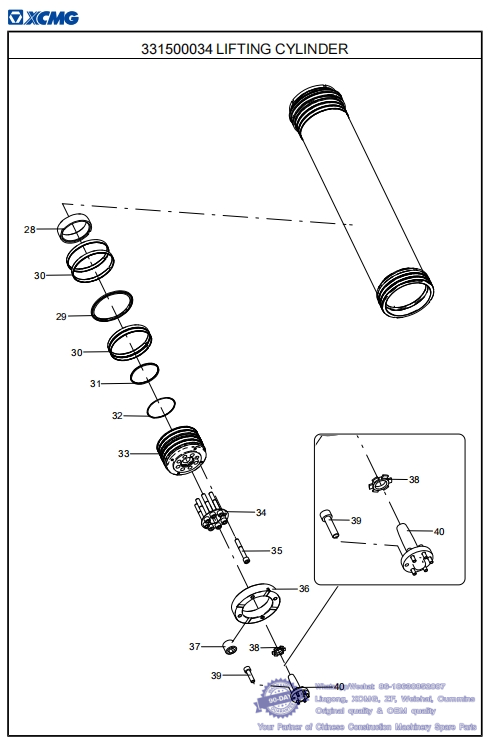

062 331500034 LIFTING CYLINDER-- XCMG Mining Dump Truck XDR100 Parts Catalog
331505729 LIFTING SYSTEM
No. PART NUMBER QTY NAME NOTE PAGE
28 804200239 1 CUSHION SLEEVED200 whatsapp 86-18630852087
29 860138511 1 ORIFICE SEALING RING 190×160×8.1
30 804200231 4 GUIDE RING 190×185×15
31 860202114 1 ORING123.42×3.53
32 804200234 2 HOLD WASHER129.5×124×1.5
33 804200220 1 PISTON
34 804200226 1 PRESSURE PLATE
35 805141315 8 SCREW M16×110 GB/T70.1-2008
36 804200219 1 NUT whatsapp 86-18630852087
37 805104466 2 SCREW M10×10 GB/T78-2007
38 804200227 1 BUFFERING RING
39 805139976 6 SCREW M8×30 GB/T70.1-2008
40 804200221 1 BUMPER POST whatsapp 86-18630852087

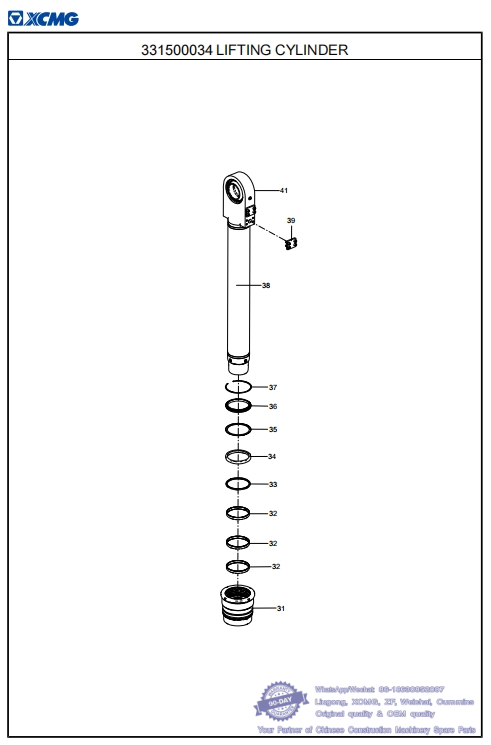

063 331500034 LIFTING CYLINDER-- XCMG Mining Dump Truck XDR100 Parts Catalog
331505729 LIFTING SYSTEM
No. PART NUMBER QTY NAME NOTE PAGE
31 860202114 1 ORING123.42×3.53 whatsapp 86-18630852087
32 804200234 2 HOLD WASHER129.5×124×1.5
33 804200220 1 PISTON
34 804200226 1 PRESSURE PLATE
35 805141315 8 SCREW M16×110 GB/T70.1-2008
36 804200219 1 NUT whatsapp 86-18630852087
37 805104466 2 SCREW M10×10 GB/T78-2007
38 804200227 1 BUFFERING RING
39 805139976 6 SCREW M8×30 GB/T70.1-2008 whatsapp 86-18630852087
41 331505592 1 LIFTING CYLINDER SEALED PACKET

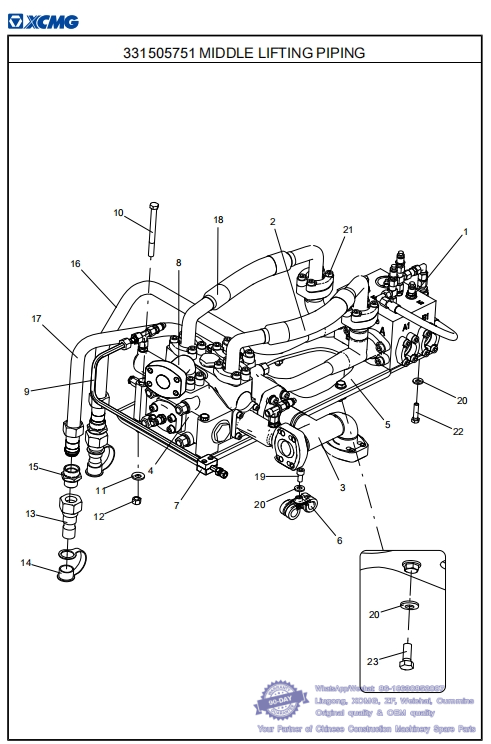

064 331505751 MIDDLE LIFTING PIPING-- XCMG Mining Dump Truck XDR100 Parts Catalog
331505729 LIFTING SYSTEM
No. PART NUMBER QTY NAME NOTE PAGE
1 331505723 1 BALANCE VALVE ASSEMBLY 136
2 803442635 1 HOSE ASS'Y whatsapp 86-18630852087
3 331502248 1 STEEL PIPE ASSEMBLY
4 331505748 1 LIFTING MAIN VALVE COMPONENTS 138
5 331502246 1 MOUNTING PLATE
6 800104621 2 RUBBER SLEEVE HOOP whatsapp 86-18630852087
7 803437789 1 PIPE CLIP
8 331502245 1 STEEL PIPE ASSEMBLY
9 331505869 1 STEEL PIPE ASSEMBLY
10 805046653 3 BOLT M12×130 GB/T5782-2000
11 805301374 3 WASHER 12 DIN6796
12 805238367 3 NUT M12 GB/T6170-2000
13 813401064 2 QUICK MALE ADAPTER
14 804200307 2 DUST COVER
15 803431620 2 CONNECTOR whatsapp 86-18630852087
16 331505875 1 STEEL PIPE ASSEMBLY
17 331505884 1 STEEL PIPE ASSEMBLY
18 803442711 1 HOSE ASS'Y
19 805139925 1 SCREW M10×20 GB/T70.1-2008
20 805301373 5 WASHER 10 DIN6796
21 803453325 2 FLANGE ASSEMBLY whatsapp 86-18630852087
22 805046529 2 BOLT M10×40 GB/T5783-2000
23 805011330 2 BOLT M10×25 GB/T5783-2000

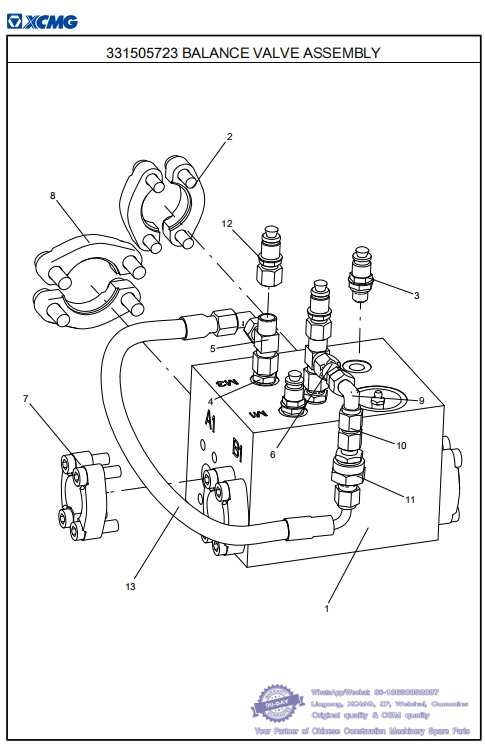

065 331505723 BALANCE VALVE ASSEMBLY- XCMG Mining Dump Truck XDR100 Parts Catalog
331505751 MIDDLE LIFTING PIPING
No. PART NUMBER QTY NAME NOTE PAGE
1 803406972 1 BOUNCE VALVE GROUP
2 803453325 1 FLANGE ASSEMBLY whatsapp 86-18630852087
3 813402945 2 CONNECTOR
4 803413569 2 CONNECTOR
5 803413505 2 CONNECTOR
6 803431605 1 CONNECTOR
7 813402734 4 FLANGE ASSEMBLY
8 813402739 1 FLANGE ASSEMBLY whatsapp 86-18630852087
9 803413568 2 CONNECTOR
10 803452467 1 GZ10LCF
11 803087398 1 CHECK VALVE
12 803452474 2 CONNECTOR whatsapp 86-18630852087
13 803184317 1 HOSE ASS'Y
