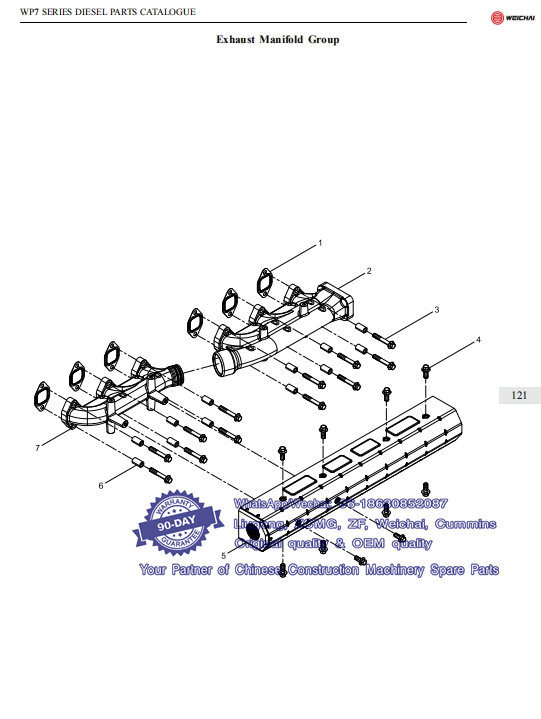

061 Exhaust Manifold Group——Weichai WP7 SERIES DIESEL PARTS CATALOGUE
Pos. Teile.Number Amount Designation
1 610800110005 6 Exhasut Manifold Gasket
2 1000743983 1 Exhaust Manifold Whatsapp: 86-18630852087
3 610800111224 12 Exhaust Manifold Bolt
4 90011430077 10 Hexagon Flange with Tooth Bolt
5 610800111037 1 Exhaust Manifold Heat Shield
6 612630110005 12 Sleeve Whatsapp: 86-18630852087
7 1000743982 1 Exhaust Manifold

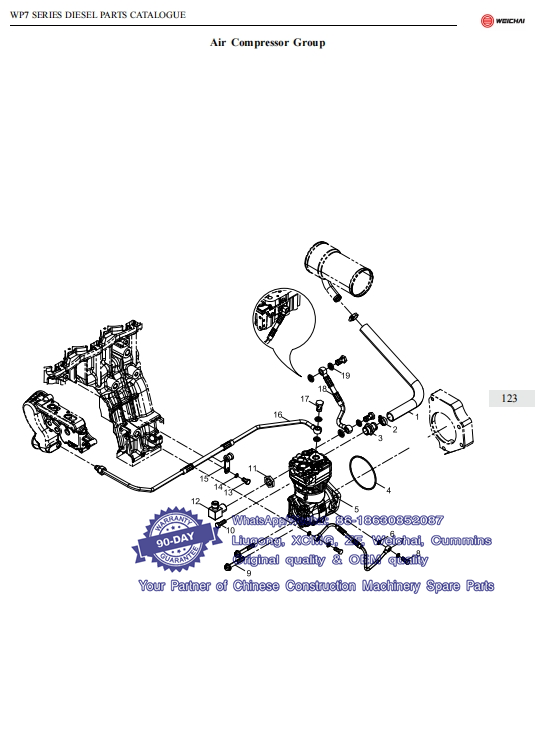

062 Air Compressor Group——Weichai WP7 SERIES DIESEL PARTS CATALOGUE
Pos. Teile.Number Amount Designation
1 610800130079 1 Air Connecting Rubber Pipe
2 90003989301 2 Clamp
3 612600130269 1 Air Pipe Connector
4 610800130286 1 Seal Ring Whatsapp: 86-18630852087
5 1000904146 1 Air Compressor Assembly
6 612600080246 4 Washer
7 610800130290 1 Air Compressor Oil Pipe Assembly
8 612600130333 2 Bolt
9 610800070217S 2 Hexagon Flange Bolt
10 90003802544 1 Hexagon Head Bolt
11 612600131046 1 Nut
12 1000183506 1 Pipe Joint Whatsapp: 86-18630852087
13 90003802511 1 Hexagon Head Bolt
14 90014040008 1 Plain Washer
15 610800130038 1 Pipe Clamp Assembly
16 1001085784 1 Air Compressor Water Pipe Assembly
17 612639000049 3 Bolt
18 610800130068 1 Air Compressor Water Pipe Assembly
19 13023361 6 Assembled Sealing Washer

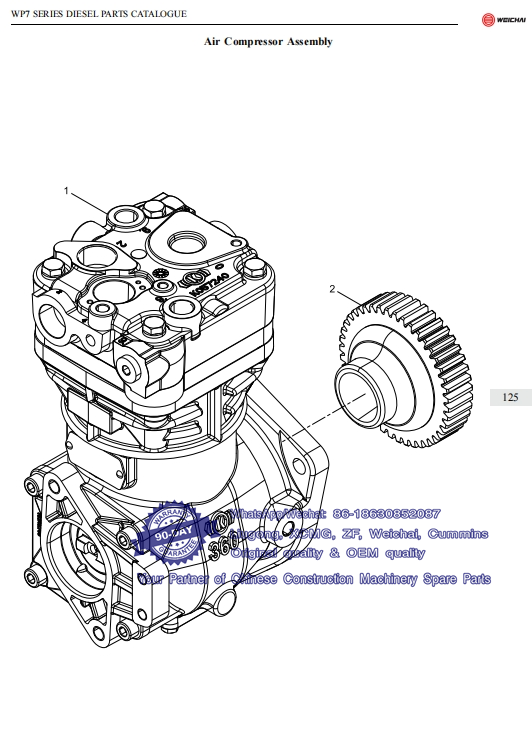

063 Air Compressor Assembly——Weichai WP7 SERIES DIESEL PARTS CATALOGUE
Pos. Teile.Number Amount Designation
1 1000186859 1 Air Compressor Whatsapp: 86-18630852087
2 610800130005 1 Air Compressor Gear

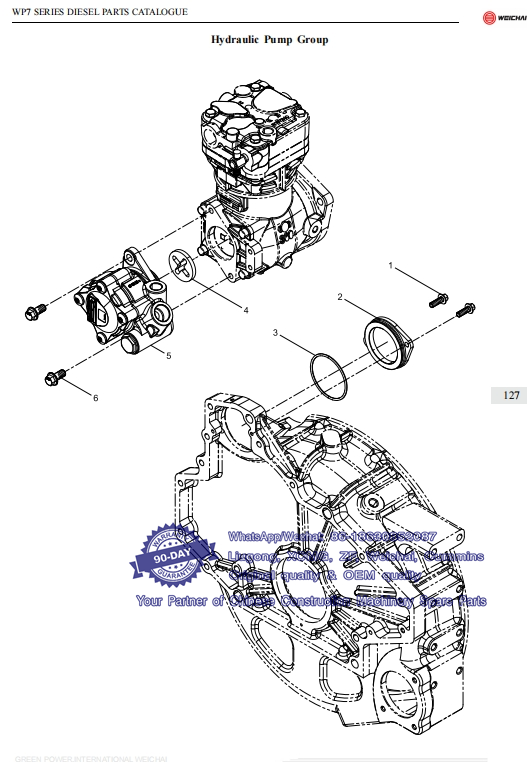

064 Hydraulic Pump Group——Weichai WP7 SERIES DIESEL PARTS CATALOGUE
Pos. Teile.Number Amount Designation
1 90011410003S 2 Hexagon Flange Bolt Whatsapp: 86-18630852087
2 610800130091 1 Hydraulic Pump Cover
3 90017510039 1
4 610800130195 1 Cross Key Whatsapp: 86-18630852087
5 1000096536 1 Hydraulic Pump
6 610800080606 2 Hexagon Head Bolt

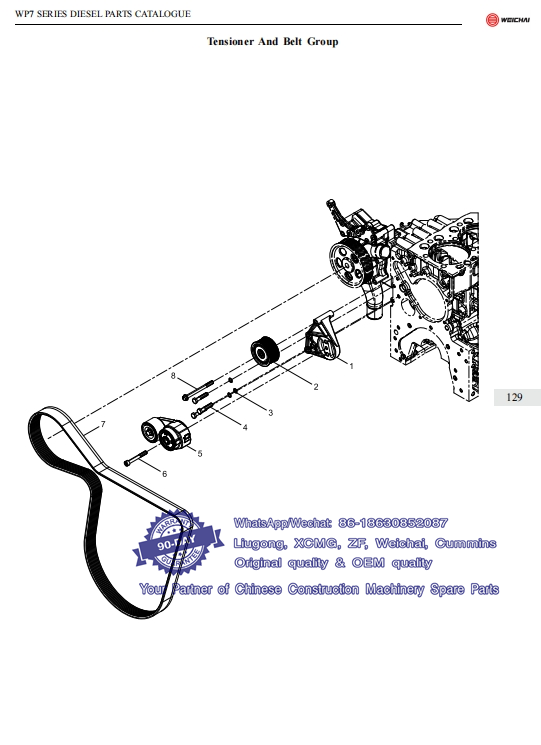

065 Tensioner And Belt Group——Weichai WP7 SERIES DIESEL PARTS CATALOGUE
Pos. Teile.Number Amount Designation
1 610800060380 1 Tensioner Bracket
2 610800060494 1 Idle Wheel Whatsapp: 86-18630852087
3 90003932024 3 Wave Spring Washer
4 90003800543 3 Hexagon Head Bolt
5 610800060397 1 Automatic Tensioner
6 9000000587S 1 Inner Hexagon Socket Head Cap Screw
7 1000333365 1 Poly V Belt Whatsapp: 86-18630852087
8 610800060242S 1 Hexagon Head Bolt

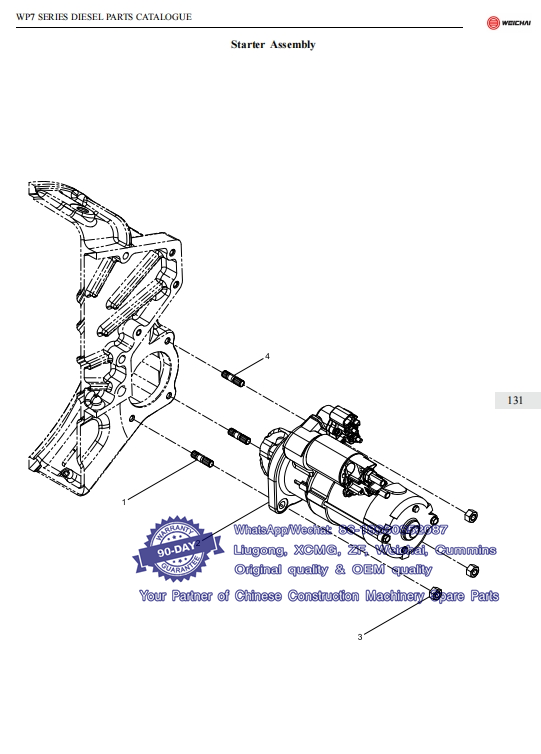

066 Starter Assembly——Weichai WP7 SERIES DIESEL PARTS CATALOGUE
Pos. Teile.Number Amount Designation
1 90011520011 2 Stud Whatsapp: 86-18630852087
2 610800090029 1 Starter Motor
3 90003888452 3 Prevailing Torque Type All-metal Hexagon Nut,
4 90011520003 1 Stud

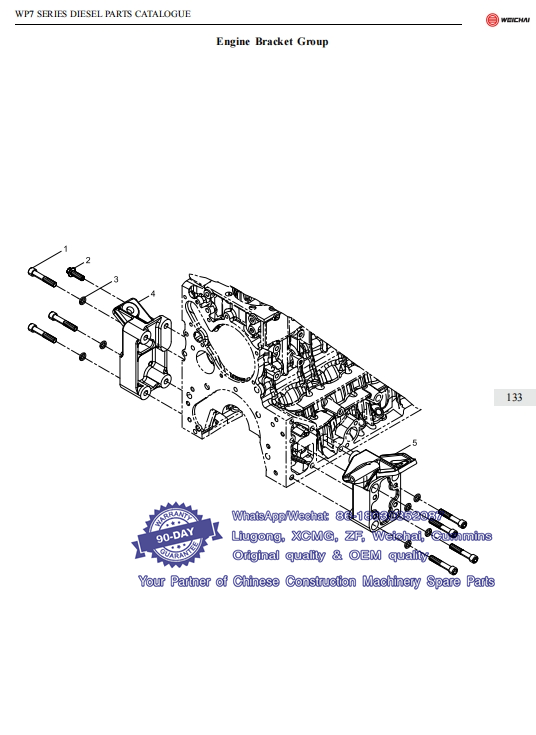

067 Engine Bracket Group——Weichai WP7 SERIES DIESEL PARTS CATALOGUE
Pos. Teile.Number Amount Designation
1 90013050182 7 Inner Hexagon Socket Head Cap Screw
2 90011430033 1 Hexagon Flange with Tooth Bolt
3 90003931142 7 Spring Washer
4 610800540135 1 Engine Bracket Whatsapp: 86-18630852087
5 610800540092 1 Engine Bracket

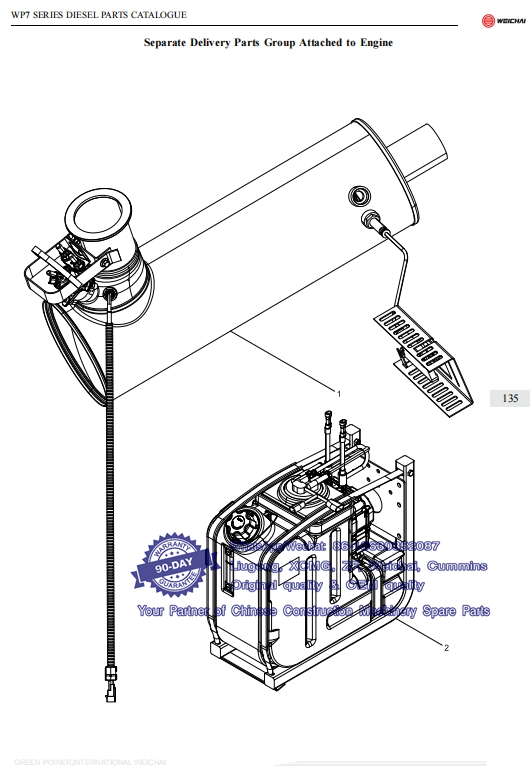

068 Separate Delivery Parts Group Attached to Engine——Weichai WP7 SERIES DIESEL PARTS CATALOGUE
Pos. Teile.Number Amount Designation
1 610800220244 1 SCR Box Assembly Whatsapp: 86-18630852087
2 612640130494 1 Integrated Urea Tank Assembly

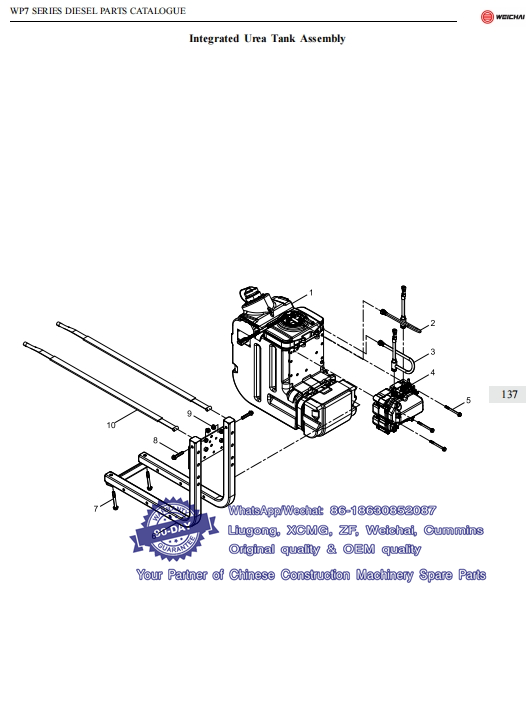

069 Integrated Urea Tank Assembly——Weichai WP7 SERIES DIESEL PARTS CATALOGUE
Pos. Teile.Number Amount Designation
1 612640130421 1 Urea Tank Assembly
2 612640130467 1 Urea Inhale Pipe
3 612640130466 1 Urea Return Pipe Whatsapp: 86-18630852087
4 612640130088 1 Urea Pump
5 612630040144 3 Hexagon Flange Bolt
6 612640130566 1 Urea Tank Bracket Whatsapp: 86-18630852087
7 90011400026 2 Hexagon Flange Bolt
8 90011430025 2 Hexagon Flange with Tooth Bolt
9 90012290002 2 Hexagon Flange Nut
10 612640130567 2 Clamp Strip

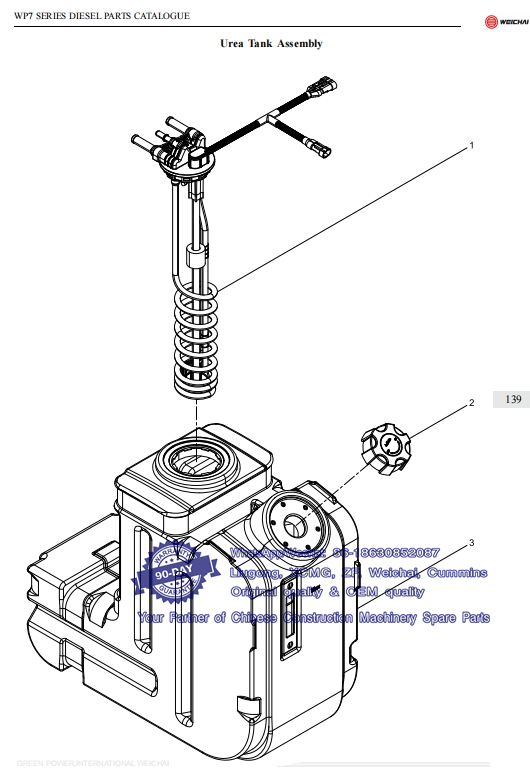

070 Urea Tank Assembly——Weichai WP7 SERIES DIESEL PARTS CATALOGUE
Pos. Teile.Number Amount Designation
1 612640130565 1 Urea Tank Sensor
2 612640130760 1 Urea Tank Cap Whatsapp: 86-18630852087
3 612640130569 1 Urea Tank
