Dongfeng Cummins Diesel Engine 6BTAA5.9-C130 Parts Catalog for Lonking CDM835

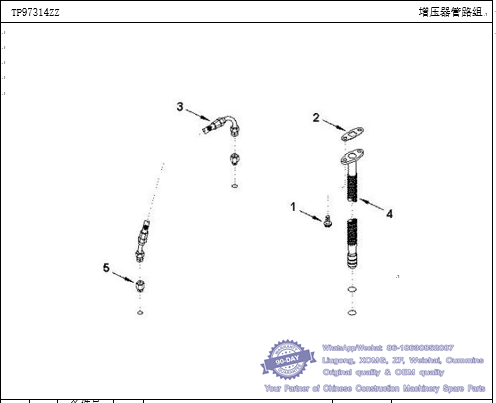

061 TP97314ZZ 增压器管路组-- Dongfeng Cummins Diesel Engine 6BTAA5.9-C130 Parts Catalog for Lonking CDM835
序号 层次 备件号 出售 备件名称 数量 备注
NO OPTION NUMBER SALE OPTION NAME QTY REMARKS
1 1 C3900630 Y 六角法兰面螺栓SCREW, HEX FLANGE HEAD CA 2 whatsapp 86-18630852087
2 1 C3937706 Y 回油管密封垫GASKET, OIL DRAIN 1
3 1 C3974113 Y 组合软管HOSE, FLEXIBLE 1
4 1 C3975061 Y 增压器回油管CONNECTION, TUR OIL DRAIN 1
5 1 C3975113 Y 直通接头体CONNECTOR, MALE 2 whatsapp 86-18630852087

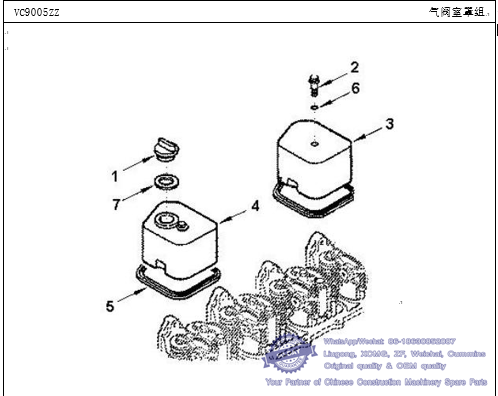

062 VC9005ZZ 气阀室罩组-- Dongfeng Cummins Diesel Engine 6BTAA5.9-C130 Parts Catalog for Lonking CDM835
序号 层次 备件号 出售 备件名称 数量 备注
NO OPTION NUMBER SALE OPTION NAME QTY REMARKS
1 1 C3901895 Y 加机油口盖 CAP, FILLER 1 whatsapp 86-18630852087
2 1 C3907049 Y 六角法兰面螺栓SCREW, HEX FLANGE HEAD CA 6
3 1 C3928404 Y 气阀室罩盖COVER, VALVE 5
4 1 C3928405 Y 气阀室罩盖COVER, VALVE 1 whatsapp 86-18630852087
5 1 C3930906 Y 气阀室盖密封垫GASKET, VALVE COVER 6
6 1 C3935449 Y 隔音装置ISOLATOR, NOISE 6
7 1 C3936876 Y 矩形密封圈SEAL, RECTANGULAR RING 1 whatsapp 86-18630852087

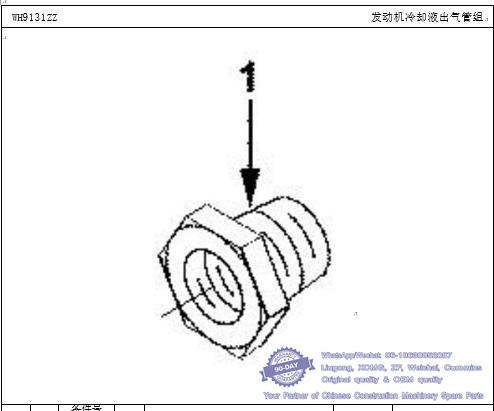

063 WH9131ZZ 发动机冷却液出气管组-- Dongfeng Cummins Diesel Engine 6BTAA5.9-C130 Parts Catalog for Lonking CDM835
序号 层次 备件号 出售 备件名称 数量 备注
NO OPTION NUMBER SALE OPTION NAME QTY REMARKS
1 1 C4938322 Y 直软管接头COUPLING, PLAINHOSE 1 whatsapp 86-18630852087

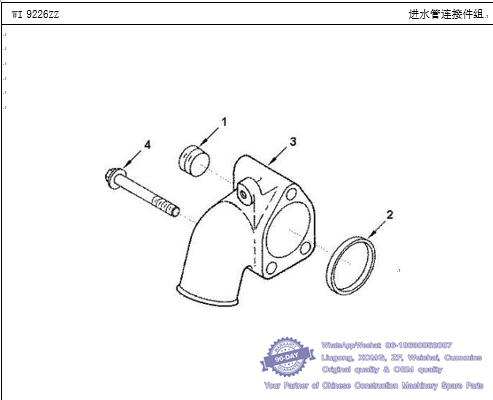

064 WI 9226ZZ 进水管连接件组-- Dongfeng Cummins Diesel Engine 6BTAA5.9-C130 Parts Catalog for Lonking CDM835
序号 层次 备件号 出售 备件名称 数量 备注
NO OPTION NUMBER SALE OPTION NAME QTY REMARKS
1 1 C3008469 Y 螺堵PLUG, PIPE 1 whatsapp 86-18630852087
2 1 C3906697 Y 矩形密封圈SEAL, RECTANGULAR RING 1
3 1 C3973197 Y 进水连接管CONNECTION, WATER INLET 1
4 1 C4991495 Y 六角法兰面螺栓SCREW, HEX FLANGE HEAD CA 3 whatsapp 86-18630852087

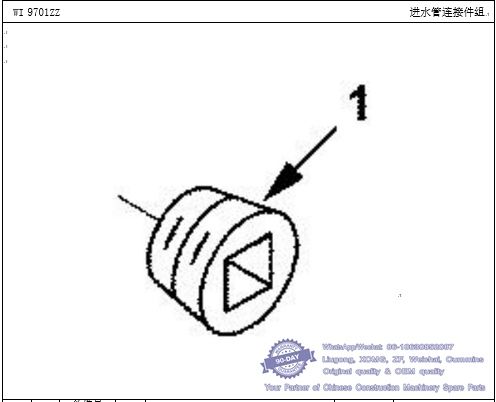

065 WI 9701ZZ 进水管连接件组-- Dongfeng Cummins Diesel Engine 6BTAA5.9-C130 Parts Catalog for Lonking CDM835
序号 层次 备件号 出售 备件名称 数量 备注
NO OPTION NUMBER SALE OPTION NAME QTY REMARKS
1 1 C3008468 Y 螺堵PLUG, PIPE 2 whatsapp 86-18630852087

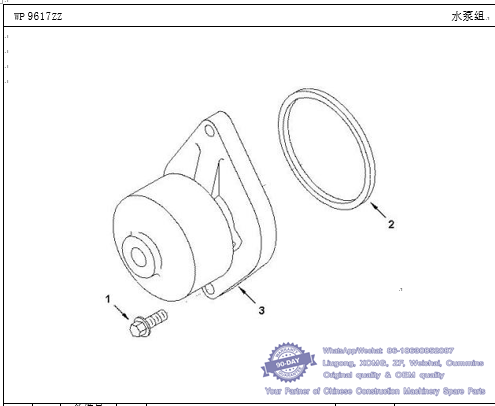

066 WP 9617ZZ 水泵组-- Dongfeng Cummins Diesel Engine 6BTAA5.9-C130 Parts Catalog for Lonking CDM835
序号 层次 备件号 出售 备件名称 数量 备注
NO OPTION NUMBER SALE OPTION NAME QTY REMARKS
1 1 C3900227 Y 六角头螺栓SCREW, HEXAGON HEAD CAP 2 whatsapp 86-18630852087
2 1 C3906698 Y 矩形密封圈SEAL, RECTANGULAR RING 1
3 1 C4935793 Y 水泵PUMP, WATER 1 whatsapp 86-18630852087

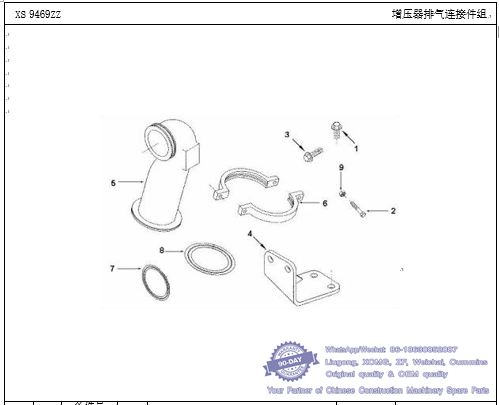

067 XS 9469ZZ 增压器排气连接件组-- Dongfeng Cummins Diesel Engine 6BTAA5.9-C130 Parts Catalog for Lonking CDM835
序号 层次 备件号 出售 备件名称 数量 备注
NO OPTION NUMBER SALE OPTION NAME QTY REMARKS
1 1 C3093957 Y 六角法兰面螺栓SCREW, HEX FLANGE HEAD CA 2 whatsapp 86-18630852087
2 1 C3900632 Y 六角法兰面螺栓SCREW, HEX FLANGE HEAD CA 2
3 1 C3903990 Y 六角法兰面螺栓SCREW, HEX FLANGE HEAD CA 2
4 1 C3971092 Y 管路支架BRACE, TUBE 1
5 1 C3971093 Y 弯管接头ELBOW, MALE ADAPTER 1 whatsapp 86-18630852087
6 1 C4928803 Y 钢丝型弹性环箍CLAMP, SPRING HOSE 2
7 1 C4928804 Y 排气连接管密封垫GASKET, EXH OUT CONNECTIO 1
8 1 C4928805 Y 排气连接管密封垫GASKET, EXH OUT CONNECTIO 2
9 1 C4991528 Y 六角法兰面螺母NUT, HEXAGON F RANGE 2 whatsapp 86-18630852087
