8.电气系统 Electrical System

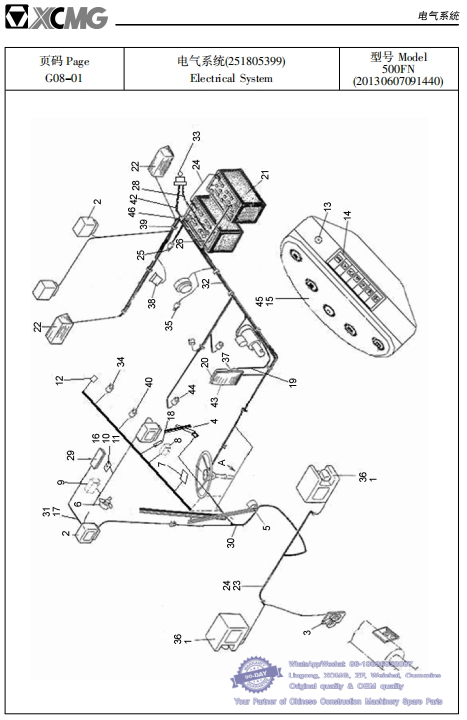

062 电气系统(251805399) 型号 500FN (20130607091440)
Electrical System Model500FN (20130607091440)-- XCMG Loader LW500FN Parts Catalog
件号 部件号 零件名称 数量 备注
Item Part No. Part Name Qty Remarks
1 803545522 工作灯 Working Lamp 2
2 803545523 工作灯 Working Lamp 4
3 803502413 电喇叭 Horn 1
4 802138059 后雨刮器 Windshield Wiper 1
5 802138058 前雨刮器 Windshield Wiper 1
6 803544526 电风扇 Fan 1
7 803542884 洗涤器总成 Syringe 1
8 803677588 电气集中控制盒 Control Box 1
9 803545383 收放机总成 Radio 1
10 803676770 智能数据终端 Gps 1
11 803676773 终端安装支架 Gps Bracket 1
12 803678440 发动机低压报警开关 Switch 1
13 803608667 点火开关 Key Switch 1 仪表箱带
14 803677640 翘板开关 Switches 1
15 803545178 组合仪表 Alarm Cluster 1
16 803677975 智能数据终端转接线 Gps Wires 1
17 251805828 驾驶室线束 Cab Wire 1 借用
18 251806234 保险安装盒 Fuse Box 1
19 803645530 电瓶线 Battery Wire 1
20 803645894 电源总开关 Switch Resource Of Electrical 1 发动机带
21 803502471 蓄电池 Battery 2
22 803545524 后小灯 Rear Dim Lamp 2
23 251805400 前车架线束 Front Wires 1
24 801902724 尼龙扎带 Wires Support 30
25 803544047 压力传感器 Pressure Sensor 1
26 803611375 电瓶线 Battery Wire 1
27 803614143 电瓶线 Battery Wire 2
28 803613927 电瓶线 Battery Wire 1
29 803677653 翘板开关 Switch 1
30 251806024 仪表盘线束 Meter Wires 1
31 801902651 尼龙扎带 Wires Support 6
32 251805402 后车架线束 Wires Of Rear Chassis 1
33 803604579 蓄电池负极开关 Switch 1
34 803544046 油温传感器 Oil Temperature Sensor 1
35 803544048 水温传感器 Water Temperature Sensor 1
36 803608327 减振垫 Cushion 2
37 803608668 起动继电器 Relay 1
38 803544308 倒车报警器 Back Warning Buzzer 1
39 801902723 尼龙扎带 Wires Support 12
40 803678437 刹车灯开关 Brake Switch 1
41 252110953 橡胶护套 Rubber Jacket 4
42 803604698 电瓶线 Battery Wire 1
43 252903889 继电器安装板 Relay Bracket 1
44 803611283 倒车压力开关 Switch 1
45 803544102 组合表线束 Wires 1
46 801902753 橡胶护套 Rubber Jacket 4
9. 机罩 Engine Hood

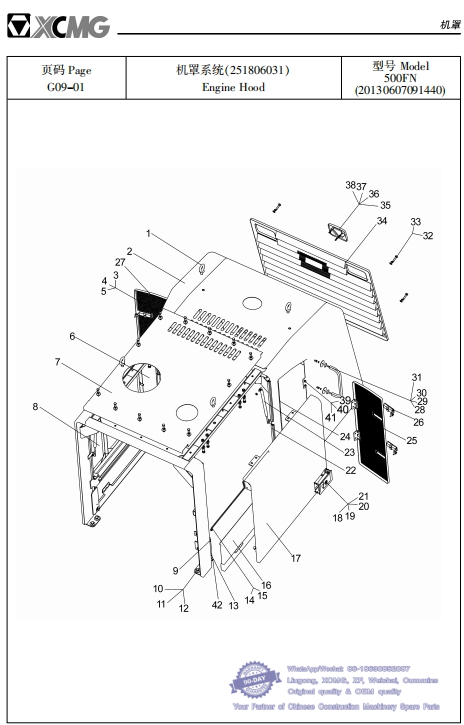

063 机罩系统251806031 型号 500FN (20130607091440)
Engine Hood Model 500FN (20130607091440)-- XCMG Loader LW500FN Parts Catalog
件号 部件号 零件名称 数量 备注
Item Part No. Part Name Qty Remarks
1 805100348 吊环螺钉 M16 Screw 4 GB/T825-1988
2 251806032 机罩焊接总成 Hood Weld Assy 1
3 805000043 螺栓 M10伊30 Bolt 12 GB/T5783-2000
4 805300102 垫圈 10 Washer 12 GB/T 96.1-2002
5 805300014 垫圈 10 Washer 16 GB/T93-1987
6 251806129 降噪材料总成 Sound-Absorbing Material 1
7 251806106 盖板 Plate 1
8 251806100 右门 Right Door 1
9 251806141 磁钢 Magnet Steel 4
10 805300113 垫圈 12 Washer 22 GB/T 96.1-2002
11 805300018 垫圈 12 Washer 22 GB/T93-1987
12 805000048 螺栓 M12伊35 Bolt 18 GB/T5783-2000
13 251806142 减震块 Bumper 4
14 805600301 销 2伊16 Pin 4 GB/T 91-2000
15 803074410 拉杆 Bar 2
16 251806117 下小门 Door 2
17 251806089 左门 Left Door 1
18 803074424 门锁 Lock 2
19 805200053 螺母 M6 Nut 8 GB/T6170-2000
20 805300029 垫圈 6 Washer 8 GB/T97.1-2002
21 805300030 垫圈 6 Lock Washer 8 GB/T93 一 1987
22 801902763 车门密封条 Sealing 1
23 801701502 气弹簧 Air Spring 4
24 801968857 35 装饰条 Sealing 1
25 251806111 左小门 Left Door 1
26 802138398 门锁 Lock 4
27 251806115 右小门 Right Door 1
28 251806127 后扶手 Handrail 2
29 805300117 垫圈 8 Washer 4 GB/T96.1-2002
30 251806139 扶手座 Sopport 4
31 805200045 螺母 M8 Nut 12 GB/T6170-2002
32 805000713 螺栓 M10伊45 Bolt 4 GB/T5783-2000
33 805300017 垫圈 10 Washer 4 GB/T97.1-2002
34 251806124 后挡罩 Rear Hood 1
35 250900479 标徽 Brand 1
36 805300119 垫圈 5 Washer 3 GB/T97.1-2002
37 805300109 垫圈 5 Washer 3 GB/T93-1987
38 805200046 螺母 M5 Nut 3 GB/T6170-2000
39 805300069 垫圈 8 Washer 20 GB/T 97.1-2002
40 805300010 垫圈 8 Washer 20 GB/T 93-1987
41 805000018 螺栓 M8伊20 Bolt 8 GB/T5783-2000
42 805000716 螺栓 M12伊30 Bolt 4 GB/T 5783-2000
10. 暖风与空调 Heating System and Air Conditioner

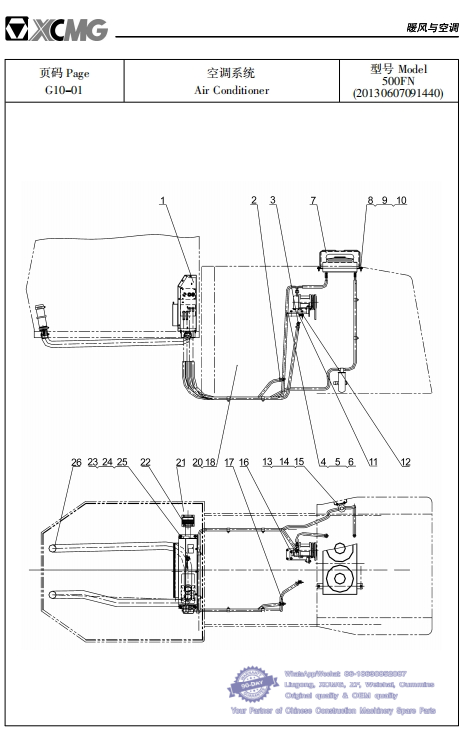

064 空调系统 型号 500FN (20130607091440)
Air Conditioner Model 500FN (20130607091440)-- XCMG Loader LW500FN Parts Catalog
件号 部件号 零件名称 数量 备注
Item Part No. Part Name Qty Remarks
1 803544042 空调总成(配上柴) Air Conditioner 1 XGKT460N-10-3
803544138 空调总成渊配潍柴冤 Air Conditioner 1 XGKT460N-10-4
2 801968904 不锈钢环箍(B 型)16-27 Hose Clamp 4 QC/T619-1999
3 800787654 水阀开关渊同向冤 Switch 1
4 805000089 螺栓 M8伊35 Bolt 4
5 805300069 垫圈 8 Washer 6 GB/T 97.1-2002
6 805301283 垫圈 8 Washer 8 GB/T93-1987
7 250400404 风罩 Air-Condition Hood 1
8 805000043 螺栓 M10伊30 Bolt 4 GB/T5783-2000
9 805300017 垫圈 10 Washer 4 GB/T97.1-2002
10 805301284 垫圈 10 Washer 4 GB/T93-1987
11 252108810 压缩机支架(潍柴) Bracket 1 配潍柴
252000109 压缩机支架(上柴) Bracket 1 配上柴
12 805100037 螺钉 M8伊25 Screw 2 GB/T70.1-2000
13 805000322 螺栓 M6伊16 Bolt 2 GB/T5783-2000
14 805301294 垫圈 6 Washer 2 GB/T93-1987
15 805300029 垫圈 6 Washer 2 GB/T97.1-2002
16 250700107 连接板 Connecting Plate 1 配上柴
17 250400402 接头 Joint 1 配潍柴
250200223 接头 Joint 1 配上柴
18 251805042 保温水管 2200 Water Pipe 1
19 252100859 胶垫 Plank 1
20 251805043 保温水管 2400 Water Pipe 1
21 805000033 螺栓 M8伊16 Bolt 4 GB/T 5783-2000
22 801902713 不锈钢喉箍 44-64 Clamp 2 QC/T619-1999
23 805000045 螺栓 M12伊40 Bolt 4 GB/T5783-2000
24 805300018 垫圈 12 Washer 4 GB/T93-1987
25 805300020 垫圈 12 Washer 4 GB/T97.1-2002
26 801902714 喉箍 51-70 Clamp 4 QC/T619-1999

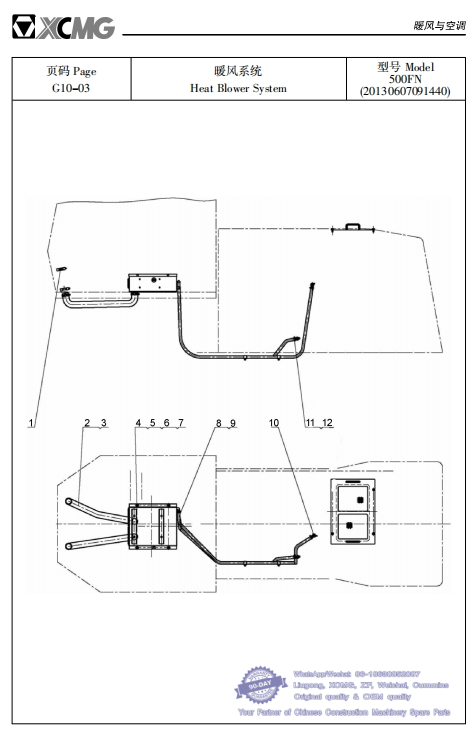

065 暖风系统 型号 500FN (20130607091440)
Heat Blower System Model 500FN (20130607091440)-- XCMG Loader LW500FN Parts Catalog
件号 部件号 零件名称 数量 备注
Item Part No. Part Name Qty Remarks
1 801902714 喉箍 51-70 Clamp 4 QC/T619-1999
2 251806266 保温风管 Pipe 2
3 801902713 不锈钢喉箍 44-64 Clamp 4 QC/T619-1999
4 252905808 暖风机总成 Radiator 1
5 805000048 螺栓 M12伊35 Bolt 4 GB/T5783-2000
6 805300020 垫圈 12 Washer 4 GB/T97.1-2002
7 805301285 垫圈 12 Washer 4 GB/T93-1987
8 251805042 保温水管 2200 Water Pipe 1
9 251805043 保温水管 2400 Water Pipe 1
10 800787654 水阀开关渊同向冤 Switch 1
11 801968904 不锈钢喉箍（B 型）19-27 Hose Clamp 4 QC/T 619-1999
12 250200223 接头 Joint 1 配上柴
250400402 接头 Joint 1 配潍柴

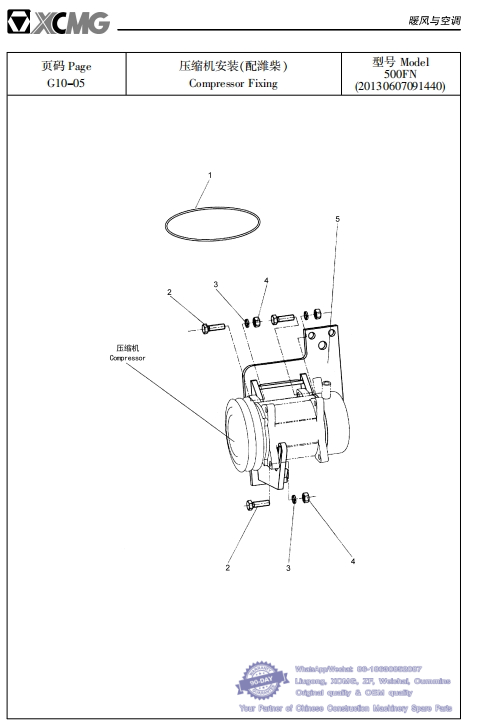

066 压缩机安装 配潍柴 型号 500FN (20130607091440)
Compressor Fixing Model 500FN (20130607091440)-- XCMG Loader LW500FN Parts Catalog
件号 部件号 零件名称 数量 备注
Item Part No. Part Name Qty Remarks
1 860115061 A 型皮带 17-570 A-Strap 1 空调带
2 805000062 螺栓 M10伊35 Bolt 3 GB/T5783-2000
3 805300014 垫圈 10 Washer 3 GB/T93-1987
4 805200048 螺母 M10 Bolt 3 GB/T6170-2000
5 252108810 压缩机支架(潍柴) Bracket 1 配潍柴
Full range of spare parts for XCMG Wheel Loader ZL50G, ZL50GN, LW500F, LW500FN, LW500K,LW500KN
XCMG Wheel Loader Spare parts, whatsapp 86-18630852087
LW500FN WHEEL LOADER PARTS MANUAL
LW500FN 轮式装载机零件手册
XUGONG SCIENCE & TECHNOLOGY CO.,LTD.
徐州工程机械科技股份有限公司
