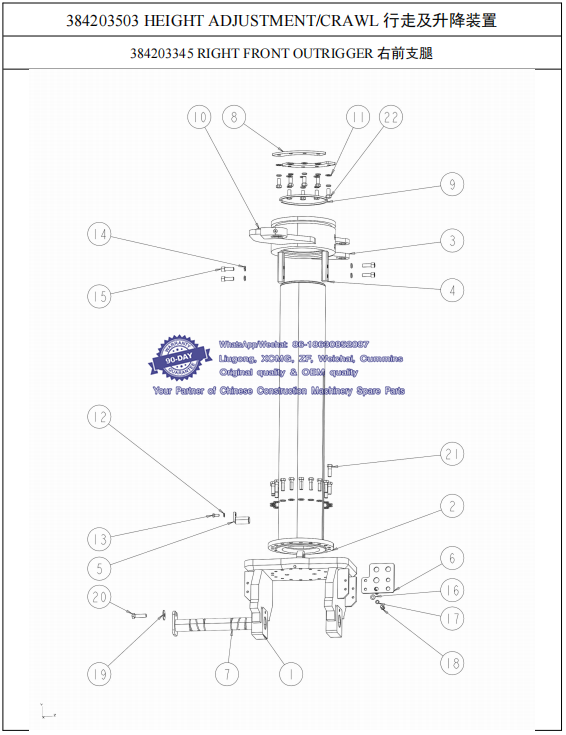

065 384203345 RIGHT FRONT OUTRIGGER 右前支腿-- XCMG Road Milling Machine XM200 Spare Parts Catalog
序号 零部件代号 名称 数量 备注
No. Part No. Part name Q'ty Remark
1 384202150 脚叉 HOLD-DOWN SUPPORT 1
2 384200106 升降支腿 LIFTING LANDING LEG 1 Whatsapp: 86-18630852087
3 384200461 右前转向牵引 STEERING RING RF 1
4 384200479 导向块 GUIDE MAT 2
5 805604570 销轴 SHAFT 1
6 384200476 过壁板CUT-THROUGH WALL PLANK 1
7 384200477 转轴 SPINDLE 1
8 384200475 固定板 PLATE 2
9 384200478 密封毛毡 SEALINGT KIT 2 Whatsapp: 86-18630852087
10 801100336 油杯 M10×1 GREASE CUP 2 JB/T7940.1-1995
11 805338284 垫圈 16(达克罗) WASHER 16 26 GB/T97.1-2002
12 805338278 垫圈 10(达克罗) WASHER 10 1 GB/T97.1-2002
13 805046462 螺栓 M10×25(达克罗) BOLT M10×25 1 GB/T5783-2000
14 805338263 垫圈 16(达克罗) WASHER 16 12 GB/T93-1987 Whatsapp: 86-18630852087
15 805139947 螺钉 M16×45(达克罗) SCREW M16×45 4 GB/T70.1-2008
16 805338280 垫圈 12(达克罗) WASHER 12 2 GB/T97.1-2002
17 805338261 垫圈 12(达克罗) WASHER 12 2 GB/T93-1987
18 805046482 螺栓 M12×30(达克罗) BOLT 2 GB/T5783-2000 Whatsapp: 86-18630852087
19 805338273 垫圈 16(达克罗) WASHER 16 1 GB/T96.1-2002
20 805047089 螺栓 M16×60(达克罗) BOLT M16×60 1 GB/T5783-2000
21 805011131 螺栓 M16×50(达克罗) BOLT M16×50 18 GB/T5782-2000
22 805046661 螺栓 M16×35(达克罗) BOLT M16×35 8 GB/T5782-200
066 384203503 HEIGHT ADJUSTMENT/CRAWL 行走及升降装置

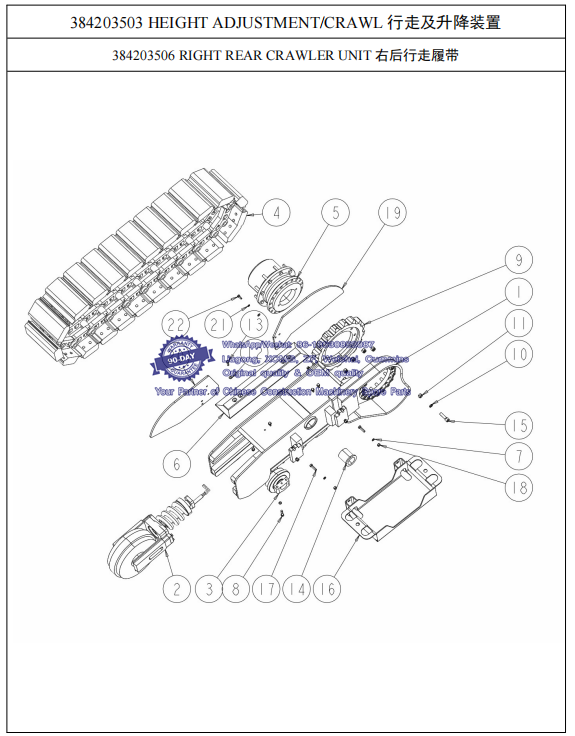

384203506 RIGHT REAR CRAWLER UNIT 右后行走履带-- XCMG Road Milling Machine XM200 Spare Parts Catalog
序号 零部件代号 名称 数量 备注
No. Part No. Part name Q'ty Remark
1 384203652 右后履带梁RIGHT REAR CRAWLER BEAM 1 Whatsapp: 86-18630852087
2 384203341 前轮导向轮及张紧 FRONT GUIDING AND TENSIONING SYSTEM 1
3 800307732 支重轮 LOWER ROLLER 4
4 800357149 履带总成 CRAWLER WITH RUBBER PAD 1
5 800307355 减速机 REDUCER 1
6 384200481 垫板 BASEPLATE 1
7 805338261 垫圈 12(达克罗) WASHER 12 24 GB/T93-1987
8 805048392 螺 栓 M12×1.5×50( 达克罗)BOLT 16 GB/T5785-2000
9 384200675 链轮 CHAIN WHEEL 1 Whatsapp: 86-18630852087
10 805338263 垫圈 16(达克罗) WASHER 16 27 GB/T93-1987
11 384400336 美标螺母 AMERICAN STANDARD NUT 9
12 805338278 垫圈 10(达克罗) WASHER 10 12 GB/T97.1-2002
13 805046529 螺栓 M10×40(达克罗) BOLT M10×40 4 GB/T5783-2000
14 800515197 自润翻边轴套SELF LUBRICATING FLANGING BEARING 2
15 805048263 螺栓 L=60(10.9)(达克罗) BOLT L=60 18
16 384200473 维修工具箱 SERVICE KIT 1 Whatsapp: 86-18630852087
17 805046550 螺栓 M12×45(达克罗) BOLT 4 GB/T5783-2000
18 805238367 螺母 M12(达克罗) NUT M12 4 GB/T6170-2000 Whatsapp: 86-18630852087
19 384203759 防护板一 GUARD PLATE NO.1 1
20 384203758 防护板二 GUARD PLATE NO.2 1 Whatsapp: 86-18630852087
21 805338260 垫圈 10(达克罗) WASHER 10 8 GB/T93-1987
22 805046462 螺栓 M10×25(达克罗) BOLT M10×25 8 GB/T5783-2000
067 384203506 RIGHT REAR CRAWLER UNIT 右后行走履带-- XCMG Road Milling Machine XM200 Spare Parts Catalog
384203341 FRONT GUIDING AND TENSIONING SYSTEM 前轮导向轮及张紧
序号 零部件代号 名称 数量 备注
No. Part No. Part name Q'ty Remark
1 384200405 外滑筒OUTSIDE SLIDING BARREL 1
2 384200512 压簧 COMPRESSED SPRING 1
3 384200510 张紧杆 TENSIONING POLE 1
4 384200511 连接板Ⅰ PLANK Ⅰ 1 Whatsapp: 86-18630852087
5 384200531 连接板Ⅱ PLANK Ⅱ 1
6 800307707 导向轮总成 PULLEY 1
7 805238894 螺母 M36(达克罗) NUT M36 1 GB/T6181-1986
8 805600351 销 8×63 PIN 8×63 1 GB/T91-2000 Whatsapp: 86-18630852087
9 805338261 垫圈 12(达克罗) WASHER 12 4 GB/T93-1987
10 805046645 螺栓 M12×80(达克罗) BOLT M12×80 4 GB/T5782-2000
11 800309261 单向阀 CHECK VALVE 1 Whatsapp: 86-18630852087
12 803107607 接头 CONNECTOR 1
13 803130486 测压接头 PRESSURE GAUGE ADAPTOR 1
14 803192133 O 形圈 50×5.3 O-RING 50×5.3 1 GB/T3452.1-2005
15 801907072 防尘圈 DUSTPROOF WASHER 1
068 384203503 HEIGHT ADJUSTMENT/CRAWL 行走及升降装置-- XCMG Road Milling Machine XM200 Spare Parts Catalog
384203344 RIGHT REAR OUTRIGGER 右后支腿
序号 零部件代号 名称 数量 备注
No. Part No. Part name Q'ty Remark
1 384202150 脚叉 HOLD-DOWN SUPPORT 1
2 384200106 升降支腿 LIFTING LANDING LEG 1
3 384200462 右后转向牵引 STEERING RING RR 1
4 384200479 导向块 GUIDE MAT 2
5 384200477 转轴 SPINDLE 1
6 384200476 过壁板CUT-THROUGH WALL PLANK 1
7 384200475 固定板 PLATE 2
8 384200478 密封毛毡 SEALINGT KIT 2 Whatsapp: 86-18630852087
9 801100336 油杯 M10×1 GREASE CUP 2 JB/T7940.1-1995
10 805604570 销轴 SHAFT 1 Whatsapp: 86-18630852087
11 805338278 垫圈 10(达克罗) WASHER 10 1 GB/T97.1-2002
12 805046462 螺栓 M10×25(达克罗) BOLT M10×25 1 GB/T5783-2000
13 805338263 垫圈 16(达克罗) WASHER 16 12 GB/T93-1987
14 805139947 螺钉 M16×45(达克罗) SCREW M16×45 4 GB/T70.1-2008
15 805338280 垫圈 12(达克罗) WASHER 12 2 GB/T97.1-2002
16 805338261 垫圈 12(达克罗) WASHER 12 2 GB/T93-1987
17 805046482 螺栓 M12×30(达克罗) BOLT 2 GB/T5783-2000 Whatsapp: 86-18630852087
18 805338273 垫圈 16(达克罗) WASHER 16 1 GB/T96.1-2002
19 805047089 螺栓 M16×60(达克罗) BOLT M16×60 1 GB/T5783-2000
20 805338284 垫圈 16(达克罗) WASHER 16 26 GB/T97.1-2002
21 805011131 螺栓 M16×50(达克罗) BOLT M16×50 18 GB/T5782-2000
22 805046661 螺栓 M16×35(达克罗) BOLT M16×35 8 GB/T5782-2000
069 384203503 HEIGHT ADJUSTMENT/CRAWL 行走及升降装置-- XCMG Road Milling Machine XM200 Spare Parts Catalog

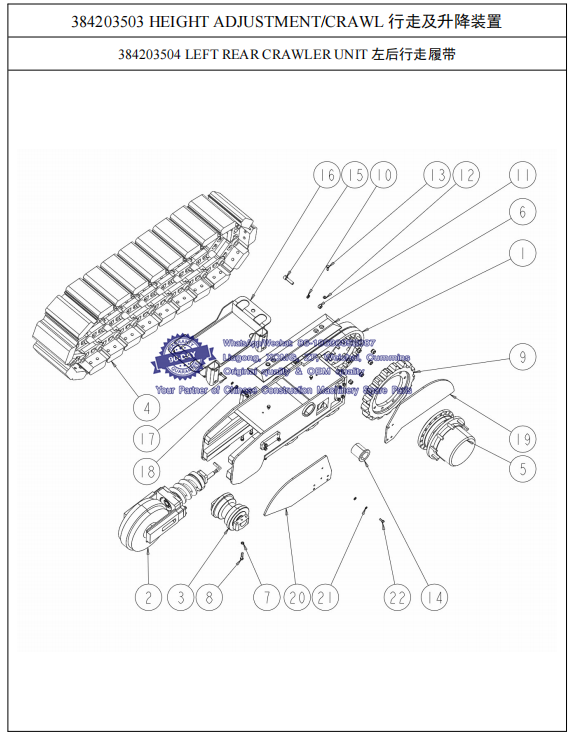

384203504 LEFT REAR CRAWLER UNIT 左后行走履带
序号 零部件代号 名称 数量 备注
No. Part No. Part name Q'ty Remark
1 384203653 左后履带梁LEFT REAR CRAWLER BEAM 1
2 384203341 前轮导向轮及张紧 FRONT GUIDING AND TENSIONING SYSTEM 1
3 800307732 支重轮 LOWER ROLLER 4
4 800357149 履带总成 CRAWLER WITH RUBBER PAD 1
5 800307355 减速机 REDUCER 1 Whatsapp: 86-18630852087
6 384200481 垫板 BASEPLATE 1
7 805338261 垫圈 12(达克罗) WASHER 12 24 GB/T93-1987
8 805048392 螺 栓 M12×1.5×50( 达 克罗)BOLT 16 GB/T5785-2000
9 384200675 链轮 CHAIN WHEEL 1 Whatsapp: 86-18630852087
10 805338263 垫圈 16(达克罗) WASHER 16 27 GB/T93-1987
11 384400336 美标螺母 AMERICAN STANDARD NUT 9
12 805338278 垫圈 10(达克罗) WASHER 10 12 GB/T97.1-2002
13 805046416 螺栓 M10×30(达克罗) BOLT 4 GB/T5783-2000 Whatsapp: 86-18630852087
14 800515197 自润翻边轴套SELF LUBRICATING FLANGING BEARING 2
15 805048263 螺栓 L=60(10.9)(达克罗) BOLT L=60 18
16 384200473 维修工具箱 SERVICE KIT 1
17 805046550 螺栓 M12×45(达克罗) BOLT 4 GB/T5783-2000
18 805238367 螺母 M12(达克罗) NUT M12 4 GB/T6170-2000
19 384203759 防护板一 GUARD PLATE NO.1 1 Whatsapp: 86-18630852087
20 384203758 防护板二 GUARD PLATE NO.2 1
21 805338260 垫圈 10(达克罗) WASHER 10 8 GB/T93-1987
22 805046462 螺栓 M10×25(达克罗) BOLT M10×25 8 GB/T5783-2000
070 384203504 LEFT REAR CRAWLER UNIT 左后行走履带-- XCMG Road Milling Machine XM200 Spare Parts Catalog

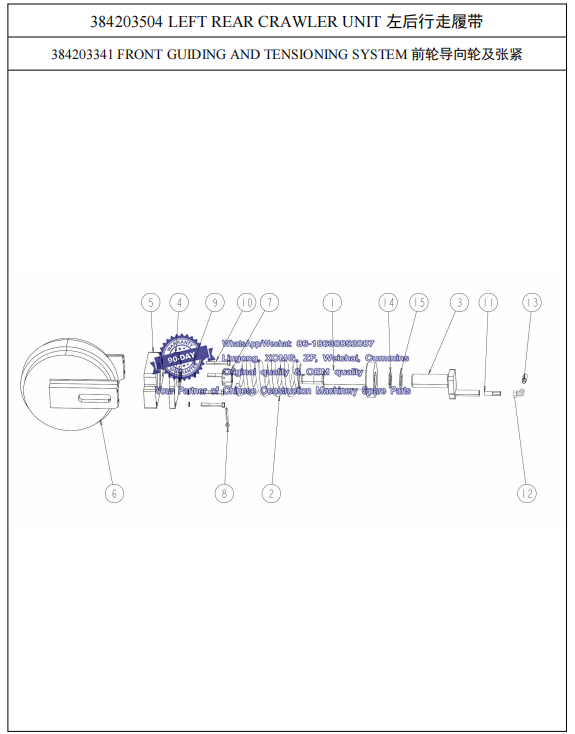

384203341 FRONT GUIDING AND TENSIONING SYSTEM 前轮导向轮及张紧
序号 零部件代号 名称 数量 备注
No. Part No. Part name Q'ty Remark
1 384200405 外滑筒OUTSIDE SLIDING BARREL 1
2 384200512 压簧 COMPRESSED SPRING 1
3 384200510 张紧杆 TENSIONING POLE 1 Whatsapp: 86-18630852087
4 384200511 连接板Ⅰ PLANK Ⅰ 1
5 384200531 连接板Ⅱ PLANK Ⅱ 1
6 800307707 导向轮总成 PULLEY 1
7 805238894 螺母 M36(达克罗) NUT M36 1 GB/T6181-1986 Whatsapp: 86-18630852087
8 805600351 销 8×63 PIN 8×63 1 GB/T91-2000
9 805338261 垫圈 12(达克罗) WASHER 12 4 GB/T93-1987
10 805046645 螺栓 M12×80(达克罗) BOLT M12×80 4 GB/T5782-2000
11 800309261 单向阀 CHECK VALVE 1
12 803107607 接头 CONNECTOR 1 Whatsapp: 86-18630852087
13 803130486 测压接头 PRESSURE GAUGE ADAPTOR 1
14 803192133 O 形圈 50×5.3 O-RING 50×5.3 1 GB/T3452.1-2005
15 801907072 防尘圈 DUSTPROOF WASHER 1
071 384203503 HEIGHT ADJUSTMENT/CRAWL 行走及升降装置

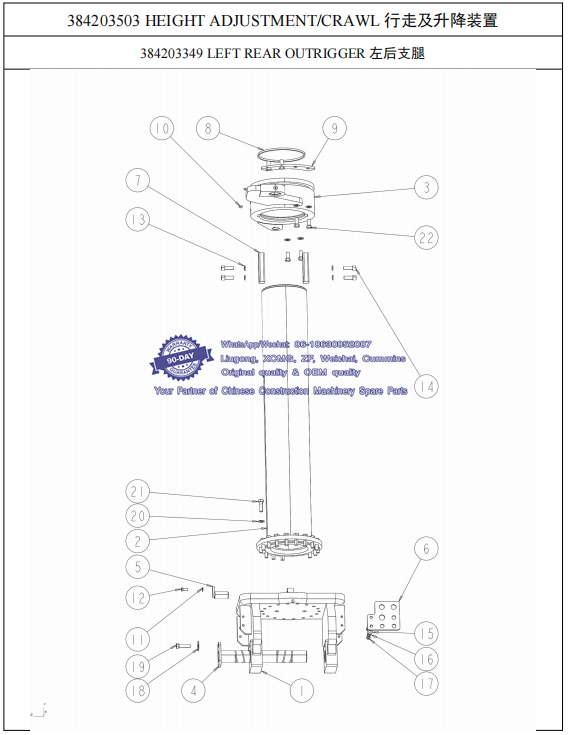

384203349 LEFT REAR OUTRIGGER 左后支腿-- XCMG Road Milling Machine XM200 Spare Parts Catalog
序号 零部件代号 名称 数量 备注
No. Part No. Part name Q'ty Remark
1 384202150 脚叉 HOLD-DOWN SUPPORT 1
2 384200106 升降支腿 LIFTING LANDING LEG 1
3 384200467 左后转向牵引 STEERING RING LR 1
4 384200477 转轴 SPINDLE 1
5 805604570 销轴 SHAFT 1 Whatsapp: 86-18630852087
6 384200476 过壁板CUT-THROUGH WALL PLANK 1
7 384200479 导向块 GUIDE MAT 2
8 384200478 密封毛毡 SEALINGT KIT 2 Whatsapp: 86-18630852087
9 384200475 固定板 PLATE 2
10 801100336 油杯 M10×1 GREASE CUP 2 JB/T7940.1-1995
11 805338278 垫圈 10(达克罗) WASHER 10 1 GB/T97.1-2002
12 805046462 螺栓 M10×25(达克罗) BOLT M10×25 1 GB/T5783-2000
13 805338263 垫圈 16(达克罗) WASHER 16 4 GB/T93-1987 Whatsapp: 86-18630852087
14 805139947 螺钉 M16×45(达克罗) SCREW M16×45 4 GB/T70.1-2008
15 805338280 垫圈 12(达克罗) WASHER 12 2 GB/T97.1-2002
16 805338261 垫圈 12(达克罗) WASHER 12 2 GB/T93-1987
17 805046482 螺栓 M12×30(达克罗) BOLT 2 GB/T5783-2000
18 805338273 垫圈 16(达克罗) WASHER 16 1 GB/T96.1-2002 Whatsapp: 86-18630852087
19 805047089 螺栓 M16×60(达克罗) BOLT M16×60 1 GB/T5783-2000
20 805338284 垫圈 16(达克罗) WASHER 16 26 GB/T97.1-2002
21 805011131 螺栓 M16×50(达克罗) BOLT M16×50 18 GB/T5782-2000
22 805046661 螺栓 M16×35(达克罗) BOLT M16×35 8 GB/T5782-2000
072 384203503 HEIGHT ADJUSTMENT/CRAWL 行走及升降装置-- XCMG Road Milling Machine XM200 Spare Parts Catalog

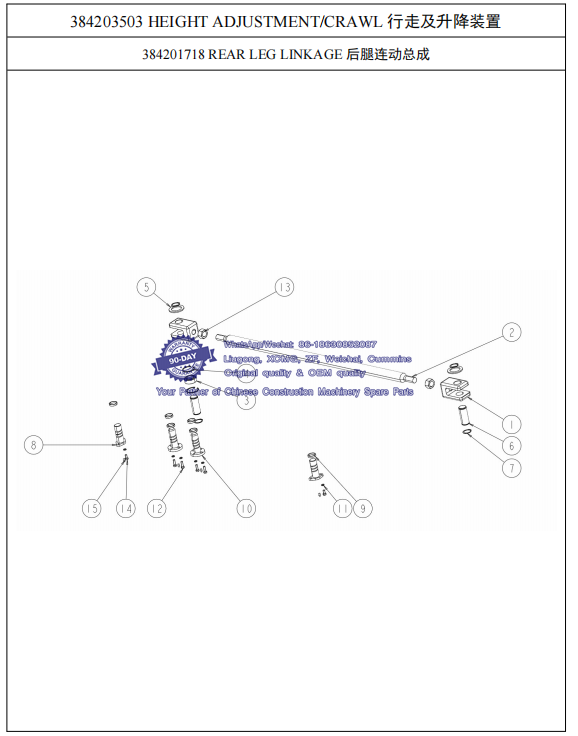

384201718 REAR LEG LINKAGE 后腿连动总成
序号 零部件代号 名称 数量 备注
No. Part No. Part name Q'ty Remark
1 384200463 叉头 FORKHEAD 2
2 384200464 连动杆 TRACKING ROD 1
3 800513992 关节轴承 GE40ES OSCILLATING BEARING GE40ES 1 GB/T9163-2001
4 805407850 挡圈 62(达克罗) HOLD WASHER 62 2 GB/T893.1-1986
5 384200466 防尘圈 DUSTPROOF WASHER 2
6 805604568 销轴（一） SHAFT 2
7 805407863 挡圈 40(达克罗) HOLD WASHER 40 4 GB/T894.1-1986
8 384202680 销轴（二） SHAFT 2
9 384200465 垫片 MAT 6
10 805604571 销轴 SHAFT 2
11 805338260 垫圈 10(达克罗) WASHER 10 6 GB/T93-1987
12 805046473 螺栓 M10×30(达克罗) BOLT 4 GB/T5783-2000
13 805239111 螺母 M30×2(达克罗) NUT M30×2 2 GB/T6171-2000
14 805046472 螺栓 M10×20(达克罗) BOLT 2 GB/T5783-2000
15 801103215 油杯 M10×1 不锈钢OIL CUP M10×1 STAINLESS STEEL 4 JB/T7940.1-1995
