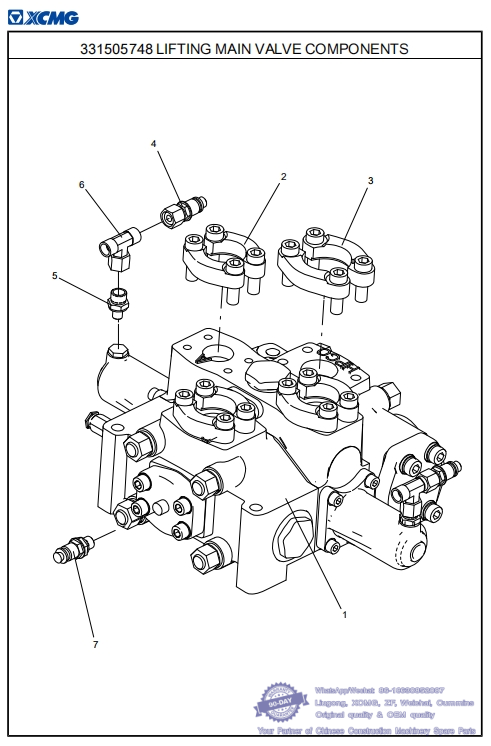

066 331505748 LIFTING MAIN VALVE COMPONENTS-- XCMG Mining Dump Truck XDR100 Parts Catalog
331505751 MIDDLE LIFTING PIPING
No. PART NUMBER QTY NAME NOTE PAGE
1 803405279 1 MUTI WAY DIRECTIONAL VALVE whatsapp 86-18630852087
2 813402736 3 FLANGE ASSEMBLY
3 813402738 2 FLANGE ASSEMBLY
4 803452474 2 CONNECTOR
5 803413569 2 CONNECTOR whatsapp 86-18630852087
6 803411847 2 CONNECTOR
7 813402945 1 CONNECTOR

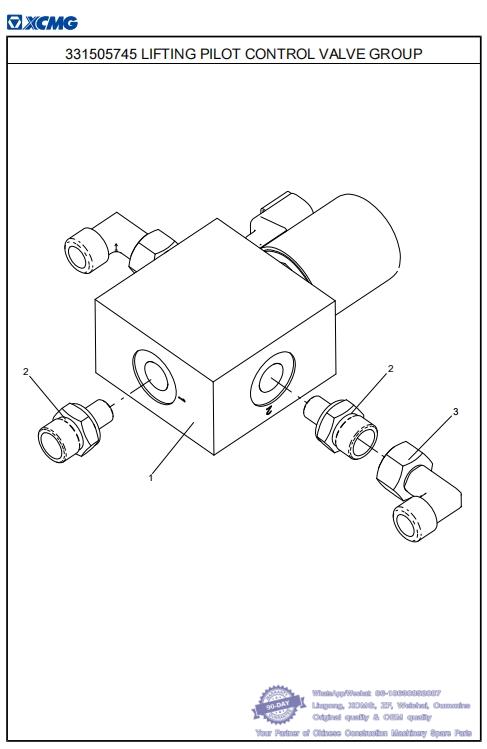

067 331505745 LIFTING PILOT CONTROL VALVE GROUP-- XCMG Mining Dump Truck XDR100 Parts Catalog
331505729 LIFTING SYSTEM
No. PART NUMBER QTY NAME NOTE PAGE
1 804002310 1 VALVE GROUP 142
2 803413569 3 CONNECTOR whatsapp 86-18630852087
3 803413568 2 CONNECTOR

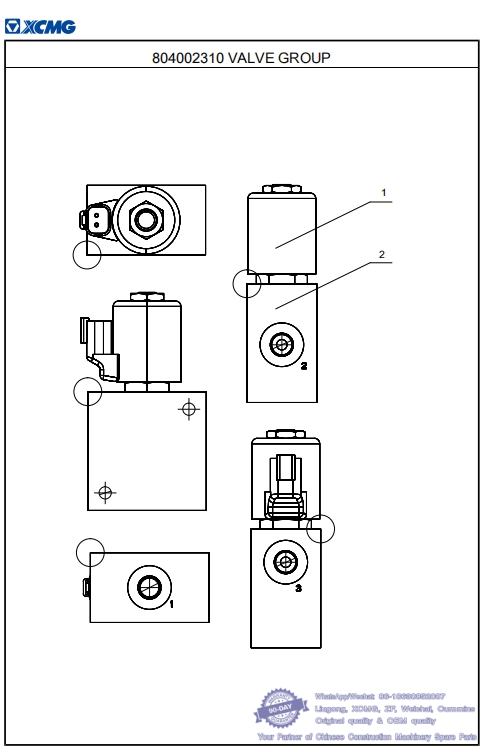

068 804002310 VALVE GROUP-- XCMG Mining Dump Truck XDR100 Parts Catalog
331505745 LIFTING PILOT CONTROL VALVE GROUP
No. PART NUMBER QTY NAME NOTE PAGE
1 804013261 1 SOLENOID CHANGE VALVE whatsapp 86-18630852087
2 804200084 1 VALVE BLOCK

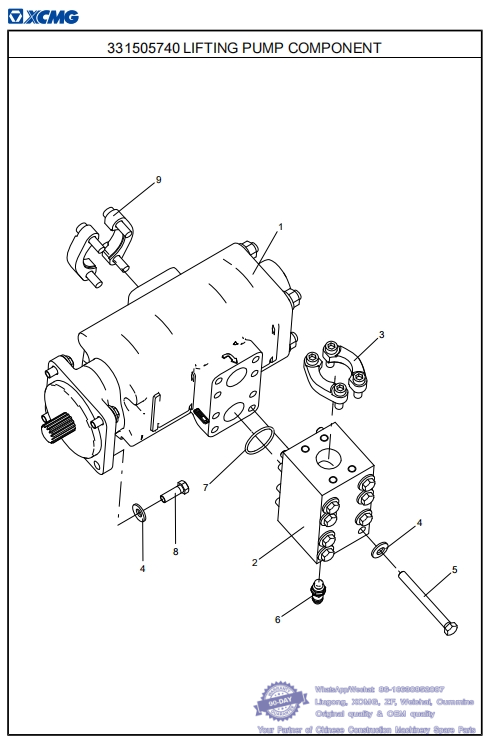

069 331505740 LIFTING PUMP COMPONENT-- XCMG Mining Dump Truck XDR100 Parts Catalog
331505729 LIFTING SYSTEM
No. PART NUMBER QTY NAME NOTE PAGE
1 803406959 1 LIFTING PUMP whatsapp 86-18630852087
2 331502243 1 CONFLUENT BLOCK
3 813402739 1 FLANGE ASSEMBLY
4 805301374 12 WASHER 12 DIN6796
5 805049413 8 BOLT 1/2-13UNC×4-3/4
6 813402945 1 CONNECTOR whatsapp 86-18630852087
7 803443571 2 BLIND FLANGEORING 47.22×3.53
8 805006413 4 BOLT M12×35 GB/T5783-2000
9 813402758 1 FLANGE ASSEMBLY

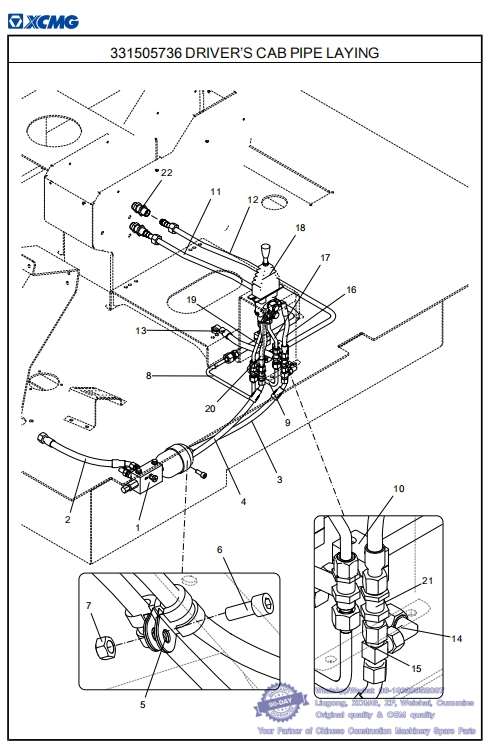

070 331505736 DRIVER’S CAB PIPE LAYING-- XCMG Mining Dump Truck XDR100 Parts Catalog
331505729 LIFTING SYSTEM
No. PART NUMBER QTY NAME NOTE PAGE
1 331505749 1 PILOT OIL SOURCE BLOCK COMPONENT 148
2 803417614 1 HOSE ASS'Y
3 803163851 1 HOSE ASS'Y whatsapp 86-18630852087
4 252803879 1 HOSE ASS'Y
5 801905490 2 RUBBER SLEEVE HOOP
6 805140919 1 SCREW M10×25 GB/T70.1-2008
7 805238366 1 NUT M10 GB/T6170-2000
8 331505871 1 STEEL PIPE ASSEMBLY
9 331505878 1 STEEL PIPE ASSEMBLY
10 803437790 2 PIPE CLIP
11 331505880 1 STEEL PIPE ASSEMBLY
12 331505874 1 STEEL PIPE ASSEMBLY
13 803417629 1 HOSE ASS'Y
14 803413568 1 CONNECTOR whatsapp 86-18630852087
15 803413505 1 CONNECTOR
16 803417627 1 HOSE ASS'Y
17 331502237 1 STEEL PIPE ASSEMBLY
18 331505755 1 LIFTING HANDLE COMPONENT 150
19 331502235 1 STEEL PIPE ASSEMBLY
20 803417626 1 HOSE ASS'Y
21 803380805 4 CONNECTOR
22 803163645 2 CONNECTOR whatsapp 86-18630852087
