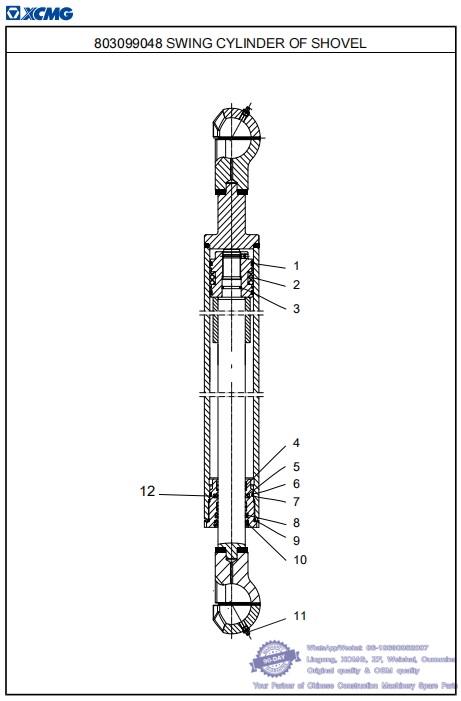

066 803099048 SWING CYLINDER OFF SHOVEL-- XCMG Motor Grader GR2205T Spare Parts Catalog
380605355 WORKING HYDRAULIC SYSTEM
No. PART NUMBER QTY NAME NOTE PAGE
1 860511602 1 FZT-SHAPE POLLUTION RECEIVING RING whatsapp 86-18630852087
2 860164368 1 DAS/DBM COMBINED SEALING
3 860140444 2 O-RING
4 860166372 1 SUPPORT RING
5 860504135 1 STEP SEAL 50×65.1×6.3
6 860164386 1 O-RING whatsapp 86-18630852087
7 803305449 1 RETAINER RING 80×75.2×1.5
8 860511603 1 RUJ-SHAPE SEALING RING
9 860161147 1 O-RING
10 860511604 2 SCRAPER SEAL
11 801100336 2 OIL CUP M10×1 JB/T7940.1-1995 whatsapp 86-18630852087
12 803453370 1 SEALING PACKET

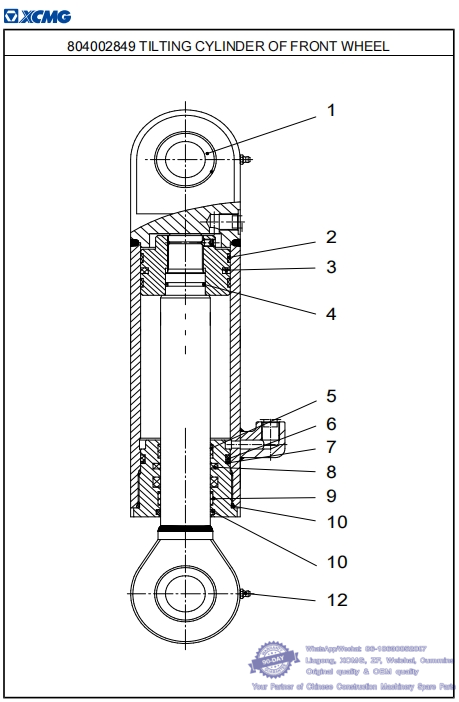

067 8044002849 TILTING CYLINDER OFF FRONT WHEEL-- XCMG Motor Grader GR2205T Spare Parts Catalog
380605355 WORKING HYDRAULIC SYSTEM
No. PART NUMBER QTY NAME NOTE PAGE
1 800513992 2 KNUCKLE BEARING GE40ES GB/T9163-2001 whatsapp 86-18630852087
2 860164368 1 DAS/DBM COMBINED SEALING
3 803304484 1 O-RING
4 860163715 2 SUPPORT RING whatsapp 86-18630852087
5 860164386 1 O-RING
6 803305449 1 RETAINER RING 80×75.2×1.5
7 803044820 1 STEP SEAL
8 860163724 1 RUJ-SHAPE SEALING RING
9 860117528 1 O-RING
10 860164366 1 DA22SCRAPER SEAL
12 801100336 2 OIL CUP M10×1 JB/T7940.1-1995 whatsapp 86-18630852087

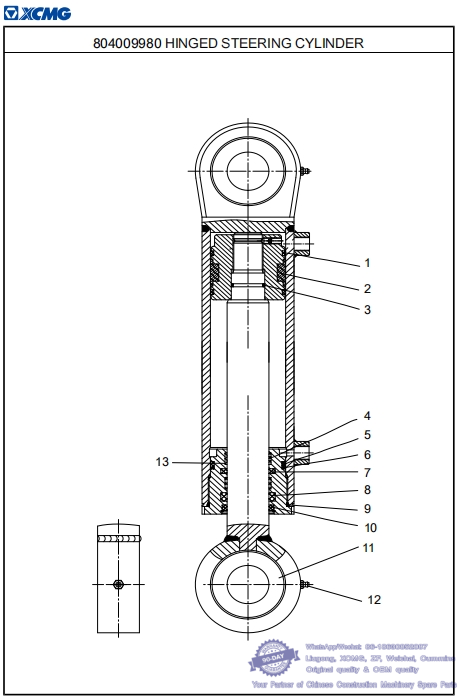

068 804009980 HINGED STEERING CYLINDER-- XCMG Motor Grader GR2205T Spare Parts Catalog
380605355 WORKING HYDRAULIC SYSTEM
No. PART NUMBER QTY NAME NOTE PAGE
1 860164385 2 FZT-SHAPE POLLUTION RECEIVING RING whatsapp 86-18630852087
2 860163727 1 DAS COMBINED SEALING
3 803195338 1 O-RING 1
4 860511652 2 GUIDE RING
5 803181892 1 O-RING whatsapp 86-18630852087
6 860511068 1 RETAINER RING
7 860504135 1 STEP SEAL 50×65.1×6.3
8 860500586 1 RUJ-SHAPE SEALING RING 50×65×11
9 803177506 1 O-RING
10 803278651 1 WKJ DUST RING 50×62×7.3
11 801100336 2 OIL CUP M10×1 JB/T7940.1-1995
12 800514007 2 KNUCKLE BEARING GEG50ES GB/T9163-2001 whatsapp 86-18630852087
13 803453374 1 SEALING PACKET

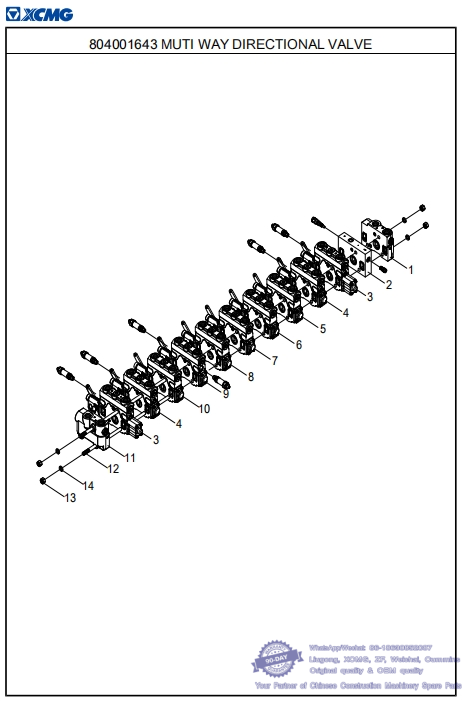

069 804001643 MUTI WAY DIRECTIONAL VALVE-- XCMG Motor Grader GR2205T Spare Parts Catalog
380605355 WORKING HYDRAULIC SYSTEM
No. PART NUMBER QTY NAME NOTE PAGE
1 860510682 1 OIL INLET CONNECTOR1
2 860510683 1 TRANSITION CONNECTOR whatsapp 86-18630852087
3 860510684 1 WORKING GROUP 1
4 860510685 1 WORKING GROUP 2
5 860510686 2 WORKING CONNECTOR 3
6 860510687 2 WORKING CONNECTOR 4
7 860510688 1 WORKING CONNECTOR 5
8 860510689 1 WORKING CONNECTOR 6
9 860510690 1 WORKING CONNECTOR 7 whatsapp 86-18630852087
10 860510691 1 WORKING GROUP 8
11 860510692 1 OIL INLET CONNECTOR2
12 860510693 3 STUD
13 860510694 6 NUT
14 860510695 6 WASHER whatsapp 86-18630852087

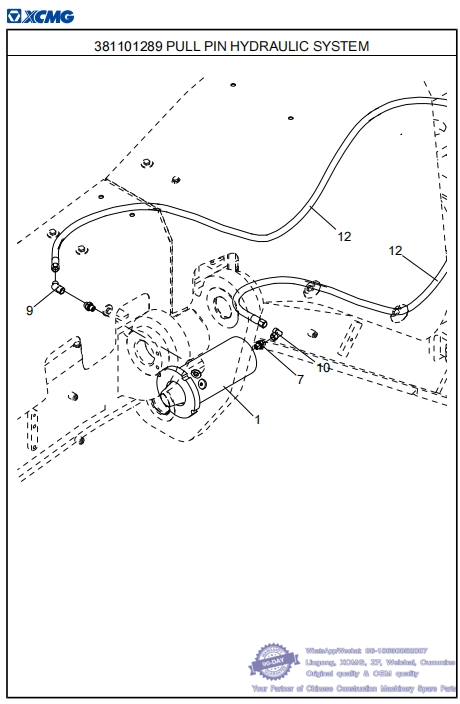

070 381101289 PULL PIN HYDRAULIC SYSTEM-- XCMG Motor Grader GR2205T Spare Parts Catalog
382301662 MOTOR GRADER
No. PART NUMBER QTY NAME NOTE PAGE
1 803099206 1 PIN CYLINDER whatsapp 86-18630852087
7 803104282 2 JOINT
9 813400987 1 JOINT
10 803103351 3 JOINT
12 803431954 2 HOSE ASSEMBLY whatsapp 86-18630852087
