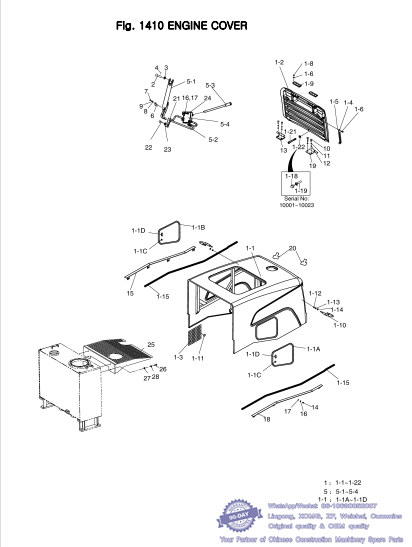

066 Fig. 1410 ENGINE COVER-- Doosan Wheel Loader SD200 Spare Parts Catalog
Key No Part No Description Qty S.C Serial No ICA Replacable Qty
- 110506-00021 COVER ASSY,ENGINE - D 10001~10181
- 110506-00233 COVER ASSY,ENGINE - D 10182~
1 110506-00022E COVER ASSY 1 10001~10023 I 110506-00022G 1
1 110506-00022G COVER ASSY 1 10024~
1-1 110506-00028E COVER,ENGINE 1 10001~10023 I 110506-00028G 1 whatsapp 86-18630852087
1-1 110506-00028G COVER,ENGINE 1 10024~
1-1A 101591-00011 WINDOW UNIT,SHOW;LEFT 1
1-1B 101591-00012 WINDOW UNIT,SHOW;RIGHT 1
1-1C 220207-00028 LOCK,DOOR 2
1-1D 220207-00019 LOCK,DOOR;NO KEY 2
1-2 101524-00018B GRILL,RADIATOR 1 10001~10023 I 101524-00018C 1
1-2 101524-00018C GRILL,RADIATOR 1 10024~
1-3 K1042084 SPONGE 1 whatsapp 86-18630852087
1-4 K1040777A SLIDER 1
1-5 S5735471 PIN;SPLIT 2
1-6 S5010613 WASHER,PLAIN;M10 16
1-8 S0511653 BOLT 12
1-9 110927-00005 HINGE,DOOR;CABIN 2
1-10 K1050233A HANDLE 2
1-11 K1054913 HOLDER 30
1-12 S4012733 NUT 4
1-13 S5010703 WASHER;PLAIN 4
1-14 S5102703 WASHER;SPRING M12 4
1-15 K1042085 STRIP 1
1-18 S2215266 BOLT,SOCKET;M12X1.75X30 3 10001~10023
1-19 110954-00005 STEM 3 10001~10023
1-21 S2212866 BOLT;SOCKET M10X1.5X60 3 10024~
1-22 - WASHER 3 D 10024~
2 120501-01314 PIN 1
3 S5010813 WASHER;PLAIN 2
4 S5735611 PIN;SPLIT 1
5 300628-00123 MODULE,HYDRAULIC 1 D
5-1 400323-00001 CYLINDER 1
5-2 420105-00263 HOSE,HYDRAULIC 2
5-3 K1040806 HOLDER 1 whatsapp 86-18630852087
5-4 400916-00052 PUMP 1
6 K1040784A SHAFT 1
7 S0504653 BOLT M6X1.0X16 1
8 S5010303 WASHER 1
9 S5102303 WASHER;SPRING 1
10 S0521363 BOLT 4
11 DS0401213 WASHER,PLAIN 4
12 S5102903 WASHER,SPRING 4
13 K1040785B SHAFT;RIGHT 1
14 S0511853 BOLT 6
15 250201-00024 PLATE;RIGHT 1 whatsapp 86-18630852087
16 S5010613 WASHER,PLAIN;M10 6
17 S5102603 WASHER,SPRING;M10 10
18 250201-00023 PLATE;LEFT 1
19 K1040798B SHAFT;LEFT 1
20 250114-00032A PLATE,ADJUSTING 4
21 124-00208D3 CLIP 1
22 S0508653 BOLT 1
23 S5010503 WASHER 1
24 S0512063 BOLT M10X1.5X25 4 whatsapp 86-18630852087
25 110515-00341 COVER,BRACKET 1 10182~
26 S0515053 BOLT M12X1.75X25 4 10182~
27 S5010713 WASHER;PLAIN M12 4 10182~
28 S5102703 WASHER;SPRING M12 4 10182~ whatsapp 86-18630852087

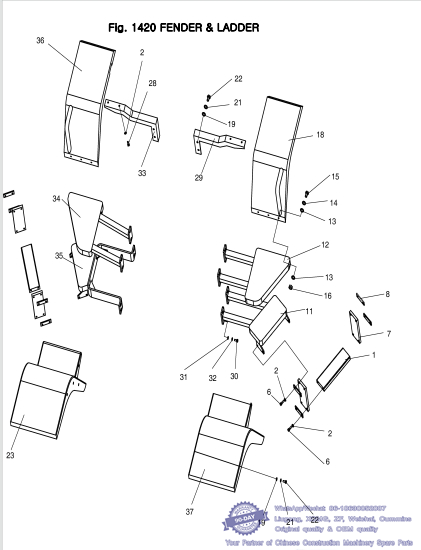

067 Fig. 1420 FENDER & LADDER-- Doosan Wheel Loader SD200 Spare Parts Catalog
Key No Part No Description Qty S.C Serial No ICA Replacable Qty
- K1043532B FENDER & LADDER ASS'Y - D 10001~10181
- 180307-00731 FENDER & LADDER ASSY - D 10182~
1 220107-00010 REST,FOOT 2 whatsapp 86-18630852087
2 S5010613 WASHER,PLAIN;M10 20
6 S0512253 BOLT M10X1.5X30 16
7 K1040736A PLATE,SUPPORT 4
8 K1040757 PLATE,LOCK 8
11 110932-00023 LADDER(L.H) 1 10001~10181
11 110932-00023A LADDER(L.H) 1 10182~
12 110932-00022 LADDER(L.H) 1
13 S5010513 WASHER,PLAIN;M8 12
14 S5102503 WASHER,SPRING;M8 6
15 S0509066 BOLT 6
16 S4012533 NUT;M8 6
18 K1043536A PLATFORM(L.H) 1
19 S5010713 WASHER;PLAIN M12 12
21 S5102703 WASHER;SPRING M12 12
22 S0515053 BOLT M12X1.75X25 12 whatsapp 86-18630852087
23 K1043543A FENDER(R.H) 1 10001~10181
23 180307-00696 FENDER(R.H) 1 10182~
28 S0511653 BOLT 4
29 110406-01011 BRACKET 1
30 S0521253 BOLT M16X2.0X30 18
31 S5010903 WASHER;PLAIN 18
32 S5102903 WASHER,SPRING 18
33 110406-01012 BRACKET 1
34 110932-00015A LADDER（R.H） 1
35 K1043540A LADDER（R.H） 1 10001~10181
35 110932-00190 LADDER（R.H） 1 10182~
36 K1043541A PLATFORM(R.H) 1
37 K1043542A FENDER(L.H) 1 10001~10181
37 180307-00695 FENDER(L.H) 1 10182~ whatsapp 86-18630852087

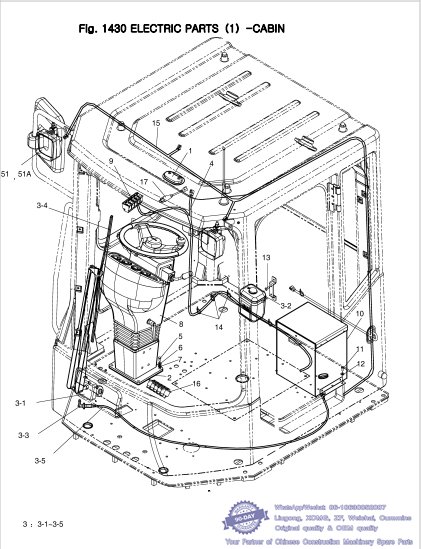

068 Fig. 1430 ELECTRIC PARTS(1)-CABIN-- Doosan Wheel Loader SD200 Spare Parts Catalog
Key No Part No Description Qty S.C Serial No ICA Replacable Qty
- 300619-01246 ELECTRIC ASSY - D 10001~10005
- 300619-01246B ELECTRIC ASSY - D 10006~10007
- 300619-01246C ELECTRIC ASSY - D 10008~10018
- 300619-01246E ELECTRIC ASSY - D 10019~10119
- 300619-01246G ELECTRIC ASSY - D 10120~
1 534-00079 ROOM LAMP 1 whatsapp 86-18630852087
2 180304-00006A CUSHION;CONSOLE 1
3 220210-00365 WIPER ASSY 1
3-1 220210-00058A WIPER 1
3-2 450110-00001 TANK,WATER 1
3-3 K1053839 ADAPTER 1
3-4 220202-00016 BLADE,WIPER 1
3-5 420109-00241 HOSE,WATER 1
4 310207-00966 HARNESS 1
5 S0512363 BOLT 4
6 S5102603 WASHER,SPRING;M10 4
7 S5010613 WASHER,PLAIN;M10 4
8 300411-00020C CONSOLE ASSY 1 10001~10005 I 300411-00020E 1
8 300411-00020E CONSOLE ASSY 1 10006~10022 I 300411-00044 1
8 300411-00044 CONSOLE ASSY 1 10023~10030 I 300411-00044A 1 whatsapp 86-18630852087
8 300411-00044A CONSOLE ASSY 1 10031~
9 301423-00030 SWITCH ASSY,ROCKER 1 10001~10119 Y 301423-00030A 1
9 301423-00030A SWITCH ASSY,ROCKER 1 10120~
10 300706-00410 BOX,ELECTRIC 1 D 10001~10005
10 300706-00410A BOX ASSY,ELECTRIC 1 D 10006~10030
10 300706-00071H BOX ASSY,ELECTRIC 1 D 10031~
11 S0504653 BOLT M6X1.0X16 4
12 S5010313 WASHER 4
13 S2004653 BOLT,SOCKET HEAD WITH 2
14 2124-1622D2 CLIP;BAND 200L 5
15 310207-00165B HARNESS,CABIN 1 10001~10005 I 310207-01924 1 whatsapp 86-18630852087
15 310207-01924 HARNESS,CABIN 1 10006~
16 301405-00062 SWITCH 1 10001~10005 I 301405-00062A 1
16 301405-00062A SWITCH 1 10006~10018 I 301405-00062B 1
16 301405-00062B SWITCH 1 10019~10119 Y 301405-00062C 1
16 301405-00062C SWITCH 1 10120~
17 301413-00067 SWITCH,PRESSURE 1
51 301005-00100 LAMP,WORKING 2 whatsapp 86-18630852087
51A 300710-00006 BULB,HALOGEN 1 whatsapp 86-18630852087

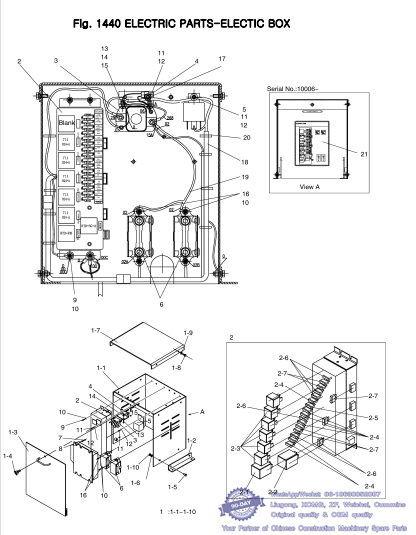

069 Fig. 1440 ELECTRIC PARTS-ELECTIC BOX-- Doosan Wheel Loader SD200 Spare Parts Catalog
Key No Part No Description Qty S.C Serial No ICA Replacable Qty
- 300706-00410 BOX,ELECTRIC - D 10001~10005
- 300706-00410A BOX ASSY,ELECTRIC - D 10006~10030
- 300706-00071H BOX ASSY,ELECTRIC - D 10031~
1 300706-00051A BOX,ELECTRIC 1 10001~10005 I 300706-00463 1 whatsapp 86-18630852087
1 300706-00463 BOX,ELECTRIC 1 10006~
1-1 110906-00006A BOX 1
1-2 110406-00458 BRACKET 2
1-3 K1054324 COVER,SIDE 1 10001~10005 I 110517-00441 1
1-3 110517-00441 COVER,SIDE 1 10006~
1-4 120112-00125 BOLT 1
1-5 S0508863 BOLT;M8X20 6
1-6 S5010513 WASHER,PLAIN;M8 6
1-7 K1054325 BRACKET 1
1-8 S0504653 BOLT M6X1.0X16 4
1-9 S5010313 WASHER 4 whatsapp 86-18630852087
1-10 S4010533 NUT 4
2 300707-00004 BOX,FUSE 1 10001~10005 I 300707-00004A 1
2 300707-00004A BOX,FUSE 1 10006~
2-1 K1050841 BUZZER 1
2-2 K1050842 FLASHER 1
2-3 K1050840 RELAY SAFETY 5
2-4 2527-1016 FUSE;BLADE 10A 7
2-5 2527-1018 FUSE;BLADE 20A 7
2-6 2527-1017 FUSE;BLADE 15A 6
2-7 K1050838 FUSE BLADE 5A 5
3 301202-00011 RELAY,BATTERY 1
4 K1054347 BRACKET 1 whatsapp 86-18630852087
5 K1056586 RELAY 1
6 K1054389 FUSE 2
7 S0508653 BOLT 1
8 S5010513 WASHER,PLAIN;M8 1
9 S3458833 SCREW M5x0.8x12 4
10 S5000213 WASHER;PLAIN M5 8
11 S3458583 SCREW M4X0.7X12 3
12 S5010313 WASHER 3
13 S3458583 SCREW M4X0.7X12 2
14 S5010113 WASHER,PLAIN 2
15 S4012133 NUT M4X0.7 2 whatsapp 86-18630852087
16 S3460863 SCREW 4
17 300617-00006 DIODE 1
18 310207-00355 HARNESS,ELECTRIC BOX 1
19 310207-01019 HARNESS,JOINT 1
20 2124-1622D2 CLIP;BAND 200L 10
21 950209-02595 PLATE ASSY,NAME 1 10006~ whatsapp 86-18630852087

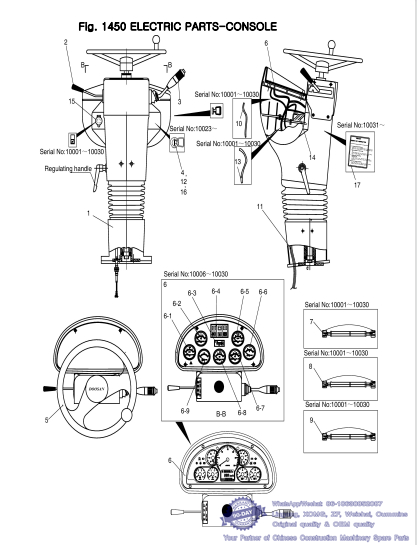

070 Fig. 1450 ELECTRIC PARTST-CONSOLE-- Doosan Wheel Loader SD200 Spare Parts Catalog
Key No Part No Description Qty S.C Serial No ICA Replacable Qty
- 300411-00020C CONSOLE ASSY 1 10001~10005 I 300411-00020E 1
- 300411-00020E CONSOLE ASSY 1 10006~10022 I 300411-00044 1
- 300411-00044 CONSOLE ASSY 1 10023~10030 I 300411-00044A 1
- 300411-00044A CONSOLE ASSY 1 10031~
1 - CONSOLE 1 D whatsapp 86-18630852087
2 101577-00012 SHIFTER 1 10031~
3 301403-00002 SWITCH,COMBINATION 1 10031~
4 301419-00001 SWITCH,STARTER 1 10031~
5 190202-00011 STEERING UNIT 1 10001~10030 I 190202-00087 1
5 190202-00087 STEERING UNIT 1 10031~
6 800102-00001G BLOCK,GAUGE 1 D 10001~10005 I 800102-00001H 1 whatsapp 86-18630852087
6 800102-00001H BLOCK,GAUGE 1 D 10006~10030
6 800102-00031 BLOCK,GAUGE 1 10031~
6-1 800112-00016A GAUGE,OIL PRESSURE 1 10001~10005 I 800112-00016B 1
6-1 800112-00016B GAUGE,OIL PRESSURE 1 10006~10030
6-2 800242-00005 THERMOMETER,WATER GAUGE 1 10006~10030
6-3 800224-00002A METER,HOUR 1 10006~10030
6-4 301005-00147 LAMP,SIGNAL 1 10006~10030
6-5 800112-00032 GAUGE,OIL PRESSURE 1 10006~10030
6-6 800245-00002 VOLTMETER 1 10006~10030
6-7 800242-00006 THERMOMETER,OIL GAUGE 1 10006~10030
6-8 800112-00018 GAUGE,AIR PRESSURE 1 10006~10030
6-9 800109-00045 GAUGE 1 10006~10030
7 420101-00039 HOSE,AIR 1 10001~10030
8 K1050270 HOSE,OIL PRESSURE 1 10001~10030
9 K1050269 HOSE,ENGINE OIL 1 10001~10030
10 K1054718 HARNESS,CONSOLE 1 10001~10005
10 310207-01994 HARNESS 1 10006~10030
11 310207-01021 HARNESS 1 10001~10030
11 310207-02302 HARNESS,CONSOLE;SD300,SD2 1 10031~
12 110702-00021 KEY,START SWITCH 2 10031~
13 310207-00567A HARNESS,CONSOLE 1 10001~10030
14 300611-00081 CONTROLLER,PREHEAT 1 10031~
15 301423-00019 SWITCH,ROCKER 1 10001~10030
15 300730-00010 LIGHTER 1 10031~
16 950209-02528 PLATE,NAME;STARTER 1 10023~
17 950209-02527 PLATE,NAME;PREHEAT 1 10031~ whatsapp 86-18630852087

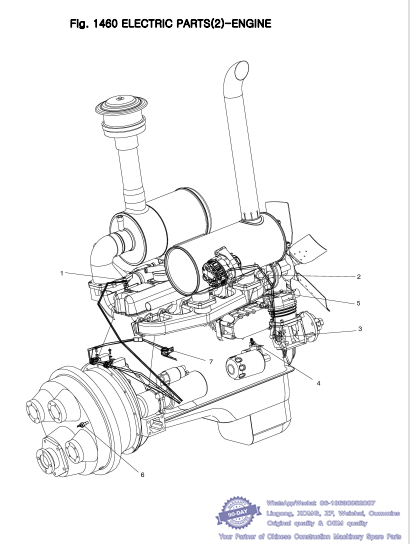

071 Fig. 1480 ELECTRIC PARTS(2)-ENGINE-- Doosan Wheel Loader SD200 Spare Parts Catalog
Key No Part No Description Qty S.C Serial No ICA Replacable Qty
- 300619-00531 ELECTRIC ASSY - D 10001~10027
- 300619-01805 ELECTRIC ASSY - D 10028~
1 K1043092 SENSOR;WATER TEMP 1 10001~10027 whatsapp 86-18630852087
1 301317-00103 SENSOR 1 10028~
2 310207-00352B HARNESS,ENGINE 1 10001~10027
2 310207-02304 HARNESS,ENGINE 1 10028~
3 DS2801001 CLIP 1 whatsapp 86-18630852087
4 K1043094 ADAPTER;(M10×1-Z1/4) 1 10001~10027
4 301309-00105 SENSOR,PRESSURE 1 10028~
5 2124-1622D1 CLIP;BAND 10
6 K1041076 SENSOR; TEMP 1 10001~10027
6 301317-00104 SENSOR 1 10028~
7 DS2802014 CLIP 1 whatsapp 86-18630852087

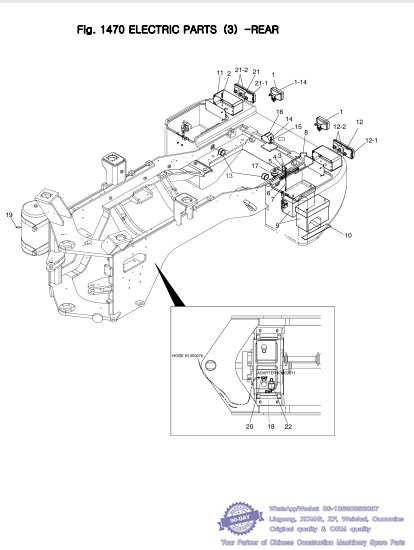

072 Fig. 1470 ELECTRIC PARTS(3)-REAR-- Doosan Wheel Loader SD200 Spare Parts Catalog
Key No Part No Description Qty S.C Serial No ICA Replacable Qty
- 300619-00671 ELECTRIC ASSY - D 10001~10027
1 301005-00099 LAMP,WORKING 2 whatsapp 86-18630852087
1-14 300710-00006 BULB,HALOGEN 1
2 S0511653 BOLT 4
3 S4540603 NUT;WING M10X1.5 4
4 S5010603 WASHER;PLAIN M10 4
5 K1043739 CLIP 4
6 S4012633 NUT 8
7 K1043666 BOLT;STUD 4
8 K1043665 HOLDER;BATTERY 2
9 2506-1104 BATTERY 2 10001~10014 I 300101-00150 2
9 300101-00150 BATTERY 2 10015~
10 K1040911A CUSHION 2 whatsapp 86-18630852087
11 110406-00152 BRACKET 2
12 301005-00267 LAMP,COMBINATION 1
12-1 300710-00004 BULB,HALOGEN;LAMP 1
12-2 300710-00005 BULB,HALOGEN;LAMP 2
13 131009-00001 BUSHING 2
14 S0508653 BOLT 2
15 S5010513 WASHER,PLAIN;M8 2
16 K1054730 BUZZER,BACK 1 whatsapp 86-18630852087
17 K1054731 SWITCH,BATTERY 1
18 K1042239D6 RING;SEAL 1 10001~10027
19 K1041082 ADAPTER 1 10001~10027
20 K1050311 ADAPTER 1 10001~10027
21 301005-00246 LAMP,COMBINATION 1
21-1 300710-00004 BULB,HALOGEN;LAMP 1
21-2 300710-00005 BULB,HALOGEN;LAMP 2
22 K1055285 SWITCH,PRESSURE 1 10001~10027 whatsapp 86-18630852087

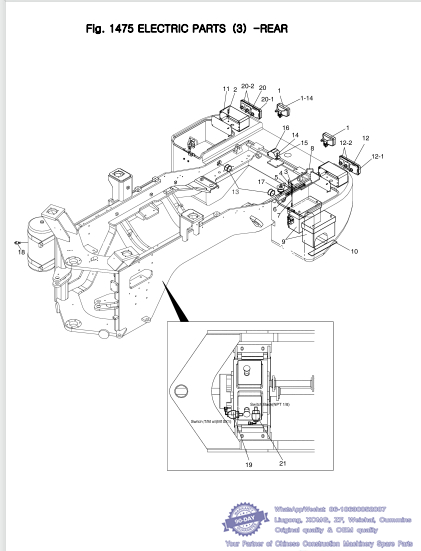

073 Fig. 1475 ELECTRIC PARTS(3)-REAR-- Doosan Wheel Loader SD200 Spare Parts Catalog
Key No Part No Description Qty S.C Serial No ICA Replacable Qty
- 300619-01804 ELECTRIC ASSY - D 10028~
1 301005-00099 LAMP,WORKING 2 whatsapp 86-18630852087
1-14 300710-00006 BULB,HALOGEN 1
2 S0511653 BOLT 4
3 S4540603 NUT;WING M10X1.5 4
4 S5010603 WASHER;PLAIN M10 4
5 K1043739 CLIP 4
6 S4012633 NUT 8
7 K1043666 BOLT;STUD 4
8 K1043665 HOLDER;BATTERY 2 whatsapp 86-18630852087
9 2506-1104 BATTERY 2 10001~10014 I 300101-00150 2
9 300101-00150 BATTERY 2 10015~
10 K1040911A CUSHION 2
11 110406-00152 BRACKET 2
12 301005-00267 LAMP,COMBINATION 1
12-1 300710-00004 BULB,HALOGEN;LAMP 1
12-2 300710-00005 BULB,HALOGEN;LAMP 2
13 131009-00001 BUSHING 2
14 S0508653 BOLT 2
15 S5010513 WASHER,PLAIN;M8 2
16 K1054730 BUZZER,BACK 1
17 K1054731 SWITCH,BATTERY 1 whatsapp 86-18630852087
18 301309-00104 SENSOR,PRESSURE 1 10028~
19 301413-00127 SWITCH,PRESSURE 1 10028~
20 301005-00246 LAMP,COMBINATION 1 10028~
20-1 300710-00004 BULB,HALOGEN;LAMP 1 10028~
20-2 300710-00005 BULB,HALOGEN;LAMP 2 10028~
21 301413-00030 SWITCH,PRESSURE 1 10028~ whatsapp 86-18630852087

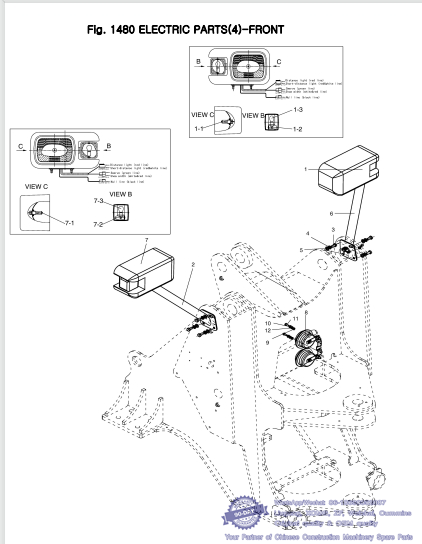

074 Fig. 1480 ELECTRIC PARTS(4)-FRONT-- Doosan Wheel Loader SD200 Spare Parts Catalog
Key No Part No Description Qty S.C Serial No ICA Replacable Qty
- 300619-00456 ELECTRIC ASSY - D
1 301005-00017A LAMP,COMBINATION(R.H) 1 10001~10004 I 301005-00504 1 whatsapp 86-18630852087
1 301005-00504 LAMP ASSY,COMBINATION(R.H) 1 10005~
1-1 300710-00003 BULB,HALOGEN;LAMP 1
1-2 300710-00004 BULB,HALOGEN;LAMP 1 10001~10004
1-2 300710-00029 BULB,HALOGEN 1 10005~
1-3 300710-00005 BULB,HALOGEN;LAMP 1
2 K1043190A BRACKET(L.H) 1
3 S0515066 BOLT 6
4 S5102703 WASHER;SPRING M12 6 whatsapp 86-18630852087
5 S5010703 WASHER;PLAIN 6
6 K1043152A BRACKET(R.H) 1
7 301005-00016A LAMP ASSY,COMBINATION(L.H) 1 10001~10004
7 301005-00505 LAMP,COMBINATION(L.H) 1 10005~
7-1 300710-00003 BULB,HALOGEN;LAMP 1
7-2 300710-00004 BULB,HALOGEN;LAMP 1 10001~10004
7-2 300710-00029 BULB,HALOGEN 1 10005~
7-3 300710-00005 BULB,HALOGEN;LAMP 1
8 K1040919B HORN 1
9 S4012533 NUT;M8 2 whatsapp 86-18630852087
10 S5010503 WASHER 2
11 S0508863 BOLT;M8X20 2
12 S5102503 WASHER,SPRING;M8 2 whatsapp 86-18630852087

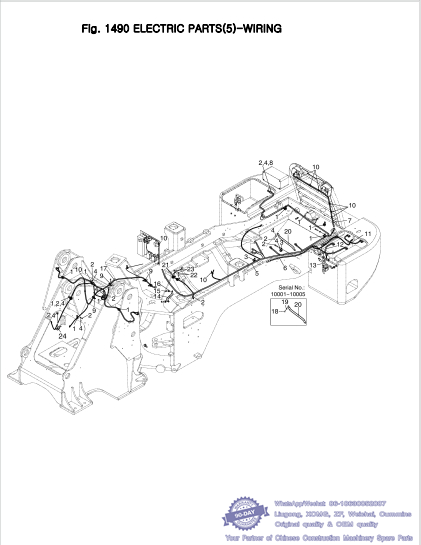

075 Fig. 1490 ELECTRIC PARTS(5)-WIRING-- Doosan Wheel Loader SD200 Spare Parts Catalog
Key No Part No Description Qty S.C Serial No ICA Replacable Qty
- 310208-00129 WIRE ASSY - D
1 124-00208D2 CLIP 16 10001~10005 whatsapp 86-18630852087
1 124-00208D2 CLIP 17 10006~
2 S0508653 BOLT 23 10001~10005
2 S0508653 BOLT 25 10006~
3 124-00209D2 CLIP 2
4 S5010513 WASHER,PLAIN;M8 23 10001~10005
4 S5010513 WASHER,PLAIN;M8 25 10006~10023
4 S5010513 WASHER,PLAIN;M8 22 10024~ whatsapp 86-18630852087
5 310207-01371 HARNESS,MAIN 1 10001~10005
5 310207-01371A HARNESS,MAIN 1 10006~10016 I 310207-01371B 1
5 310207-01371B HARNESS,MAIN 1 10017~10018 I 310207-01371C 1
5 310207-01371C HARNESS,MAIN 1 10019~
6 K1056768 CABLE,POWER 1
7 310207-01351 HARNESS,JOINT 1
8 2197-1661 BRACKET 2 10001~10023 I 110406-01874 2
8 110406-01874 BRACKET,HOUSING 2 10024~
9 124-00208D3 CLIP 2
10 2124-1622D2 CLIP;BAND 200L 56 10001~10005
10 2124-1622D2 CLIP;BAND 200L 57 10006~
11 310209-05135 CABLE 1 whatsapp 86-18630852087
12 K1056771 CABLE 1
13 310203-00059 CABLE,EARTH 1
14 K1041118A CABLE 1
15 S0504653 BOLT M6X1.0X16 1 whatsapp 86-18630852087
16 S5010303 WASHER 1
17 310207-00186A HARNESS,FRONT FRAME 1
18 S0515053 BOLT M12X1.75X25 1 10001~10005
19 S5102703 WASHER;SPRING M12 1 10001~10005
20 K1043163 CABLE;GROUND 1 10001~10005 I 310209-06536 1
20 310209-06536 CABLE 1 10006~ whatsapp 86-18630852087
21 DS2801008 CLIP 2
22 S5010613 WASHER,PLAIN;M10 2
23 S0511653 BOLT 2
24 195-02154 BRACKET 1 10006~10023
24 110406-01882 BRACKET,HOUSING 1 10024~ whatsapp 86-18630852087

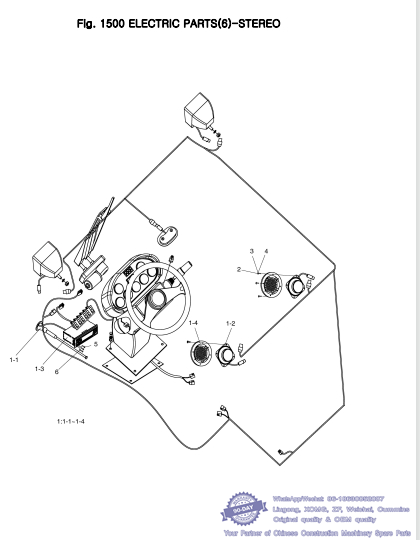

076 Fig. 1500 ELECTRIC PARTS(6)-STEREO-- Doosan Wheel Loader SD200 Spare Parts Catalog
Key No Part No Description Qty S.C Serial No ICA Replacable Qty
- 300619-00415B ELECTRIC ASSY - D
1 300654-00014B STEREO 1 whatsapp 86-18630852087
1-1 300703-00004 ANTENNA 1
1-2 300652-00001 SPEAKER 2
1-3 300642-00001 RADIO 1
1-4 110508-00588 COVER,SPEAKER 2 whatsapp 86-18630852087
2 S3400603 SCREW 8
3 S5102103 WASHER;SPRING M4 8
4 S5000113 WASHER;PLAIN 8
5 S3400853 SCREW KIT 4
6 S5102203 WASHER;SPRING 4 whatsapp 86-18630852087

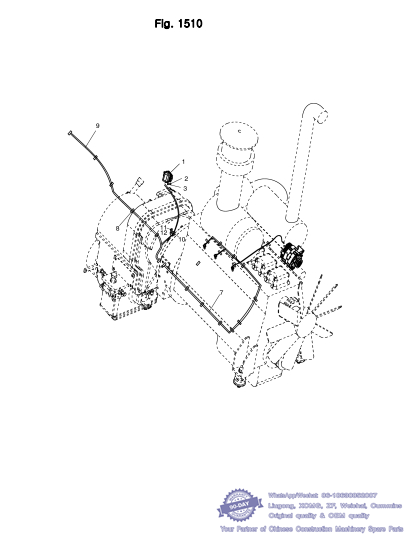

077 Fig. 1510-- Doosan Wheel Loader SD200 Spare Parts Catalog
Key No Part No Description Qty S.C Serial No ICA Replacable Qty
- 300619-01183 ELECTRIC ASSY - D 10001~10005
- 300619-00867 ELECTRIC ASSY - D 10006~
1 301202-00010 RELAY 1 whatsapp 86-18630852087
2 S0504453 BOLT M6X1.0X12 2
3 S5010303 WASHER 2
7 310207-00907 HARNESS 1 10001~10005 I 310207-00907A 1
7 310207-00907A HARNESS 1 10006~ whatsapp 86-18630852087
8 2124-1622D1 CLIP;BAND 20
9 310207-01163 HARNESS 1 10001~10005 I 310207-01163A 1
9 310207-01163A HARNESS 1 10006~ whatsapp 86-18630852087
10 124-00208D2 CLIP 1 10006~
11 S0508653 BOLT 1 10006~
12 S5010513 WASHER,PLAIN;M8 1 10006~ whatsapp 86-18630852087
===================================================================

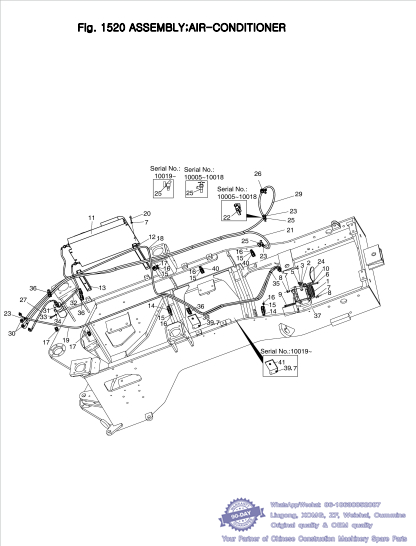

078 Fig. 1520 ASSEMBLY:AIR-CONDITIONER-- Doosan Wheel Loader SD200 Spare Parts Catalog
Key No Part No Description Qty S.C Serial No ICA Replacable Qty
- 440205-00034 CONDITIONER,AIR - D
1 K1040981B COMPRESSOR,AIR 1 whatsapp 86-18630852087
2 120112-00004A BOLT 1 10001~10004 I 120112-00749 1
2 120112-00749 BOLT 1 10005~
3 100101-00007 ADJUSTER 1
4 S5010713 WASHER;PLAIN M12 2
5 S4012733 NUT 2
6 S2012453 BOLT 1
7 S5010613 WASHER,PLAIN;M10 11 whatsapp 86-18630852087
8 S4012633 NUT 2
9 S0560063 BOLT,HEX 1
10 S2212266 BOLT;SOCKET M10X1.5X30 1
11 K1050127A CONDENSER,AIR CON 1
12 K1043187B BRACKET,CONDENSER 1
13 K1043188B BRACKET,CONDENSER 1
14 124-00209D7 CLIP 2 whatsapp 86-18630852087
15 S5010503 WASHER 10
16 S0508653 BOLT 10
17 124-00208D5 CLIP 3
18 420102-00017 HOSE,AIR CONDITIONER 1
19 420102-00018A HOSE,AIR CONDITIONER 1
20 S0558653 BOLT M10X1.5X55 6
21 K1050128 HOSE;AIR CON.; 1
22 K1050134 SWITCH;AIR CON 1 10001~10004 I 301412-00253 1
22 301412-00253 SWITCH 1 10005~10018
23 S8450016 CLAMP 4
24 130205-00055A BELT,V 1 whatsapp 86-18630852087
25 410138-00004 VALVE,SWITCH 1 10001~10004 I 410138-00002 1
25 410138-00002 VALVE,SWITCH 1 10005~10018 I 301412-00310 1
25 301412-00310 SWITCH 2 10019~
26 124-00208D3 CLIP 1
27 420102-00016 HOSE,AIR CONDITIONER 1
29 K1050129A HOSE,WATER 1
30 K1041134A JOINT 2
31 K1055231 DRYER,RECEIVER 1
32 420102-00015 HOSE,AIR CONDITIONER 1
33 S0504453 BOLT M6X1.0X12 2 whatsapp 86-18630852087
34 S5010303 WASHER 2
35 2124-1622D2 CLIP;BAND 200L 10
36 124-00209D2 CLIP 5
37 110402-00034 BRACKET,AIR COMPRESSOR 1
38 K1050124A PLATE,SUPPORT 1
39 S0511853 BOLT 2
40 124-00208D4 CLIP 4 10019~
41 2124-1353D13 CLIP 1 10019~ whatsapp 86-18630852087
