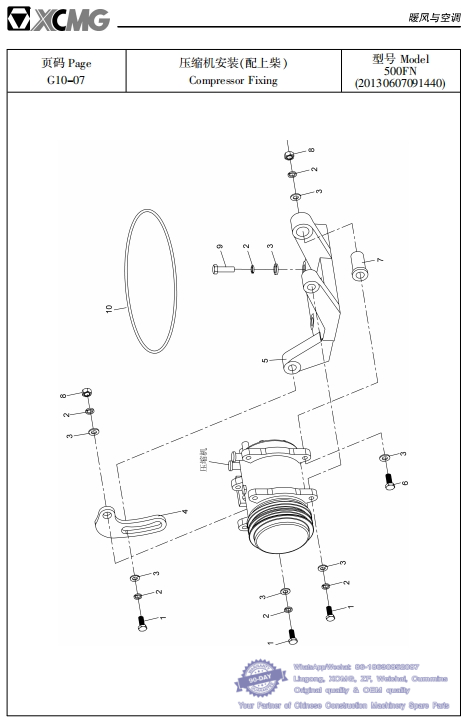

067 压缩机安装 配上柴 型号 500FN (20130607091440)
Compressor Fixing Model 500FN (20130607091440)-- XCMG Loader LW500FN Parts Catalog
件号 部件号 零件名称 数量 备注
Item Part No. Part Name Qty Remarks
1 805000029 螺栓 M10伊40 Bolt 3
2 805300014 垫圈 10 Washer 8 GB/T93-1987
3 805300017 垫圈 10 Washer 10 GB/T97.1-2002
4 252000111 调节板 Adjust Block 1
5 252000110 支架 Frame 1
6 805000508 螺栓 M10伊70 Bolt 1 GB/T5783-2000
7 252000112 套 Sleeve 1
8 805200048 螺母 M10 Bolt 2 GB/T6170-2000
9 805000043 螺栓 M10伊30 Bolt 4 GB/T5783-2000
10 800302242 A 型皮带 17-450 A-Strap 1 空调带
11. 随机工具 Attached Tools

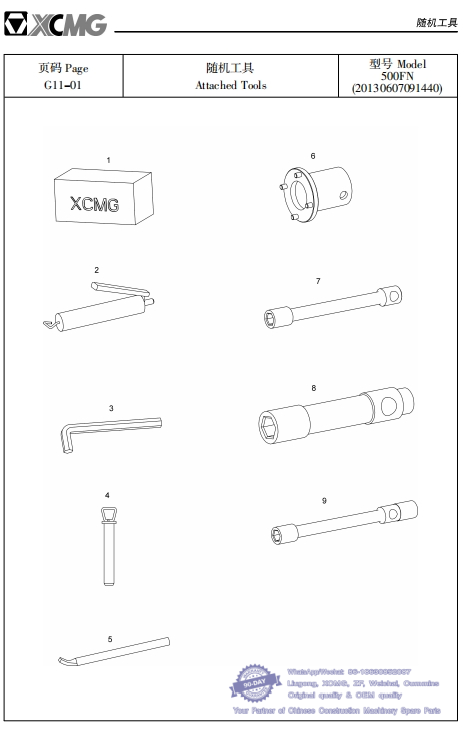

068 随机工具 型号 500FN (20130607091440)
Attached Tools Model 500FN (20130607091440)-- XCMG Loader LW500FN Parts Catalog
件号 部件号 零件名称 数量 备注
Item Part No. Part Name Qty Remarks
1 80150185 27 件套 27pcs/Set 1 通用工具
2 860102603 黄油枪 Grease Gun 1 通用工具Standard Tools
3 801502738 内六角扳手 8 Spanner 1
4 252100775 牵引销 Drawbar Pin 1
5 250200220 撬棒 Crowbar 1
6 250300191 套筒扳手 Nut Spanner 1 桥半轴用For Half Shaft
7 250300192 套筒扳手 Nut Spanner 1 轮辋用
8 250200325 套筒扳手 Nut Spanner 1 桥半轴用
9 250300193 套筒扳手 Nut Spanner 1 桥螺栓和变速箱
Full range of spare parts for XCMG Wheel Loader ZL50G, ZL50GN, LW500F, LW500FN, LW500K,LW500KN
XCMG Wheel Loader Spare parts, whatsapp 86-18630852087
LW500FN WHEEL LOADER PARTS MANUAL
LW500FN 轮式装载机零件手册
XUGONG SCIENCE & TECHNOLOGY CO.,LTD.
徐州工程机械科技股份有限公司
