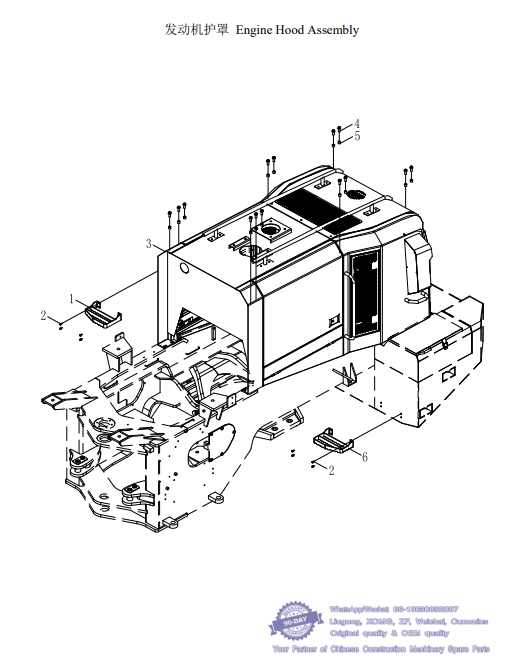

071 发动机护罩 Engine Hood Assembly - Changlin Wheel Loader 957H Cummins engine Spare Parts Catalog
序号 零件代号 版本 名称 数量 适用车号 是否配件 选装
No. Part No. Ver. Part Name Q’ty Suit Num. Spare Parts Cho
1 Z-96T-170-00153 1 右后踏板 956T.17.17 Rear right pedal 1 957H0556-
2 B-G16674A-00032 1 螺栓 M10×20ZnD Bolt 8 957H0556-
3 Z-95H-17G-00001 1 护罩组件 957H.17G.1 Engine Hood 1 957H0556-
4 B-G16674A-00019 1 螺栓 M12×30ZnD Bolt 14 957H0556-
5 Z-96T-160-00151 1 垫套 956T.16-19 Washer 14 957H0556-
6 Z-96T-170-00150 1 左后踏板 956T.17.16 Rear left pedal 1 957H0556-
十七、电气系统 Electrical System - Changlin Wheel Loader 957H Cummins engine Spare Parts Catalog

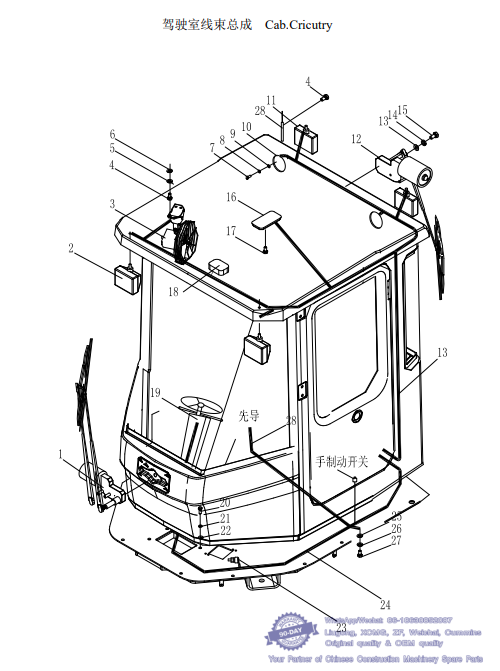

072 驾驶室线束总成 Cab.Cricutry - Changlin Wheel Loader 957H Cummins engine Spare Parts Catalog
序号 零件代号 版本 名称 数量 适用车号 是否配件 选装
No. Part No. Ver. Part Name Q’ty Suit Num. Spare Parts Cho
1 W-09-00328 1 前雨刷器|ZD2432B Wiper 1 957H0556-
2 W-05-00212 1 工作灯 DHG-009 Working lamp 2 957H0556-
3 W-09-00001 1 风扇|756720C Fan 1 957H0556-
4 B-G008180-00022 1 螺钉 M5X25ZnD Screw 6 957H0556-
5 B-G000930-00014 1 垫圈 5 Washer 6 957H0556-
6 B-G00097B-00019 1 垫圈 5ZnD Washer 6 957H0556-
7 B-G008180-00012 1 螺钉 M4X35ZnD Screw 8 957H0556- *
8 B-G000930-00013 1 垫圈 4 Washer 8 957H0556- *
9 B-G00097B-00017 1 垫圈 4ZnD Washer 8 957H0556- *
10 W-06-01099 1 音响喇叭|YXLA-001 Speaker 2 957H0556- *
11 W-05-00188 1 工作灯|WD100X90-F Working lamp 2 957H0556-
12 W-09-00184 1 雨刷器|ZD2332B/959 Wiper 1 957H0556-
13 B-G00097B-00021 1 垫圈 6ZnD Washer 1 957H0556-
14 B-G000930-00015 1 垫圈 6 Washer 1 957H0556-
15 B-G008180-00028 1 螺钉 M6×16ZnD Screw 1 957H0556-
16 W-05-00211 1 室内灯|DHS-008 Lamp 1 957H0556-
17 W-06-01100 1 天线|TX-001 Antenna 1 957H0556- *
18 W-06-01213 1 MP3 机|TK-50 MP3 1 957H0556- *
19 W-06-01101 1 独立仪表立柱 |YBLZ-956M Instrument column 1 957H0556-
W-03-00480 1 操纵软轴总成 WJ11-50-151 Soft Shaft 1 957H0556-
W-11-00265 1 组合开关 9F530 Switch 1 957H0556-
20 B-G057830-00037 1 螺栓 M12×35ZnD Screw 4 957H0556-
21 B-G000930-00003 1 垫圈 12 Washer 4 957H0556-
22 B-Q020490-00003 1 垫圈 12 Washer 4 957H0556-
23 W-06-00820 1 气压传感器|NPT1/4 Air pressure sensor 1 957H0556-
24 Z-96T-180-00002 1 方向立柱线束 956T.18.2 Cable 1 957H0556-
25 B-G00097B-00023 1 垫圈 8ZnD Washer 2 957H0556-
26 B-G000930-00017 1 垫圈 8 Washer 1 957H0556-
27 B-G057830-00165 1 螺栓 M8×10ZnD Screw 1 957H0556-
28 Z-95H-18G-00002 1 先导线束 957H.18G.2 Cable 1 957H0556-

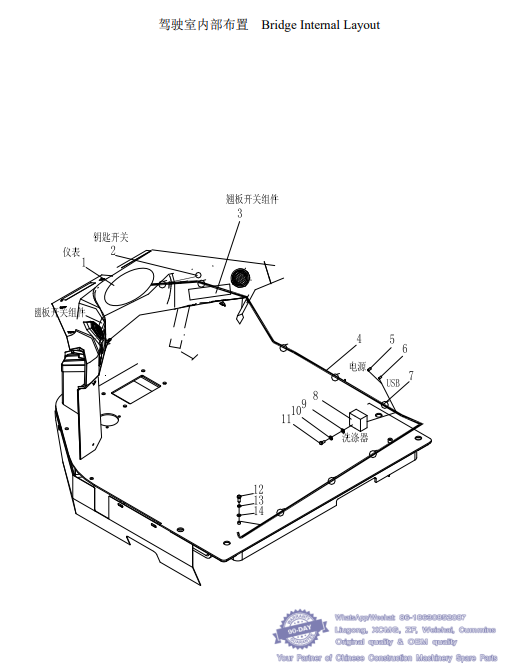

073 驾驶室内部布置 Bridge Internal Layout - Changlin Wheel Loader 957H Cummins engine Spare Parts Catalog
序号 零件代号 版本 名称 数量 适用车号 是否配件 选装
No. Part No. Ver. Part Name Q’ty Suit Num. Spare Parts Cho
1 W-06-01024 1 步 进 电 机 仪 表|CLYB-956T Electronic Monitor 1 957H0556-
2 W-11-00237 1 钥匙开关|JK412-1 Switch 1 957H0556-
3 W-11-00248 1 开关组件|JK931/956T Switch Group 1 957H0556-
4 Z-96T-180-00008 1 底板架线束 956T.18.8 Cable 1 957H0556-
5 W-06-01160 1 备用电源插座 BYDY-001 Power Outlet 1 957H0556-
6 W-06-01161 1 USB 电源插座 USB-001 USB Power 1 957H0556-
7 B-Q020020-00001 1 箍 28 Tie 18 957H0556-
8 W-09-00194 1 洗涤器|XD203A Washer 1 957H0556-
9 B-G008180-00028 1 螺钉 M6×16ZnD Screw 2 957H0556-
10 B-G000930-00015 1 垫圈 6 Washer 1 957H0556-
11 B-G00097B-00021 1 垫圈 6ZnD Washer 1 957H0556-
12 B-G057830-00165 1 螺栓 M8X10ZnD Screw 1 957H0556-
13 B-G000930-00017 1 垫圈 8 Washer 1 957H0556-
14 B-G00097B-00023 1 垫圈 8ZnD Washer 1 957H0556-

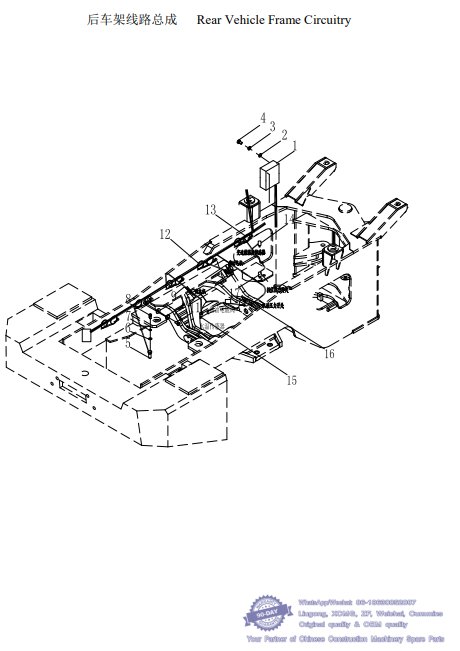

074 后车架线路总成 Rear Vehicle Frame Circuitry - Changlin Wheel Loader 957H Cummins engine Spare Parts Catalog
序号 零件代号 版本 名称 数量 适用车号 是否配件 选装
No. Part No. Ver. Part Name Q’ty Suit Num. Spare Parts Cho
1 W-06-01086 1 中央控制盒|956T-1023-1 Screw 1 957H0556-
2 B-G00097B-00021 1 垫圈 6ZnD Washer 4 957H0556-
3 B-G000930-00015 1 垫圈 6 Washer 4 957H0556-
4 B-G008180-00028 1 螺钉 M6×16ZnD Screw 4 957H0556-
5 W-06-00997 1 燃油传感器|T350-F Fuel sensor 1 957H0556-
6 B-G008180-00018 1 螺钉 M5X16ZnD Screw 5 957H0556-
7 B-G000930-00014 1 垫圈 5 Washer 5 957H0556-
8 B-G00097B-00019 1 垫圈 5ZnD Washer 5 957H0556-
9 B-G00097B-00023 1 垫圈 8ZnD Washer 1 957H0556-
10 B-G000930-00017 1 垫圈 8 Washer 1 957H0556-
11 B-G057830-00165 1 螺栓 M8X10ZnD Screw 1 957H0556-
12 B-Q020020-00001 1 箍 28 Tie 24 957H0556-
13 Z-95H-18H-00001 1 后车架线束 957H.18H.1 Cable 1 957H0556-
14 W-06-00819 1 温度传感器 NPT3/8 Temperature Sensor 1 957H0556-
15 W-06-00822 1 温度传感器|M14X1.5 Temperature Sensor 1 957H0556-
16 W-06-01195 1 机油压力开关|M10X1 Pressure switch 1 957H0556-
17 W-06-00996 1 档位压力报警开关 NPT1/8-F Pressure switch 1 957H0556-

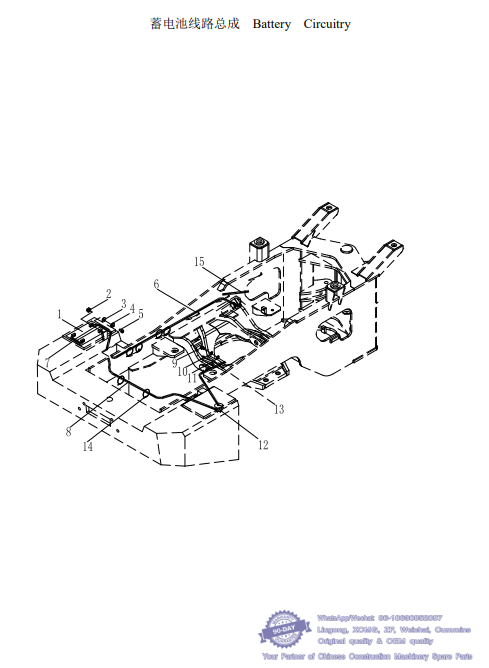

075 蓄电池线路总成 Battery Circuitry - Changlin Wheel Loader 957H Cummins engine Spare Parts Catalog
序号 零件代号 版本 名称 数量 适用车号 是否配件 选装
No. Part No. Ver. Part Name Q’ty Suit Num. Spare Parts Cho
1 W-06-00148 1 蓄电池|115E41R Battery 2 957H0556-
2 B-G061700-00036 1 螺母 M8ZnD Nut 4 957H0556-
3 B-G00097B-00023 1 垫圈 8ZnD Washer 4 957H0556-
4 B-G000930-00017 1 垫圈 8 Washer 4 957H0556-
5 B-G057830-00143 1 螺栓 M8X25ZnD Screw 4 957H0556-
6 Z-96T-180-00004 1 蓄 电 池 接 启 动 马 达 线 956T.18.4 Cable 1 957H0556-
7 Z-96T-180-00006 1 蓄 电 池 接 开 关 线956T.18.6 Cable 1 957H0556-
8 Z-96T-180-00005 1 蓄电池连接线 956T.18.5 Cable 1 957H0556-
9 B-G057830-00001 1 螺栓 M10X16ZnD Screw 1 957H0556-
10 B-G000930-00001 1 垫圈 10 Washer 1 957H0556-
11 B-G00097B-00002 1 垫圈 10ZnD Washer 1 957H0556-
12 W-11-00104 1 电源开关|K01K18-A Switch 1 957H0556-
13 Z-96T-180-00007 1 蓄电池接地线 956T.18.7 Cable 1 957H0556-
14 B-Q020020-00001 1 箍 28 Tie 12 957H0556-
15 Z-95H-18E-00009 1 柴油机接地线 957H.18E.7 Cable 1 957H0556-

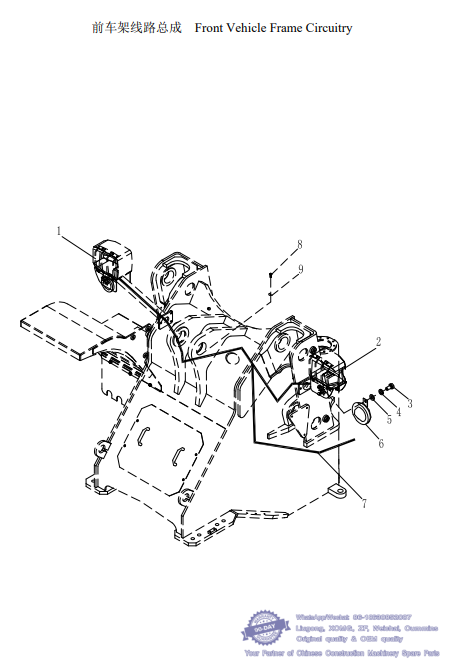

076 前车架线路总成 Front Vehicle Frame Circuitry - Changlin Wheel Loader 957H Cummins engine Spare Parts Catalog
序号 零件代号 版本 名称 数量 适用车号 是否配件 选装
No. Part No. Ver. Part Name Q’ty Suit Num. Spare Parts Cho
1 W-05-00185 1 右前组合大灯 HD120X120-3 (R) Front Head lamps 1 957H0556-
2 W-05-00184 1 左前组合大灯|HD120X120-3 (L) Front Head lamps 1 957H0556-
3 B-G057830-00165 1 螺栓 M8X10ZnD Screw 2 957H0556-
4 B-G000930-00017 1 垫圈 8 Washer 2 957H0556-
5 B-G00097B-00023 1 垫圈 8ZnD Washer 2 957H0556-
6 W-06-00053 1 喇叭|DL229G Horn 2 957H0556-
7 Z-96T-180-00001 1 前车架线束 956T.18.1 Cable 1 957H0556-
8 B-G057830-00128 1 螺栓 M6×12ZnD Screw 9 957H0556-
9 W-10-00039 1 管夹 TJBC-Φ18 Pipe 9 957H0556-

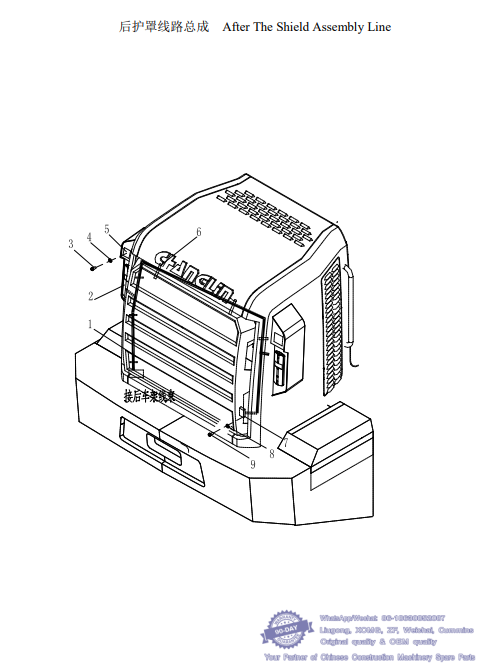

077 后护罩线路总成 After The Shield Assembly Line - Changlin Wheel Loader 957H Cummins engine Spare Parts Catalog
序号 零件代号 版本 名称 数量 适用车号 是否配件 选装
No. Part No. Ver. Part Name Q’ty Suit Num. Spare Parts Cho
1 Z-96T-180-00010 1 后护罩线束 956T.18.9 Cable 1 957H0556-
2 W-05-00213 1 三色灯|XH8-66 Three-color Lights 2 957H0556-
3 B-G008180-00012 1 螺钉 M4X35ZnD Screw 8 957H0556-
4 B-G000930-00013 1 垫圈 4 Washer 8 957H0556-
5 W-05-00216 1 后照灯|WD75X70-1-24V Back Light 2 957H0556-
6 B-Q020020-00001 1 箍 28 Tie 10 957H0556-
7 W-06-00974 1 倒车蜂鸣器 SE1046 Buzzer 1 957H0556-
8 B-G008180-00028 1 螺钉 M6×16ZnD Screw 2 957H0556-
9 B-G000930-00015 1 垫圈 6 Washer 2 957H0556-
十八、空调系统 Air Condition System - Changlin Wheel Loader 957H Cummins engine Spare Parts Catalog

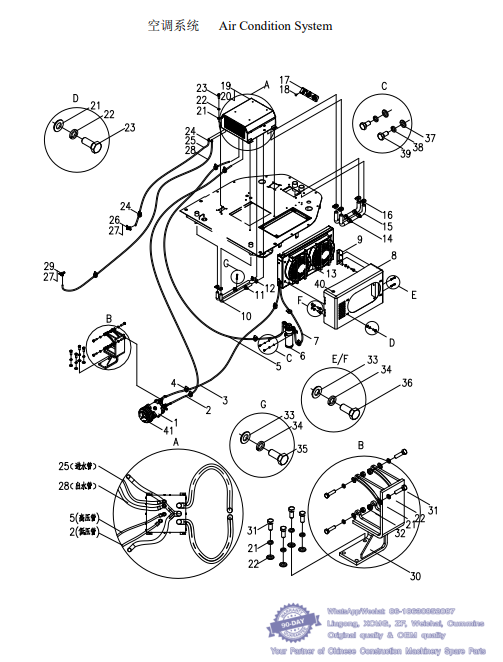

078 空调系统 Air Condition System - Changlin Wheel Loader 957H Cummins engine Spare Parts Catalog
序号 零件代号 版本 名称 数量 适用车号 是否配件 选装
No. Part No. Ver. Part Name Q’ty Suit Num. Spare Parts Cho
1 T0500139 1 压缩机 GY5H14 Compressor 1 957H0556-
2 1001393648 1 低压软管 L=2630 Hose 1 957H0556-
3 T0310015 1 高压软管 L=3100 Hose 1 957H0556-
4 B-Q020020-00004 1 尼龙箍 90 Hoop 8 957H0556-
5 1001393649 1 高压软管 L=1500 Hose 1 957H0556-
6 T0520048 1 贮液器总成 Oil storage 1 957H0556-
7 1001541599 1 高压软管 L=300 Hose 1 957H0556-
8 Z-95N-21E-00001 1 冷凝器罩 955N.21E.2 Condenser cover 1 957H0556-
9 Z-95N-21A-00001 1 冷 凝 器 罩 固 定 板955N.21A.1 Condenser plate 1 957H0556-
10 Z-96T-21A-00002 1 室 外 后 风 道 φ45×550 956T.21A.2 Pipeline 2 957H0556-
11 W-10-00050 1 管夹 TJBC-Φ55 单中 Pipe clamp 2 957H0556-
12 B-J088700-00016 1 喉箍 d50 Clamp 4 957H0556-
13 T0200041 1 冷凝器总成 Condenser 1 957H0556-
14 W-10-00051 1 管夹 TJBC-Φ70 单中 Pipe clamp 4 957H0556-
15 Z-96T-21A-00001 1 室 外 前 风 道 φ60×950 956T.21A.1 Pipeline 2 957H0556-
16 B-J088700-00018 1 喉箍 d70 Clamp 4 957H0556-
17 T0400002 1 空调控制面板 Control card 1 957H0556-
18 B-G008190-00001 1 螺钉 M4×12ZnD Bolt 4 957H0556-
19 1001218971 1 蒸发器总成 Evaporator 1 957H0556-
20 W-08-00430 1 空调器总成 BKG116-1 Air-condition 1 957H0556-
21 B-G000930-00001 1 垫圈 10 Washer 16 957H0556-
22 B-G00097B-00002 1 垫圈 10ZnD Washer 16 957H0556-
23 B-G057830-00006 1 螺栓 M10×25ZnD Bolt 8 957H0556-
24 B-J088700-00014 1 喉箍 d32 Clamp 4 957H0556-
25 T-JG-DY-16-1900 1 低压输油胶管 Hose 1 957H0556-
26 W-12-00926 1 直角阀门 CL50-38 Tap 1 957H0556-
27 W-15-01807 1 过渡接头 232212-6 Transit joint 2 957H0556-
28 T-JG-DY-16-2800 1 低压输油胶管 Hose 1 957H0556-
29 W-12-00951 1 直角阀门 CL50-33 Tap 1 957H0556-
30 Z-15B-21C-00004 1 压缩机支架 Z50B.21C.1 Bracket 1 957H0556-
31 B-G057830-00012 1 螺栓 M10×35ZnD Bolt 8 957H0556-
32 B-G061700-00003 1 螺母 M10ZnD Nut 4 957H0556-
33 B-G00097B-00023 1 垫圈 8ZnD Washer 14 957H0556-
34 B-G000930-00017 1 垫圈 8 Washer 14 957H0556-
35 B-G057830-00137 1 螺栓 M8×16ZnD Bolt 6 957H0556-
36 B-G057830-00143 1 螺栓 M8×25ZnD Bolt 8 957H0556-
37 B-G000930-00015 1 垫圈 6 Washer 2 957H0556-
38 B-G00097B-00021 1 垫圈 6ZnD Washer 2 957H0556-
39 B-G057830-00128 1 螺栓 M6×12ZnD Bolt 2 957H0556-
40 Z-95N-16G-00001 1 塞 955N.16G-2 Plug 1 957H0556-
41 T0860011 1 传动带 V13×1145 Belt 1 957H0556-
