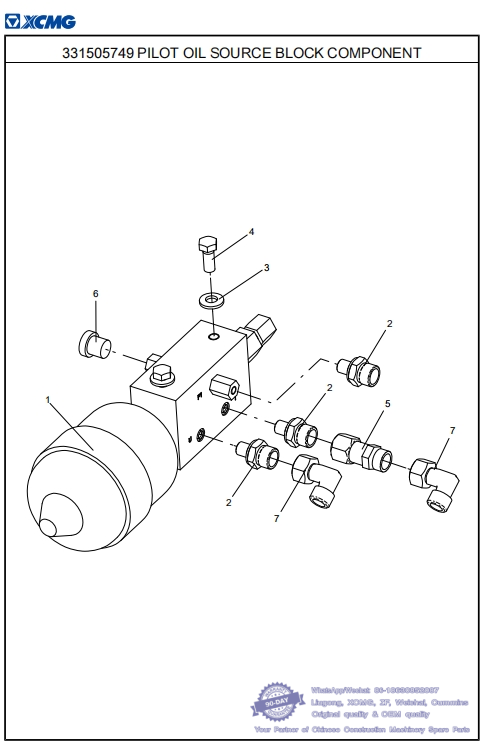

071 331505749 PILOT OIL SOURCE BLOCK COMPONENT-- XCMG Mining Dump Truck XDR100 Parts Catalog
331505736 DRIVER’S CAB PIPE LAYING
No. PART NUMBER QTY NAME NOTE PAGE
1 803405281 1 PILOT OIL SOURCE BLOCK
2 803413569 3 CONNECTOR whatsapp 86-18630852087
3 805301384 2 WASHER 8 DIN6796
4 805046508 2 BOLT M8×20 GB/T5783-2000
5 803431605 1 CONNECTOR
6 803439441 1 PLUG whatsapp 86-18630852087
7 803413568 2 CONNECTOR

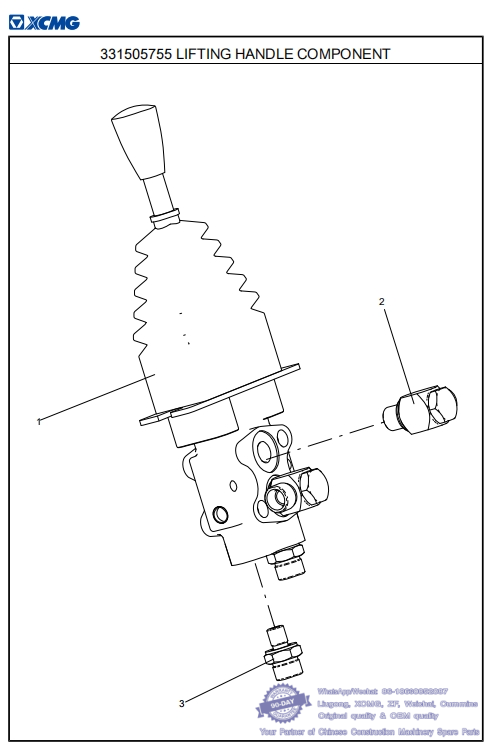

072 331505755 LIFTING HANDLE COMPONENT-- XCMG Mining Dump Truck XDR100 Parts Catalog
331505736 DRIVER’S CAB PIPE LAYING
No. PART NUMBER QTY NAME NOTE PAGE
1 803405280 1 PILOT LEVER whatsapp 86-18630852087
2 803409989 2 CONNECTOR
3 803413569 2 CONNECTOR whatsapp 86-18630852087

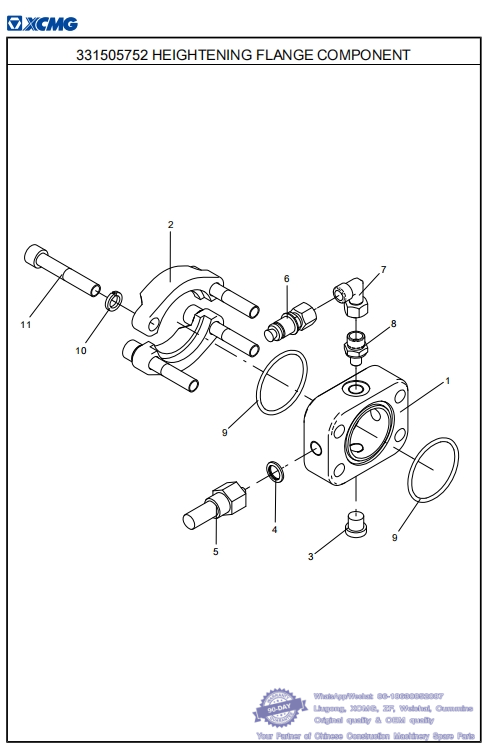

073 331505752 HEIGHTENING FLANGE COMPONENT-- XCMG Mining Dump Truck XDR100 Parts Catalog
331505729 LIFTING SYSTEM
No. PART NUMBER QTY NAME NOTE PAGE
1 331502252 1 HEIGHTENING FLANGE
2 803130607 1 BLIND FLANGE whatsapp 86-18630852087
3 803439441 2 PLUG
4 805300024 1 WASHER 14 JB/T982-1977
5 803686738 1 PRESSURE SWITCH (0.27MPA)
6 803452474 1 CONNECTOR
7 803413568 1 CONNECTOR
8 803413569 1 CONNECTOR whatsapp 86-18630852087
9 803443570 2 BLIND FLANGEORING 56.74×3.53
10 805338261 4 WASHER 12 GB/T93-1987
11 805139985 4 SCREW M12×70 GB/T70.1-2008

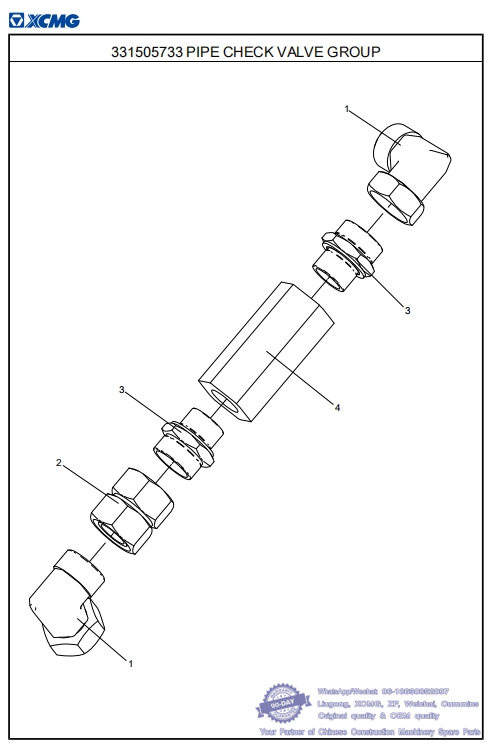

074 331505733 PIPE CHECK VALVE GROUP-- XCMG Mining Dump Truck XDR100 Parts Catalog
331505729 LIFTING SYSTEM
No. PART NUMBER QTY NAME NOTE PAGE
1 803443585 2 CONNECTOR
2 803417054 1 CONNECTOR whatsapp 86-18630852087
3 803431620 2 CONNECTOR
4 804000671 1 CHECK VALVE whatsapp 86-18630852087

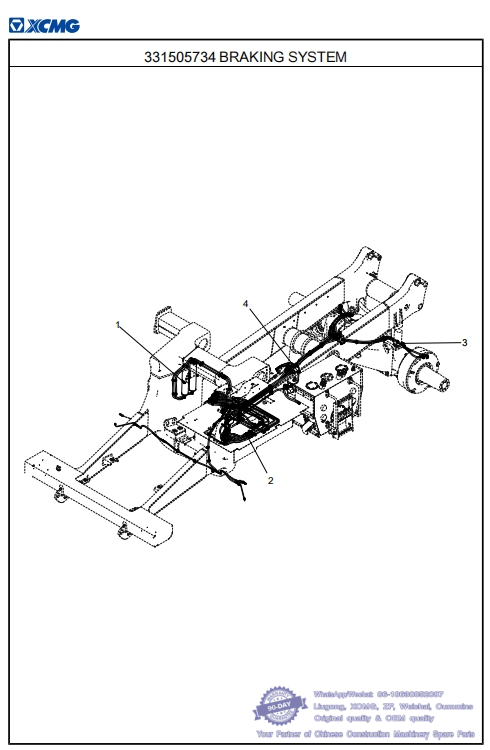

075 331505734 BRAKING SYSTEM-- XCMG Mining Dump Truck XDR100 Parts Catalog
331504658 HYDRAULIC SYSTEM
No. PART NUMBER QTY NAME NOTE PAGE
1 331505726 1 FRONT AXLE PIPING 158 whatsapp 86-18630852087
2 331505754 1 DRIVER’S CAB PIPE LAYING 164
3 331505731 1 REAR AXLE PIPING 174
4 331505732 1 FRAME PIPE LAYING 178 whatsapp 86-18630852087
