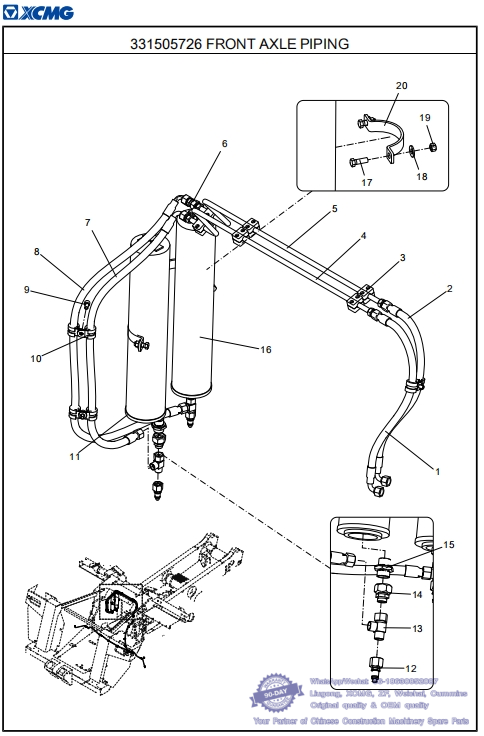

076 331505726 FRONT AXLE PIPING -- XCMG Mining Dump Truck XDR100 Parts Catalog
331505734 BRAKING SYSTEM
No. PART NUMBER QTY NAME NOTE PAGE
1 803165122 1 HOSE ASS'Y whatsapp 86-18630852087
2 803195008 1 HOSE ASS'Y
3 803437790 6 PIPE CLIP
4 331502270 1 STEEL PIPE ASSEMBLY
5 331502271 1 STEEL PIPE ASSEMBLY
6 813402761 1 CONNECTOR
7 803434491 1 HOSE ASS'Y
8 803388220 1 HOSE ASS'Y whatsapp 86-18630852087
9 805139925 6 SCREW M10×20 GB/T70.1-2008
10 800104621 9 RUBBER SLEEVE HOOP
11 331502268 2 ACCUMULATOR SHOCK PAD
12 803422045 2 VKA3/15LCF
13 813402731 2 CONNECTOR
14 803447828 2 CONNECTOR whatsapp 86-18630852087
15 803433471 2 CONNECTOR
16 803084419 1 BRAKE ACCUMULATOR 162
17 805006413 4 BOLT M12×35 GB/T5783-2000
18 805301374 4 WASHER 12 DIN6796
19 805238372 4 NUT M12 GB/T6170-2000
20 331502269 2 PLATE

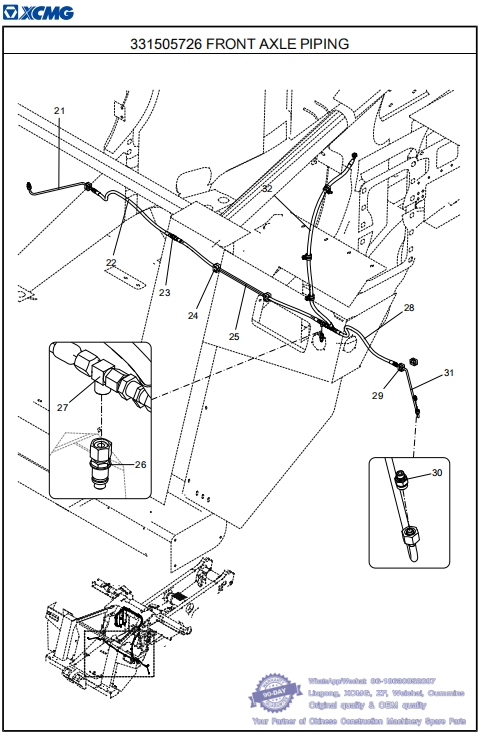

077 331505726 FRONT AXLE PIPING-- XCMG Mining Dump Truck XDR100 Parts Catalog
331505734 BRAKING SYSTEM
No. PART NUMBER QTY NAME NOTE PAGE
21 331505870 1 STEEL PIPE ASSEMBLY
22 803417553 1 HOSE ASS'Y
23 803380805 2 CONNECTOR whatsapp 86-18630852087
24 803437788 2 PIPE CLIP
25 803392755 1 F381CACA101005-1230 HOSE ASS'Y
26 803452474 1 CONNECTOR
27 803413505 2 CONNECTOR
28 803417555 1 HOSE ASS'Y
29 803437789 3 PIPE CLIP
30 813402779 2 CONNECTOR whatsapp 86-18630852087
31 331505866 1 STEEL PIPE ASSEMBLY
32 803453473 1 HOSE ASS'Y

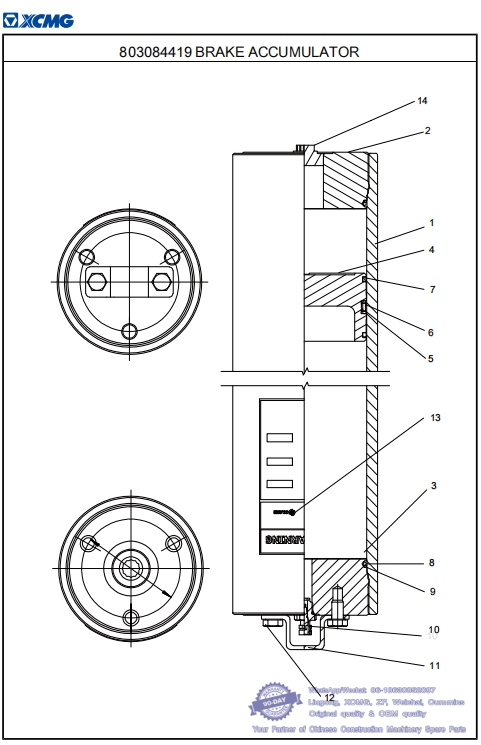

078 803084419 BRAKE ACCUMULATOR-- XCMG Mining Dump Truck XDR100 Parts Catalog
331505726 FRONT AXLE PIPING
No. PART NUMBER QTY NAME NOTE PAGE
1 804200001 1 CYLINDER TUBE whatsapp 86-18630852087
2 804200002 1 OIL SECTION END COVER
3 804200003 1 AIR END COVER
4 804200004 1 PISTON
5 803497865 1 V-SHAPED SEAL RING (H)
6 805408175 2 HOLD WASHER8 whatsapp 86-18630852087
7 803497866 2 WEAR RING
8 803497867 2 COVERORING
9 805408176 2 HOLD WASHER7
10 804013246 1 AIR VALVE ASSEMBLY whatsapp 86-18630852087
11 804200005 1 AIR VALVE PROTECTIVE COVER
12 805052178 2 BOLT
13 804200006 1 NAMEPLATE
14 804200007 1 OIL END PROTECTIVE COVER
079 333311550055775544 DRIIVVEER’’SS CAABB PPIIPPEE LLAAYYIING-- XCMG Mining Dump Truck XDR100 Parts Catalog
331505734 BRAKING SYSTEM
No. PART NUMBER QTY NAME NOTE PAGE
1 803442721 1 HOSE ASS'Y whatsapp 86-18630852087
2 803380508 1 HOSE ASS'Y
3 331505735 1 FRONT BRAKING VALVE GROUP 168
4 803437789 1 PIPE CLIP
5 331505876 1 STEEL PIPE ASSEMBLY
6 803417617 1 HOSE ASS'Y
7 331505744 1 PEDAL VALVE COMPONENT 170
8 803417618 1 HOSE ASS'Y
9 803417620 1 HOSE ASS'Y whatsapp 86-18630852087
10 803107200 1 HOSE ASS'Y
11 803417622 1 HOSE ASS'Y
12 803417621 1 HOSE ASS'Y
13 803271651 1 HOSE ASS'Y
14 331505879 1 STEEL PIPE ASSEMBLY whatsapp 86-18630852087

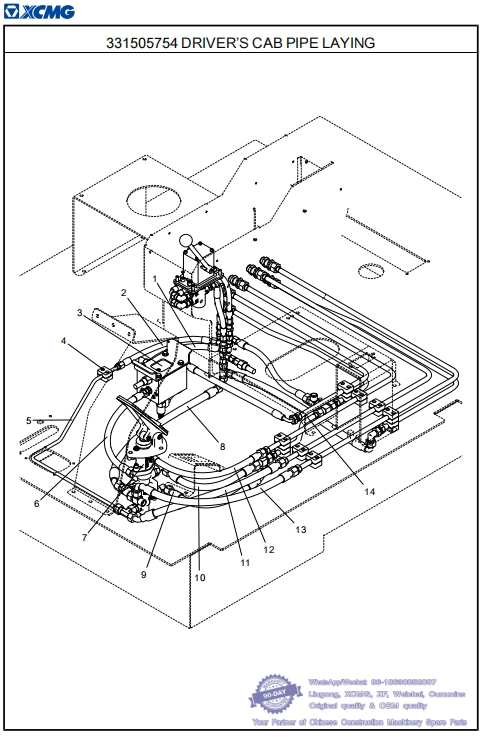

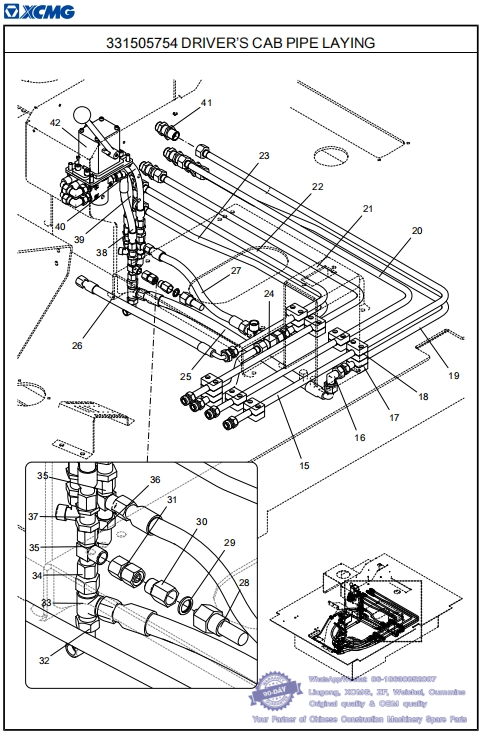

080 331505754 DRIVER’S CAB PIPE LAYING-- XCMG Mining Dump Truck XDR100 Parts Catalog
331505734 BRAKING SYSTEM
No. PART NUMBER QTY NAME NOTE PAGE
15 331505867 1 STEEL PIPE ASSEMBLY
16 803413578 1 CONNECTOR whatsapp 86-18630852087
17 803437790 5 PIPE CLIP
18 803437786 5 PIPE CLIP
19 331505864 1 STEEL PIPE ASSEMBLY
20 331505868 1 STEEL PIPE ASSEMBLY
21 331505881 1 STEEL PIPE ASSEMBLY whatsapp 86-18630852087
22 331505873 1 STEEL PIPE ASSEMBLY
23 331505877 1 STEEL PIPE ASSEMBLY
24 813402731 3 CONNECTOR
25 803417619 1 HOSE ASS'Y
26 803417616 1 HOSE ASS'Y
27 803446057 1 HOSE ASS'Y
28 803686738 1 PRESSURE SWITCH (0.27MPA)
29 805338302 1 WASHER 14 JB/T982-1977
30 803453328 1 CONNECTOR
31 803452467 1 GZ10LCF
32 803413453 1 CONNECTOR
33 803072927 1 SHUTTLE VALVE
34 813402895 1 CONNECTOR
35 803413505 2 CONNECTOR whatsapp 86-18630852087
36 803413568 2 CONNECTOR
37 803380805 3 CONNECTOR
38 803417623 1 HOSE ASS'Y
39 803417624 1 HOSE ASS'Y
40 803417625 1 HOSE ASS'Y
41 803163645 6 CONNECTOR
