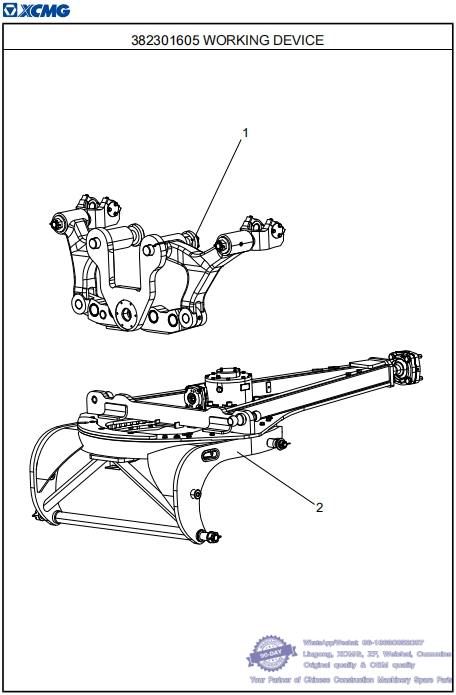

076 382301605 WORKING DEVICE-- XCMG Motor Grader GR2205T Spare Parts Catalog
382301662 MOTOR GRADER
No. PART NUMBER QTY NAME NOTE PAGE
1 380605291 1 SWING FRAME ASSEMBLY 160 whatsapp 86-18630852087
2 382301607 1 WORKING DEVICE 164

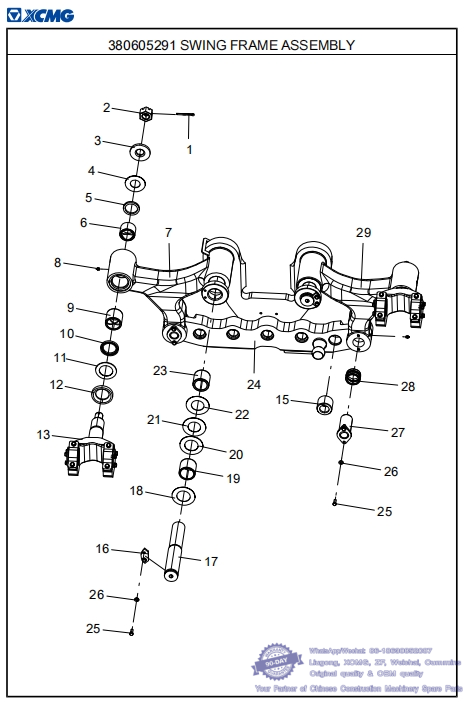

077 380605291 SWING FFAME ASSEMBLY-- XCMG Motor Grader GR2205T Spare Parts Catalog
382301605 WORKING DEVICE
No. PART NUMBER QTY NAME NOTE PAGE
1 805603426 2 PIN 8×80 GB/T91-2000 whatsapp 86-18630852087
2 380900914 2 NUT
3 380401144 2 RETAINER RING
4 380401130 2 GASKET
5 803107826 2 LIP-SHAPE SEALING RING B70×90×10 GB/T9877-2008
6 380401149 2 COPPER SLEEVE
7 380605297 1 RIGHT ROCKER WELDING
8 801103215 4 OIL CUP M10×1 JB/T7940.1-1995
9 380401137 2 COPPER SLEEVE
10 803164096 2 LIP-SHAPE SEALING RING B75×100×10 GB/T9877-2008
11 380401119 2 GASKET
12 380401120 2 SPACER BUSH
13 380401121 2 FORK ASSEMBLY 162 whatsapp 86-18630852087
15 380605835 5 SHAFT SLEEVE
16 382101996 2 BAFFLE
17 380401118 2 HINGE PIN
18 382101333 2 GASKET III
19 380605282 2 COPPER SLEEVE
20 382101326 2 GASKET II
21 382101790 2 GASKET II whatsapp 86-18630852087
22 382101983 2 GASKET III
23 380605305 2 COPPER SLEEVE
24 380605296 1 UNDERSIDE OSCILLATING BAR
25 805006412 8 BOLT M12×30 (DACROMET) GB/T5783-2000
26 329900303 8 THICKENED FLAT WASHER
27 380401113 2 HINGE PIN
28 380401127 2 COPPER SLEEVE
29 380605285 1 LEFT SWINGING ROD whatsapp 86-18630852087

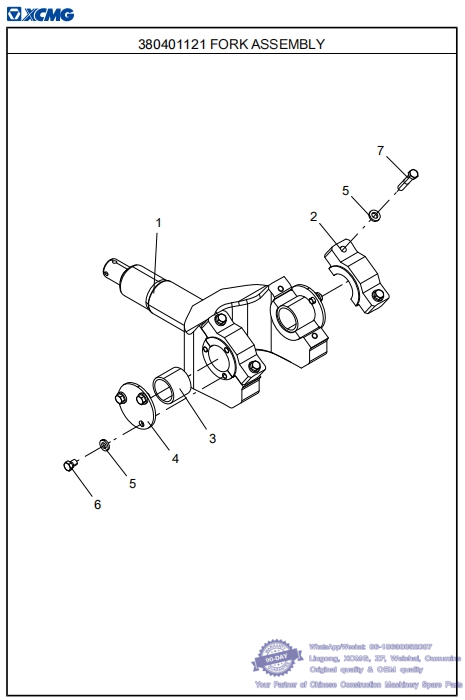

078 380401121 FORK ASSEMBLY-- XCMG Motor Grader GR2205T Spare Parts Catalog
380605291 SWING FRAME ASSEMBLY
No. PART NUMBER QTY NAME NOTE PAGE
1 380401132 1 FORK
2 380401134 2 COVER whatsapp 86-18630852087
3 800515206 2 SELF-LUBRICATING SHAFT SLEEVE
4 381201640 2 COVER
5 329900303 10 THICKENED FLAT WASHER
6 805046543 6 BOLT M12×16 (DACROMET) GB/T5783-2000 whatsapp 86-18630852087
7 805046639 4 BOLT M12×60 (DACROMET) GB/T5782-2000

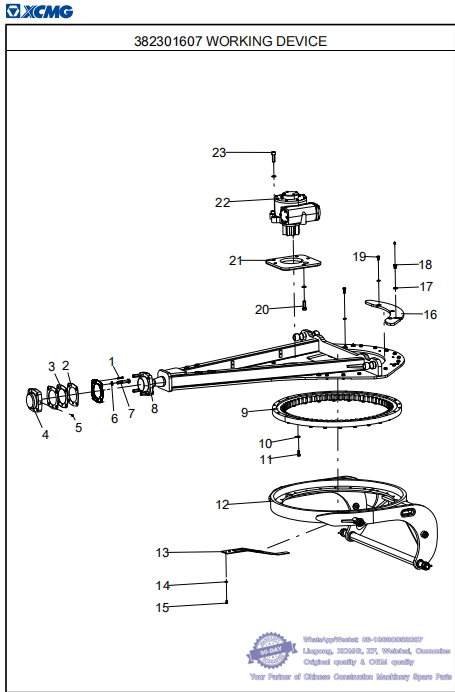

079 3823011607 WORKING DEVICE-- XCMG Motor Grader GR2205T Spare Parts Catalog
382301605 WORKING DEVICE
No. PART NUMBER QTY NAME NOTE PAGE
1 805139863 2 SCREW M10×50 (DACROMET) GB/T70.1-2008 whatsapp 86-18630852087
2 380401146 3 REGULATING PAD
3 380401140 10 REGULATING PAD II
4 380401133 1 HINGED COVER
5 801103215 6 OIL CUP M10×1 JB/T7940.1-1995
6 805338233 9 WASHER 24 NORD-LOCK
7 805006426 4 BOLT M24×120 (DACROMET) GB/T5782-2000
8 382301606 1 TRACTION FRAME
9 800557420 1 SLEWING BEARING
10 329900304 46 THICKENED FLAT WASHER
11 805006332 43 BOLT M16×40 (DACROMET) GB/T5783-2000
12 380605306 1 ASSEMBLY OF ROTARY CIRCLE 166 whatsapp 86-18630852087
13 380400887 1 SUPPORT PLATE
14 329900297 2 THICKENED LARGE WASHER
15 805046525 2 BOLT M10×20 (DACROMET) GB/T5783-2000
16 380605288 1 LIMIT PLATE
17 805338297 4 WASHER 20 (DACROMET) GB/T1230-2006
18 381100828 4 OIL CUP SEAT NON-STANDARD
19 805046570 3 BOLT M16×25 (DACROMET) GB/T5783-2000
20 805004839 1 BOLT M24×70 (DACROMET) GB/T5783-2000
21 382301609 1 MOUNTING PLATE
22 800366212 1 TURBINE BOX
23 805140803 4 SCREW M24×75 (DACROMET) GB/T70.1-2008 whatsapp 86-18630852087

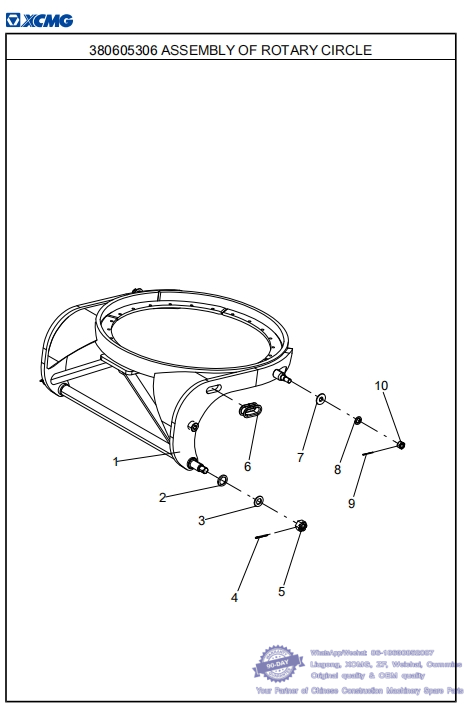

080 380605306 ASSEMBLY OFF ROTARY CIRCLE-- XCMG Motor Grader GR2205T Spare Parts Catalog
382301607 WORKING DEVICE
No. PART NUMBER QTY NAME NOTE PAGE
1 380605316 1 ROTARY CIRCLE whatsapp 86-18630852087
2 380401129 2 SPACER BUSH
3 381600383 2 WASHER
4 805640059 2 PIN 8×90 GB/T91-2000
5 380900914 2 NUT
6 380401655 2 RUBBER SLEEVE
7 381600384 2 GASKET whatsapp 86-18630852087
8 805338301 2 WASHER 30 (DACROMET) GB/T1230-2006
9 805603405 2 PIN 5×80 GB/T91-2000
10 805238895 2 NUT M30×2 (DACROMET) GB/T9459-1988 whatsapp 86-18630852087
