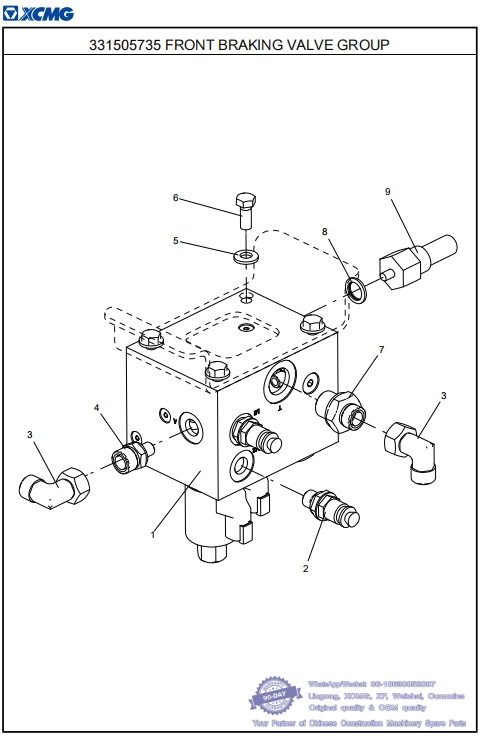

081 331505735 FRONT BRAKING VALVE GROUP-- XCMG Mining Dump Truck XDR100 Parts Catalog
331505754 DRIVER’S CAB PIPE LAYING
No. PART NUMBER QTY NAME NOTE PAGE
1 804002308 1 FRONT BRAKING VALVE GROUP whatsapp 86-18630852087
2 813402945 2 CONNECTOR
3 803413453 2 CONNECTOR
4 803452466 2 CONNECTOR
5 805301384 4 WASHER 8 DIN6796 whatsapp 86-18630852087
6 805046508 4 BOLT M8×20 GB/T5783-2000
7 803413573 1 CONNECTOR
8 805300024 1 WASHER 14 JB/T982-1977
9 803686738 1 PRESSURE SWITCH (0.27MPA) whatsapp 86-18630852087

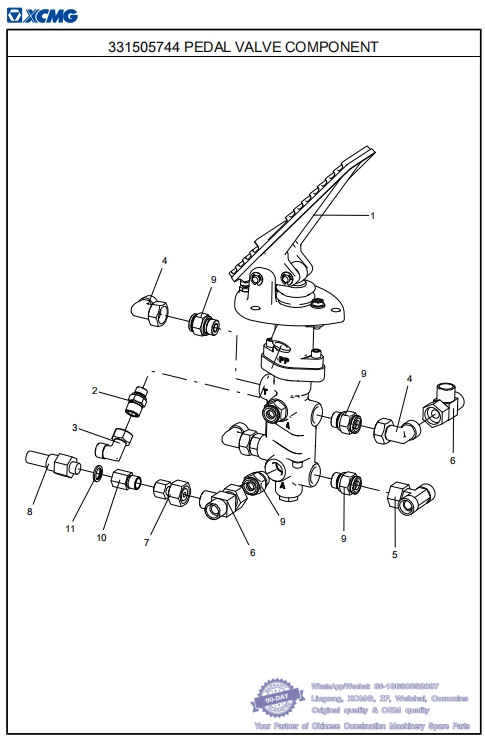

082 331505744 PEDAL VALVE COMPONENT XCMG Mining Dump Truck XDR100 Parts Catalog
331505754 DRIVER’S CAB PIPE LAYING
No. PART NUMBER QTY NAME NOTE PAGE
1 803405277 1 TWO-WAY BRAKE VALVE whatsapp 86-18630852087
2 803421789 1 CONNECTOR
3 803413453 1 CONNECTOR
4 803413578 3 CONNECTOR
5 803427567 1 CONNECTOR whatsapp 86-18630852087
6 813402731 2 CONNECTOR
7 813402732 1 CONNECTOR
8 803686741 1 PRESSURE SWITCH
9 813402774 6 CONNECTOR
10 803453328 1 CONNECTOR whatsapp 86-18630852087
11 805338302 1 WASHER 14 JB/T982-197

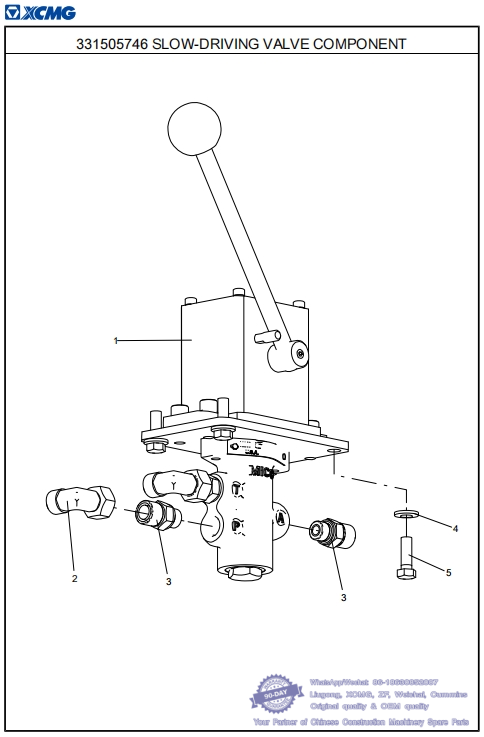

083 331505746 SLOW-DRIVING VALVE COMPONENT- XCMG Mining Dump Truck XDR100 Parts Catalog
331505754 DRIVER’S CAB PIPE LAYING
No. PART NUMBER QTY NAME NOTE PAGE
1 803405278 1 SLOW-DRIVING VALVE
2 803413453 2 CONNECTOR whatsapp 86-18630852087
3 803421789 3 CONNECTOR
4 805301384 4 WASHER 8 DIN6796
5 805046509 4 BOLT M8×25 GB/T5783-2000 whatsapp 86-18630852087

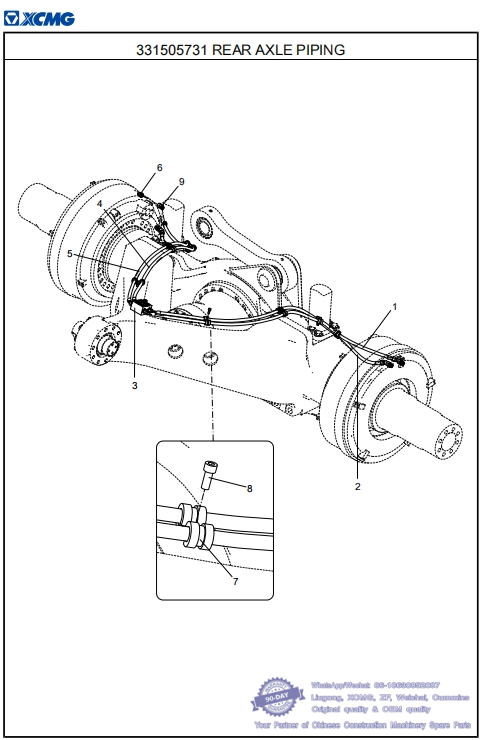

084 331505731 REAR AXLE PIPING-- XCMG Mining Dump Truck XDR100 Parts Catalog
331505734 BRAKING SYSTEM
No. PART NUMBER QTY NAME NOTE PAGE
1 803417549 1 HOSE ASS'Y whatsapp 86-18630852087
2 803417550 1 HOSE ASS'Y
3 331505730 1 REAR-AXLE SHUNT BLOCK COMPONENT 176
4 803417552 1 HOSE ASS'Y
5 803417551 1 HOSE ASS'Y whatsapp 86-18630852087
6 803421791 4 CONNECTOR
7 800104621 16 RUBBER SLEEVE HOOP
8 805139858 8 SCREW M10×25 GB/T70.1-2008
9 813402777 4 CONNECTOR whatsapp 86-18630852087

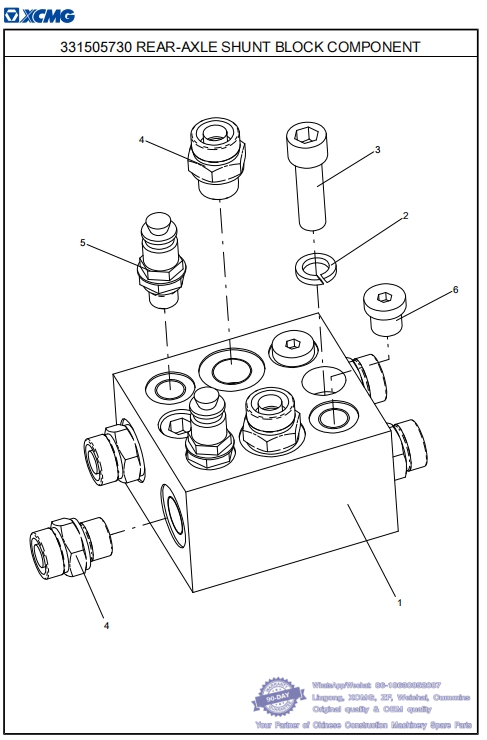

085 331505730 REAR-AXLE SHUNT BLOCK COMPONENT-- XCMG Mining Dump Truck XDR100 Parts Catalog
331505731 REAR AXLE PIPING
No. PART NUMBER QTY NAME NOTE PAGE
1 331502258 1 REAR-AXLE SHUNT BLOCK whatsapp 86-18630852087
2 805338261 2 WASHER 12 GB/T93-1987
3 805139877 2 SCREW M12×40 GB/T70.1-2008
4 803427568 6 GE15LMEDOMDCF
5 813402945 2 CONNECTOR whatsapp 86-18630852087
6 803439441 2 PLUG
