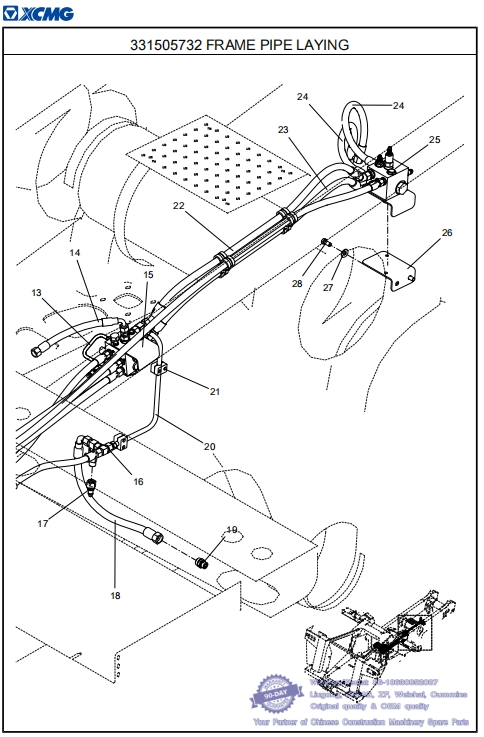

086 331505732 FRAME PIPE LAYING-- XCMG Mining Dump Truck XDR100 Parts Catalog
331505734 BRAKING SYSTEM
No. PART NUMBER QTY NAME NOTE PAGE
1 805139858 10 SCREW M10×25 GB/T70.1-2008
2 801905725 38 RUBBER SLEEVE HOOP whatsapp 86-18630852087
3 803449789 6 HOSE ASS'Y
4 803163645 8 CONNECTOR
5 331502260 1 GUIDE RAIL WELDED PLATE
6 805301373 2 WASHER 10 DIN6796
7 805046525 2 BOLT M10×20 GB/T5783-2000
8 803449827 1 HOSE ASS'Y
9 803453470 1 HOSE ASS'Y whatsapp 86-18630852087
10 803453468 1 HOSE ASS'Y
11 803453469 1 HOSE ASS'Y
12 803483033 1 HOSE ASS'Y
087 331505732 FRAME PIPE LAYING- XCMG Mining Dump Truck XDR100 Parts Catalog
331505734 BRAKING SYSTEM
No. PART NUMBER QTY NAME NOTE PAGE
13 331505883 1 STEEL PIPE ASSEMBLY
14 803417568 1 HOSE ASS'Y
15 331505743 1 BRAKE VALVE ASSEMBLY 182
16 813402731 5 CONNECTOR whatsapp 86-18630852087
17 803422045 1 VKA3/15LCF
18 803417564 1 HOSE ASS'Y
19 803413579 1 CONNECTOR
20 331505865 1 STEEL PIPE ASSEMBLY
21 803437790 2 PIPE CLIP
22 803453474 1 HOSE ASS'Y
23 803449817 1 HOSE ASS'Y
24 803449988 2 HOSE ASS'Y
25 331505747 1 REAR BRAKING VALVE GROUP 184
26 331505351 1 PLATE whatsapp 86-18630852087
27 805301374 2 WASHER 12 DIN6796
28 805046469 2 BOLT M12×25 GB/T5783-2000

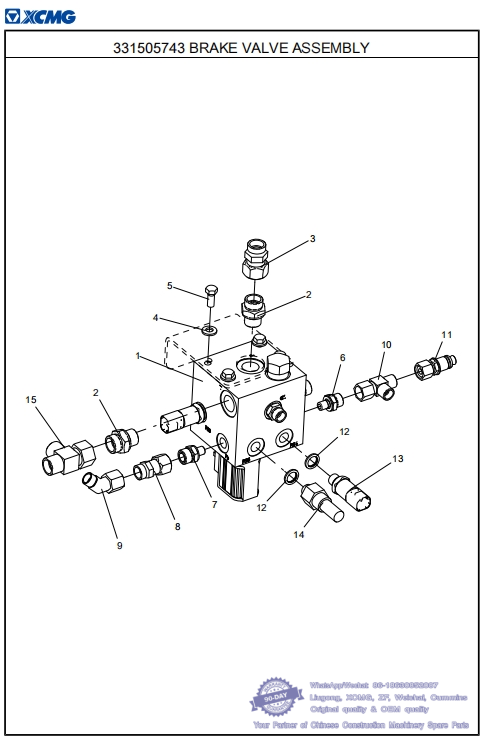

088 331505743 BRAKE VALVE ASSEMBLY-- XCMG Mining Dump Truck XDR100 Parts Catalog
331505732 FRAME PIPE LAYING
No. PART NUMBER QTY NAME NOTE PAGE
1 803406965 1 BRAKE VALVE GROUP
2 803413454 2 CONNECTOR
3 813402761 1 CONNECTOR whatsapp 86-18630852087
4 805301384 4 WASHER 8 DIN6796
5 805046508 4 BOLT M8×20 GB/T5783-2000
6 803413569 2 CONNECTOR
7 803452466 4 CONNECTOR
8 803416654 1 CONNECTOR
9 803428062 1 CONNECTOR
10 803413505 1 CONNECTOR whatsapp 86-18630852087
11 803452474 1 CONNECTOR
12 805338302 3 WASHER 14 JB/T982-1977
13 803592944 2 SENSOR
14 803686740 1 PRESSURE SWITCH
15 813402731 1 CONNECTOR

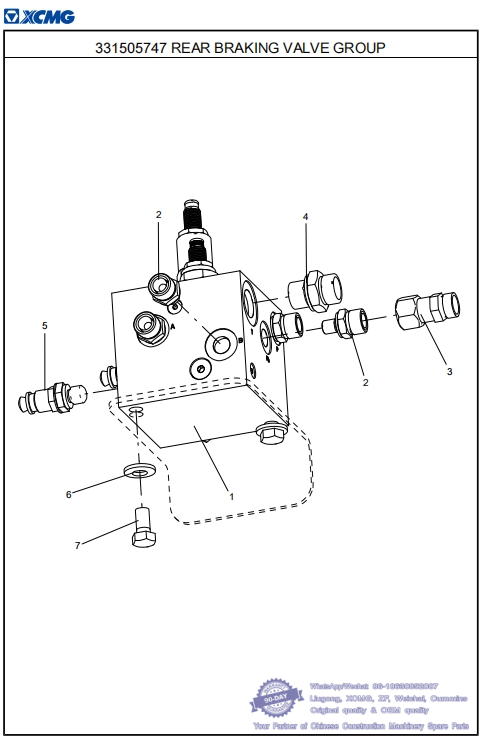

089 331505747 REAR BRAKING VALVE GROUP-- XCMG Mining Dump Truck XDR100 Parts Catalog
331505732 FRAME PIPE LAYING
No. PART NUMBER QTY NAME NOTE PAGE
1 804002309 1 REAR BRAKING VALVE GROUP
2 803452466 4 CONNECTOR
3 803416654 1 CONNECTOR whatsapp 86-18630852087
4 803413454 1 CONNECTOR
5 813402945 2 CONNECTOR
6 805301373 2 WASHER 10 DIN6796 whatsapp 86-18630852087
7 805046525 2 BOLT M10×20 GB/T5783-2000

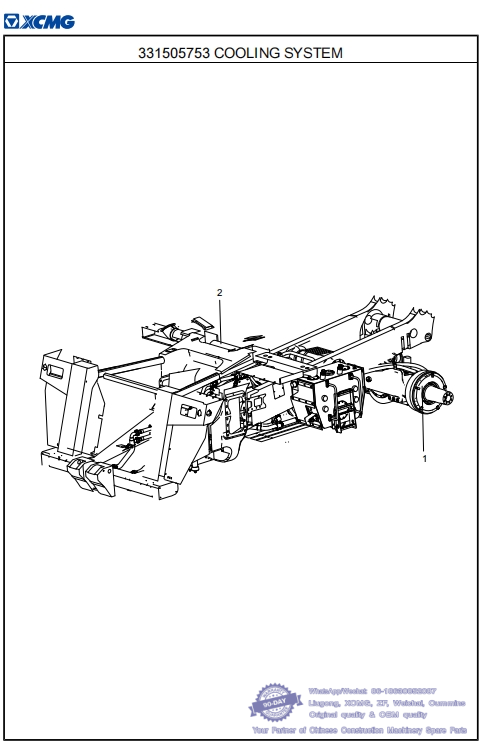

090 331505753 COOLING SYSTEM- XCMG Mining Dump Truck XDR100 Parts Catalog
331504658 HYDRAULIC SYSTEM
No. PART NUMBER QTY NAME NOTE PAGE
1 331505759 1 REAR AXLE COOLING SECTION 188 whatsapp 86-18630852087
2 331505760 1 FRAME COOLING PART 190
