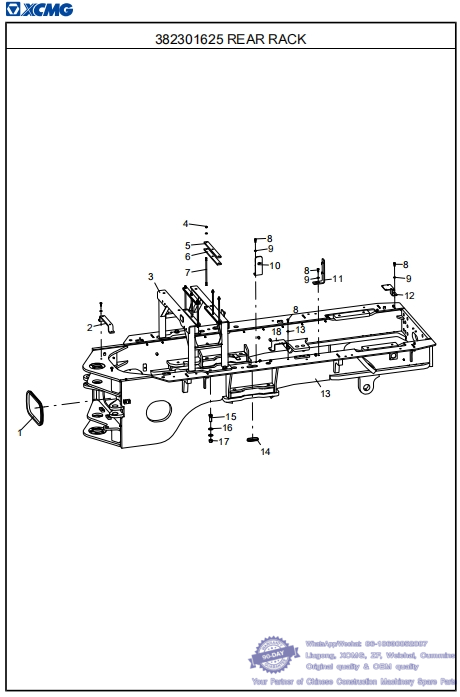

086 382301625 REAR RACK-- XCMG Motor Grader GR2205T Spare Parts Catalog
382301631 RACK
No. PART NUMBER QTY NAME NOTE PAGE
1 380402474 1 RUBBER RING
2 381201127 1 PLATE
3 382301627 1 OIL TANK SUPPORT
4 805238371 12 NUT M10 (DACROMET) GB/T6170-2000
5 380402767 2 PRESSING PLATE whatsapp 86-18630852087
6 380402765 4 RUBBER
7 805009999 6 STUD M10×290 GB/T953-1988
8 805011330 10 BOLT M10×25 (DACROMET) GB/T5783-2000
9 329900302 22 THICKENED FLAT WASHER
10 380401420 1 BENT PLATE
11 381202161 1 FUSE BRACKET
12 380401423 1 BACK-UP BUZZER PLATE
13 382301626 1 REAR RACK
14 380401417 2 RUBBER RING whatsapp 86-18630852087
15 805006286 4 BOLT M20×55 (DACROMET) GB/T5783-2000
16 805338297 8 WASHER 20 (DACROMET) GB/T1230-2006
17 805238375 4 NUT M20 (DACROMET) GB/T6170-2000
18 380402793 1 BRACKET OF FUSE BOX whatsapp 86-18630852087

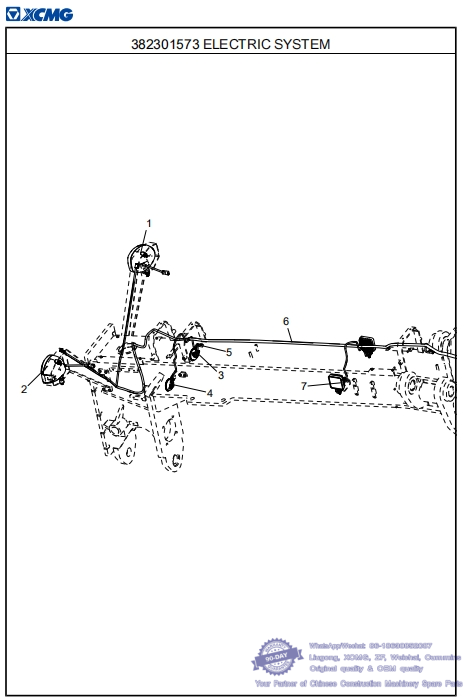

087 382301573 ELECTRIC SYSTEM-- XCMG Motor Grader GR2205T Spare Parts Catalog
382301662 MOTOR GRADER
No. PART NUMBER QTY NAME NOTE PAGE
1 803587298 1 RIGHT HEADLAMP whatsapp 86-18630852087
2 803587294 1 LEFT HEADLAMP
3 803595472 1 BASS ELECTRIC HORN (DEUTSCH PLUG-IN)
4 803595473 1 ACUTE HORN
5 803692393 4 FREEWHEEL DIODE ASSEMBLY
6 380605199 1 HARNESS OF FRONT RACK whatsapp 86-18630852087
7 803548234 6 LED WORK LAMP

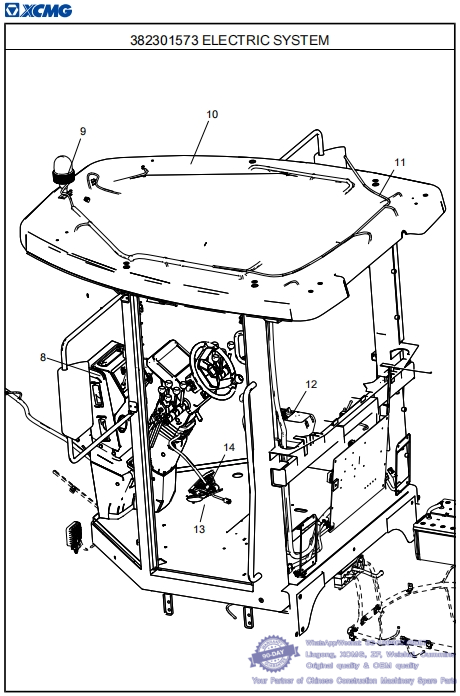

088 382301573 ELECTRIC SYSTEM-- XCMG Motor Grader GR2205T Spare Parts Catalog
382301662 MOTOR GRADER
No. PART NUMBER QTY NAME NOTE PAGE
8 382301566 1 INSTRUMENTATION CONSOLE ASSY 190 whatsapp 86-18630852087
9 803751227 1 LED ROTATING ALARM LAMP
10 382301569 1 CAB ELECTRICAL ASSEMBLY 192
11 803693720 1 VIDEO LINE whatsapp 86-18630852087
12 382301567 1 CONTROL BOX 196
13 805048869 3 BOLT M6×35 GB/T5783-2000
14 803687494 1 ACCELERATOR PEDAL whatsapp 86-18630852087

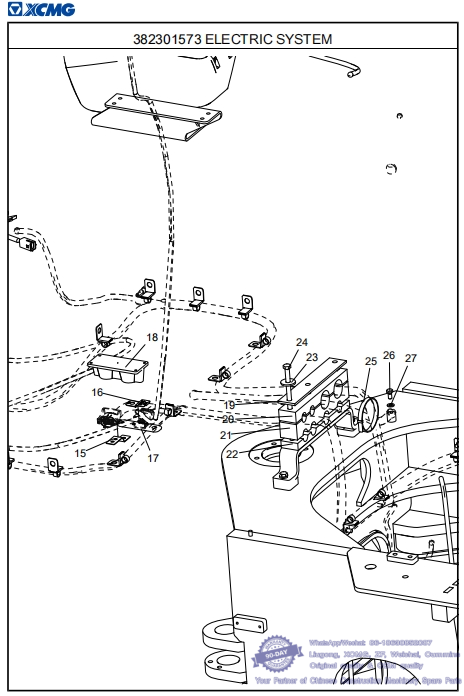

089 382301573 ELECTRIC SYSTEM-- XCMG Motor Grader GR2205T Spare Parts Catalog
382301662 MOTOR GRADER
No. PART NUMBER QTY NAME NOTE PAGE
15 803800568 6 AMP FIXING BRACKET whatsapp 86-18630852087
16 803699836 5 CONNECTOR BRACKET
17 381203515 5 FIXING PLATE
18 801973321 1 CABLE SEAL
19 803432184 1 PIPE CLAMP
20 803432190 1 PIPE CLAMP
21 803432185 1 PIPE CLAMP whatsapp 86-18630852087
22 803432189 1 PIPE CLAMP
23 329900343 2 THICKENED LARGE WASHER
24 805046627 2 BOLT M10×110 (DACROMET) GB/T5782-2000
25 801971250 20 CLIP BAND
26 805000033 7 BOLT M8×16 GB/T5783-2000 whatsapp 86-18630852087
27 805300069 7 WASHER 8 GB/T97.1-2002

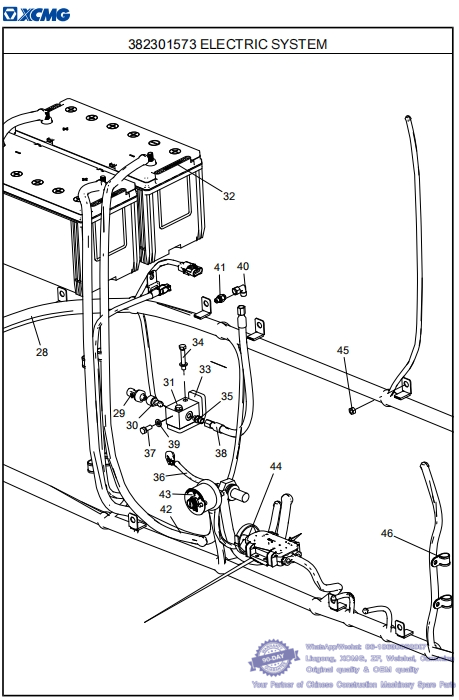

090 382301573 ELECTRIC SYSTEM-- XCMG Motor Grader GR2205T Spare Parts Catalog
382301662 MOTOR GRADER
No. PART NUMBER QTY NAME NOTE PAGE
28 382301574 1 HARNESS OF REAR RACK whatsapp 86-18630852087
29 803595446 1 ELECTRONIC SENSOR
30 803594923 1 ADAPTER
31 803280921 1 JOINT
32 803502471 2 BATTERY
33 803281168 1 PLATE
34 805046516 2 BOLT M8×50 (DACROMET) GB/T5783-2000
35 803103319 1 JOINT whatsapp 86-18630852087
36 803590019 1
OIL TEMPERATURE SENSOR OF TORQUE CONVERTER (DEUTSCH
CONNECTOR CLIP)
37 805046507 1 BOLT M8×20 (DACROMET) GB/T5783-2000
38 803304745 1 HOSE ASSEMBLY
39 329900301 3 THICKENED FLAT WASHER
40 803163662 2 JOINT
41 803191490 1 JOINT
42 382301575 1 ASSEMBLY OF BATTERY CABLE whatsapp 86-18630852087
43 803685348 1 PUMP
44 801971248 30 CLIP BAND
45 805238378 50 NUT M8 (DACROMET) GB/T6170-2000
46 803199326 16 CUTTING SLEEVE Φ18 TJBC whatsapp 86-18630852087
