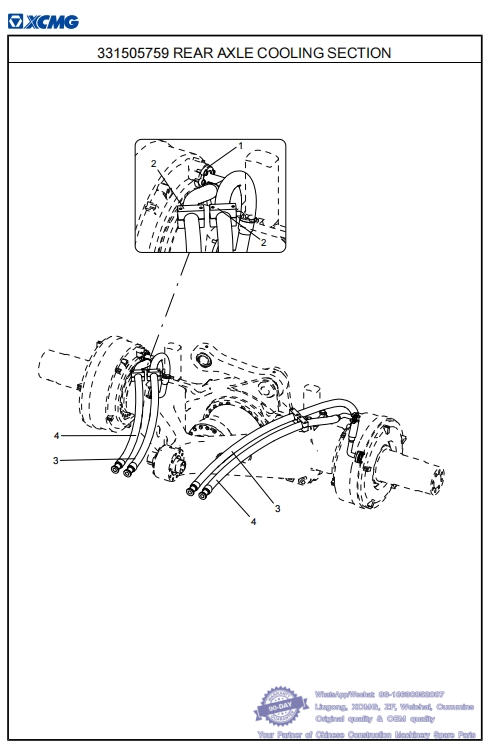

091 331505759 REAR AXLE COOLING SECTION-- XCMG Mining Dump Truck XDR100 Parts Catalog
331505753 COOLING SYSTEM
No. PART NUMBER QTY NAME NOTE PAGE
1 813402735 4 FLANGE ASSEMBLY whatsapp 86-18630852087
2 803451052 4 PIPE CLIP
3 803442712 2 HOSE ASS'Y whatsapp 86-18630852087
4 803442718 2 HOSE ASS'Y

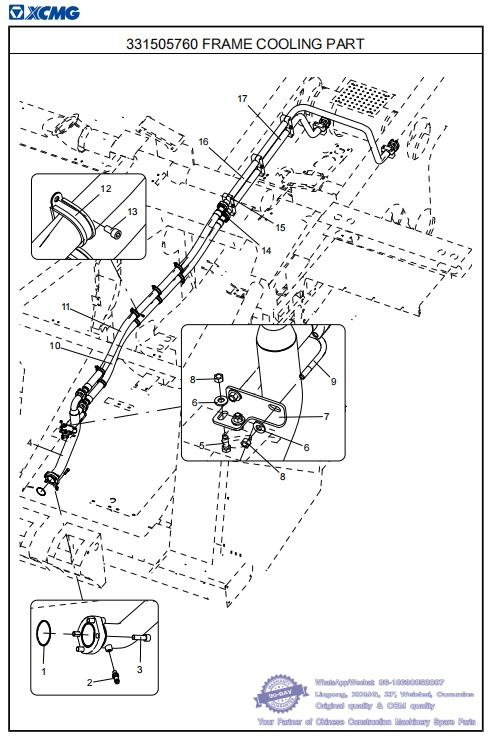

092 331505760 FRAME COOLING PART-- XCMG Mining Dump Truck XDR100 Parts Catalog
331505753 COOLING SYSTEM
No. PART NUMBER QTY NAME NOTE PAGE
1 813402701 1 BLIND FLANGEORING 85.32×3.53
2 813402945 2 CONNECTOR
3 805139896 8 SCREW M16×50 GB/T70.1-2008 whatsapp 86-18630852087
4 331502302 1 STEEL PIPE ASSEMBLY
5 805006412 4 BOLT M12×30 GB/T5783-2000
6 805301374 42 WASHER 12 DIN6796
7 331502301 1 BRACKET whatsapp 86-18630852087
8 805238372 28 NUT M12 GB/T6170-2000
9 805011258 1 BOLT 89 JB/ZQ4321-2006
10 803449840 1 HOSE ASS'Y
11 803448940 1 HOSE ASS'Y
12 800105351 8 RUBBER SLEEVE HOOP
13 805139925 8 SCREW M10×20 GB/T70.1-2008
14 813402760 13 FLANGE ASSEMBLY whatsapp 86-18630852087
15 803437787 12 PIPE CLIP
16 331502300 1 STEEL PIPE ASSEMBLY
17 331502299 1 STEEL PIPE ASSEMBLY

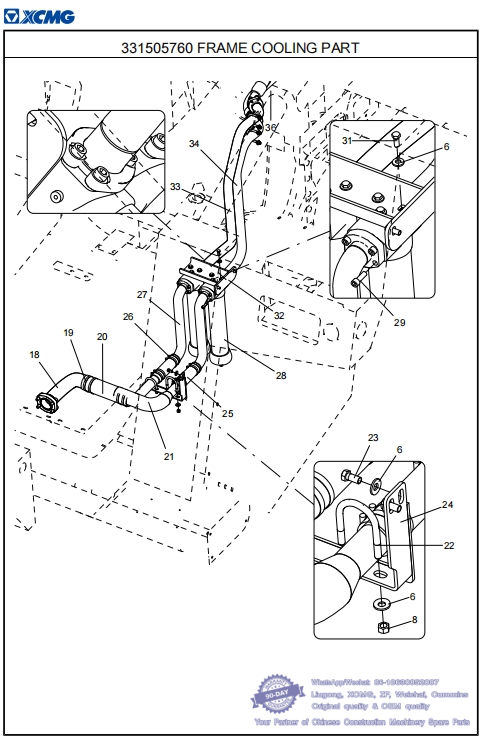

093 331505760 FRAME COOLING PART-- XCMG Mining Dump Truck XDR100 Parts Catalog
331505753 COOLING SYSTEM
No. PART NUMBER QTY NAME NOTE PAGE
18 331502274 1 STEEL PIPE ASSEMBLY
19 800141598 4 HOSE CLAMP whatsapp 86-18630852087
20 803406988 1 OIL RETURN HOSE
21 331502275 1 STEEL PIPE ASSEMBLY
22 805044550 4 BOLT 60 JB/ZQ4321-2006
23 805046469 2 BOLT M12×25 GB/T5783-2000
24 331502276 1 WELDING BRACKET
25 803451053 2 OIL RETURN HOSE
26 800105535 10 HOSE CLAMP
27 331502277 2 STEEL PIPE ASSEMBLY whatsapp 86-18630852087
28 803406975 1 FILTER SERIES
29 805141871 8 AMERICAN SCREW
30 813402735 2 FLANGE ASSEMBLY
31 805049370 6 BOLT 1/2-13UNC×1-1/4
32 331502278 1 WELDING BRACKET whatsapp 86-18630852087
33 331502280 1 STEEL PIPE ASSEMBLY
34 331502279 1 STEEL PIPE ASSEMBLY

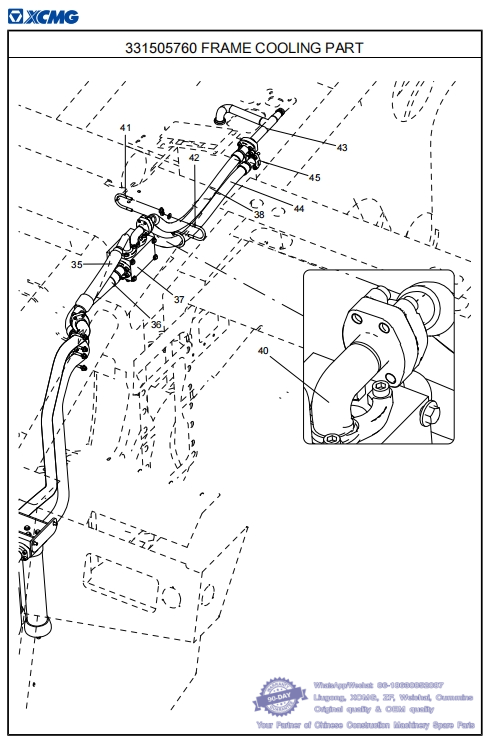

094 331505760 FRAME COOLING PART333311550055776600 FFRAAMEE COOLLIING PPAARTT-- XCMG Mining Dump Truck XDR100 Parts Catalog
331505753 COOLING SYSTEM
No. PART NUMBER QTY NAME NOTE PAGE
35 803488593 1 HOSE ASS'Y
36 803442707 1 HOSE ASS'Y whatsapp 86-18630852087
37 331505742 1 FINAL ASSEMBLY OF COOLING VALVE GROUP 198
38 803417583 1 HOSE ASS'Y
39 805006413 10 BOLT M12×35 GB/T5783-2000
40 331502283 1 STEEL PIPE ASSEMBLY whatsapp 86-18630852087
41 803608495 1 BOLT 57 JB/ZQ4321-2006
42 803272826 2 BOLT 51 JB/ZQ4321-2006
43 331503329 1 STEEL PIPE ASSEMBLY whatsapp 86-18630852087
44 803417582 1 HOSE ASS'Y
45 813402739 3 FLANGE ASSEMBLY

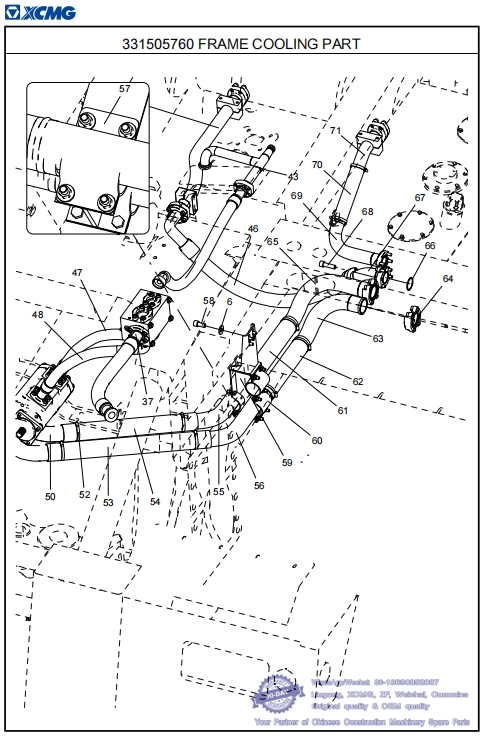

095 331505760 FRAME COOLING PART-- XCMG Mining Dump Truck XDR100 Parts Catalog
331505753 COOLING SYSTEM
No. PART NUMBER QTY NAME NOTE PAGE
46 803417574 1 HOSE ASS'Y whatsapp 86-18630852087
47 803417557 1 HOSE ASS'Y
48 803417556 1 HOSE ASS'Y
49 331505750 1 COOLING PUMP COMPONENT 202
50 331502286 1 STEEL PIPE ASSEMBLY
51 331502287 1 STEEL PIPE ASSEMBLY
52 800141597 8 HOSE CLAMP
53 803406991 1 OIL ABSORPTION HOSE
54 803406990 1 OIL ABSORPTION HOSE
55 331502289 1 SEAMLESS STEEL TUBE
56 331502290 1 SEAMLESS STEEL TUBE whatsapp 86-18630852087
57 331502288 1 PRESSURE PLATE
58 805139948 4 SCREW M12×25 GB/T70.1-2008
59 331503322 1 WELDING BRACKET
60 331503328 1 PRESSURE PLATE
61 803406993 1 OIL ABSORPTION HOSE
62 803447246 1 OIL ABSORPTION HOSE
63 331502293 1 STEEL PIPE ASSEMBLY
64 813402890 2 FLANGE ASSEMBLY
65 331502294 1 STEEL PIPE ASSEMBLY
66 803443570 3 BLIND FLANGEORING 56.74×3.53
67 331502295 1 STEEL PIPE ASSEMBLY
68 805139877 4 SCREW M12×40 GB/T70.1-2008
69 331502296 1 STEEL PIPE ASSEMBLY
70 803406994 1 OIL RETURN HOSE
71 331502297 1 STEEL PIPE ASSEMBLY whatsapp 86-18630852087
72 331502298 1 STEEL PIPE ASSEMBLY
