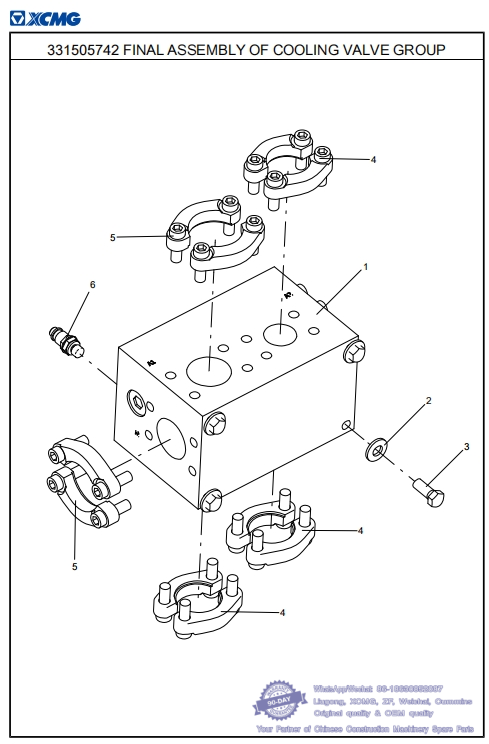

096 331505742 FINAL ASSEMBLY OF COOLING VALVE GROUP-- XCMG Mining Dump Truck XDR100 Parts Catalog
331505760 FRAME COOLING PART
No. PART NUMBER QTY NAME NOTE PAGE
1 803406968 1 COOLING VALVE GROUP 200 whatsapp 86-18630852087
2 805301374 4 WASHER 12 DIN6796
3 805006412 4 BOLT M12×30 GB/T5783-2000
4 813402739 4 FLANGE ASSEMBLY whatsapp 86-18630852087
5 813402760 2 FLANGE ASSEMBLY
6 813402945 1 CONNECTOR

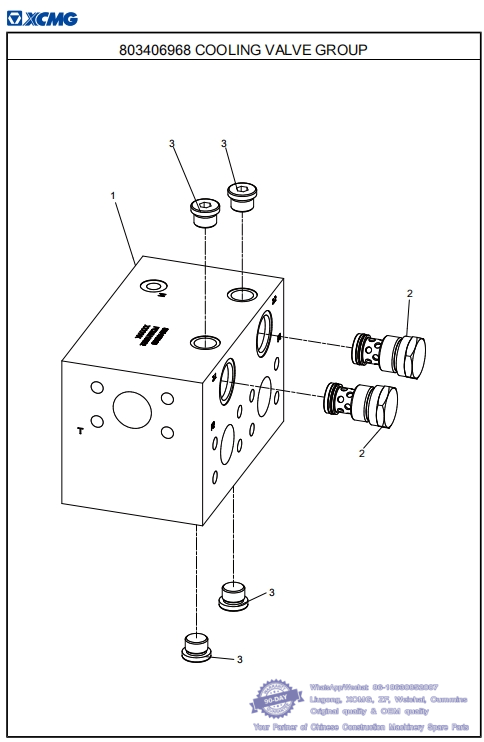

097 803406968 COOLING VALVE GROUP- XCMG Mining Dump Truck XDR100 Parts Catalog
331505742 FINAL ASSEMBLY OF COOLING VALVE GROUP
No. PART NUMBER QTY NAME NOTE PAGE
1 804200078 1 FORGE PIECE 230 X 150 X 140
2 804013256 2 CHECK VALVE whatsapp 86-18630852087
3 803105406 4 PLUG

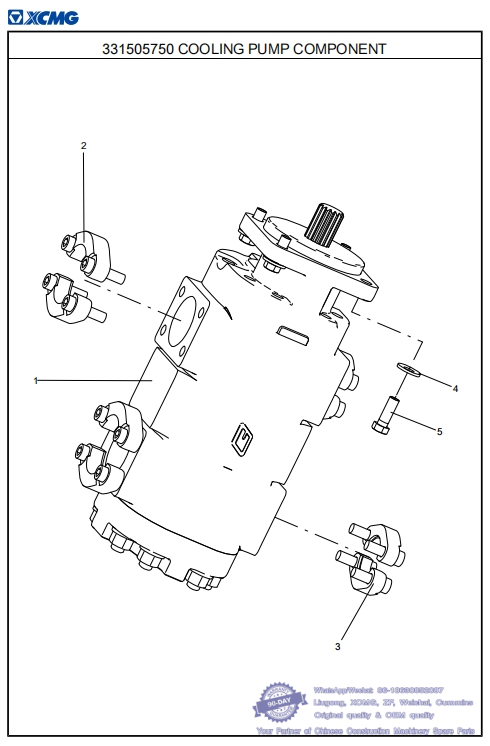

098 331505750 COOLING PUMP COMPONENT- XCMG Mining Dump Truck XDR100 Parts Catalog
331505760 FRAME COOLING PART
No. PART NUMBER QTY NAME NOTE PAGE
1 803406960 1 COOLING PUMP 204 whatsapp 86-18630852087
2 813402758 2 FLANGE ASSEMBLY
3 813402738 2 FLANGE ASSEMBLY
4 805301374 4 WASHER 12 DIN6796 whatsapp 86-18630852087
5 805006413 4 BOLT M12×35 GB/T5783-2000

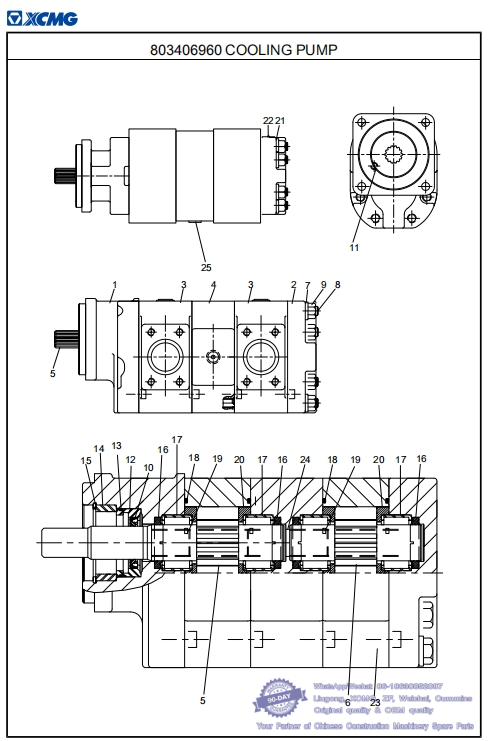

099 803406960 COOLING PUMP-- XCMG Mining Dump Truck XDR100 Parts Catalog
331505750 COOLING PUMP COMPONENT
No. PART NUMBER QTY NAME NOTE PAGE
1 804200119 1 FRONT END COVER
2 804200120 1 REAR END COVER whatsapp 86-18630852087
3 804200121 2 GEAR HOUSING
4 804200122 1 MIDDLE BODY
5 804200123 1 FRONT GEAR COMPONENT
6 804200124 1 REAR GEAR COMPONENT
7 805339342 8 WASHER
8 805052208 8 BOLT
9 805240034 8 NUT
10 804200125 1 SHAFT SEAL
11 803498036 1 PLUG
12 804200126 1 COLUMN PIN
13 803498037 1 ORING
14 804200127 4 MAT whatsapp 86-18630852087
15 805408184 1 HOLD WASHER
16 803498038 4 SEAL RING
17 804200128 8 BEARING
18 803498039 4 SEAL RING
19 803498040 24 SEAL RING
20 804200129 4 SIDE PLATE
21 804200130 1 NAMEPLATE
22 805142373 2 SCREW
23 804200131 8 COLUMN PIN
24 804200132 1 CONNECTING SHAFT
25 803498042 1 PLUG whatsapp 86-18630852087

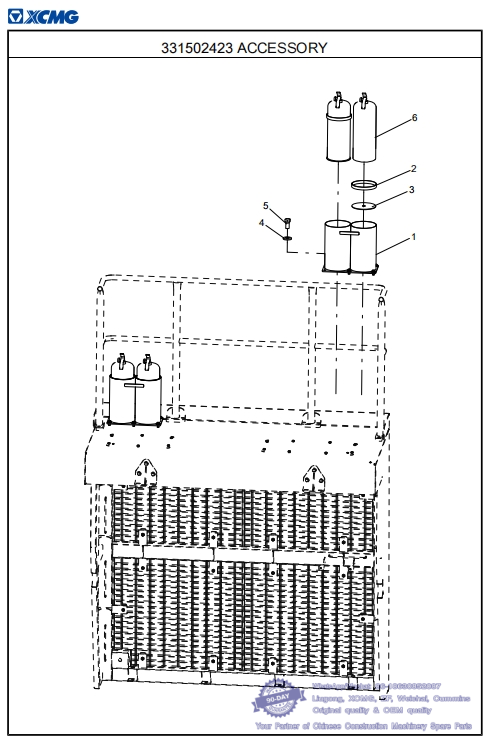

100 331502423 ACCESSORY-- XCMG Mining Dump Truck XDR100 Parts Catalog
331505761 XDR100 MINING DUMP TRUCK
No. PART NUMBER QTY NAME NOTE PAGE
1 330101470 2 FIRE EXTINGUISHER BASE whatsapp 86-18630852087
2 330101468 4 BOARD
3 330101469 4 BOARD
4 805301374 12 WASHER 12 DIN6796 whatsapp 86-18630852087
5 805046469 12 BOLT M12×25 GB/T5783-2000
6 819901691 4 FIRE EXTINGUISHER
