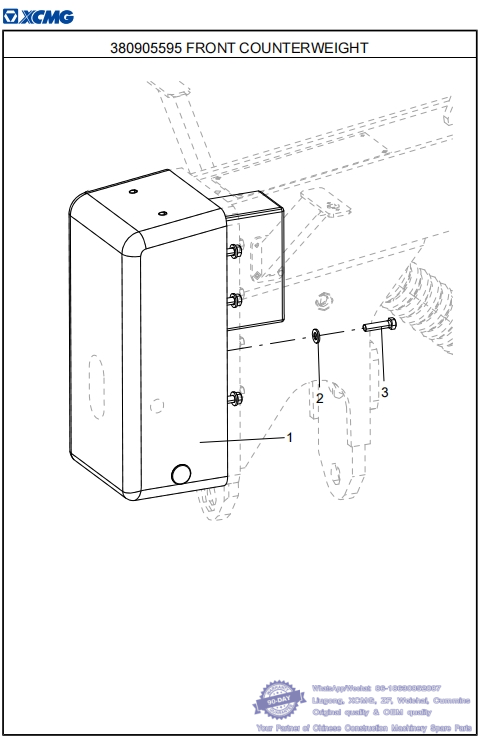

096 380905595 FRONT COUNTERWEIGHT-- XCMG Motor Grader GR215 Spare Parts Catalog
380900013 GR215DIIIMOTOR GRADER
No. PART NUMBER QTY NAME NOTE PAGE
1 380902532 1 FRONT COUNTERWEIGHT 204 whatsapp 86-18630852087
2 8053382978WASHER 20 (DACROMET)GB/T1230-2006
3 8050475798BOLT M20×80 (DACROMET)GB/T5783-2000 whatsapp 86-18630852087

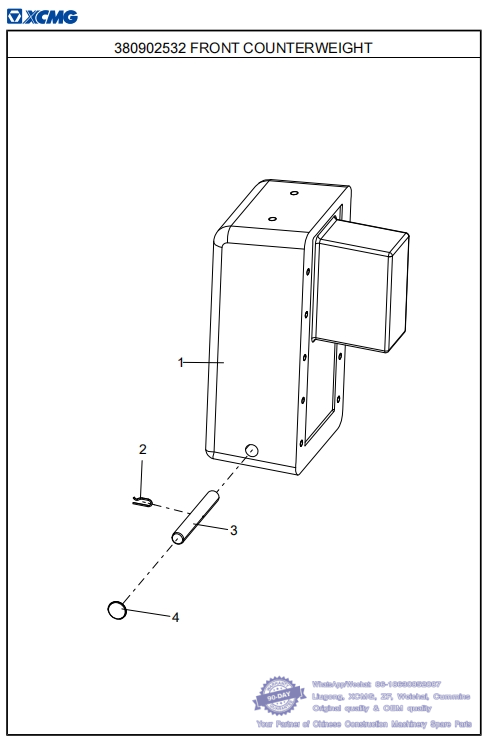

097 380902532 FRONT COUNTERWEIGHT-- XCMG Motor Grader GR215 Spare Parts Catalog
380905595 FRONT COUNTERWEIGHT
No. PART NUMBER QTY NAME NOTE PAGE
1 3809010771FRONT COUNTERWEIGHT whatsapp 86-18630852087
2 3809010781RESILIENT PIN
3 8056045201HINGE PIN whatsapp 86-18630852087
4 3806005631PROTECTIVE CAP

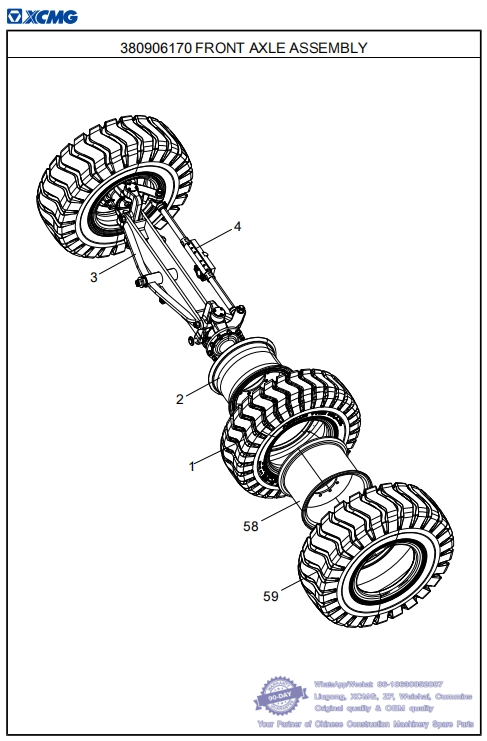

098 380906170 FRONT AXLE ASSEMBLY-- XCMG Motor Grader GR215 Spare Parts Catalog
380900013 GR215DIIIMOTOR GRADER
No. PART NUMBER QTY NAME NOTE PAGE
1 8003076812TIRE
2 3809061592RIM ASSY whatsapp 86-18630852087
3 3809061751FRONT AXLE BODY
4 380906184 1 STEERING PULL ROD 214
58 8003618742RIM whatsapp 86-18630852087
59 8003619012TIRE

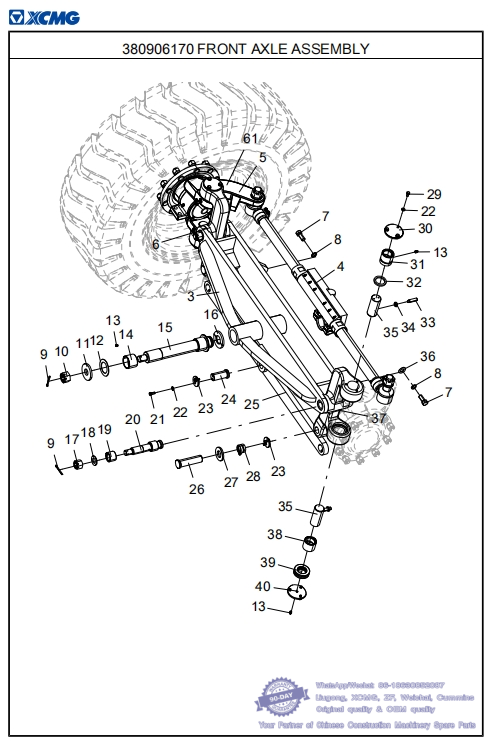

099 380906170 FRONT AXLE ASSEMBLY-- XCMG Motor Grader GR215 Spare Parts Catalog
380900013 GR215DIIIMOTOR GRADER
No. PART NUMBER QTY NAME NOTE PAGE
3 3809061751FRONT AXLE BODY
4 380906184 1 STEERING PULL ROD 214
5 3809061681LEFT STEERING KNUCKLE
6 3809061891LEFT TILTING JOINT
7 8050465912BOLT M20×50 (DACROMET)GB/T5783-2000
8 8053382452WASHER 20NORD-LOCK whatsapp 86-18630852087
9 8056400673PIN 6.3×63GB/T91-2000
10 8052388971NUT M36×2 (DACROMET)GB/T6181-1986
11 3809010591GASKET
12 3809010583WASHER
13 8011032159OIL CUP M10×1JB/T7940.1-1995
14 3809010552SLEEVE
15 8056045181HINGE PIN
16 3809010561LOCK SHEET whatsapp 86-18630852087
17 8052389292NUT M30×2 (DACROMET)GB/T9457-1988
18 8053383902WASHER 30 (DACROMET)GB/T97.1-2002
19 3809061764TILTING SHAFT SLEEVE
20 3809064682HINGE PIN
21 8050113306BOLT M10×25 (DACROMET)GB/T5783-2000
22 32990030218THICKENED FLAT WASHER
23 3809061903COVER PLATE whatsapp 86-18630852087
24 3809061852HINGE PIN
25 3809061651TILTING PULL ROD whatsapp 86-18630852087
26 3809061931HINGE PIN
27 3809010511GASKET
28 3809009292COPPER SLEEVE
29 80504652512BOLT M10×20 (DACROMET)GB/T5783-2000 whatsapp 86-18630852087
30 3804009622COVER PLATE OF KING PIN
31 3809061812LOWER SHAFT SLEEVE whatsapp 86-18630852087
32 8034024292LIP-TYPE PACKING SEAL B55×72×8GB/T13871.1-2007
33 8051412874SCREW M16×60GB/T79-2007
34 8052387774NUT M16 (DACROMET)GB/T6172.1-2000
35 3809061834KING PIN
100 380906170 FRONT AXLE ASSEMBLY-- XCMG Motor Grader GR215 Spare Parts Catalog
380900013 GR215DIIIMOTOR GRADER
No. PART NUMBER QTY NAME NOTE PAGE
36 3803006941REGULATING PAD whatsapp 86-18630852087
37 3809061631RIGHT TILTING JOINT
38 3809061642UPPER SHAFT SLEEVE
39 800554577 2 BEARING 81211 GB/T4663-1994
40 3809061912COVER PLATE OF KING PIN whatsapp 86-18630852087
61 3809070241LEFT STEERING KNUCKLE
