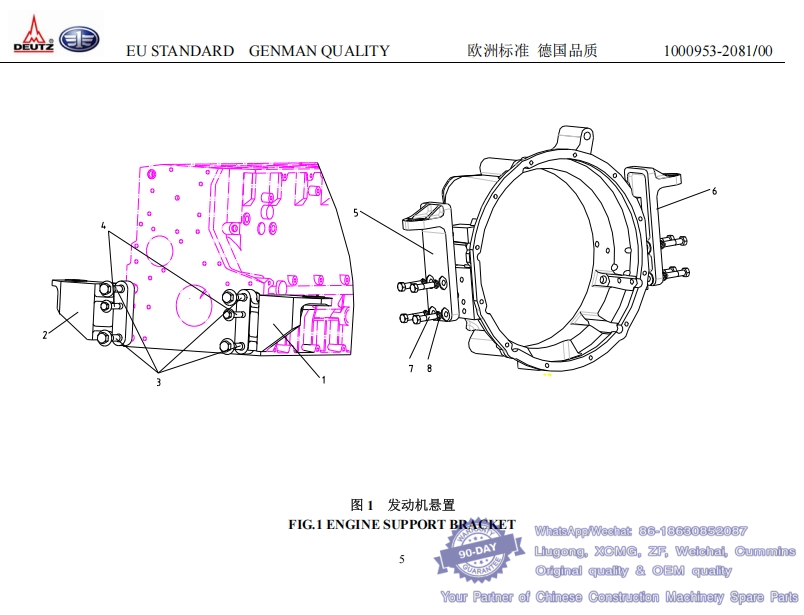

1、发动机悬置 ENGINE SUPPORT BRACKET-- Dalian Deutz BF6M2012 T2&T3 Serial Engine Parts Catalog
标号 零件号 零件名称 数量
FIG. PART NO. PART NAME QTY.
1 1001011-56D 前悬置左支架 ENGINE FRONT SUPPORT BRACKET 1
2 1001012-56D 前悬置右支架（与左件对称） ENGINE FRONT SUPPORT BRACKET 1
3 Q1841655TF36S 六角头凸缘螺栓 HEXAGON BOLT 4 whatsapp 86-18630852087
4
5 1001061-20A 后悬置左支架 ENGINE REAR SUPPORT BRACKET 1
6 1001062-20A 后悬置右支架（与左件对称） ENGINE REAR SUPPORT BRACKET 1
7 Q1841245TF36 六角头凸缘螺栓 HEXAGON BOLT 8 whatsapp 86-18630852087

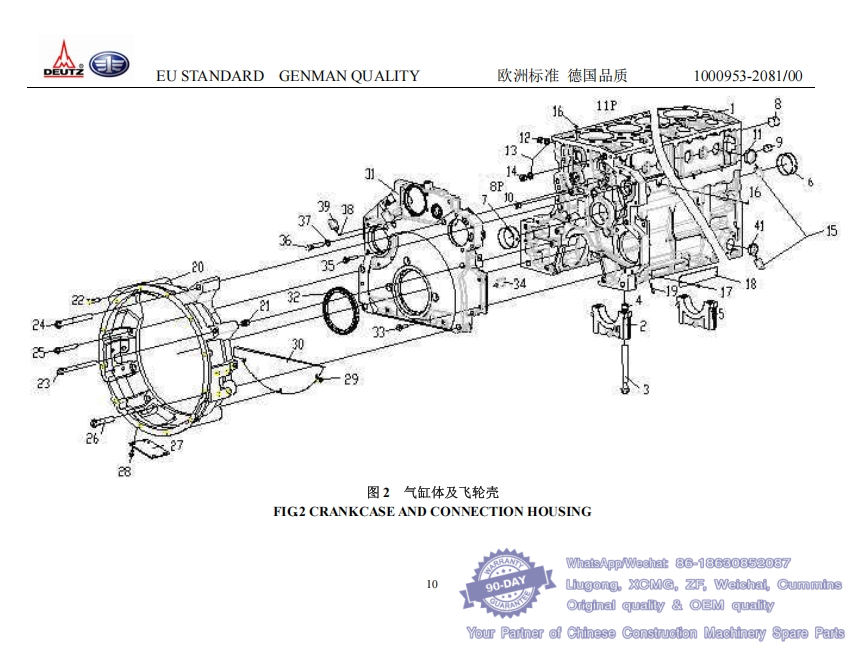

2、气缸体和飞轮壳 CRANKCASE AND CONNECTION HOUSING（1）-- Dalian Deutz BF6M2012 T2&T3 Serial Engine Parts Catalog
标号 零件号 零件名称 数量
FIG. PART NO. PART NAME QTY.
1 1002015-56D 气缸体总成 CRANKCASE 1 whatsapp 86-18630852087
2 1002022-56D ( 包含在总成内Included in)止推主轴承盖THRUST MAIN BEARING CAP 1
3 1002023-56D 主轴承螺栓HEXAGON BOLT 14
4 1002024-56D 主轴承盖定位套BUSH 14
5 1002021-56D ( 包含在总成内Included in)主轴承盖MAIN BEARING CAP 6
6 1006024A56D 凸轮轴衬套BEARING BUSH 6
7 1006028A56D 凸轮轴衬套(飞轮端) BEARING BUSH 1
8 B01180890 涂胶螺塞 SCREW PLUG H2812-906 -M30X1,5-ST-A4C-PRE80 1
8P 1002627-52D 涂胶螺塞 SCREW PLUG 1 whatsapp 86-18630852087
9-1 F04292706 螺塞 M22X1.5 SCREW PLUG M22X1.5 1
9-2 B01101342 密封垫 DIN 7603-D 22 X 27 –CU SEALING RING DIN 7603-D 22 X 27 –CU 1
10 01182031 螺塞 SCREW PLUG H 2812-906 -M14X1,5-ST-A3C-LOCTITE 5061 2
11 1002623-52D 碗形塞片 CORE HOLE PLUG H2860-A45-ST-FE/ZNPHR H2860-A45-ST-FE/ZNPHR 9
11P 1002620-52D 碗形塞片 CORE HOLE PLUG H 2860-A36-ST-FE/ZNPHR 6
12 1002622-52D 螺塞 DIN 7604 -AM14X1,5-ST-A4C SCREW PLUG 2
13 1104617-52D 密封垫 DIN 7603-A14X20-CU SEALING RING DIN 7603-A14X20-CU 3
14 1002626-52D 螺塞 DIN 908 -M14X1,5-ST-ZNPHRF SCREW PLUG DIN 908-M14X1,5-ST-ZNPHRF 1
15 JA1002-52D-3 密封材料 H 699-DEUTZ DW 72- 250 ML SAFETY/LOCK.AGENT H 699-DEUTZDW 72- 250 ML 1
16 1002621-52D 钢球 GB308 6G20 BALL GB308 6G20 13
17 GB/T12618.1 4X8 抽芯铆钉 GB/T12618.1 4X8 RIVET GB/T12618.1 4X8 2
18 1002201B52D 发动机铭牌 NAME PLATE 1
19 04207521 活塞冷却喷嘴PISTON COOL. NOZZLE 6
20 1002061-56D 飞轮壳CONNECTION HOUSING 1
21 1002064-52D 定位套 BUSH 2
22 CQ1201035TF36S 双头螺柱 STUD 12
23 1002667-56D 六角梅花凸缘螺栓 H2032 -HBM12X150-10.9 -ZNAL-A TORX-HEAD BOLT H2032-HBM12X150-10.9 -ZNAL-A 1
24 1002668-56D 六角梅花凸缘螺栓 H 2032 -HBM16X140-10.9 -ZNAL-A TORX-HEAD BOLT H2032-HBM16X140-10.9-ZNAL-A 1
25 1002669-56D 六角梅花凸缘螺栓 H 2032 -HBM12X 80-10.9 –GESCHW TORX-HEAD BOLT H2032-HBM12X80-10.9- GESCHW 1
26 1002672-56D 六角梅花凸缘螺栓 H 2032 -HBM16X 75-10.9 –GESCHW TORX-HEAD BOLT H2032-HBM16X75-10.9- GESCHW 3
27 1002063-52D 飞轮壳盖板COVER PLATE 1 whatsapp 86-18630852087
28 CQ1460616TF36 组合螺栓 HEXAGON BOLT WASHER ASSEMBLY 4
29 CQ1460612TF36 组合螺栓 HEXAGON BOLT WASHER ASSEMBLY 3
30 1002071-56D 飞轮壳防尘盖板 COVER PLATE 1
31 1002050-56D 齿轮室罩盖及后油封总成 GEAR HOUSING AND LIP SEAL 1
32 04253332 曲轴后油封总成 ROT.SHAFT LIP SEAL 1 whatsapp 86-18630852087
33 1009626-52D 六角头凸缘螺栓 EN 1662 -F-M8X35-10.9-ZNAL-A HEXAGON BOLT EN 1662 -F-M8X35-10.9-ZNAL-A 12
34 JA1002-52D-4 密封材料 H 699 -DEUTZ DW 67-2000 ML SAFETY/LOCK.AGENT H 699 -DEUTZ DW 67-2000 ML 1
35 1002614-56D 六角头凸缘螺栓 EN 1662 -F-M 8 X 45- 10.9-ZNAL-A HEXAGON BOLT EN 1662 -F-M 8 X 45- 10.9-ZNAL-A 3
37
38 1002653-52D 内六角平端紧定螺钉 GB77 -M6X10-45H DIN 913-M6X10-45H SET SCREW GB77-M6X10-45H DIN 913-M6X10-45H 1
39 JA1002-52D-2 密封材料 H 699-DEUTZ DW 72- 50 MLSAFETY/LOCK.AGENT H 699-DEUTZ DW 72- 50 ML 1

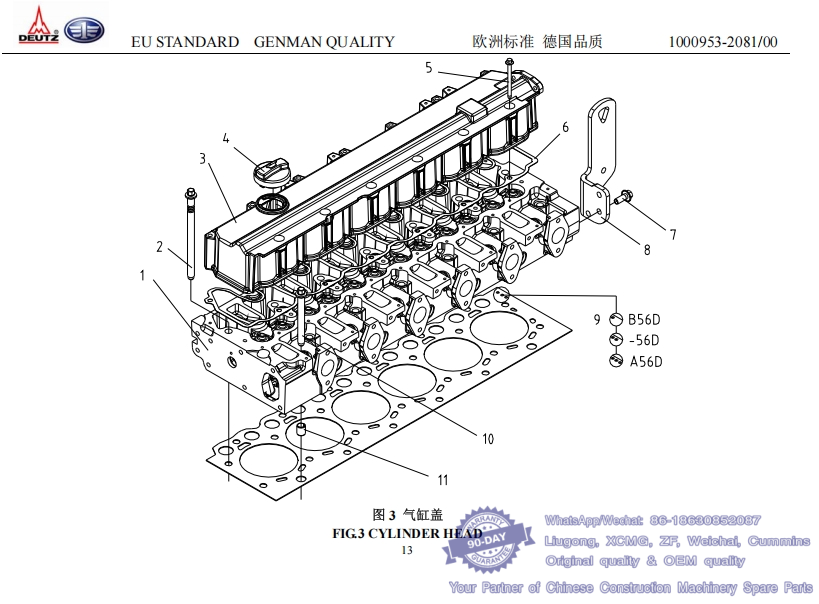

3、气缸盖 CYLINDER HEAD（1）-- Dalian Deutz BF6M2012 T2&T3 Serial Engine Parts Catalog
标号 零件号 零件名称 数量
FIG. PART NO. PART NAME QTY.
1 1003015-56D 气缸盖分总成－带碗形塞片CYLINDER HEAD SUB-ASSEMBLY-WITH CORE HOLE PLUG 1
3509633-56D 六角头凸缘螺栓 EN 1662 -F-M6X80-10.9-ZNAL-A HEXAGON BOLT EN 1662-F-M6X80-10.9-ZNAL-A 1
2 1003046-56D 气缸盖螺栓 CYLINDER HEAD BOLT 7
3 1003040-56D 气缸盖罩盖总成 VALVE MECHAN. COVER 1 whatsapp 86-18630852087
4 1003050-52D 加机油口盖总成OIL FILLER CAP 1
5 1008602-56D 六角头凸缘螺栓 EN 1662 -F-M 6 X 75- 10.9-ZNAL-A HEXAGON BOLT EN 1662-F-M6X75-10.9-ZNAL-A 11
1009611-56D 六角头螺栓 ISO 4017 -M6X80-8.8-A4C HEXAGON BOLT ISO 4017 -M6X80-8.8-A4C 1
6 1003042C56D 密封垫－气缸盖罩盖VALVE MECHAN. COVER GASKET 1
7 1023614-52D 六角头凸缘螺栓 EN 1662 -F-M10X25-10.9-ZNAL-A HEXAGON BOLT EN 1662-F-M10X25-10.9-ZNAL-A 3
8 1003061-437 后吊耳－气缸盖 SUSPENSION PLATE 1
9 1003090B56D 气缸垫总成（1 孔）-选装CYLINDER HEAD GASKET(1 HOLE) 1
1003090-56D 气缸垫总成（2 孔）-选装CYLINDER HEAD GASKET(2 HOLE) 1 whatsapp 86-18630852087
1003090A56D 气缸垫总成（3 孔）-选装 CYLINDER HEAD GASKET(3 HOLE) 1
10 1003047-56D 气缸盖螺栓 CYLINDER HEAD BOLT 19
11 01181405 弹性圆柱销H 2341-B15X18-FE/ZN12C CLAMPING BUSH H 2314-B15X18-FE/ZN12C 2

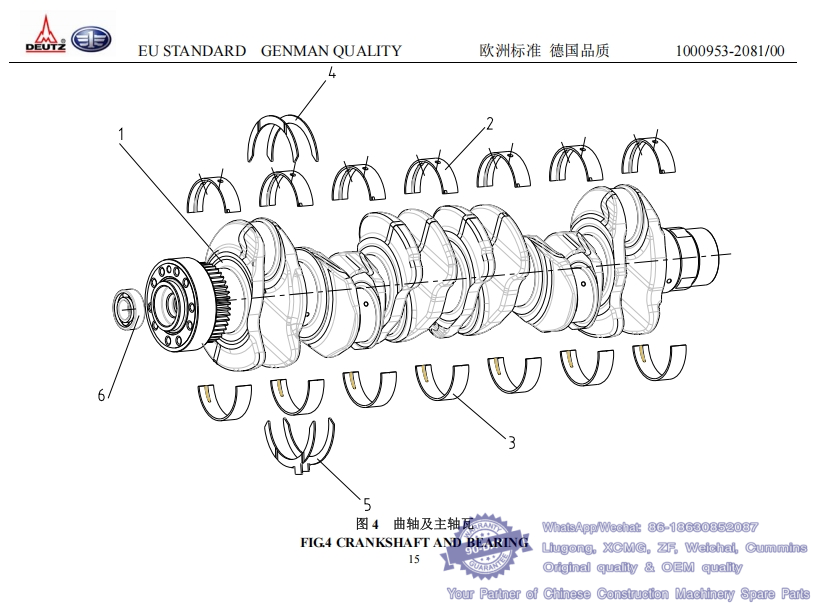

4、曲轴及主轴瓦 CRANKSHAFT AND BEARING-- Dalian Deutz BF6M2012 T2&T3 Serial Engine Parts Catalog
标号 零件号 零件名称 数量
FIG. PART NO. PART NAME QTY.
1 1005020-36E 曲轴总成 CRANKSHAFT(WITH GEAR) 1
2 1005081-56D 上主轴瓦 UPPER MAIN BEARING LINER 7 whatsapp 86-18630852087
3 1005082-56D 下主轴瓦 LOWER MAIN BEARING LINER 7 whatsapp 86-18630852087
4 1005086-56D 上止推片 UPPER THRUST WASHER 2
5 1005087-56D 下止推片 LOWER THRUST WASHER 2
6 6205-2Z 轴承 GB/T 276 6205-2Z GEAR GB/T 276 6205-2Z 1 whatsapp 86-18630852087

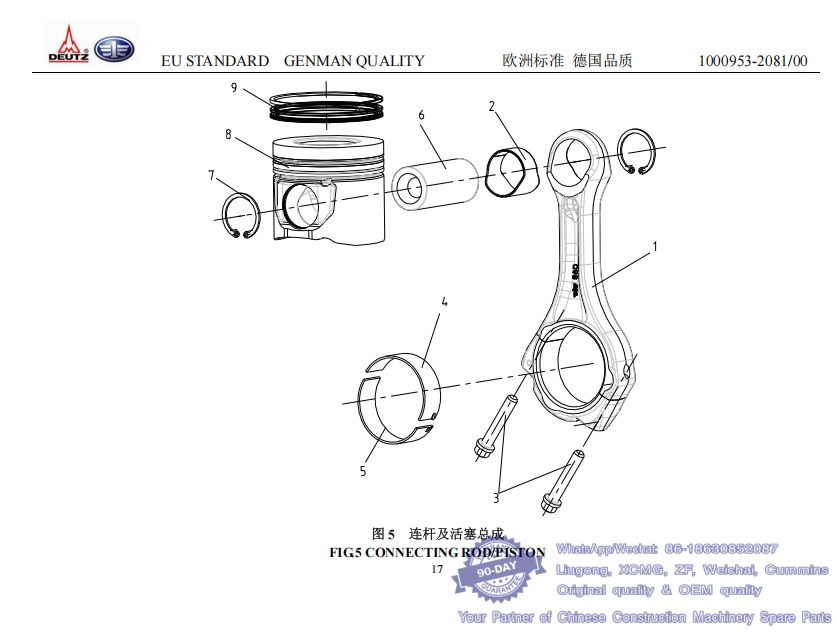

5、连杆及活塞总成 CONNECTING ROD/PISTON-- Dalian Deutz BF6M2012 T2&T3 Serial Engine Parts Catalog
标号 零件号 零件名称 数量
FIG. PART NO. PART NAME QTY.
1 1004901-56D 连杆工艺合件 CONNECTING ROD SET 1
1004040-56D 连杆总成 (单件按分组使用) CONNECTING ROD 6
2 0428 8314 (包含在总成内 Included in)连杆小头衬套 SMALL END BUSH 6
3 1004067-56D 连杆螺栓 BIG END BOLT 12 whatsapp 86-18630852087
4 1004058-56D 上连杆轴瓦 UPPER BEARING SHELL 6
5 1004059-56D 下连杆轴瓦 LOWER BEARING SHELL 6
6 1004021-56D 活塞销 PISTON PIN 6
7 1004628-56D 孔用弹性挡圈 CIRCLIP 12
8 1004016B32E 活塞(单件按分组使用) PISTON 6 whatsapp 86-18630852087
9 1004025A36E 活塞环组总成 PISTON RING SET 6
1004026-36E 上压缩环 TOP COMPRESSION RING 1
1004027A56D 中压缩环 MIDDLE COMPRESSION RING 1
1004035-36E 组合油环 OIL CONTROL RING 1
