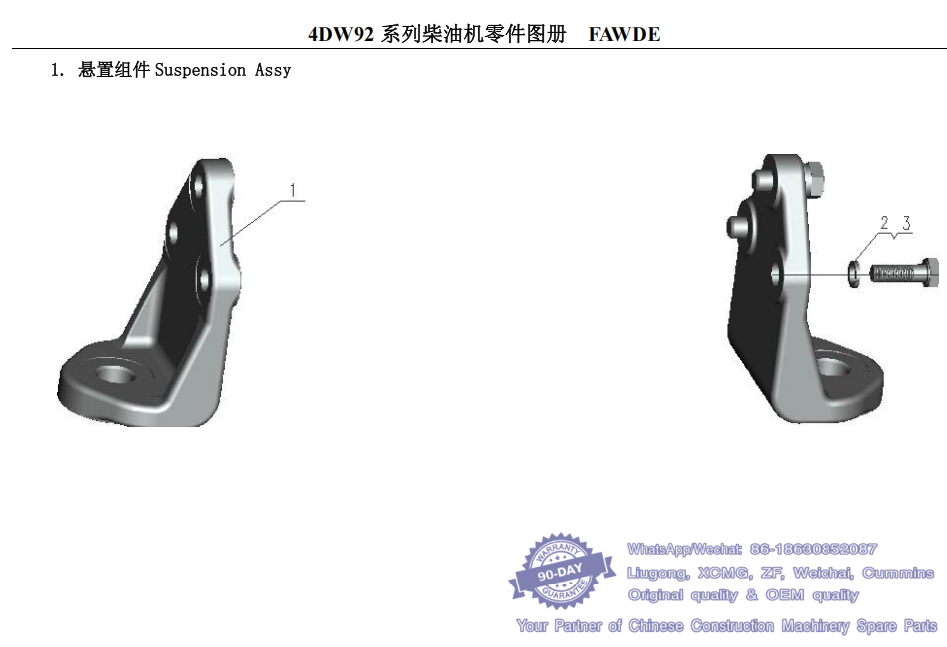

1.悬置组件 Suspension Assy-- FAW Diesel Engine 4DW92 Parts Catalogue
| 序号 Item | 零件件号 Part NO. | 零 件 名 称 Description | 数量 Quantity | |||||||||
| A | B | C | D | E | F | G | H | I | ||||
| 1 | 1001010-B57-AS10 | 前悬置支架总成 | Front suspension assy | 2 | 2 | 2 | 2 | 2 | 2 | 2 | ||
| 2 | Q150B1030 | 六角头螺栓 | Hexagon-headed bolt | 6 | 6 | 6 | 6 | 6 | 6 | 6 | ||
| 3 | Q40310 | 弹簧垫圈 | Spring washer | 6 | 6 | 6 | 6 | 6 | 6 | 6 | ||

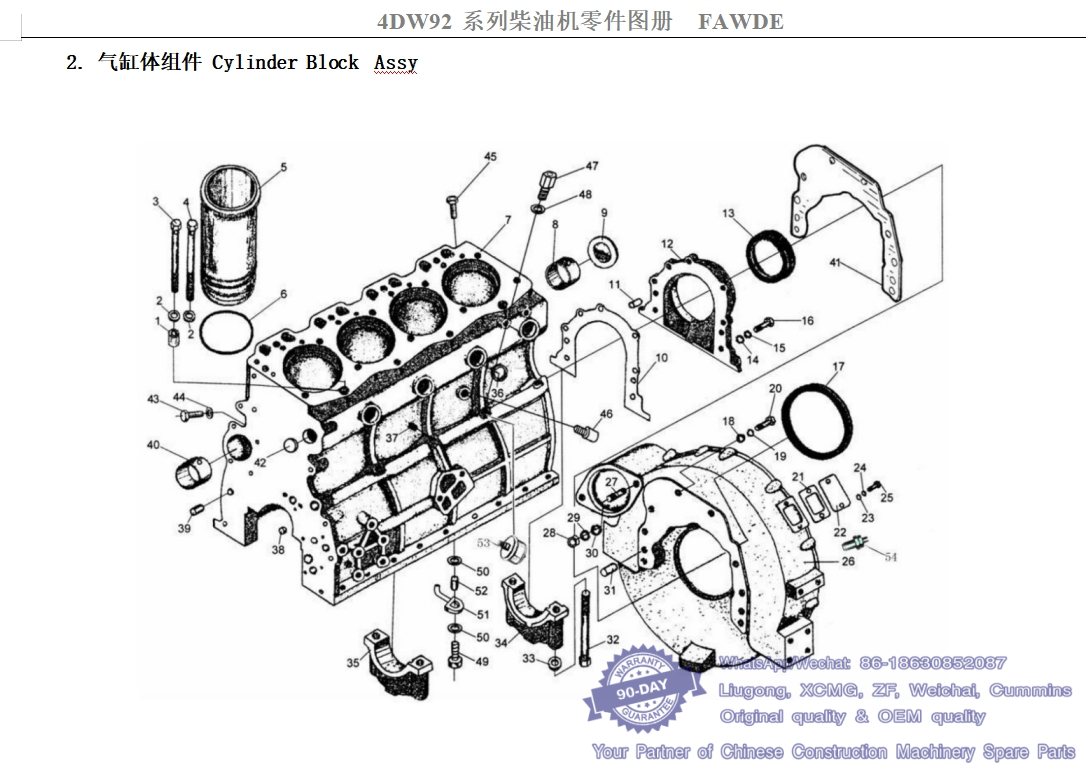

2. 气缸体组件 Cylinder Block Assy-- FAW Diesel Engine 4DW92 Parts Catalogue
| 序号 Item | 零件件号 PartNO. | 零 件 名 称 DescriPtion | 数量 Quantity | ||||||||
| A | B | C | D | E | F | G | H | I | |||
| 1002015CB43-0000 | 气缸体总成 Cylinder block assy | ||||||||||
| 1 | 1002011-B01-0000 | 气缸盖定位套 Cylinder head locating sleeve | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 |
| 2 | 1003048-B01-0000 | 垫圈—气缸盖螺栓 Washer-cylinder head bolt | 18 | 18 | 18 | 18 | 18 | 18 | 18 | 18 | 18 |
| 3 | 1003047'B01-0000 | 气缸盖短螺栓 Shoabolt-cylinder head | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 |
| 4 | 1003046-B01-0000 | 气缸盖长螺栓 Cylinder liner | 14 | 14 | 14 | 14 | 14 | 14 | 14 | 14 | 14 |
| 5 | 1002016-B43-0000 | 气缸套 Cylinder liner | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 |
| 6 | 1002017-B41-0000 | 水封圈 Water seal ring | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 8 |
| 7 | 1002014FB43-0000 | 气缸体 Cylinder bolck | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| 8 | 1006024AB01-0000 | 凸轮轴前衬套 Front bush of camshaft | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| 9 | Q72155 | 塞片 Plate | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| 10 | 1005068AB01-0000/J | 后油封座垫片 Washer-rear oil seal seat | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| 11 | Q5220816 | 圆柱销 Straigh tpin | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 |
| 12 | 1005067AB43-0000 | 后油封座 Rear oil seal seat | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| 13 | GB 13871 FB90X115 | 后油封 FB90X115 Rear oil seal | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| 14 | Q40108 | 平垫圈 Washer | 7 | 7 | 7 | 7 | 7 | 7 | 7 | 7 | 7 |
| 15 | Q40408 | 轻型弹簧垫圈 Spring washer,light type | 7 | 7 | 7 | 7 | 7 | 7 | 7 | 7 | 7 |
| 16 | Q150B0825 | 六角头螺栓 Hexagon-headed bolt | 7 | 7 | 7 | 7 | 7 | 7 | 7 | 7 | 7 |
| 17 | 1002068-B43-0000 | 飞轮壳密封圈 Sealing washer-fly wheel | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| 18 | Q40010 | 小垫圈 Small washer | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 8 |
| 19 | Q40410 | 轻型弹簧垫圈 Spring washer,linght type | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 8 |
| 20 | Q150B1035 | 六角头螺栓 Hexagon-headed bolt | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 8 |
| 序号 Item | 零件件号 Part NO. | 零 件 名 称 Description | 数量 Quantity | |||||||||
| A | B | C | D | E | F | G | H | I | ||||
| 21 | 1002063-B01-0000 | 观察孔盖垫片 Observation hole'scover gasket | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | |
| 22 | 1002062AB01-0000 | 观察孔盖 Observation hole'scover | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | |
| 23 | 1002234-B01-0000 | 垫片 Gasket | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | |
| 24 | Q40106 | 平垫圈 Washer | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | |
| 25 | Q150B0612 | 六角头螺栓 Hexagon-headed bolt | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | |
| 26 | 1002061AB59-AS10 | 齿轮室罩盖-飞轮壳(补充图) Flywheel casing | 1 | 1 | 1 | |||||||
| 1002061-B5A-YFD20W | 齿轮室罩盖-飞轮壳(补充图) Flywheel casing | 1 | ||||||||||
| 1002061-B59-YFD20 | 齿轮室罩盖-飞轮壳(补充图) Flywheel casing | 1 | 1 | 1 | ||||||||
| 1002061-B5A-HMS20W | 齿轮室罩盖-飞轮壳(补充图) Flywheel casing | 1 | 1 | |||||||||
| 27 | Q1201235 | 双头螺栓 Stud | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | |
| 28 | Q340B12 | I 型六角螺母 Hexagon nut,style I | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | |
| 29 | Q40112 | 平垫圈 Washer | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | |
| 30 | Q40312 | 弹簧垫圈 Spring washer | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | |
| 31 | Q5221022 | 圆柱销 Straight pi | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | |
| 32 | 1005144AB01-0000 | 主轴承盖螺栓 Main bearing bolt | 10 | 10 | 10 | 10 | 10 | 10 | 10 | 10 | 10 | |
| 33 | 1005146AB01-0000 | 主轴承盖螺栓垫圈 Washer-main bearing cap | 10 | 10 | 10 | 10 | 10 | 10 | 10 | 10 | 10 | |
| 34 | 1005143-B01-0000 | 第五主轴承盖 5th main bearing cap | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | |
| 35 | 1005141-B01-0000 | 主轴承盖 Main bearing cap | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | |
| 36 | 1002231-B01-0000 | 碗形塞片 Bowl-shaped plug plate | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | |
| 37 | 1002123AA01-0000 | 螺塞 plug | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | |
| 38 | 1002232AB03-0000 | 堵塞 plug | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | |
| 序号 Item | 零件件号 Part NO. | 零 件 名 称 Description | 数量Quan6ty | |||||||||
| A | B | C | D | E | F | G | H | I | ||||
| 39 | 1002078-B01-0000 | 齿轮室定位套 | Gear casing locating sleeve | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| 40 | 1006028AB01-0000 | 凸轮轴后衬套 | Rear bush of camshft | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| 1006025AB01-0000 | 凸轮轴中间衬套 | Middle bush of camshft | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | |
| 41 | 1002064-B01-0000 | 飞轮壳垫片 | Flywheel casing gasket | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| 42 | 1003093-B01-0000 | 碗形塞片 | Bowl-shaped plug plate | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 8 |
| 43 | Q617BlO | 六角头螺塞 | Hexagon-headed bolt | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| 44 | Q72310 | 密封垫圈 | Sealing Wacher | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| 45 | Q61902 | 内六角锥形螺塞 | Hexagon-headed taper plug | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| 46 | 1002101-B03-0000 | 放水阀接座 | Water drain valve joint chair | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| 47 | 1002020-B03-0000 | 调压阀总成 | Regulating valve assy | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| 48 | 1002018-B03-0000 | 调压阀垫片 | Regulating valve gasket | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| 49 | 1002620-A42-0000 | 喷嘴管接螺栓总成 | Nozzle tube bolt assy | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 |
| 50 | 1002601-B03—0000 | 冷却喷嘴垫片 | Cooling jet gasket | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 |
| 51 | 100610-B03-0000 | 喷嘴体总成 | Nozzle body assy | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 |
| 52 | Q5220308 | 圆柱销 | Straight pin | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 |
| 53 | 3810020-B45-HG10 | 油压报警传感器 | Oil pressure screw plug | 1 | 1 | 1 | 1 | 1 | 1 | |||
| Q618B02 | 六角头锥形螺塞 | Hexagon head –Tapered plugs | 1 | 1 | ||||||||
| 54 | 1002121-155-SJ10 | 转速传感器 | Heagon-headed plug | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |

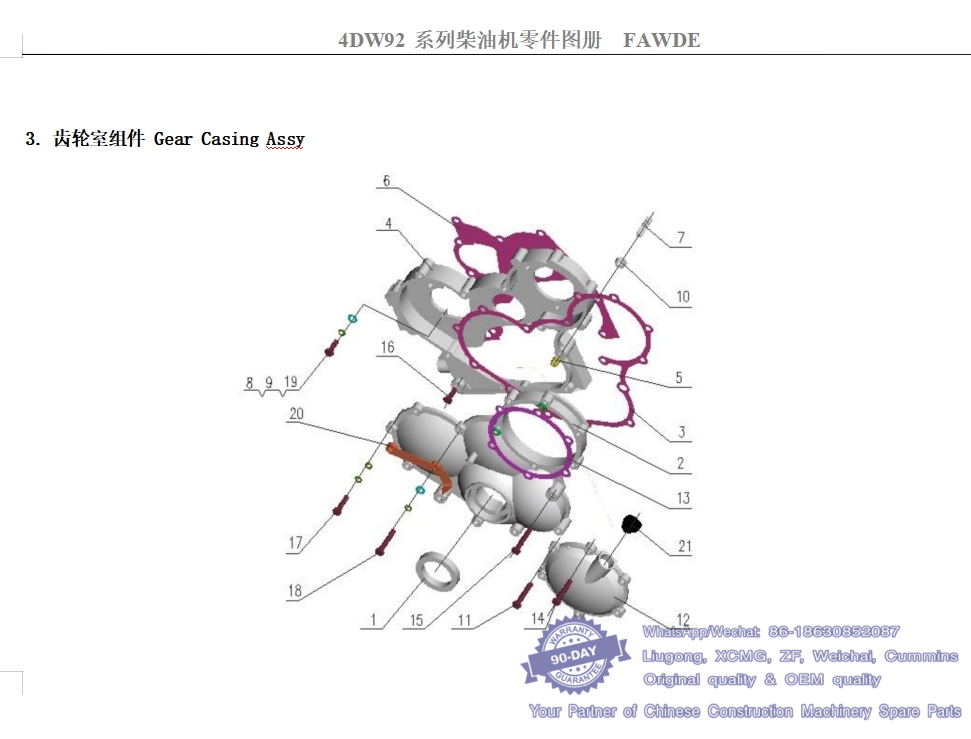

3. 齿轮室组件 Gear CasingAssy-- FAW Diesel Engine 4DW92 Parts Catalogue
| 序号 Item | 零件件号 Part NO. | 零 件 名 称 Description | 数量 Quantity | |||||||||
| A | B | C | D | E | F | G | H | I | ||||
| 1 | 1005050AB01-0000 | 前油封 | Front oil seal | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| 2 | 1002073BB01-0000 | 齿轮室盖 | Gear casing cover | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| 3 | 1002074-B01-0000/J | 齿轮室盖垫片 | Gasket-gear casing cover | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| 4 | 1002071CB03-0000 | 齿轮室 (补充图) | Gear casing | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| 5 | 1002078-B01-0000 | 齿轮室定位套 | Gear casing locating sleeve | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 |
| 6 | 1002072-B03-0000 | 齿轮室垫片 | Gasket-gear casing | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| 7 | Q1200845 | 双头螺栓 | Stud | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 |
| 8 | Q40008 | 小垫圈 | Washer | 21 | 21 | 21 | 21 | 21 | 21 | 21 | 21 | 21 |
| 9 | Q40408 | 轻型弹簧垫圈 | Spring washer | 21 | 21 | 21 | 21 | 21 | 21 | 21 | 21 | 21 |
| 10 | Q340B08 | I 型六角螺母 | Hexagon nut,style I | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 |
| 11 | Q150B0885 | 六角头螺栓 | Hexagon-headed bolt | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 |
| 12 | 1002076-B59-HMS20W | 提前器盖 | Advance decice cover | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| 13 | 1002077-B01-0000/J | 提前器盖垫片 | Gasket advance device cover | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| 14 | Q150B0850 | 六角头螺栓 | Hexagon-headed bolt | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 |
| 15 | Q150B0880 | 六角头螺栓 | Hexagon-headed bolt | 5 | 5 | 5 | 5 | 5 | 5 | 5 | 5 | 5 |
| 16 | Q150B0845 | 六角头螺栓 | Hexagon-headed bolt | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 |
| 17 | Q150B0830 | 六角头螺栓 | Hexagon-headed bolt | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 |
| 18 | Q150B0890 | 六角头螺栓 | Hexagon-headed bolt | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| 19 | Q150B0825 | 六角头螺栓 | Hexagon-headed bolt | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 |
| 20 | 1002079-B59-AS10 | 指针 | Pointer | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| 21 | 1003033-B01-0000 | 加机油口盖 | Oil filler cover | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| 22 | GB3452.1-92 | O 型圈 23.6x3.55 | Oil seal ring | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |

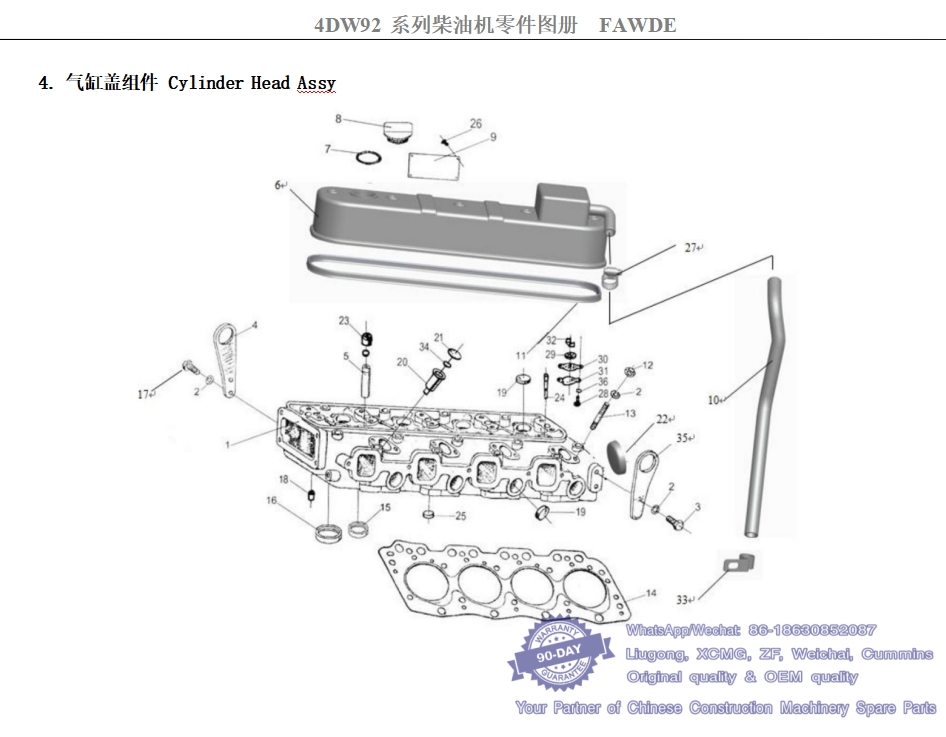

4. 气缸盖组件 Cylinder Head Assy-- FAW Diesel Engine 4DW92 Parts Catalogue
| 序号 Item | 零件件号 Part NO. | 零 件 名 称 Description | 数量 Quantity | ||||||||
| A | B | C | D | E | F | G | H | I | |||
| 1 | 1003010CB03-0000 | 气缸盖总成 Cylinder vhead vassy | l | l | l | l | l | l | l | l | l |
| 2 | Q40408F9 | 轻型弹簧垫圈 Spring washer,light type | 16 | 16 | 16 | 16 | 16 | 16 | 16 | 16 | 16 |
| 3 | Q150B0820 | 六角头螺栓 Hexagon-header bolt | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 |
| 4 | 1003058-B46-WZ1A | 前吊耳 Lifting eye plate | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| 5 | 1007032-B01-0000 | 气门导管 Valve guide pipe | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 8 |
| 6 | 1003040EB71-JB10 | 气缸盖罩供货总成 Cylinder head cover assy | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| 7 | GB 3452.1-92 | 0 型圈 23.6x3.55 O-Ring 23.6x3.55 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 |
| 8 | 1003033-B01-0000 | 加机油口盖 Oil filler cover | l | l | l | l | l | l | l | l | l |
| 9 | 1003038AB71-JB10 | 铭牌 Engine name plate | 1 | 1 | |||||||
| 1003038AB11-AS10 | 铭牌 Engine name plate | 1 | 1 | 1 | 1 | 1 | 1 | 1 | |||
| 10 | 1003116-B71-JB10 | 通气胶管 Ventilating pipe | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| 11 | 1003032AB01-0000 | 垫密条—气缸盖罩 Rubber sealing gasket-cylinder head cover | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| 12 | Q341B08 | I 型六角头螺母-细牙 Hexagon nut,style I | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 8 |
| 13 | 1003006-B03-0000 | 喷油器螺柱 Stud | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 8 |
| 14 | 1003022EB43-0000S | 气缸垫总成 Cylinder head gasket assy | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| 15 | 1007081AB03-0000 | 排气门座 Exhaust valve seat | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 |
| 16 | 1007082-B03-0000 | 进气门座 Intake valve seat | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 |
| 序号 Item | 零件件号 Part NO. | 零 件 名 称 Description | 数量 Quantity | |||||||||
| A | B | C | D | E | F | G | H | I | ||||
| 17 | Q150B0825 | 六角头螺栓 | Hexagon-header bolt | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 |
| 18 | 1003306BA01-0000 | 堵套 | Plug | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 |
| 19 | 1003093-B01-0000 | 碗形塞片 | Bowl-shapedplugplate | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 8 |
| 20 | 1003056-B01-0000 | 喷油器铜套 | Copper sheathing of fuel injector | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 |
| 21 | 1003095-B01-0000 | 铜套压紧圈 | Copper sheathing compacting ring | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 |
| 22 | Q72255 | 碗形塞片 | Bowl-shaped plug plate | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| 23 | 1007035AB01-0000 | 气门油封 | Airgate-oil seal | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 8 |
| 24 | 1003096-B01-0000 | 机油联接管 | Lubricating oil coupling pipe | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| 25 | 1003092-B01-0000 | 碗形塞片 | Bowl-shaped plug plate | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 |
| 26 | Q541026 | 标牌铆钉 | Rating plate clinch bolt | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 |
| 27 | Q676B25 | 夹箍 | Clamp | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| 28 | Q2140610 | 十字槽盘头螺钉 | Screw | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 |
| 29 | 1003036-B03-0000 | 钢丝绒 I | Steel wool filter I | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| 30 | 1003044AB03-0000 | 多孔挡板 | Perforated plate | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| 31 | 1003045BB03-0000 | 挡油板 | Cover pre-separator | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| 32 | 1003037-B03-0000 | 钢丝绒 II | Steel wool filter II | l | l | l | l | l | l | l | l | l |
| 33 | 1008039-153-0010 | 回水弯管管夹 | Pipe clamp | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| 34 | GB3452．1-92 | O 型圈 23.6x3.55 | O-Ring 23.6x3.55 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 |
| 35 | 1003057CB45-BFZ10 | 后吊耳 | Lifting eye plate | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| 36 | Q40306 | 弹簧垫圈 | Spring wadher | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 |

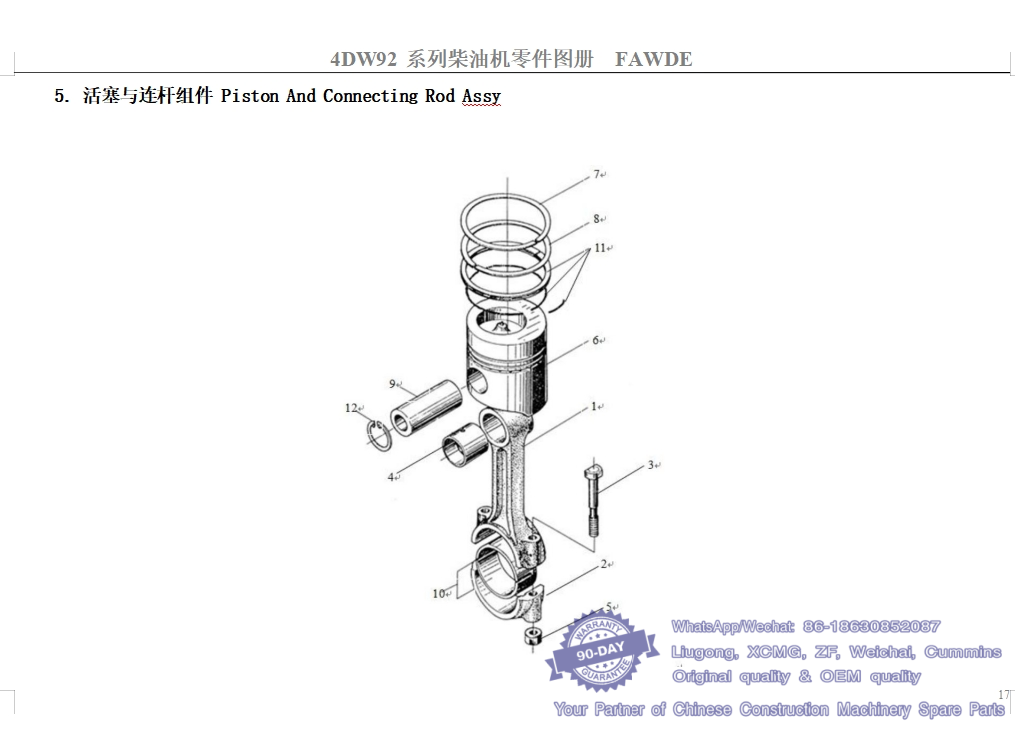

5. 活塞与连杆组件 Piston And Connecting Rod Assy-- FAW Diesel Engine 4DW92 Parts Catalogue
| 序号 Item | 零件件号 Part NO. | 零 件 名 称 Description | 数量 Quantity | |||||||||
| A | B | C | D | E | F | G | H | I | ||||
| 1004100AB43-0000 | 连杆总成 | Connecting rod assy | ||||||||||
| 1 | 1004101AB43-0000 | 连杆体 | Connecting rod | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 |
| 2 | 1004104AB43-0000 | 连杆盖 | Connecting rod big eng cap | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 |
| 3 | 1004102CB43-0000 | 连杆螺栓 | Connecting rod bolt | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 8 |
| 4 | 1004103AB03-0000 | 连杆小头衬套 | Connecting rod small eng bush | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 |
| 5 | 1004027-B01-0000 | 连杆螺母 | Connecting rod nut | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 8 |
| 6 | 1004011-B43-0000 | 活塞 | Piston | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 |
| 7 | 1004012-B43-0000 | 第一道气环 | 1st compression ring | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 |
| 8 | 1004013-B43-0000 | 第二道气环 | 2nd compression ring | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 |
| 9 | 1004002-B43-0000 | 活塞销 | Prston pin | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 |
| 10 | 1004003-B43-0000D | 连杆轴瓦 | Connecting rod bearing shell | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 8 |
| 11 | 1004200-B43-0000 | 油环部件 | Oilring parts | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 |
| 12 | Q5280510 | 挡圈 28 | Internal snap ring | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 8 |
4DW92 系 列 柴 油 机 零 件 图 册
PARTS CATALOGUE FOR 4DW92 DIESEL ENGINES
2013.04 Version
一汽解放汽车有限公司无锡柴油机厂
FAW JIEFANG AUTOMOTIVE COMPANY, LTD.
WUXI DIESEL ENGINE WORKS
Full range of spare parts for FAW Diesel Engine, whatsapp: 86-18630852087
4DW81-37 1.2~1.5T Loader Engine, 4DW91-45 1.5~1.6T Loader Engine, 4DW92-55 1.5~1.6T Loader Engine, 4DX21-72 1.6~1.8T Loader Engine,
4DX22-82 1.8~2T Loader Engine, 4DX22-96 1.8~2T Loader Engine, CA4110/125 2.6~2.8T Loader Engine, CA6DF1-12GG2 3T Loader Engine,
CA6DF1-17GG2 4T Loader Engine, CA6DL2-22G 5T Loader Engine, CA6DL2-22GG3 5T Loader Engine
4DW91-50G forklift engines, 4DW91-50G forklift engines, 4DW91-56G2 forklift engines,4DW91-56G2 forklift engines,
4110/125 forklift engines, 4110/125 forklift engines 4~5T forklift, 6110/125 forklift engines, 6110/125 forklift engines 5~10T forklift
6110/125ZT forklift engines, 6110/125ZT forklift engine 12T forklift, 6DF1-19GG2 forklift engines, 6DF1-19GG2 forklift engines 14T~16T forklift
4DW81-30GG2 Tractor Engine, 4DW81-35GG2 Tractor Engine, 4DW91-40GG2 Tractor Engine, 4DW91-45GG2 Tractor Engine,
4DW92-50GG2 Tractor Engine, 4DW92-55GG2 Tractor Engine
4DW91A50GG2 Harvester Engine, 4DW91-45GG2 Harvester Engine, 4DX21-63GG2 Harvester Engine, CA4110/125TAG2 Harvester Engine,
CA4110/125T Harvester Engine, CA4DF2-11GG2 Harvester Engine, CA4DF2-12GG2 Harvester Engine, CA4DF2-13GG2 Harvester Engine,
CA4DF2-14GG2 Harvester Engine, CA6110/125ZT Harvester Engine, CA6110/125ZT-18GG2 Harvester Engine, CA6DF1-16GG2 Harvester Engine
CA6DF1-16GAG2 Harvester Engine, CA6DF1-18GAG2 Harvester Engine, CA6DF1-18GG2 Harvester Engine, CA6DF1-19GG2 Harvester Engine,
CA6DF1-20GG2 Harvester Engine, CA6DF1-22GG2 Harvester Engine, CA6DL2-22GAG2 Harvester Engine, CA6DL2-24GG2 Harvester Engine,
CA6DL2-26GG2 Harvester Engine
4DW81-40GG2 diesel fire pump engines, 4DW91-45GG2 diesel fire pump engines
4DW92-68GG2 diesel fire pump engines, 4DW93-74GG2 diesel fire pump engines
4DX21-81GG2 diesel fire pump engines, 4DX22-110GG2 diesel fire pump engines
4DX23-120GG2 diesel fire pump engines, 4DX21-96 diesel fire pump engines
