101 331502434 CAB-- XCMG Mining Dump Truck XDR100 Parts Catalog
331505761 XDR100 MINING DUMP TRUCK

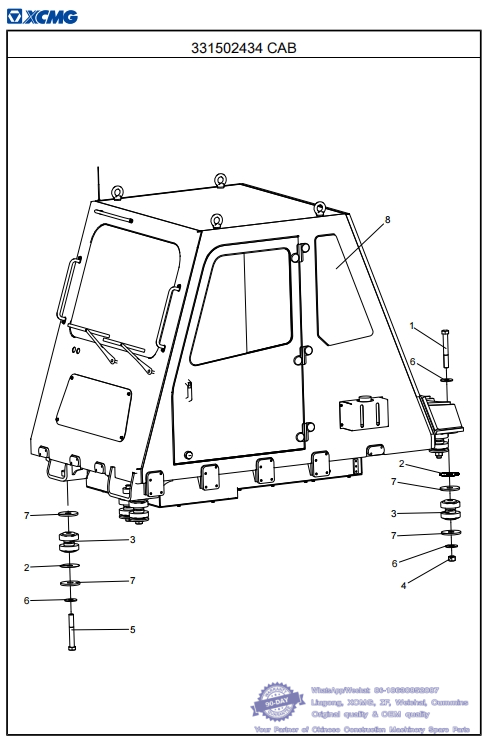

No. PART NUMBER QTY NAME NOTE PAGE
1 805049345 4 BOLT M30×230 GB/T5782-2000
2 331502436 21 CUSHION whatsapp 86-18630852087
3 802141158 7 DAMPER
4 805238768 4 NUT M30 GB/T6170-2000
5 805047028 3 BOLT M30×220 GB/T5782-2000
6 330104718 11 MAT
7 331502435 14 LARGE WASHER whatsapp 86-18630852087
8 331502441 1 DRIVER’S CAB 216
102 331502434 CAB-- XCMG Mining Dump Truck XDR100 Parts Catalog
331505761 XDR100 MINING DUMP TRUCK
No. PART NUMBER QTY NAME NOTE PAGE

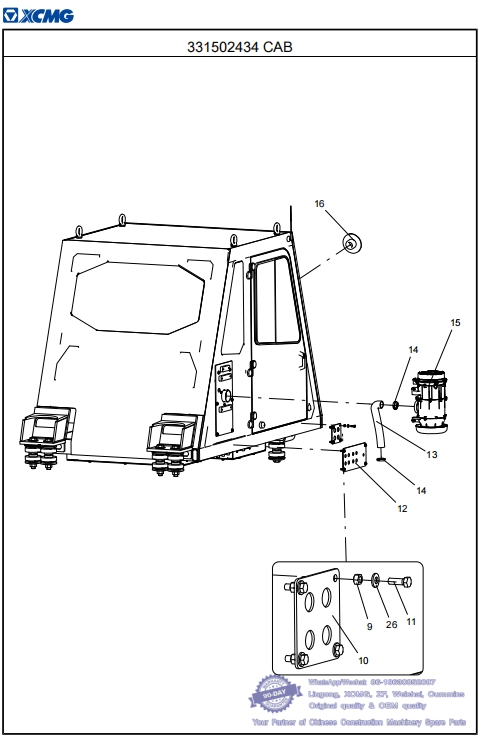

9 805238371 4 NUT M10 GB/T6170-2000 whatsapp 86-18630852087
10 331502440 1 SPACING PLATE
11 805046416 8 BOLT M10×30 GB/T5783-2000
12 331502439 1 PLATE
13 331504972 1 RUBBER HOSE whatsapp 86-18630852087
14 801971570 2 HOSE CLAMP D60 JB/T8870-1999
15 802139895 1 TURBOCHARGER 230
16 331505581 1 RUBBER PLUG
103 331502434 CAB-- XCMG Mining Dump Truck XDR100 Parts Catalog
331505761 XDR100 MINING DUMP TRUCK
No. PART NUMBER QTY NAME NOTE PAGE

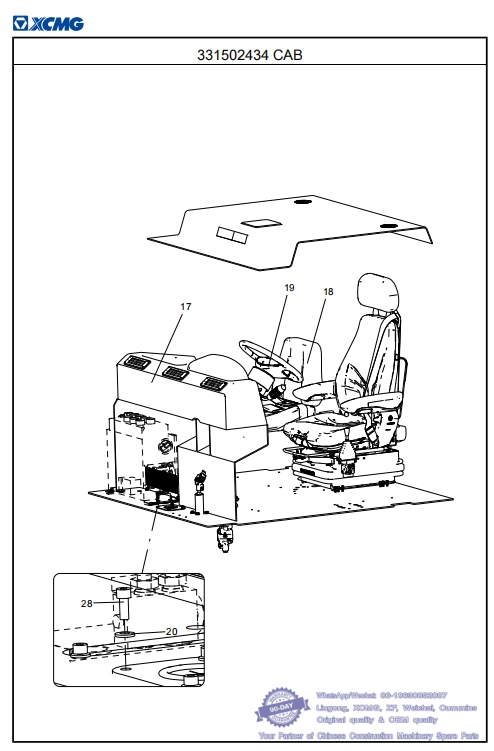

17 331500024 1 INSTRUMENT-DESK INTERIOR TRIM ASSEMBLY 232
18 802141866 1 SEAT ASSEMBLY 236 whatsapp 86-18630852087
19 803402428 1 STEERING COLUMN ASSEMBLY 238
20 805301384 24 WASHER 8 DIN6796 whatsapp 86-18630852087
104 331502434 CAB-- XCMG Mining Dump Truck XDR100 Parts Catalog
331505761 XDR100 MINING DUMP TRUCK
No. PART NUMBER QTY NAME NOTE PAGE

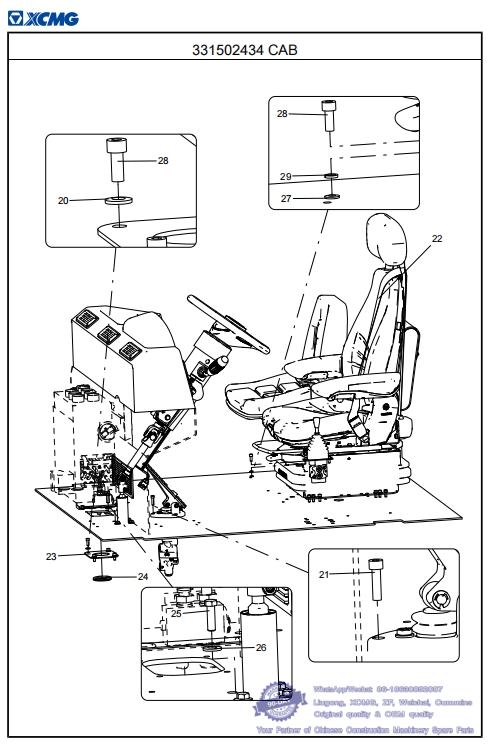

21 805139976 3 SCREW M8×30 GB/T70.1-2008 whatsapp 86-18630852087
22 330302014 1 DRIVER’S SEAT 240
23 331502438 1 PLATE
24 331502437 1 OVERLINE RUBBER RING
25 331505346 4 BOLT
26 805301373 12 WASHER 10 DIN6796 whatsapp 86-18630852087
27 805301383 2 WASHER 6 DIN6796
28 805104824 39 SCREW M8×20 GB/T70.1-2008
29 805338259 18 WASHER 8 GB/T93-1987 whatsapp 86-18630852087

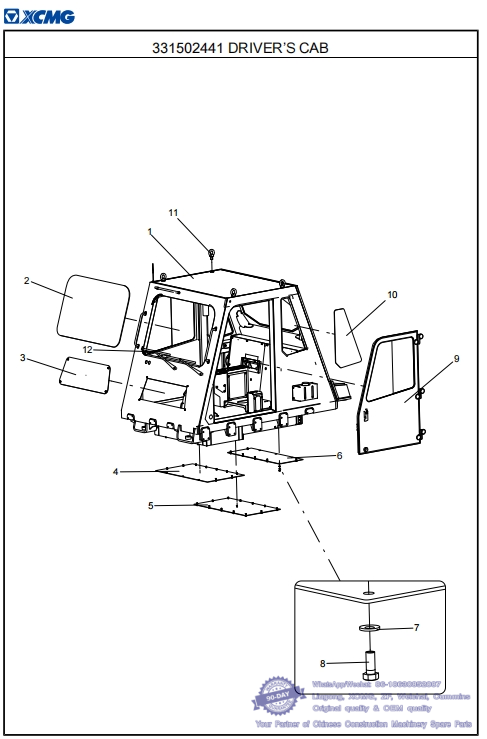

105 331502441 DRIVER’S CAB-- XCMG Mining Dump Truck XDR100 Parts Catalog
331502434 CAB
No. PART NUMBER QTY NAME NOTE PAGE
1 331502465 1 DRIVER’S CAB WELDING ASSEMBLY
2 331502459 1 GLASS whatsapp 86-18630852087
3 331502458 1 PLATE
4 331505558 1 FRONT SEALING PLATE
5 331505564 1 MIDDLE COVER PLATE
6 331505561 1 REAR SEALING PLATE
7 805301373 35 WASHER 10 DIN6796 whatsapp 86-18630852087
8 805011330 29 BOLT M10×25 GB/T5783-2000
9 331502464 1 CAR DOOR ASSEMBLY 224
10 331502463 2 GLASS
11 805141229 4 SCREW M24 GB/T825-1988 whatsapp 86-18630852087
12 802152164 1 WIPER ASSEMBLY (INCLUDING STANDARD INSTALLATION PARTS) 226
