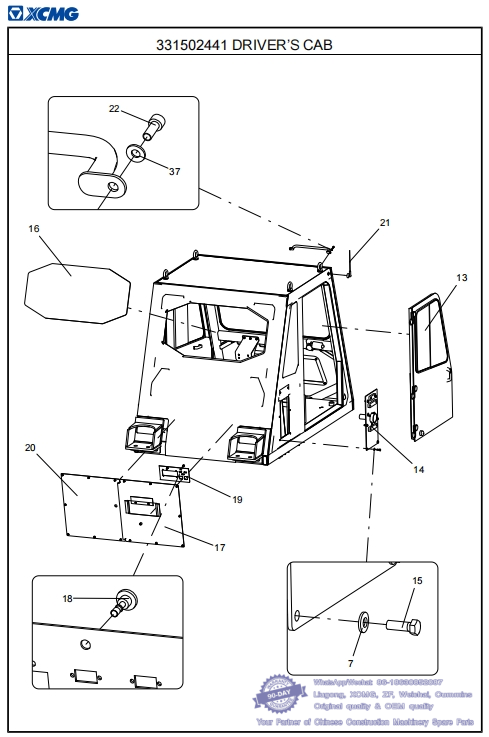

106 331502441 DRIVER’S CAB-- XCMG Mining Dump Truck XDR100 Parts Catalog
331502434 CAB
No. PART NUMBER QTY NAME NOTE PAGE
13 331502456 1 CAR DOOR ASSEMBLY 228 whatsapp 86-18630852087
14 331504233 1 TURBOCHARGER MOUNTING PLATE ASSEMBLY
15 805046416 6 BOLT M10×30 GB/T5783-2000
16 331502457 1 GLASS
17 331502448 1 WELDED PLATE whatsapp 86-18630852087
18 331502446 2 TURNTABLE SCREW
19 331502447 1 ACCESS BOARD
20 331502445 1 PLATE whatsapp 86-18630852087
21 802150758 1 ANTENNA II
22 805104824 54 SCREW M8×20 GB/T70.1-2008

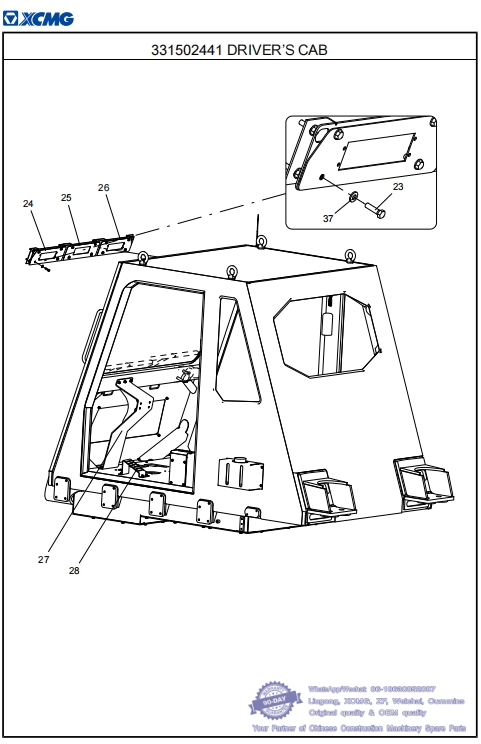

107 331502441 DRIVER’S CAB-- XCMG Mining Dump Truck XDR100 Parts Catalog
331502434 CAB
No. PART NUMBER QTY NAME NOTE PAGE
23 805046511 24 BOLT M8×30 GB/T5783-2000
24 331505622 2 FRONT BEAM CLOSURE PLATE whatsapp 86-18630852087
25 331505620 1 FRONT BEAM MOUNTING PLATE
26 331505626 1 FRONT BEAM MOUNTING PLATE
27 331502461 1 STEERING COLUMN BRACKET whatsapp 86-18630852087
28 331502449 1 FALSE PEDAL

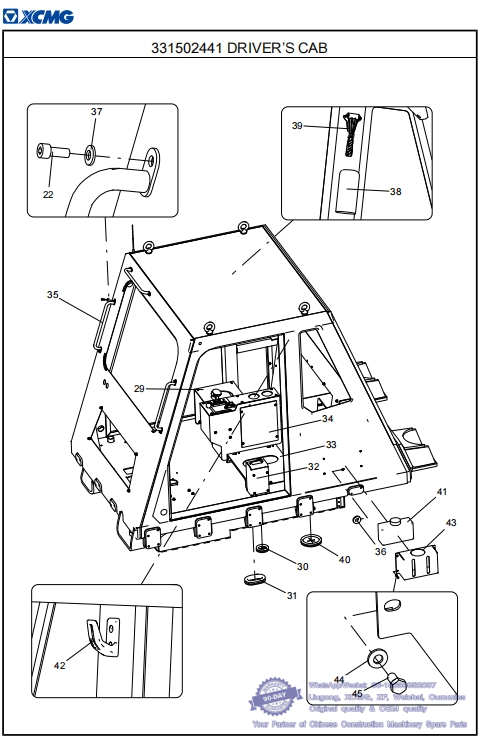

108 331502441 DRIVER’S CAB-- XCMG Mining Dump Truck XDR100 Parts Catalog
331502434 CAB
No. PART NUMBER QTY NAME NOTE PAGE
29 331502454 1 FRONT PASSENGER’S SEAT SUPPORT
30 331502452 1 OVERLINE RUBBER RING whatsapp 86-18630852087
31 330103705 1 OVERLINE RUBBER RING
32 331502450 1 LIFTING SUPPORT
33 331502451 1 MAIN SEAT SUPPORT
34 331502455 1 CONTROL CONSOLE ASSEMBLY
35 331502460 3 BANISTERS
36 331504359 3 OVERLINE RUBBER RING
37 805301384 78 WASHER 8 DIN6796
38 802150481 1 FIRE EXTINGUISHER whatsapp 86-18630852087
39 802157643 1 SAFETY HAMMER
40 331502453 1 OVERLINE RUBBER RING
41 802155468 1 WIPER WATER CAN
42 802157633 1 COAT AND HAT HOOK
43 331505609 1 KETTLE PROTECTION RACK whatsapp 86-18630852087
44 805301383 4 WASHER 6 DIN6796
45 805048925 4 BOLT M6×12 GB/T5783-2000

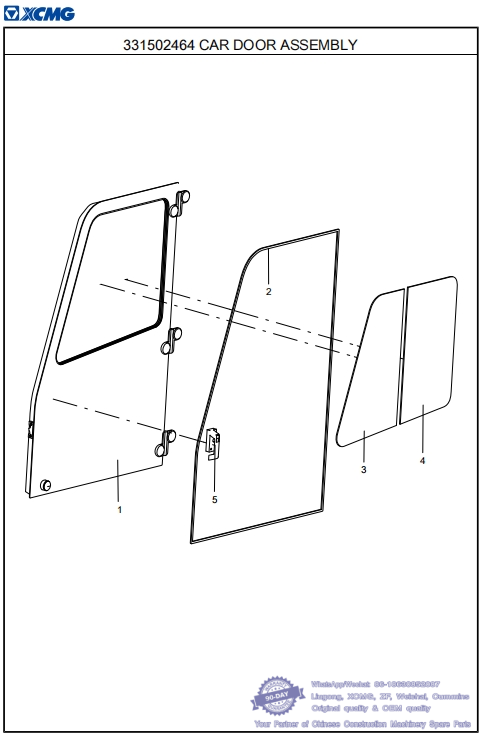

109 331502464 CAR DOOR ASSEMBLY-- XCMG Mining Dump Truck XDR100 Parts Catalog
331502441 DRIVER’S CAB
No. PART NUMBER QTY NAME NOTE PAGE
1 331505440 1 LEFT VEHICLE DOOR
2 802154682 1 DOOR SEALING CLIP whatsapp 86-18630852087
3 331504241 1 IN FRONT OF AUTO DOOR GLASS
4 331504242 1 IN REAR OF AUTO DOOR GLASS whatsapp 86-18630852087
5 802152165 1 LEFT DOOR LOCK ASSEMBLY (INCLUDING INNER AND OUTER HANDLE AND STANDARD INSTALLATION PARTS)

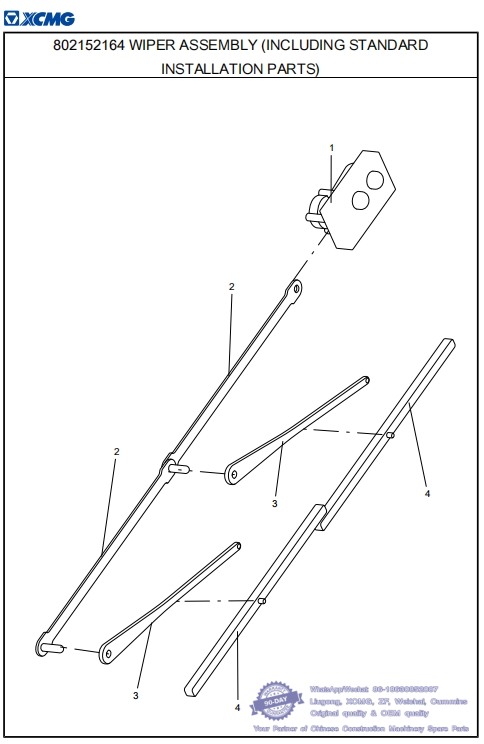

110 802152164 WIPER ASSEMBLY (INCLUDING STANDARD INSTALLATION PARTS)-- XCMG Mining Dump Truck XDR100 Parts Catalog
331502441 DRIVER’S CAB
No. PART NUMBER QTY NAME NOTE PAGE
1 802154756 1 WIPER MOTOR
2 802154759 2 WINDSHIELD WIPER LINKAGE whatsapp 86-18630852087
3 802154755 2 WINDSHIELD WIPER BLADE
4 802152163 2 WIPER BLADE whatsapp 86-18630852087
