106 800360659 FLUID POWER GEAR--BOX-- XCMG Motor Grader GR2205T Spare Parts Catalog
382301590 TRANSMISSION SYSTEM
No. PART NUMBER QTY NAME NOTE PAGE
1 860546151 1 ENGINE CONNECTION 220 whatsapp 86-18630852087
2 860546152 1 TORQUE CONVERTOR 222
3 860537971 1 ACTUATOR 224
4 860546153 1 TRANSFER CASE HOUSING 226
5 860546154 1 TRANSFER CASE HOUSING 228
6 860546016 1 IDLER GEAR 230
7 860546022 1 CLUTCHKV+K1 232
8 860546155 1 CLUTCH 234
9 860546024 1 CLUTCHKR+K2 238
10 860546156 1 CLUTCH 240
11 860546157 1 CLUTCH 242
12 860546026 1 CLUTCHK3+K4 244
13 860546158 1 OUTPUT DEVICE 246
14 860546015 1 OUTPUT DEVICE 248 whatsapp 86-18630852087
16 860546017 1 PARKING BRAKE 250
17 860537984 1 POWER OUTPUT DEVICE 252
18 860546159 1 POWER TAKE-OFF 254
19 860537988 1 POWER OUTPUT DEVICE 3 256
20 860546160 1 POWER TAKE-OFF 258
21 860537991 1 SHIFTING SYSTEM 1 260
22 800107860 1 SPEED CONTROL SYSTEM 262
23 860537993 1 FILTER ASM 266
24 860537996 1 PRESSURE REGULATOR 268
25 860546161 1 INDUCTION TRANSMITTER 270
26 860546162 1 INDUCTION TRANSMITTER 272
27 860546163 1 EMERGENCY STEERING PUMP ASSY 274
28 860546164 1 WATER FILLER NECK 276
29 860538007 1 TUBE 2 278
30 860546165 1 OIL PIPE 280
31 860546166 1 SCATTERED PARTS 282 whatsapp 86-18630852087
32 860546167 1 SCATTERED PARTS 284

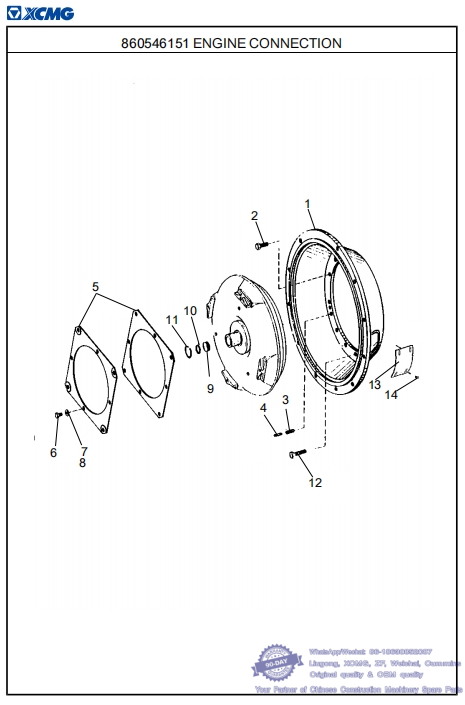

107 860546151 ENGINE CONECTION-- XCMG Motor Grader GR2205T Spare Parts Catalog
800360659 FLUID POWER GEAR-BOX
No. PART NUMBER QTY NAME NOTE PAGE
1 860157480 1 CONNECTING COVER SHELL whatsapp 86-18630852087
2 860546211 12 HEX BOLT
3 860546212 2 SLOTTED PIN
4 860546213 2 SLOTTED PIN
5 800107358 2 DIAPHRAGM
6 800365925 4 HEX BOLT whatsapp 86-18630852087
7 860546214 4 WASHER
8 860158163 8 THRUST WASHER
9 860546009 1 WASHER
10 860112694 1 O-RING
11 800308390 1 JUMP RING whatsapp 86-18630852087
12 860119598 2 HEX BOLT
13 860546215 1 COVER PLATE
14 860139667 4 HEX BOLT whatsapp 86-18630852087

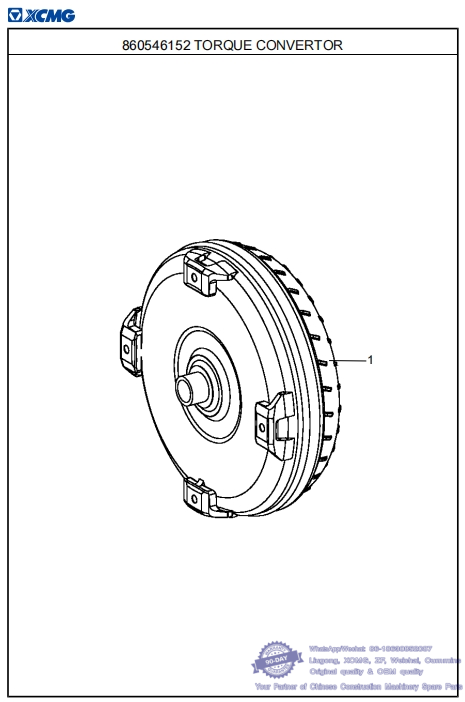

108 860546152 TORQUE CONVERTOR-- XCMG Motor Grader GR2205T Spare Parts Catalog
800360659 FLUID POWER GEAR-BOX
No. PART NUMBER QTY NAME NOTE PAGE
1 800352277 1 ADAPTER whatsapp 86-18630852087

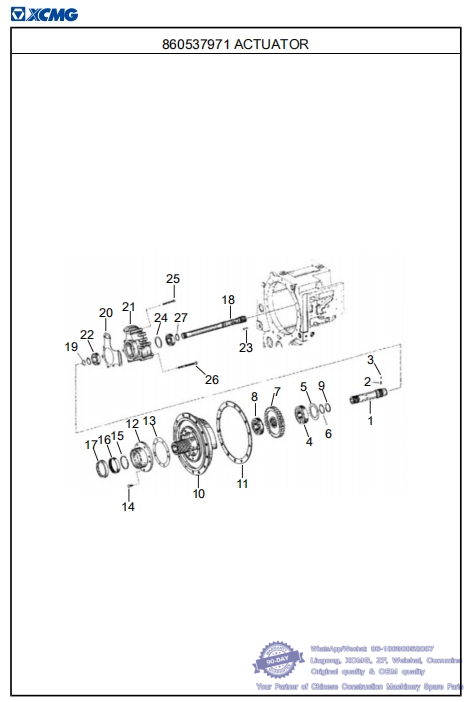

109 860537971 ACTUATOR-- XCMG Motor Grader GR2205T Spare Parts Catalog
800360659 FLUID POWER GEAR-BOX
No. PART NUMBER QTY NAME NOTE PAGE
1 860106312 1 INPUT SHAFT whatsapp 86-18630852087
2 860116272 1 SLOTTED PIN
3 860116273 1 SLOTTED PIN
4 860119319 1 BALL BEARING
5 860119320 1 SHIM
6 860119323 1 RETAINING RING
7 860116327 1 INPUT GEAR
8 860119318 1 BEARING
9 860119324 1 PISTON RING
10 860116380 1 FLANK
11 860116160 1 GASKET whatsapp 86-18630852087
12 860116320 1 BEARING COVER
13 860116157 1 GASKET
14 860116430 1 HEX BOLT
15 860110289 1 SEALING RING
16 800352181 1 NEEDLE SLEEVE
17 860110290 1 SHAFT SEALING INSTRUMENT
18 860116334 1 OUTPUT SHAFT
19 860116295 1 RRING
20 860116185 1 PAPER PAD whatsapp 86-18630852087
21 860116268 1 GEAR PUMP
22 860106243 2 BALL BEARING
23 860116275 1 FITTING KEY
24 860116433 1 WASHER
25 860116446 4 HEX BOLT
26 860116432 4 HEX BOLT whatsapp 86-18630852087
27 860106244 2 RETAINING RING

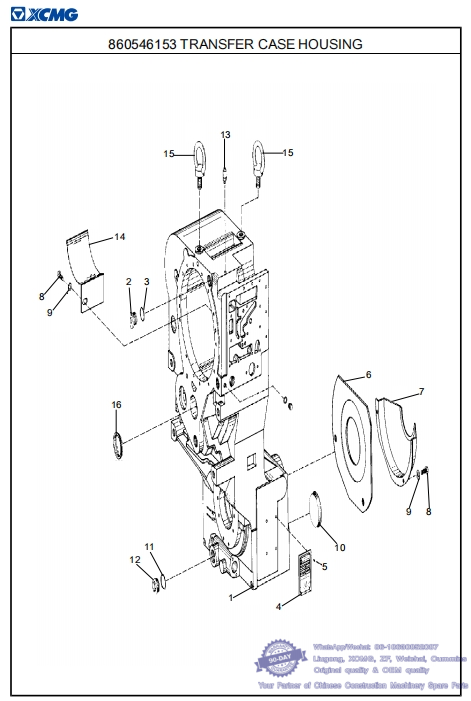

110 860546153 TRANSFER CASE HOUSING-- XCMG Motor Grader GR2205T Spare Parts Catalog
800360659 FLUID POWER GEAR-BOX
No. PART NUMBER QTY NAME NOTE PAGE
1 860116349 1 TRANSMISSION HOUSING whatsapp 86-18630852087
2 860546217 1 SCREW PLUG
3 860116285 1 O-RING
4 860545994 1 SHAPING PLATE
5 860546225 1 TAPE
6 860143948 1 COVER PLATE whatsapp 86-18630852087
7 800106851 1 COVER PLATE
8 860545974 3 PLUG SCREW
9 860129505 3 WASHER
10 800106758 2 SEALING CUP
11 860546226 1 ORING
12 800107284 1 PLUG SCREW whatsapp 86-18630852087
13 800106688 1 VENT CAP
14 860114331 1 CHASING
15 800364759 2 LIFTING BOLT
16 860119563 1 SEALING CAP whatsapp 86-18630852087
