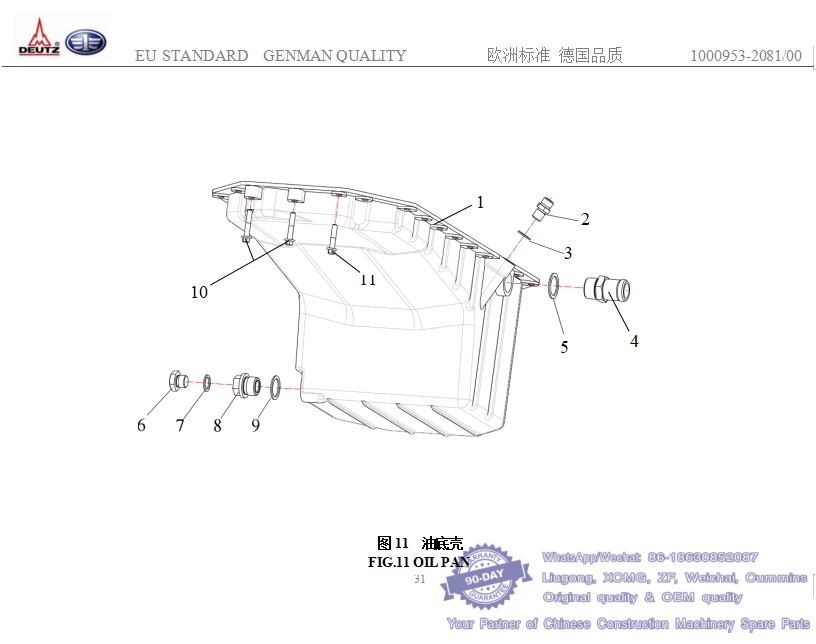

11、油底壳 OIL PAN-- Dalian Deutz BF6M2012 T2&T3 Serial Engine Parts Catalog
标号 零件号 零件名称 数量
FIG. PART NO. PART NAME QTY.
1 1009010A56D 油底壳总成 OIL PAN 1
2 1009044-56D 接头-机油标尺管 DIPSTICK-GUIDE PIPE JOINT 1
3 CQ72316 垫密圈 GASKET 1
4 1009042-56D 接头-加机油管 OIL FILLER PIPE JOINT 1
5 CQ72333 垫密圈 GASKET 1
6 1009022-56D 放油螺塞 SCREW PLUG 1
7 CQ72320 垫密圈 GASKET 1 whatsapp 86-18630852087
8 1009021-56D 放油螺塞座 SCREW SET 1
9 CQ72330 垫密圈 GASKET 1
10 Q1840840TF36 六角头凸缘螺栓 HEXAGON BOLT 4 whatsapp 86-18630852087
11 Q1840825TF36 六角头凸缘螺栓 HEXAGON BOLT 24

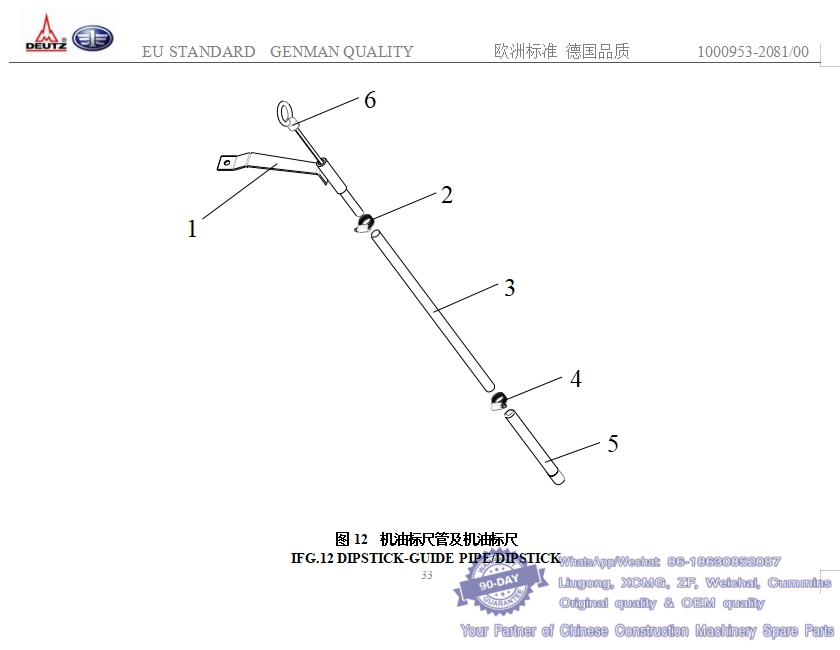

12、机油标尺管及机油标尺 DIPSTICK GUIDE PIPE/DIPSTICK-- Dalian Deutz BF6M2012 T2&T3 Serial Engine Parts Catalog
标号 零件号 零件名称 数量
FIG. PART NO. PART NAME QTY.
1 1009065A56D 上机油标尺管总成 UPPER DIPSTICK-GUIDE PIPE ASSEMBLY 1
2 CQ67612 管箍 DIN 3017-B1-12x9-W1-2 CLAMP DIN 3017-B1-12x9-W1-2 1
3 1009062-56D 下机油标尺管 LOWER DIPSTICK-GUIDE PIPE ASSEMBLY 1 whatsapp 86-18630852087
4 CQ67616 管箍 DIN 3017-B1-15x9-W1-2 CLAMP DIN 3017-B1-15x9-W1-2 1
5 1009061-56D 导管 GUIDE 1 whatsapp 86-18630852087
6 1009670-56D 机油标尺总成 H 3535-BG - 690- 657X 13-OE DIPSTICK H 3535-BG - 690- 657X 13-OE 1
13、机油收集器 OIL SUCTION PIPE-- Dalian Deutz BF6M2012 T2&T3 Serial Engine Parts Catalog
标号 零件号 零件名称 数量
FIG. PART NO. PART NAME QTY.
1 1010010A56D 机油收集器总成 OIL SUCTION PIPE ASSEMBLY 1 whatsapp 86-18630852087
2 1010018-52D 密封垫-机油收集器 GASKET 1
3 1010627-52D 六角头凸缘螺栓 EN 1662 -F-M8X55- 10.9-ZNAL-A HEXAGON BOLT EN 1662-F-M8X55-10.9-ZNAL-A 2

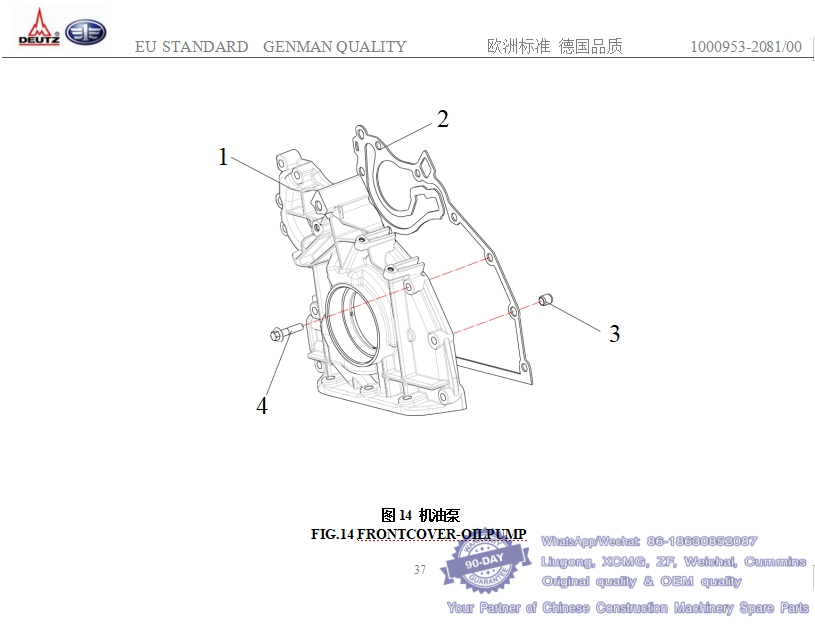

14、机油泵 OIL PUMP-- Dalian Deutz BF6M2012 T2&T3 Serial Engine Parts Catalog
标号 零件号 零件名称 数量
FIG. PART NO. PART NAME QTY.
1 1011015-56D 前端盖总成 FRONTCOVER-OILPUMP 1 whatsapp 86-18630852087
2 1011011-56D 密封垫 GASKET 1
3 01181406 弹性圆柱销 H 02341 -B11X8-FE/ZN12C CLAMPING BUSH H 02341 -B11X8-FE/ZN12C 1 whatsapp 86-18630852087
4 1009626-52D 六角头凸缘螺栓 EN 1662 -F-M8X35-10.9-ZNAL-A HEXAGON BOLT EN 1662-F-M8X35-10.9- ZNAL-A 12

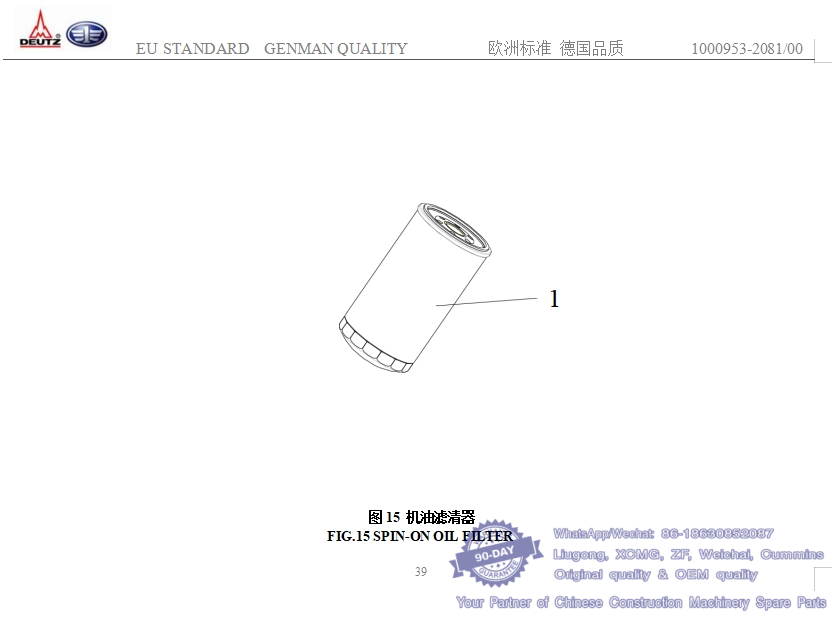

15、机油滤清器 SPIN-ON OIL FILTER-- Dalian Deutz BF6M2012 T2&T3 Serial Engine Parts Catalog
标号 零件号 零件名称 数量
FIG. PART NO. PART NAME QTY.
1 1012010A52D 机油滤清器总成 SPIN-ON OIL FILTER 1
Full range of spare parts for Dalian Deutz Diesel Engine, whatsapp: 86-18630852087
Engine Model Rated power/ Speed kW /r/min, Max. Torque/Speed N.m / r/min , Aspiration, Emission
BF4M2012 90kW/2500rpm 410N.m/1500rpm Turbocharged & Intercooler Euro II
BF4M2012C 98kw/2500rpm 493N.m/1500rpm Turbocharged & Intercooler Euro II
BF6M2012 147kw/2500rpm 743N.m/1500rpm Turbocharged & Intercooler Euro II
