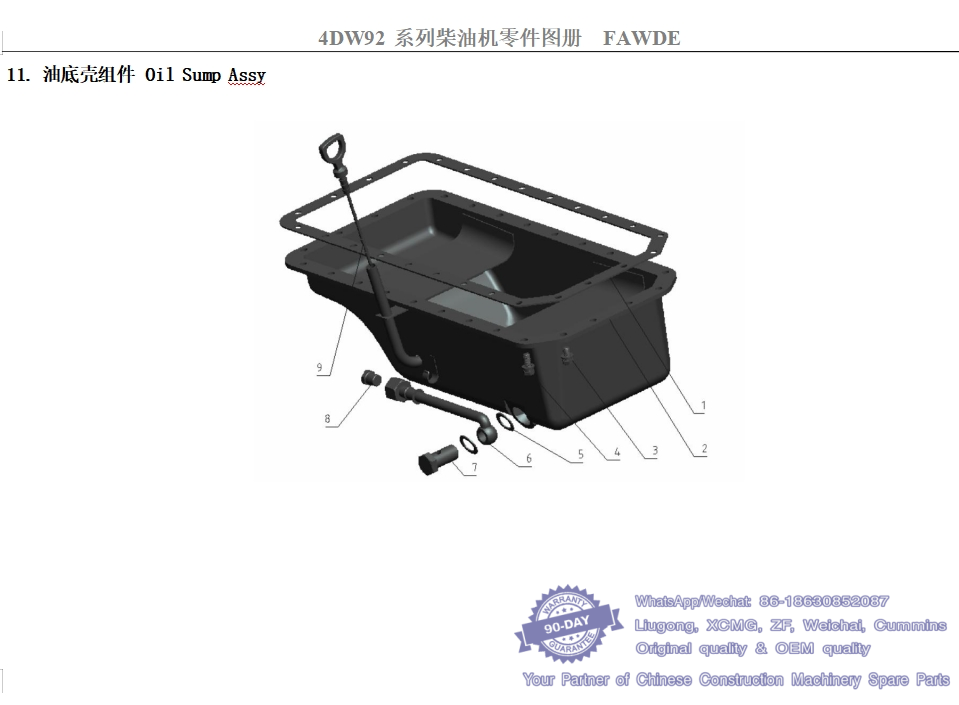

11. 油底壳组件 Oil SumpAssy-- FAW Diesel Engine 4DW92 Parts Catalogue
| 序号 Item | 零件件号 Part NO. | 零 件 名 称 Description | 数量 Quantity | ||||||||
| A | B | C | D | E | F | G | H | I | |||
| 1 | 1009031-B01-0000 | 油底壳密封垫片 Oil sump gasket | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| 2 | 1009010-B11-AS10 | 油底壳总成 Oil sump assy | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| 3 | Q1460816 | 六角头螺栓、弹簧垫圈和平垫圈组合件 Hexagon-headed bolt , washer and spring washer assy | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 8 |
| 4 | Q1460820 | 六角头螺栓、弹簧垫圈和平垫圈组合件 Hexagon-headed bolt, washer and spring washer assy | 18 | 18 | 18 | 18 | 18 | 18 | 18 | 18 | 18 |
| 5 | Q/WC3403 20X30 | 垫圈 20x30 Sealing washer | 2 | 2 | 2 | 2 | 2 | 2 | 1 | 2 | 1 |
| 6 | 1009080-B11-AS10 | 放油管总成 Oil outlet | 1 | 1 | 1 | 1 | 1 | 1 | 0 | 1 | 0 |
| 7 | Q/XC3451.1-2002 M20X1.5 | 铰接螺栓 M20X1.5 Swing bolt | 1 | 1 | 1 | 1 | 1 | 1 | 0 | 1 | 0 |
| Q617B20 | 六角头螺塞 Hexagon-headed plug | 1 | 1 | ||||||||
| 8 | Q618B02 | 六角头锥形螺塞 Hexagon-headed taper plug | 1 | 1 | 1 | 1 | 1 | 1 | 0 | 1 | 0 |
| 9 | 1009070-B11-AS10 | 机油标尺总成 Oil dipstick assy | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |

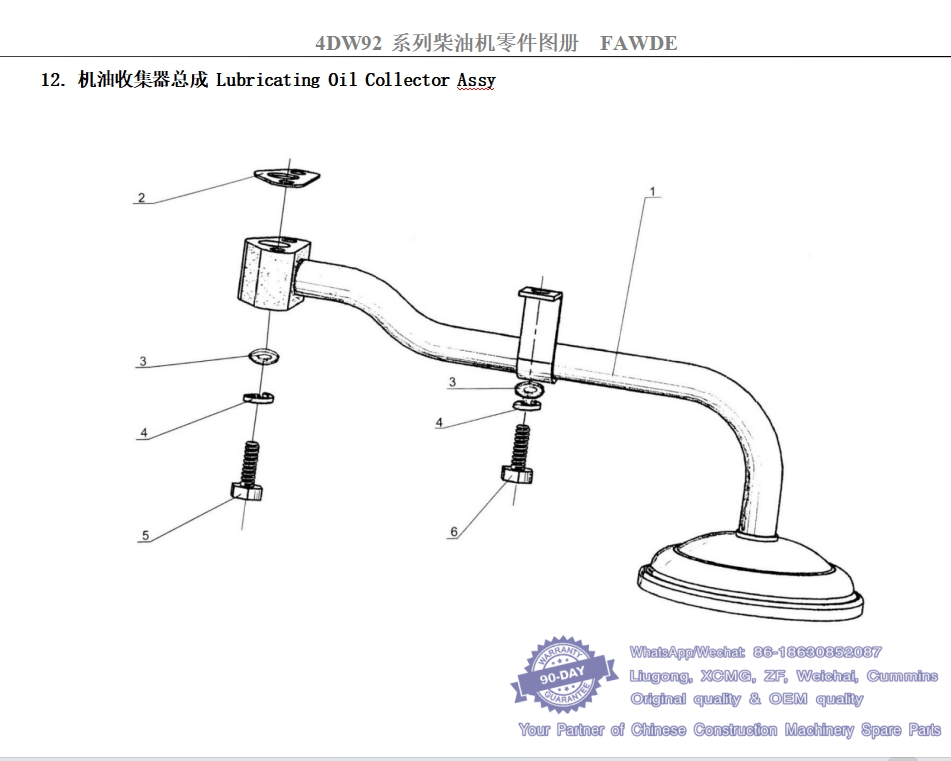

12. 机油收集器总成 Lubricating Oil Collector Assy-- FAW Diesel Engine 4DW92 Parts Catalogue
| 序号 Item | 零件件号 Part NO. | 零 件 名 称 Description | 数量 Quantity | |||||||||
| A | B | C | D | E | F | G | H | I | ||||
| 1 | 1010010-B01-0000F | 机油收集器总成 | Colldctor assy | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| 1010010BB01-0000（选装） | 机油收集器总成 | Colldctor assy | 1 | 1 | ||||||||
| 2 | 1010011-B01-0000 | 垫密片 | Wasller | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| 3 | Q40108 | 平垫圈 | Caskct | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 |
| 4 | Q40408 | 弹簧垫片 | Spring washcr | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 |
| 5 | Q150B0840 | 六角头螺栓 | Hexagon-headed bolt | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 |
| 6 | Q150B0816 | 六角头螺栓 | Hexagon-headed bolt | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |

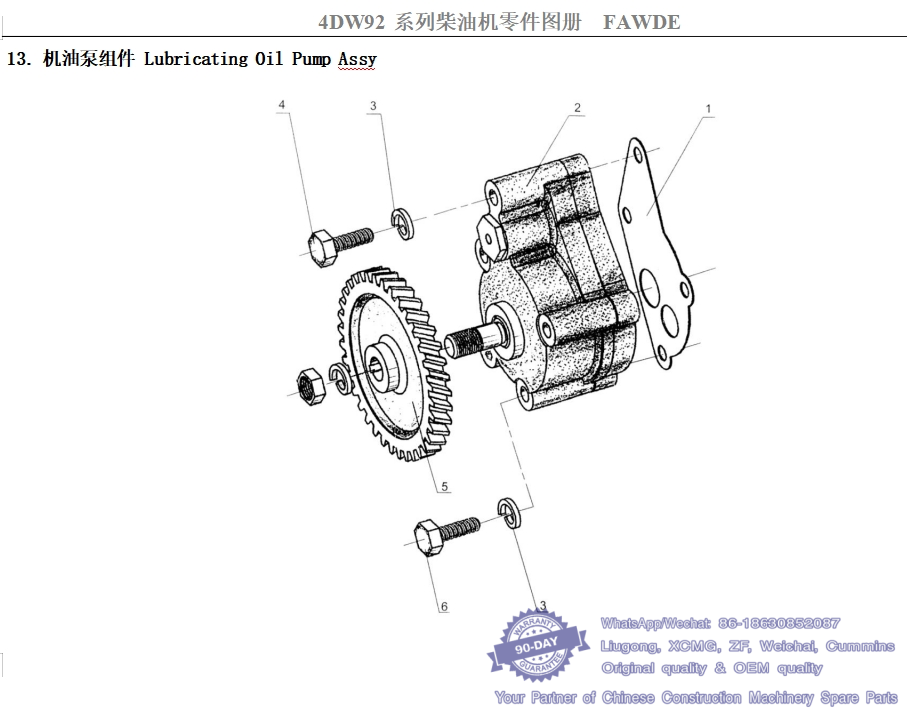

13. 机油泵组件 Lubricating Oil Pump Assy-- FAW Diesel Engine 4DW92 Parts Catalogue
| 序号 Item | 零件件号 Part NO . | 零 件 名 称 | 数量 Quantity | |||||||||
| Description | A | B | C | D | E | F | G | H | I | |||
| 1011000-B03-0000 | 机油泵组件 | Lubricating oil pump | ||||||||||
| 1 | l0ll017ABO3-0000 | 垫片—机油泵 | Washer-oil pump | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| 2 | 1011010AB03-0000 | 机油泵总成 | Lubricating oil pump assy | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| 3 | Q40310 | 弹簧垫圈 | Spring washer | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 |
| 4 | Q1420650 | 六角头螺栓 | Hexagon-headed bolt | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 |
| 5 | 1011014-B03-0000 | 从动齿轮—机油泵 | Gear-oil pump | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| 6 | Q341B10 | I 型六角螺母 | Hexagon-headed bolt | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |

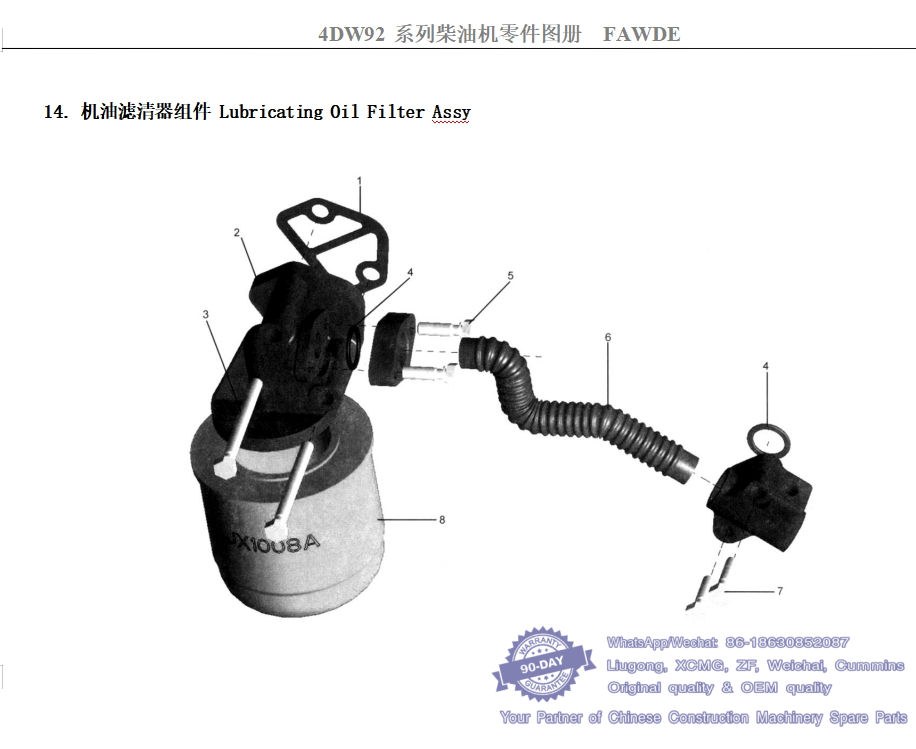

14. 机油滤清器组件 Lubricating Oil Filter Assy-- FAW Diesel Engine 4DW92 Parts Catalogue
| 序号 Item | 零件件号 Part No. | 零 件 名 称 Description | 数量 Quantity | ||||||||
| A | B | C | D | E | F | G | H | I | |||
| 1 | 1012027BB61-0000 | 机油滤清器座垫片 Lubricating oil filter seat gasket | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| 2 | 1012011AB61-0000 | 机油滤清器座 Luhricating oil filter seat | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| 3 | Q1420825 | 六角头螺栓和弹簧垫圈组合 Hexagon-headed bolt，spring washer assy | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 |
| 4 | GB／T3452.1-82 | O 型橡胶密封圈 22.4x2.65 O-ring 22.4x2.65 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 |
| 5 | Q1421090 | 六角头螺栓和弹簧垫圈组合 Hexagon-headed bolt， spring | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 |
| washer assy | |||||||||||
| 6 | 1012200BB61-0000 | 机油滤清器出油管总成 Oil filter exit pipe assy | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| 7 | Q1420840 | 六角头螺栓和弹簧垫圈组合 Hexagon-headed bolt，spring washer assy | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 |
| 8 | 1012101-A02-0000 | 旋装式机油滤清器 Lubricating oil filter element | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |

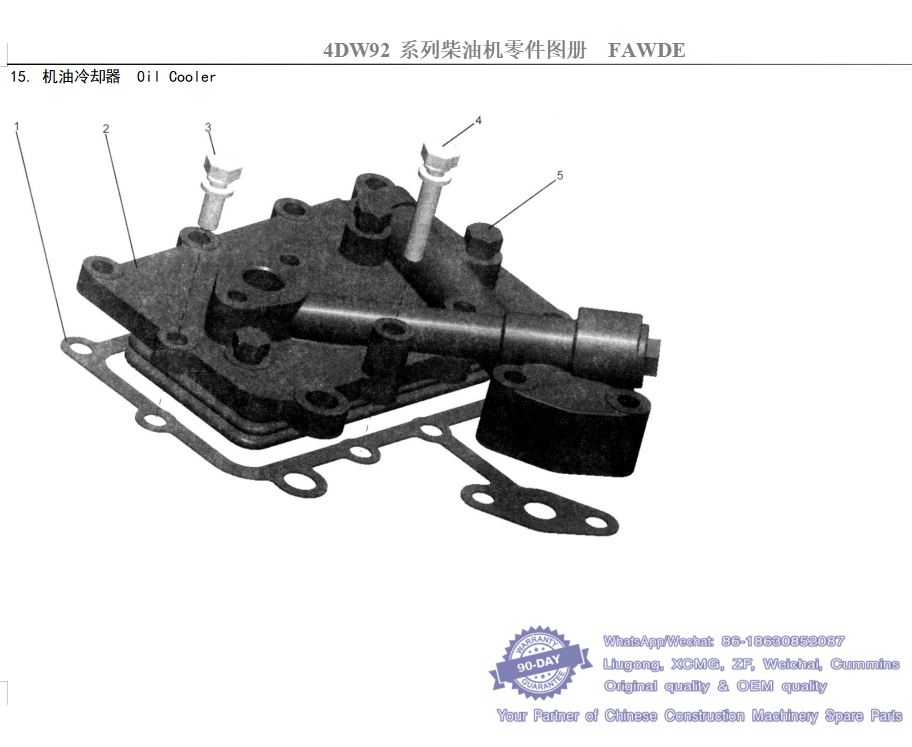

15. 机油冷却器组件 0il Cooler-- FAW Diesel Engine 4DW92 Parts Catalogue
| 序号 Item | 零件件号 Part NO. | 零 件 名 称 Description | 数量Quantity | ||||||||
| A | B | C | D | E | F | G | H | I | |||
| 1 | 1013001AB03-0000 | 机油冷却器盖垫片 Lubricating oil cooler | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| cover gasket | |||||||||||
| 2 | 1013100AB03-0000R | 机油冷却器总成 Oil cooler assy | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| 3 | Q1460825 | 六角头螺栓、弹簧垫圈及平垫圈组合件 | 7 | 7 | 7 | 7 | 7 | 7 | 7 | 7 | 7 |
| Hexagon-headed bolt,washer and spring washer assy | |||||||||||
| 4 | Q1460860 | 六角头螺栓、弹簧垫圈及平垫圈组合件 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Hexagon-headed bolt,washer and spring washer assy | |||||||||||
| 5 | Qt460845 | 六角头螺栓、弹簧垫圈及平垫圈组合件 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 |
| Hexagon-headed bolt,washer and spring washer | |||||||||||
| assy | |||||||||||
