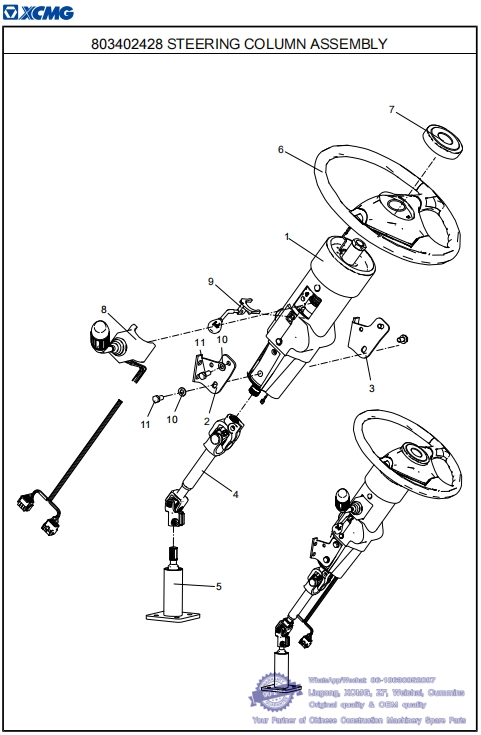

116 803402428 STEERING COLUMN ASSEMBLY-- XCMG Mining Dump Truck XDR100 Parts Catalog
331502434 CAB
No. PART NUMBER QTY NAME NOTE PAGE
1 803496170 1 STEERING COLUMN BODY whatsapp 86-18630852087
2 803496169 1 LEFT FIXED SUPPORT
3 803496163 1 RIGHT FIXED SUPPORT
4 803496167 1 UNIVERSAL JOINT
5 803496168 1 FIXING BASE SEAT
6 803496164 1 STEERING WHEEL whatsapp 86-18630852087
7 803496166 1 TRUMPET
8 803496165 1 COMBINED SWITCH
9 803496162 1 ADJUSTMENT LEVER
10 805338279 4 WASHER 10 GB/T97.1-2002 whatsapp 86-18630852087
11 805002068 4 BOLT M10×22 GB/T5783-2000

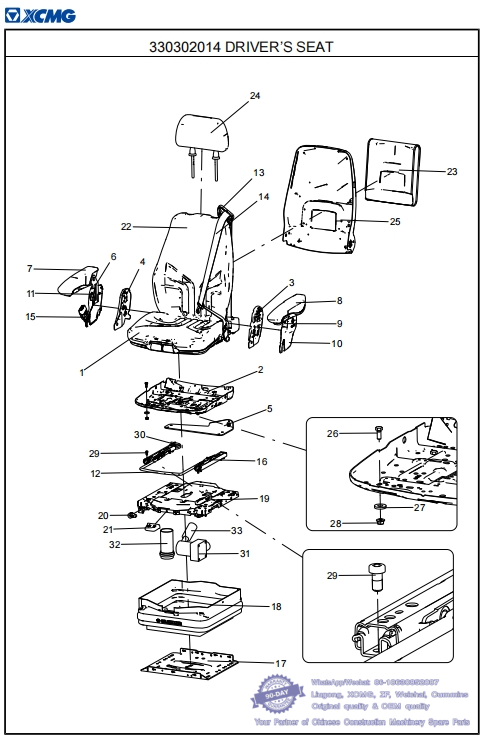

117 330302014 DRIVER’S SEAT- XCMG Mining Dump Truck XDR100 Parts Catalog
331502434 CAB
No. PART NUMBER QTY NAME NOTE PAGE
1 802155778 1 DRIVER’S SEAT CUSHION
2 802155779 1 SEAT CUSHION BASE PLATE whatsapp 86-18630852087
3 802155780 1 LEFT MOUNTING PLATE
4 802155781 1 RIGHT MOUNTING PLATE
5 802155782 1 PLATE
6 802155783 2 ARMREST MOUNTING BRACKET
7 802155784 1 RIGHT HANDRAIL
8 802155785 1 LEFT HANDRAIL
9 802155786 1 BACKREST ANGLE ADJUSTING HANDLE
10 802155787 1 LEFT GUARD PLATE
11 802155788 1 RIGHT GUARD PLATE
12 802155789 1 FRONT/REAR ADJUSTMENT LEVER
13 802155790 1 UPPER FIXED PLATE
14 802155791 1 DRIVER’S SEAT SAFETY BELT
15 802155792 1 SAFETY BELT SOCKET
16 802155793 1 LEAD WAY
17 802155794 1 MOUNTING BASE PLATE whatsapp 86-18630852087
18 802155795 1 AIRBAG
19 802155796 1 AIRBAG MOUNTING BRACKET
20 802155797 1 SHOCK ABSORBER ADJUSTMENT LEVER
21 802155798 1 HEIGHT ADJUSTMENT LEVER
22 802155857 1 BACKREST
23 802155800 1 STORAGE BAG
24 802155801 1 HEADREST
25 802155858 1 REAR BACKUP PLATE
26 805046508 4 BOLT M8×20 GB/T5783-2000
27 802155805 4 WASHER
28 805238400 4 NUT M8 GB/T6177.1-2000
29 802155806 8 M8×16SCREW whatsapp 86-18630852087
30 802155804 1 POWER CONNECTOR
31 802156745 1 COMPRESSOR
32 802156746 1 GAS SPRING
33 802156747 1 BUFFER CYLINDER

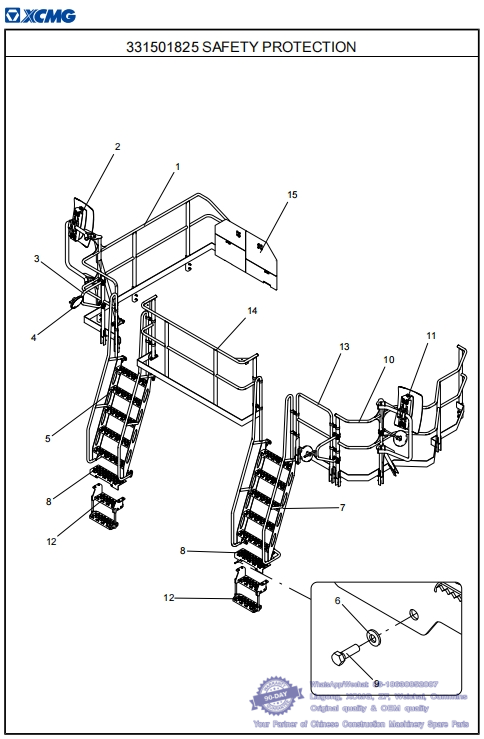

118 331501825 SAFETY PROTECTION-- XCMG Mining Dump Truck XDR100 Parts Catalog
331505761 XDR100 MINING DUMP TRUCK
No. PART NUMBER QTY NAME NOTE PAGE
1 331501832 1 RIGHT GUARDRAIL whatsapp 86-18630852087
2 331501833 1 RIGHT REAR VIEW MIRROR ASSEMBLY 252
3 331500158 2 BRACKET OF MIRROR IN THE DEAD ZONE
4 801968416 3 COUNTERWEIGHT LIGHT REFLECTOR
5 331501831 1 INCLINED LADDER
6 805301384 8 WASHER 8 DIN6796
7 331501829 1 INCLINED LADDER whatsapp 86-18630852087
8 331501837 2 PEDAL
9 805046509 8 BOLT M8×25 GB/T5783-2000
10 331505455 1 LEFT GUARDRAIL
11 331501826 1 LEFT REAR VIEW MIRROR ASSEMBLY 256
12 331500168 2 HOOK LADDER 260
13 331505456 1 FRONT GUARDRAIL whatsapp 86-18630852087
14 331501830 1 MIDDLE RAILING
15 331501834 1 HEAT SHIELD ASSEMBLY

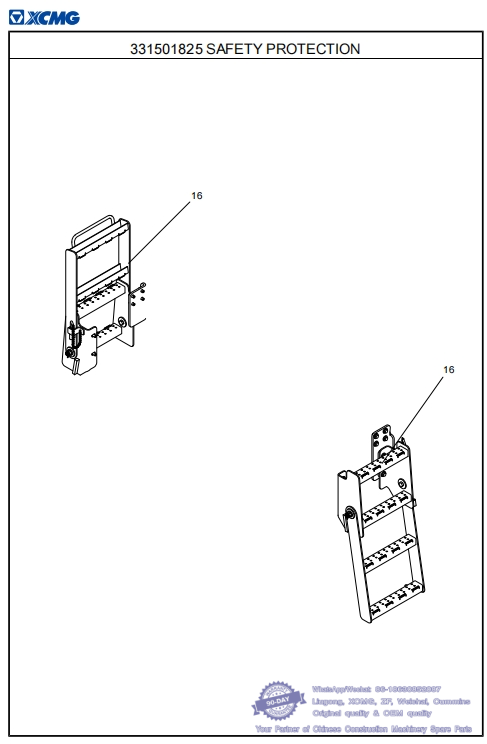

119 331501825 SAFETY PROTECTION- XCMG Mining Dump Truck XDR100 Parts Catalog
331505761 XDR100 MINING DUMP TRUCK
No. PART NUMBER QTY NAME NOTE PAGE
16 331502837 1 OVERHAUL LADDER ASSEMBLY 262 whatsapp 86-18630852087

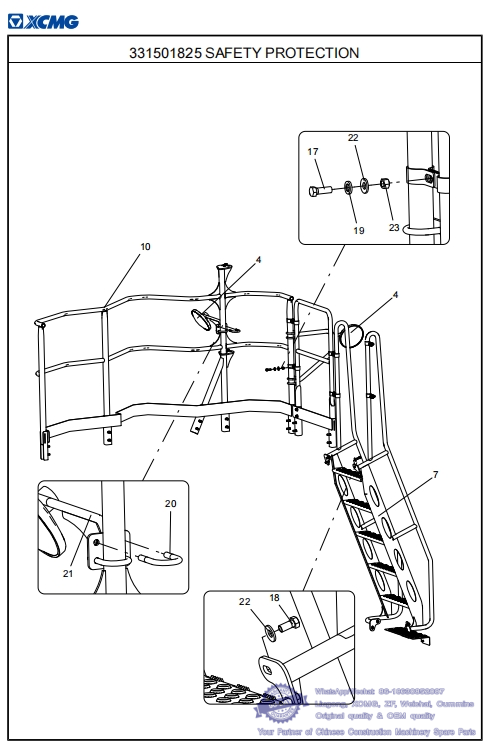

120 331501825 SAFETY PROTECTION-- XCMG Mining Dump Truck XDR100 Parts Catalog
331505761 XDR100 MINING DUMP TRUCK
No. PART NUMBER QTY NAME NOTE PAGE
17 805006413 57 BOLT M12×35 GB/T5783-2000 whatsapp 86-18630852087
18 805046469 36 BOLT M12×25 GB/T5783-2000
19 805338313 15 WASHER 12 GB/T1230-2006
20 805047594 10 BOLT 48 JB/ZQ4321-2006
21 331503121 1 BRACKET OF MIRROR IN THE DEAD ZONE
22 805301374 113 WASHER 12 DIN6796
23 805238372 43 NUT M12 GB/T6170-2000 whatsapp 86-18630852087
