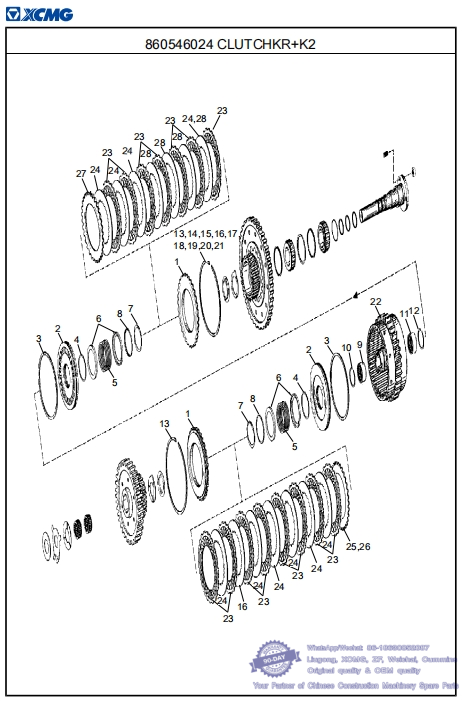

116 860546024 CLUTCHKR+K2-- XCMG Motor Grader GR2205T Spare Parts Catalog
800360659 FLUID POWER GEAR-BOX
No. PART NUMBER QTY NAME NOTE PAGE
1 800106921 2 END SHIM whatsapp 86-18630852087
2 860546816 2 PISTON
3 860139053 2 PROFILE SEALING RING
4 860139054 2 PROFILE SEALING RING
5 860139052 2 COMPRESSION SPRING
6 860139055 4 GUIDE RING
7 860517080 2 RETAINER RING
8 860139056 2 GUIDE RING
9 860119617 1 NEEDLE SLEEVE
10 800308456 1 ELASTICITY RETAINER RING
11 860119619 1 NEEDLE SLEEVE
12 800308457 1 ELASTICITY RETAINER RING
13 800308397 2 SNAP RING
14 860157305 2 SNAP RING whatsapp 86-18630852087
15 860151518 2 SNAP RING
16 860151517 2 SNAP RING
17 860151516 2 SNAP RING
18 860151515 2 SNAP RING
19 860151521 2 SNAP RING
20 860151520 2 SNAP RING
21 860151519 2 SNAP RING
22 860546808 1 CLUTCH GUIDE WHEEL CARRIER
23 860139046 15 CLUTCH OUTPUT DISC
24 800106928 11 INTERNAL FRICTION DISC
25 860143070 1 EXTERNAL FRICTION DISCZF
26 860546811 1 EXTERNAL FRICTION DISC
27 860139048 1 CLUTCH OUTPUT DISC
28 800106927 4 INTERNAL FRICTION DISC whatsapp 86-18630852087

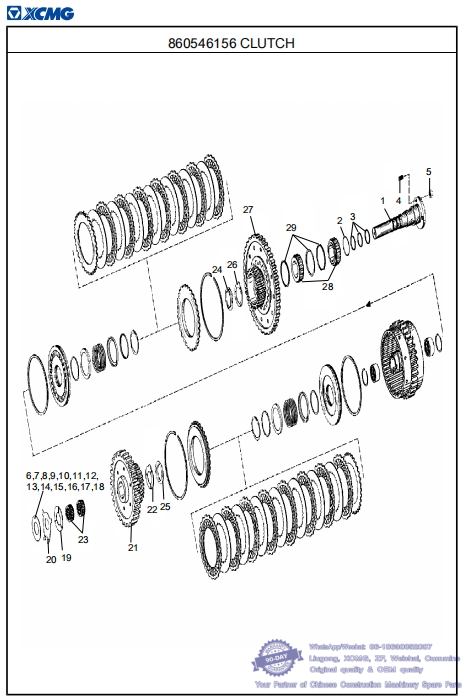

117 860546156 CLUTCH-- XCMG Motor Grader GR2205T Spare Parts Catalog
800360659 FLUID POWER GEAR-BOX
No. PART NUMBER QTY NAME NOTE PAGE
1 860505983 1 AXLE
2 860119603 1 O-RING whatsapp 86-18630852087
3 860517066 3 BUCKLE SEALING RING
4 860116248 2 STUD
5 860116184 2 NUT
6 819911356 1 GASKET
7 800106668 1 GASKET
8 800106669 1 GASKET
9 800106670 1 GASKET
10 800308353 1 GASKET
11 860116355 1 GASKET
12 860116356 1 GASKET
13 860116357 1 GASKET
14 860116358 1 GASKET
15 860116359 1 GASKET
16 860116360 1 GASKET whatsapp 86-18630852087
17 860116361 1 GASKET
18 860116362 1 GASKET
19 800107063 1 THRUST WASHER
20 860119631 1 THRUST WASHER
21 860546041 1 GEAR
22 800107065 1 THRUST WASHER
23 800107088 2 BEARING
24 860139063 1 THRUST WASHER
25 860517076 1 LOCK PLATE
26 860139051 1 WASHER
27 800106839 1 GEAR
28 800107090 1 BEARING
29 860119633 3 ANGLE RING whatsapp 86-18630852087

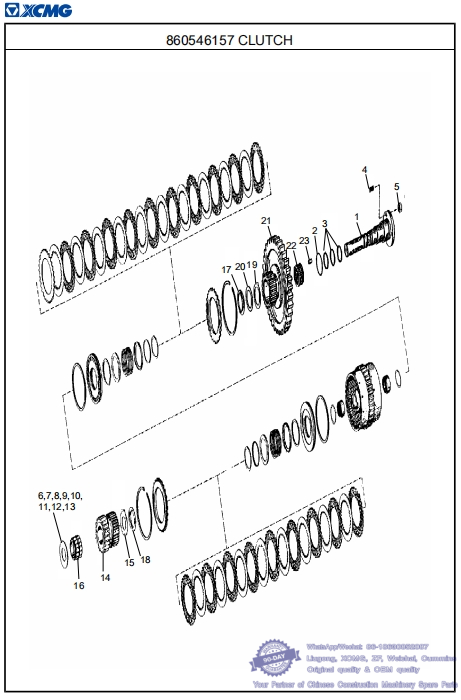

118 860546157 CLUTCH-- XCMG Motor Grader GR2205T Spare Parts Catalog
800360659 FLUID POWER GEAR-BOX
No. PART NUMBER QTY NAME NOTE PAGE
1 800107035 1 AXLE
2 860119603 1 O-RING whatsapp 86-18630852087
3 860517066 3 BUCKLE SEALING RING
4 860116248 2 STUD
5 860116184 2 NUT
6 860116355 1 GASKET
7 860116356 1 GASKET
8 860116357 1 GASKET
9 860116358 1 GASKET
10 860116359 1 GASKET
11 860116360 1 GASKET whatsapp 86-18630852087
12 860116361 1 GASKET
13 860116362 1 GASKET
14 860546043 1 GEAR
15 819911322 1 WEARING PAD
16 860546003 1 CYL. ROLLER BEARING
17 860139063 1 THRUST WASHER
18 860517076 1 LOCK PLATE
19 860139051 1 WASHER
20 860139050 1 GASKET
21 860116332 1 SPUR GEAR whatsapp 86-18630852087
22 860155420 1 NEEDLE SUBASSEMBLY
23 860517110 12 ROLLER SUBASSEMBLY

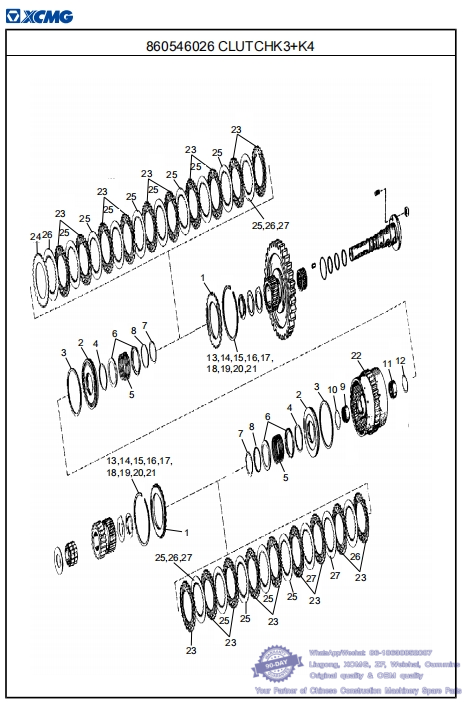

119 860546026 CLUTCHK3+K4-- XCMG Motor Grader GR2205T Spare Parts Catalog
800360659 FLUID POWER GEAR-BOX
No. PART NUMBER QTY NAME NOTE PAGE
1 819911323 2 CARRYING PLATE whatsapp 86-18630852087
2 860114330 1 PISTON
3 860119640 2 REDUCING SEAL RING
4 860139054 2 PROFILE SEALING RING
5 860139052 2 COMPRESSION SPRING
6 860139055 4 GUIDE RING
7 860517080 2 RETAINER RING
8 860139056 2 GUIDE RING
9 819911327 1 CYL. ROLLER BEARING
10 800308456 1 ELASTICITY RETAINER RING
11 860119642 1 NEEDLE SLEEVE
12 800308457 1 ELASTICITY RETAINER RING
13 800308461 1 SNAP RING
14 860125539 2 SNAP RING
15 860125538 2 SNAP RING
16 860125537 2 SNAP RING whatsapp 86-18630852087
17 860125536 2 SNAP RING
18 860116435 2 SNAP RING
19 860125541 2 SNAP RING
20 860125542 2 SNAP RING
21 860125543 2 SNAP RING
22 800106844 2 CLUTCH HOUSING
23 860119646 1 EXTERNAL FRICTION DISCS=2,0
24 860139047 10 EXTERNAL FRICTION DISC
25 860139057 13 INTERNAL FRICTION DISC
26 860139058 8 INTERNAL FRICTION DISC S=2,5 whatsapp 86-18630852087
27 860143068 3 INTERNAL FRICTION DISCZF

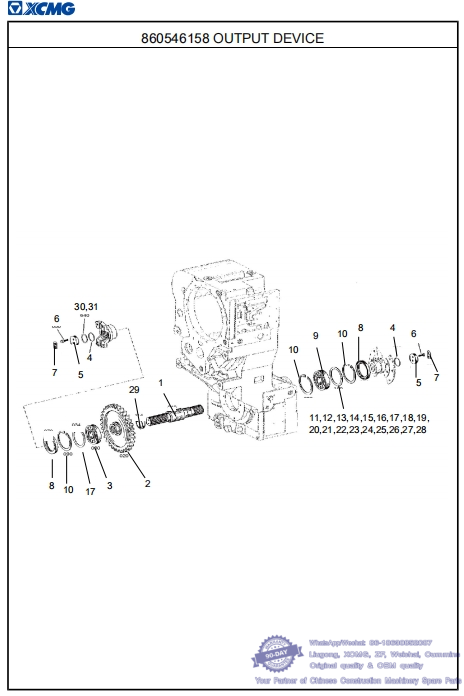

120 860546158 OUTPUT DEVICE-- XCMG Motor Grader GR2205T Spare Parts Catalog
800360659 FLUID POWER GEAR-BOX
No. PART NUMBER QTY NAME NOTE PAGE
1 860119571 1 OUTPUT SHAFT whatsapp 86-18630852087
2 800106891 1 OUTPUT GEAR
3 860119573 1 BEARING
4 860147221 2 O-RING
5 800106769 2 PRESSING PLATE
6 860116436 4 HEX BOLT
7 860142954 2 LOCK PLATE
8 819911288 2 PACKING RING
9 800107093 1 BALL BEARING
10 860517008 3 HOLE CIRCLIP
11 800106656 1 GASKET
12 800106657 1 GASKET
13 860545987 1 GASKET
14 860545986 1 GASKET
15 800106691 1 GASKET whatsapp 86-18630852087
16 800106692 1 GASKET
17 800106693 1 REGULATING GASKET
18 800106660 1 GASKET
19 860545988 1 GASKET
20 800106659 1 GASKET
21 800106658 1 GASKET
22 800106694 1 GASKET
23 860545992 1 GASKET
24 860545989 1 GASKET
25 860545990 1 GASKET
26 860545991 1 GASKET
27 860545993 1 GASKET whatsapp 86-18630852087
28 860143920 1 SHIM
29 800106682 1 SHAFT SLEEVE
30 860546033 1 WASHER
31 860143949 1 WASHER
