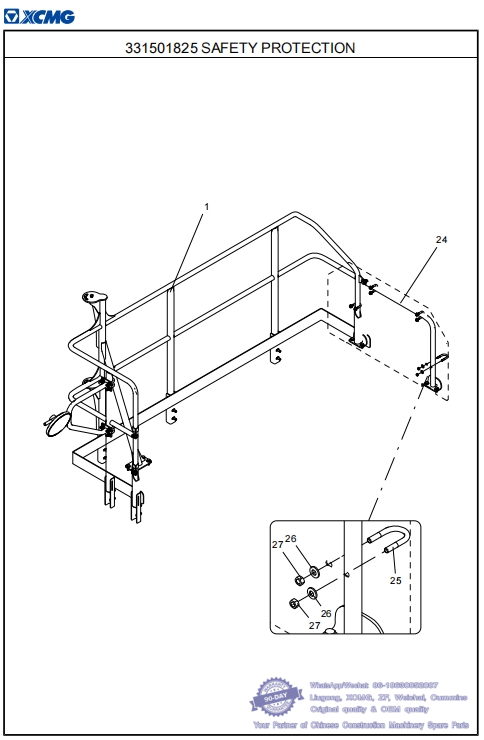

121 331501825 SAFETY PROTECTION-- XCMG Mining Dump Truck XDR100 Parts Catalog
331505761 XDR100 MINING DUMP TRUCK
No. PART NUMBER QTY NAME NOTE PAGE
24 331501835 1 FIXED MOUNT whatsapp 86-18630852087
25 805044548 4 BOLT 33 JB/ZQ4321-2006
26 805301373 8 WASHER 10 DIN6796 whatsapp 86-18630852087
27 805238371 8 NUT M10 GB/T6170-2000

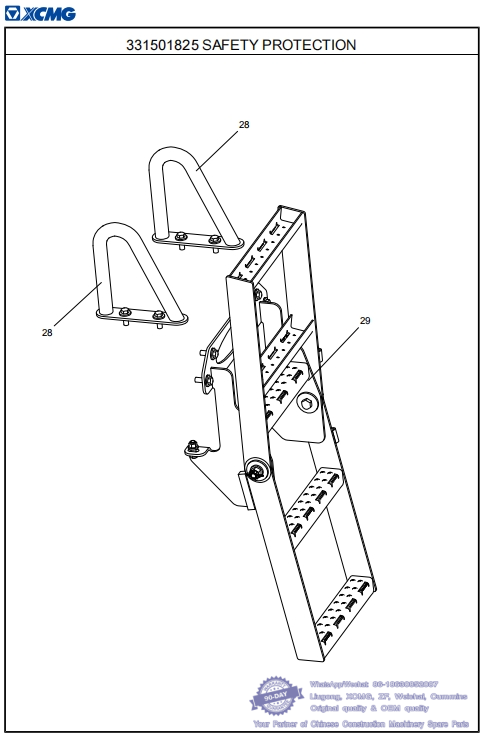

122 331501825 SAFETY PROTECTION-- XCMG Mining Dump Truck XDR100 Parts Catalog
331505761 XDR100 MINING DUMP TRUCK
No. PART NUMBER QTY NAME NOTE PAGE
28 331500165 2 BANISTERS whatsapp 86-18630852087
29 331503111 1 REAR ACCESS LADDER ASSEMBLY 264

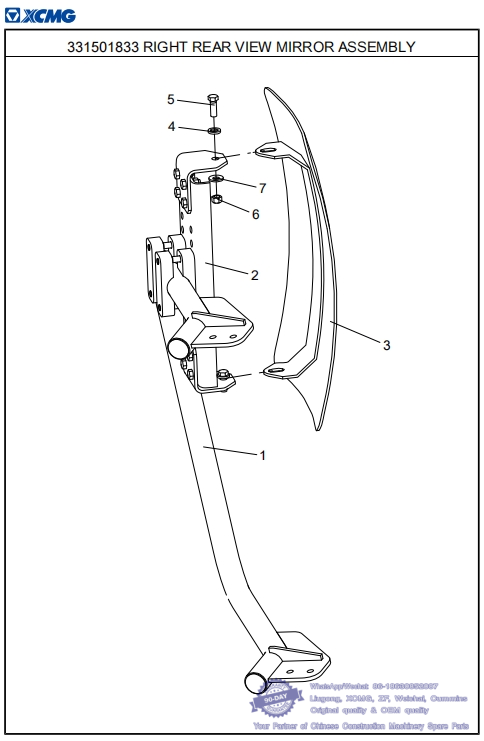

123 331501833 RIGHT REAR VIEW MIRROR ASSEMBLY-- XCMG Mining Dump Truck XDR100 Parts Catalog
331501825 SAFETY PROTECTION
No. PART NUMBER QTY NAME NOTE PAGE
1 331501872 1 RIGHT REARVIEW MIRROR BRACKET
2 331501842 1 REARVIEW MIRROR ADJUSTMENT SEAT 254
3 802140084 1 CONVEX MIRROR whatsapp 86-18630852087
4 805338313 2 WASHER 12 GB/T1230-2006
5 805006413 2 BOLT M12×35 GB/T5783-2000
6 805238372 2 NUT M12 GB/T6170-2000 whatsapp 86-18630852087
7 805301374 2 WASHER 12 DIN6796

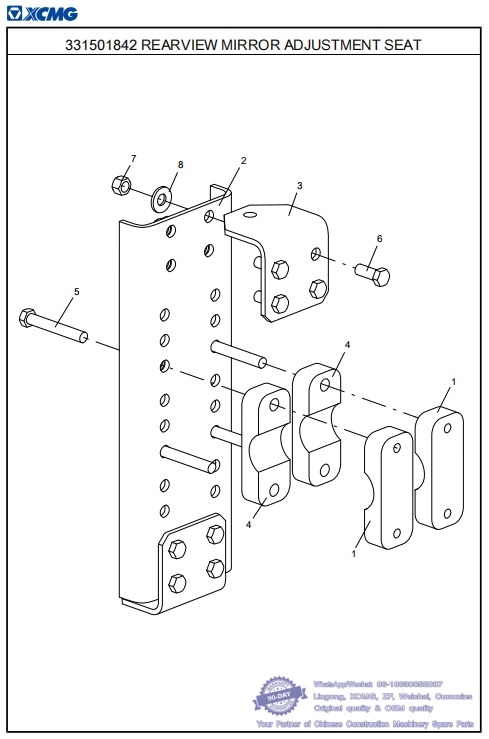

124 331501842 REARVIEW MIRROR ADJUSTMENT SEAT-- XCMG Mining Dump Truck XDR100 Parts Catalog
331501826 LEFT REAR VIEW MIRROR ASSEMBLY
No. PART NUMBER QTY NAME NOTE PAGE
1 330300337 2 FIXED FIXTURE BLOCK whatsapp 86-18630852087
2 330300338 1 MOUNTING PLATE
3 330300339 2 MOUNTING PLATE
4 330300341 2 FIXED FIXTURE BLOCK
5 805046646 4 BOLT M12×80 GB/T5782-2000 whatsapp 86-18630852087
6 805006412 8 BOLT M12×30 GB/T5783-2000
7 805238372 8 NUT M12 GB/T6170-2000
8 805301374 12 WASHER 12 DIN6796

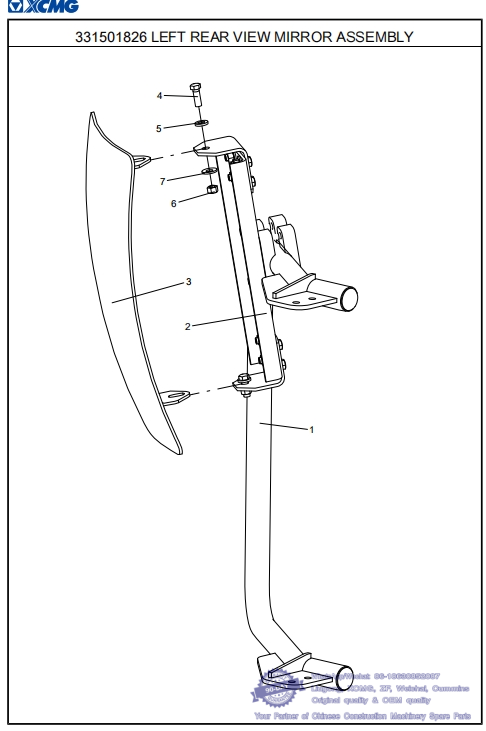

125 331501826 LEFT REAR VIEW MIRROR ASSEMBLY-- XCMG Mining Dump Truck XDR100 Parts Catalog
331501825 SAFETY PROTECTION
No. PART NUMBER QTY NAME NOTE PAGE
1 331501841 1 LEFT REARVIEW MIRROR BRACKET
2 331501842 1 REARVIEW MIRROR ADJUSTMENT SEAT 254
3 802140084 1 CONVEX MIRROR whatsapp 86-18630852087
4 805006413 2 BOLT M12×35 GB/T5783-2000
5 805338313 2 WASHER 12 GB/T1230-2006
6 805238372 2 NUT M12 GB/T6170-2000 whatsapp 86-18630852087
7 805301374 2 WASHER 12 DIN6796
