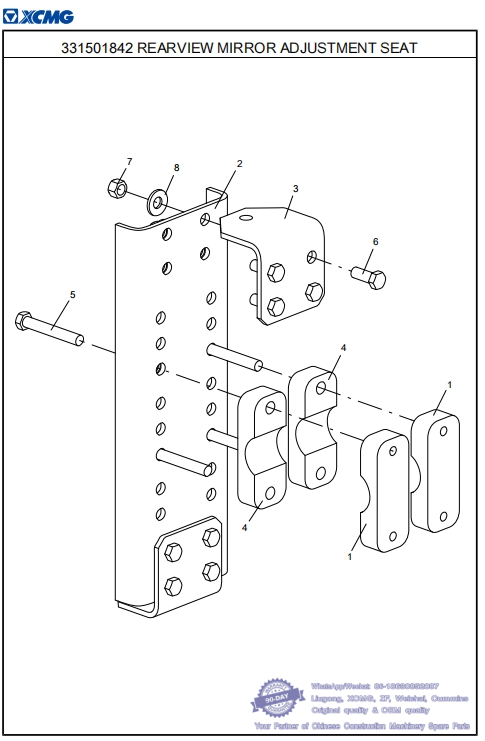

126 331501842 REARVIEW MIRROR ADJUSTMENT SEAT-- XCMG Mining Dump Truck XDR100 Parts Catalog
331501826 LEFT REAR VIEW MIRROR ASSEMBLY
No. PART NUMBER QTY NAME NOTE PAGE
1 330300337 2 FIXED FIXTURE BLOCK
2 330300338 1 MOUNTING PLATE whatsapp 86-18630852087
3 330300339 2 MOUNTING PLATE
4 330300341 2 FIXED FIXTURE BLOCK
5 805046646 4 BOLT M12×80 GB/T5782-2000
6 805006412 8 BOLT M12×30 GB/T5783-2000 whatsapp 86-18630852087
7 805238372 8 NUT M12 GB/T6170-2000
8 805301374 12 WASHER 12 DIN6796

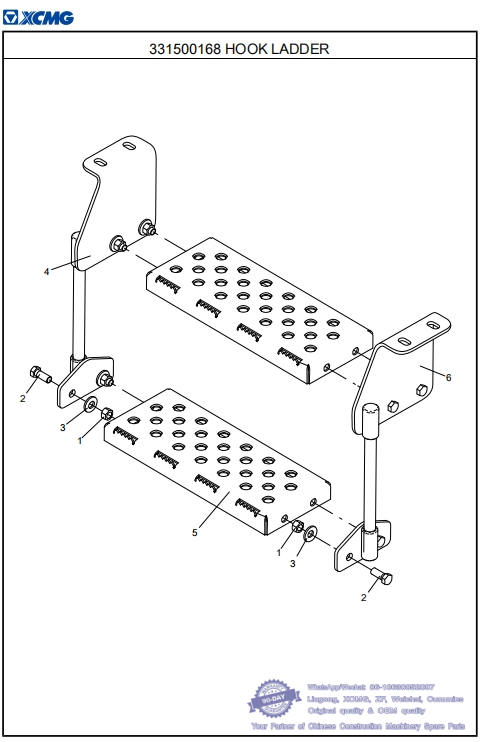

127 331500168 HOOK LADDER- XCMG Mining Dump Truck XDR100 Parts Catalog
331501825 SAFETY PROTECTION
No. PART NUMBER QTY NAME NOTE PAGE
1 805238372 8 NUT M12 GB/T6170-2000 whatsapp 86-18630852087
2 805006412 8 BOLT M12×30 GB/T5783-2000
3 805301374 8 WASHER 12 DIN6796
4 331502786 1 HOOK LADDER SIDE PLATE whatsapp 86-18630852087
5 331500237 2 PEDAL
6 331500236 1 HOOK LADDER SIDE PLATE

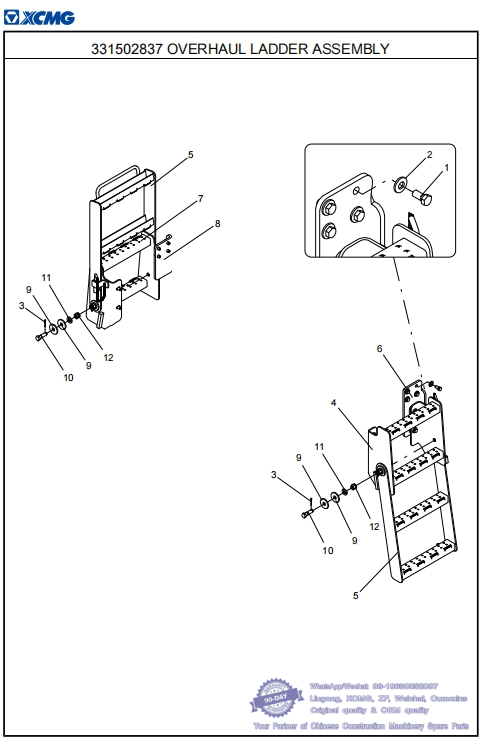

128 331502837 OVERHAUL LADDER ASSEMBLY-- XCMG Mining Dump Truck XDR100 Parts Catalog
331501825 SAFETY PROTECTION
No. PART NUMBER QTY NAME NOTE PAGE
1 805046469 16 BOLT M12×25 GB/T5783-2000
2 805301374 16 WASHER 12 DIN6796 whatsapp 86-18630852087
3 805639639 4 PIN 4×32 GB/T91-2000
4 331502838 1 MAINTENANCE LADDER WELDING
5 331502842 2 MAINTENANCE HOOK LADDER
6 331502846 1 CONNECTING PLATE WELDMENT
7 331504616 1 RIGHT OVERHAUL LADDER WELDING
8 331504618 1 CONNECTING PLATE WELDMENT whatsapp 86-18630852087
9 805338447 12 WASHER 16 GB/T5287-2002
10 805051365 4 BOLT M16×55 GB/T31.1-2013
11 805338296 4 WASHER 16 GB/T1230-2006
12 805238520 4 NUT M16 GB/T6178-1986

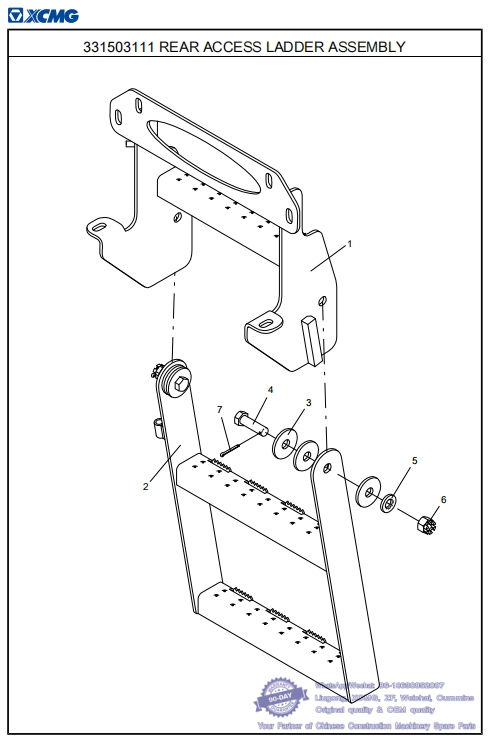

129 331503111 REAR ACCESS LADDER ASSEMBLY-- XCMG Mining Dump Truck XDR100 Parts Catalog
331501825 SAFETY PROTECTION
No. PART NUMBER QTY NAME NOTE PAGE
1 331503112 1 REAR ACCESS LADDER WELDMENT
2 331503118 1 REAR HOOK LADDER
3 805338447 6 WASHER 16 GB/T5287-2002 whatsapp 86-18630852087
4 805051365 2 BOLT M16×55 GB/T31.1-2013
5 805338296 2 WASHER 16 GB/T1230-2006
6 805238520 2 NUT M16 GB/T6178-1986 whatsapp 86-18630852087
7 805639639 2 PIN 4×32 GB/T91-2000

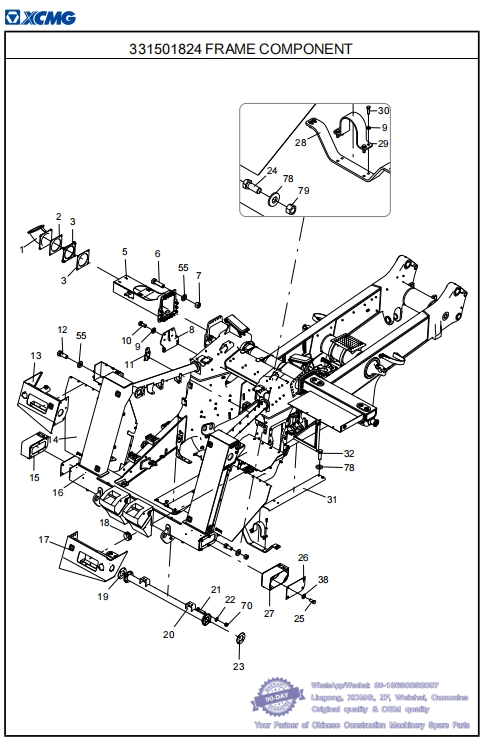

130 331501824 FRAME COMPONENT-- XCMG Mining Dump Truck XDR100 Parts Catalog
331505761 XDR100 MINING DUMP TRUCK
No. PART NUMBER QTY NAME NOTE PAGE
1 331501794 1 EXHAUST SEAT
2 331501777 1 CLEARANCE ADJUSTMENT SHEET whatsapp 86-18630852087
3 331501778 3 CLEARANCE ADJUSTMENT SHEET
5 331503364 1 RIGHT EXTENDED BEAM 274
6 805006294 18 BOLT M20×70 GB/T5783-2000
7 805238375 18 NUT M20 GB/T6170-2000
8 331502789 1 COOLING VALVE BRACKET
9 805338296 12 WASHER 16 GB/T1230-2006 whatsapp 86-18630852087
10 805006289 4 BOLT M16×35 GB/T5783-2000
11 331505234 1 STEEL PIPE CONNECTING BASE
12 805046591 5 BOLT M20×50 GB/T5783-2000
13 331501795 1 RIGHT LAMPSHADE
14 331502808 1 MAINTENANCE AND PROTECTION 276
15 331501762 1 RIGHT EXTENDED BUMPER
16 331501749 1 FRAME WELDING ASSEMBLY
17 331501814 1 LEFT LAMPSHADE
18 331505344 2 OVERLINE RUBBER RINGΦ40×10
19 331501750 4 CLEARANCE ADJUSTMENT SHEET whatsapp 86-18630852087
20 331501809 1 BEAM
21 805046180 8 BOLT M12×55 GB/T5783-2000
22 805338281 16 WASHER 12 GB/T97.1-2002
23 331501751 2 CLEARANCE ADJUSTMENT SHEET
24 805006332 12 BOLT M16×40 GB/T5783-2000
25 805006412 10 BOLT M12×30 GB/T5783-2000 whatsapp 86-18630852087
26 331501763 2 COVER PLATE
27 331501764 1 LEFT EXTENDED BUMPER
28 331505296 1 TRANSMISSION SHAFT BENDING PLATE
29 331505297 1 TRANSMISSION SHAFTUSHAPING PLATE
30 805004814 4 BOLT M16×55 GB/T5783-2000 whatsapp 86-18630852087
31 331501756 3 GUARDING PLATE
32 805006290 10 BOLT M16×50 GB/T5783-2000
