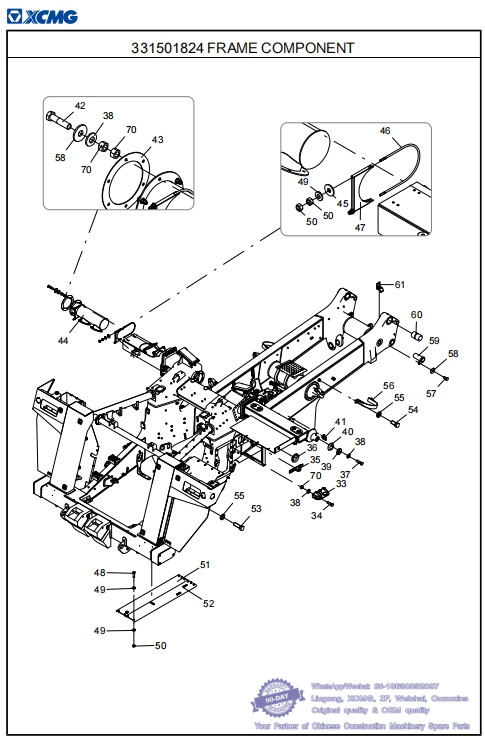

131 331501824 FRAME COMPONENT-- XCMG Mining Dump Truck XDR100 Parts Catalog
331505761 XDR100 MINING DUMP TRUCK
No. PART NUMBER QTY NAME NOTE PAGE
33 331505269 2 ENERGY ACCUMULATOR BASE SEAT
34 805006287 12 BOLT M12×40 GB/T5783-2000 whatsapp 86-18630852087
35 331505268 2 RESERVOIR CLAMP
36 330101766 1 OVERLINE RUBBER RING
37 805006414 10 BOLT M12×45 GB/T5783-2000
38 805301374 64 WASHER 12 DIN6796
39 331501774 2 COVER
40 331501775 2 SPACER RING whatsapp 86-18630852087
41 331505360 3 STEEL TUBE GUIDE RAIL SEAT
42 805046636 6 BOLT M12×50 GB/T5782-2000
43 331502342 1 MAT
44 331502336 1 CHIMNEY
45 805338268 4 WASHER 10 GB/T96.1-2002 whatsapp 86-18630852087
46 331501755 2 U-BOLT
47 331501752 2 SUPPORT
48 805046528 10 BOLT M10×35 GB/T5783-2000
49 805301373 18 WASHER 10 DIN6796
50 805238371 12 NUT M10 GB/T6170-2000
51 331503363 1 ENGINE RIGHT GUARD PLATE
52 331504224 1 LEFT ENGINE GUARD PLATE
53 805006285 11 BOLT M20×65 GB/T5783-2000
54 805046589 4 BOLT M20×45 GB/T5783-2000
55 805338297 56 WASHER 20 GB/T1230-2006 whatsapp 86-18630852087
56 331505227 2 OIL CYLINDER LIMIT HOOP
57 805046469 8 BOLT M12×25 GB/T5783-2000
58 805338270 8 WASHER 12 GB/T96.1-2002
59 331501760 2 ARTICULATED SHAFT
60 331501813 2 SLEEVE
61 330102643 1 REAR SEAT 282 whatsapp 86-18630852087

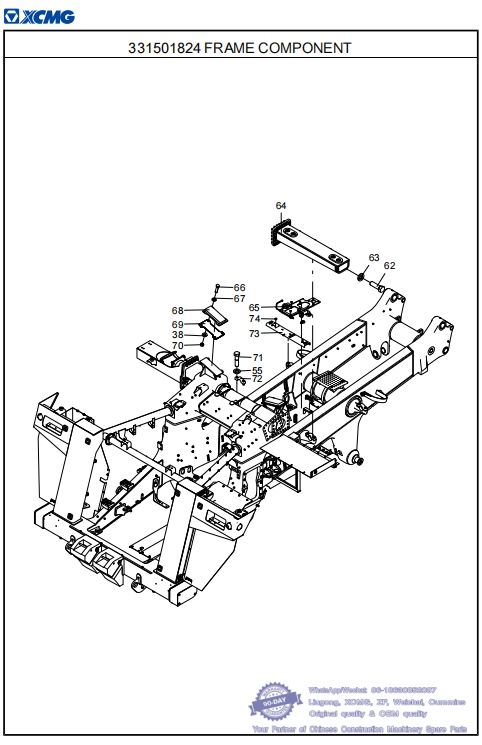

132 331501824 FRAME COMPONENT-- XCMG Mining Dump Truck XDR100 Parts Catalog
331505761 XDR100 MINING DUMP TRUCK
No. PART NUMBER QTY NAME NOTE PAGE
62 805005960 20 BOLT M24×80 GB/T5783-2000
63 805338299 12 WASHER 24 GB/T1230-2006 whatsapp 86-18630852087
64 331501789 1 LEFT EXTENDED BEAM
65 331501758 1 MOUNTING PLATE
66 805046552 12 BOLT M12×50 GB/T5783-2000
67 805338313 8 WASHER 12 GB/T1230-2006
68 331501771 2 SHOCK PAD
69 331501770 10 CLEARANCE ADJUSTMENT PLATE
70 805238372 50 NUT M12 GB/T6170-2000 whatsapp 86-18630852087
71 805004836 8 BOLT M20×80 GB/T5782-2000
72 331501776 4 GLAND
73 331502867 1 LIFTING PUMP BRACKET
74 805238370 2 NUT M6 GB/T6170-2000 whatsapp 86-18630852087

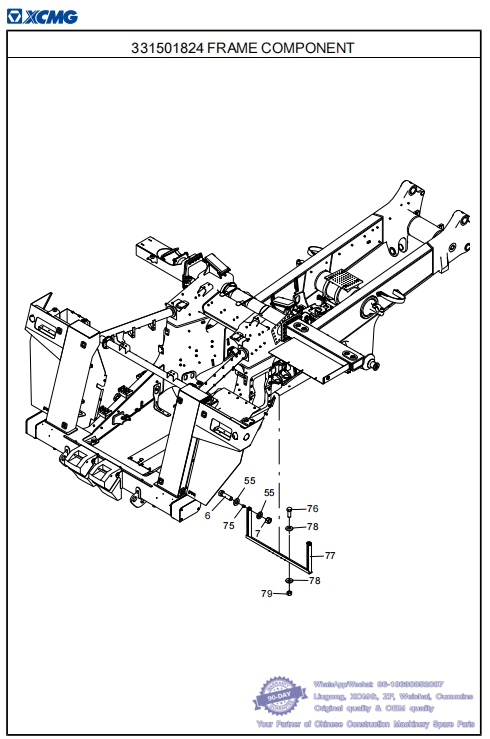

133 331501824 FRAME COMPONENT-- XCMG Mining Dump Truck XDR100 Parts Catalog
331505761 XDR100 MINING DUMP TRUCK
No. PART NUMBER QTY NAME NOTE PAGE
75 331501759 2 SPACER SLEEVE whatsapp 86-18630852087
76 805006280 6 BOLT M16×45 GB/T5783-2000
77 331501803 1 TRANSMISSION SUPPORT
78 805301377 40 WASHER 16 DIN6796 whatsapp 86-18630852087
79 805238374 28 NUT M16 GB/T6170-2000

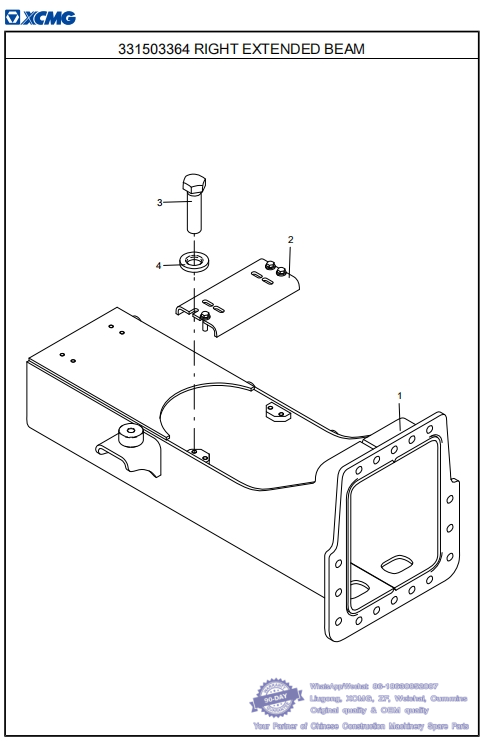

134 331503364 RIGHT EXTENDED BEAM- XCMG Mining Dump Truck XDR100 Parts Catalog
331501824 FRAME COMPONENT
No. PART NUMBER QTY NAME NOTE PAGE
1 331502875 1 RIGHT EXTENDED BEAM whatsapp 86-18630852087
2 331503365 1 MOUNTING SEAT
3 805006414 4 BOLT M12×45 GB/T5783-2000
4 805338313 4 WASHER 12 GB/T1230-2006 whatsapp 86-18630852087

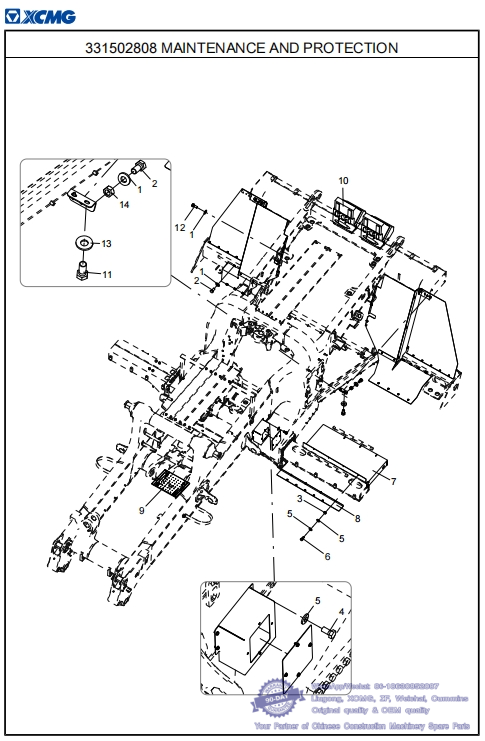

135 331502808 MAINTENANCE AND PROTECTION-- XCMG Mining Dump Truck XDR100 Parts Catalog
331501824 FRAME COMPONENT
No. PART NUMBER QTY NAME NOTE PAGE
1 805301373 40 WASHER 10 DIN6796 whatsapp 86-18630852087
2 805046525 36 BOLT M10×20 GB/T5783-2000
3 805238378 4 NUT M8 GB/T6170-2000
4 805046504 30 BOLT M8×16 GB/T5783-2000
5 805301384 38 WASHER 8 DIN6796 whatsapp 86-18630852087
6 805046508 4 BOLT M8×20 GB/T5783-2000
7 331504189 1 IN FRONT OF DESLIMING STEEL PLATE
8 331504190 1 IN REAR OF DESLIMING STEEL PLATE
9 330105017 1 PEDAL ASSEMBLY 278
10 331502856 2 WHEEL CHOCK BRACKET ASSEMBLY 280
11 805046469 4 BOLT M12×25 GB/T5783-2000
12 805011330 4 BOLT M10×25 GB/T5783-2000 whatsapp 86-18630852087
13 805301374 4 WASHER 12 DIN6796
14 805238371 6 NUT M10 GB/T6170-2000
