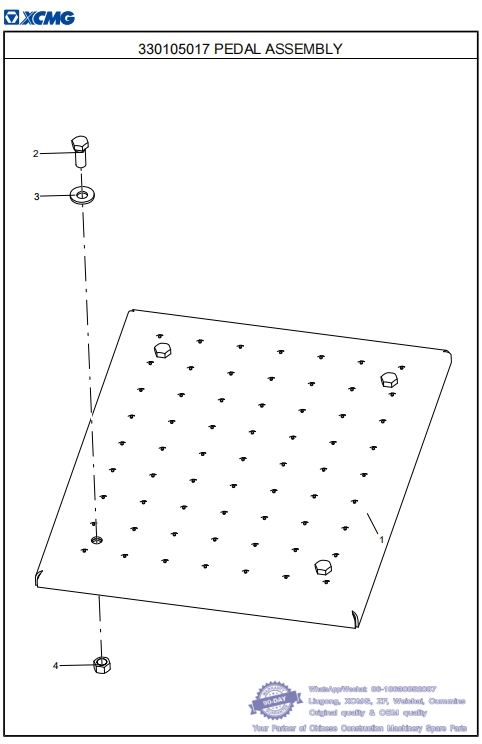

136 330105017 PEDAL ASSEMBLY-- XCMG Mining Dump Truck XDR100 Parts Catalog
331502808 MAINTENANCE AND PROTECTION
No. PART NUMBER QTY NAME NOTE PAGE
1 330105018 1 PEDAL WELDING whatsapp 86-18630852087
2 805006412 4 BOLT M12×30 GB/T5783-2000
3 805301374 4 WASHER 12 DIN6796
4 805238372 4 NUT M12 GB/T6170-2000

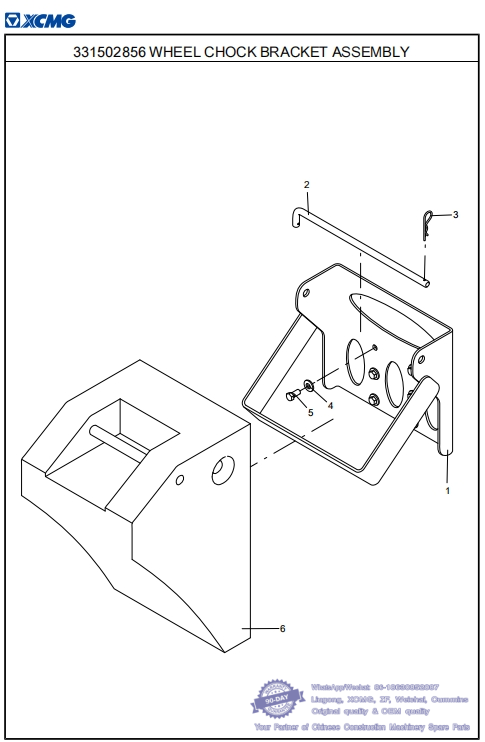

137 331502856 WHEEL CHOCK BRACKET ASSEMBLY-- XCMG Mining Dump Truck XDR100 Parts Catalog
331502808 MAINTENANCE AND PROTECTION
No. PART NUMBER QTY NAME NOTE PAGE
1 331502857 1 WHEEL CHOCK BRACKET
2 330105413 1 STOP PIN
3 330105414 1 ELASTIC COTTER PIN whatsapp 86-18630852087
4 805301374 6 WASHER 12 DIN6796
5 805046469 6 BOLT M12×25 GB/T5783-2000 whatsapp 86-18630852087
6 801973282 1 TIRE BACKSTOP

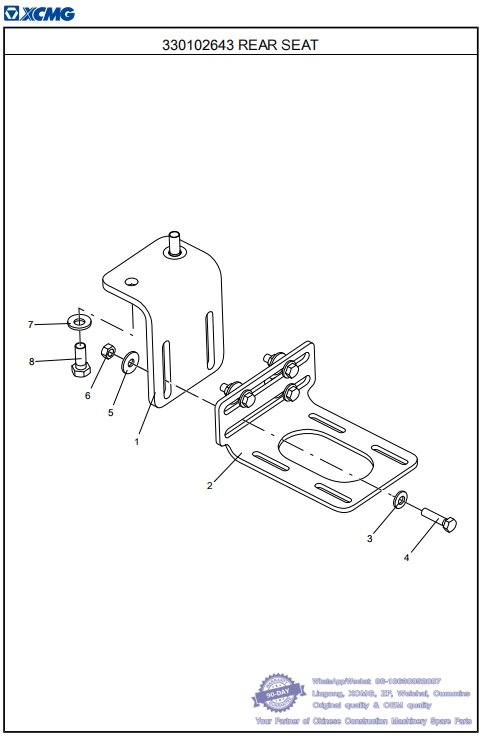

138 330102643 REAR SEAT-- XCMG Mining Dump Truck XDR100 Parts Catalog
331501824 FRAME COMPONENT
No. PART NUMBER QTY NAME NOTE PAGE
1 330102663 1 PROXIMITY SUPPORT whatsapp 86-18630852087
2 330102662 1 REAR MOUNTING BRACKET
3 805301383 4 WASHER 6 DIN6796
4 805046497 4 BOLT M6×25 GB/T5783-2000
5 805338264 4 WASHER 6 GB/T96.1-2002 whatsapp 86-18630852087
6 805238370 4 NUT M6 GB/T6170-2000
7 805301384 2 WASHER 8 DIN6796
8 805046508 2 BOLT M8×20 GB/T5783-2000

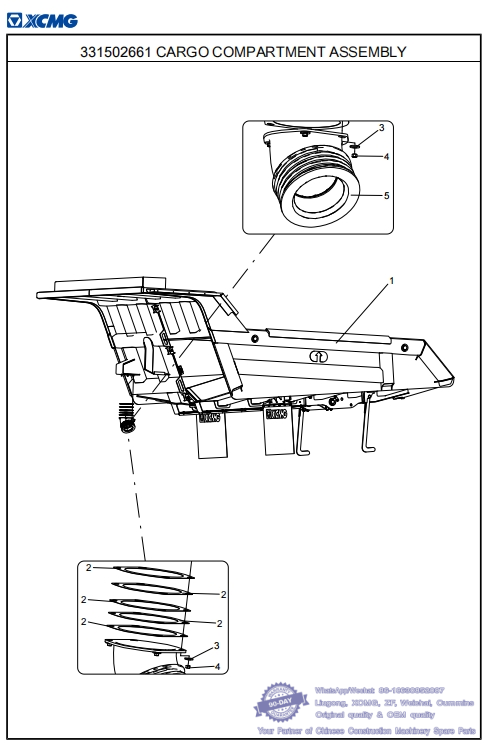

139 331502661 CARGO COMPARTMENT ASSEMBLY- XCMG Mining Dump Truck XDR100 Parts Catalog
331505761 XDR100 MINING DUMP TRUCK
No. PART NUMBER QTY NAME NOTE PAGE
1 331502662 1 WELDED CARGO COMPARTMENT ASSEMBLY
2 331500242 5 ADJUSTABLE PAD whatsapp 86-18630852087
3 805301377 22 WASHER 16 DIN6796
4 805238372 42 NUT M12 GB/T6170-2000
5 331500243 1 HEATING PORT 296 whatsapp 86-18630852087

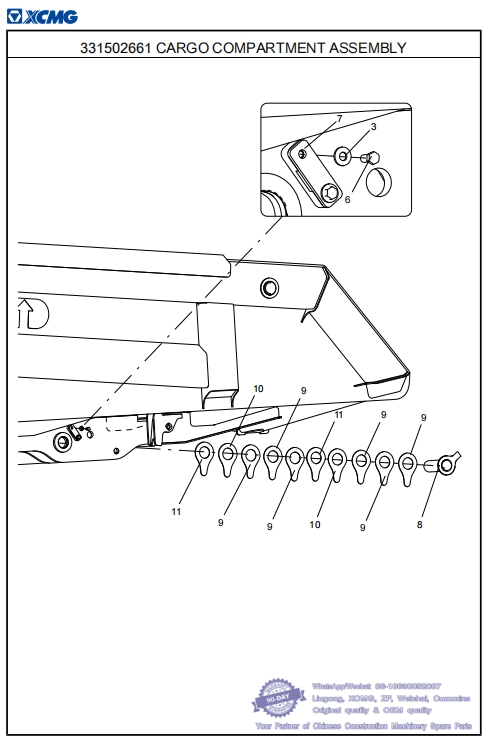

140 331502661 CARGO COMPARTMENT ASSEMBLY-- XCMG Mining Dump Truck XDR100 Parts Catalog
331505761 XDR100 MINING DUMP TRUCK
No. PART NUMBER QTY NAME NOTE PAGE
6 805006289 8 BOLT M16×35 GB/T5783-2000 whatsapp 86-18630852087
7 331500256 4 PRESSURE PLATE
8 331500260 2 PIN ASSEMBLY
9 331500257 12 ADJUSTABLE PAD whatsapp 86-18630852087
10 331500258 4 ADJUSTABLE PAD
11 331500259 4 ADJUSTABLE PAD
