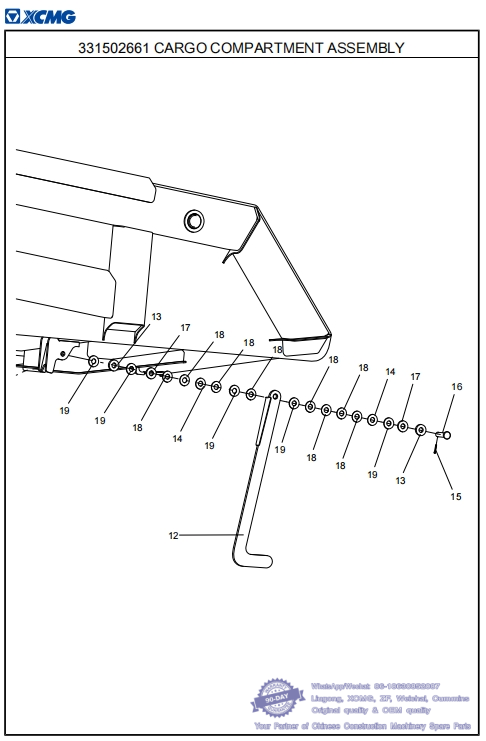

141 331502661 CARGO COMPARTMENT ASSEMBLY-- XCMG Mining Dump Truck XDR100 Parts Catalog
331505761 XDR100 MINING DUMP TRUCK
No. PART NUMBER QTY NAME NOTE PAGE
12 331500251 2 STONE DEFLECTOR whatsapp 86-18630852087
13 331500250 4 ADJUSTABLE PAD
14 331500247 4 ADJUSTABLE PAD
15 805600007 2 PIN 8×50 GB/T91-2000 whatsapp 86-18630852087
16 331500252 2 STONE DEFLECTOR PIN SHAFT
17 331500249 4 ADJUSTABLE PAD
18 331500246 16 ADJUSTABLE PAD whatsapp 86-18630852087
19 331500248 10 ADJUSTABLE PAD

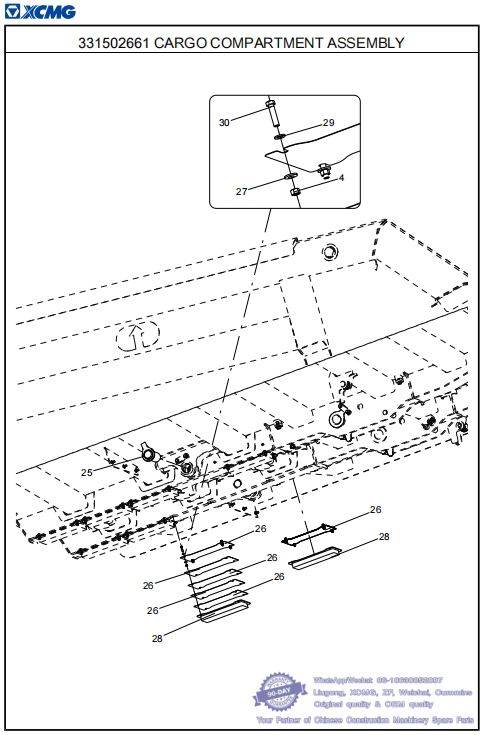

142 331502661 CARGO COMPARTMENT ASSEMBLY-- XCMG Mining Dump Truck XDR100 Parts Catalog
331505761 XDR100 MINING DUMP TRUCK
No. PART NUMBER QTY NAME NOTE PAGE
20 805301380 20 WASHER 24 DIN6796 whatsapp 86-18630852087
21 805203192 16 NUT M24 GB/T6170-2000
22 805006423 16 BOLT M24×130 GB/T5782-2000
23 805046596 4 BOLT M24×60 GB/T5783-2000 whatsapp 86-18630852087
24 331500245 2 SAFETY PIN

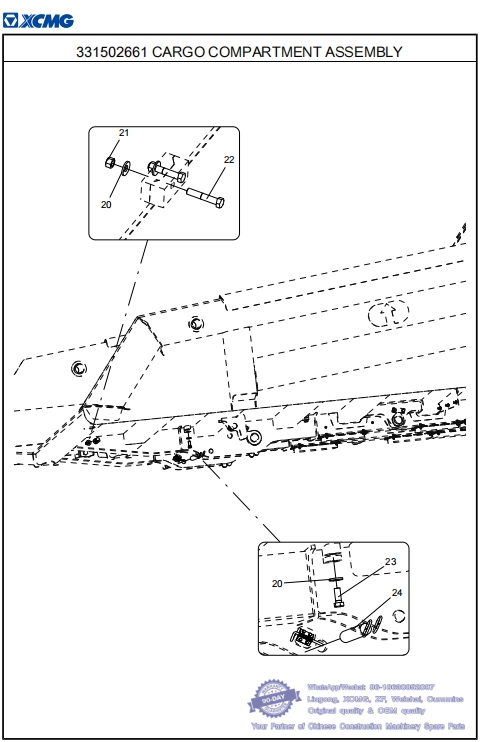

143 331502661 CARGO COMPARTMENT ASSEMBLY-- XCMG Mining Dump Truck XDR100 Parts Catalog
331505761 XDR100 MINING DUMP TRUCK
No. PART NUMBER QTY NAME NOTE PAGE
25 331500255 2 PIN ASSEMBLY whatsapp 86-18630852087
26 331500253 120 ADJUSTABLE PAD
27 805301374 28 WASHER 12 DIN6796
28 331500254 8 SHOCK PAD whatsapp 86-18630852087
29 805338281 32 WASHER 12 GB/T97.1-2002
30 805046552 32 BOLT M12×50 GB/T5783-2000

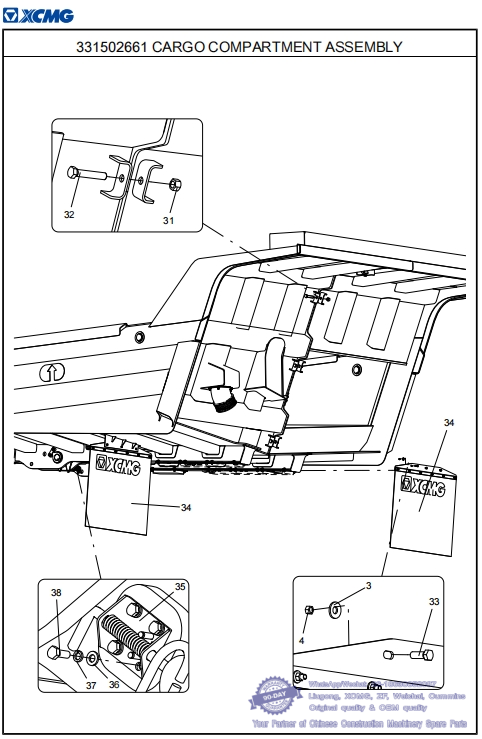

144 331502661 CARGO COMPARTMENT ASSEMBLY-- XCMG Mining Dump Truck XDR100 Parts Catalog
331505761 XDR100 MINING DUMP TRUCK
No. PART NUMBER QTY NAME NOTE PAGE
31 805200224 10 NUT M30 GB/T6175-2000 whatsapp 86-18630852087
32 805000701 10 BOLT M30×160 GB/T5783-2000
33 805006280 6 BOLT M16×45 GB/T5783-2000
34 331500244 2 SPLASH BOARD 298 whatsapp 86-18630852087
35 801541144 1 GALVANIZED STEEL HINGE
36 805338275 8 WASHER 6 GB/T97.1-2002
37 805338258 8 WASHER 6 GB/T93-1987
38 805046530 8 BOLT M6×16 GB/T5783-2000 whatsapp 86-18630852087

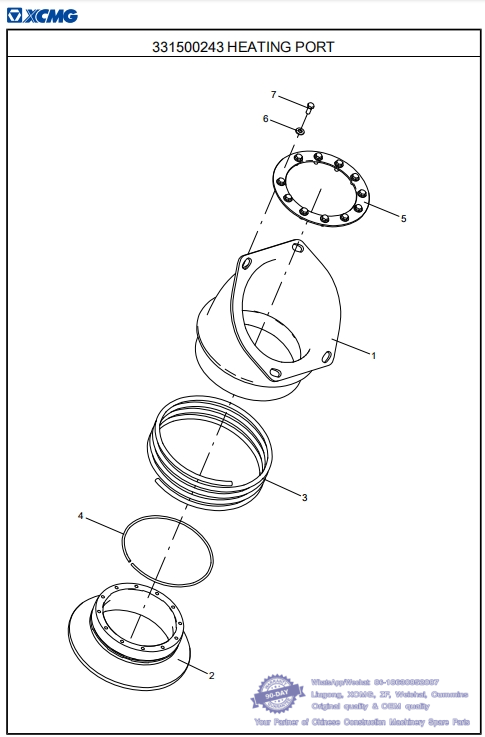

145 331500243 HEATING PORT-- XCMG Mining Dump Truck XDR100 Parts Catalog
331502661 CARGO COMPARTMENT ASSEMBLY
No. PART NUMBER QTY NAME NOTE PAGE
1 331500421 1 SMOKING PIPE whatsapp 86-18630852087
2 331500420 1 SUSPENSION PIPE
3 331500419 1 SPRING
4 331500418 1 BAFFLE RING
5 331500417 1 BLANKING PLATE whatsapp 86-18630852087
6 805301373 12 WASHER 10 DIN6796
7 805011330 12 BOLT M10×25 GB/T5783-2000 whatsapp 86-18630852087
