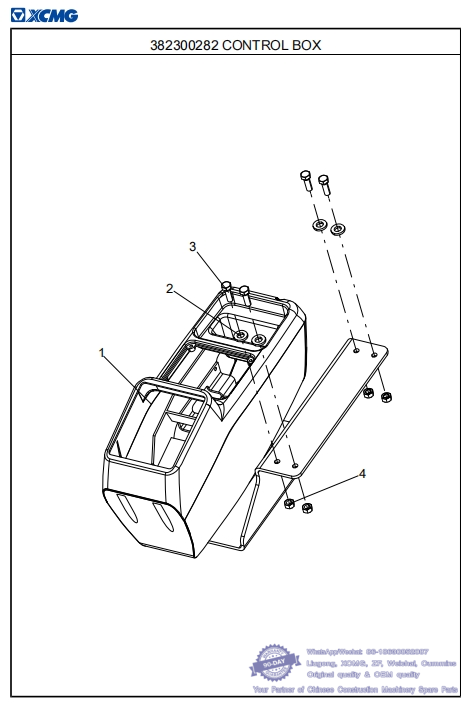

141 382300282 CONTROL BOX-- XCMG Motor Grader GR2205T Spare Parts Catalog
382301662 MOTOR GRADER
No. PART NUMBER QTY NAME NOTE PAGE
1 382301601 1 CONTROL BOX 290 whatsapp 86-18630852087
2 329900302 4 THICKENED FLAT WASHER
3 805046484 4 BOLT M8×25 (DACROMET) GB/T5783-2000 whatsapp 86-18630852087
4 805238378 4 NUT M8 (DACROMET) GB/T6170-2000

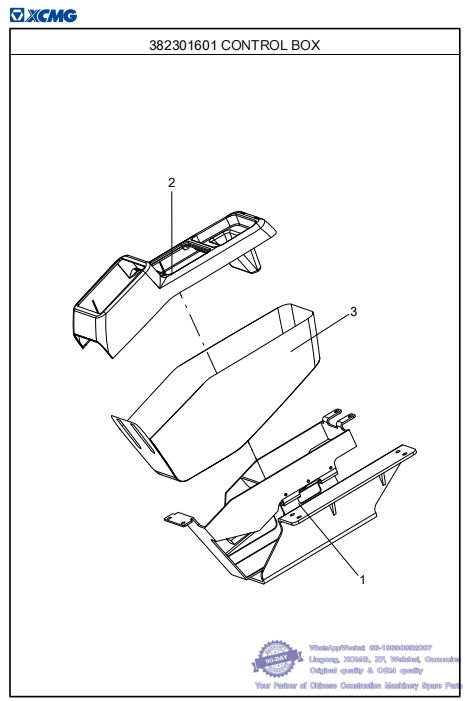

142 382301601 CONTROL BOX-- XCMG Motor Grader GR2205T Spare Parts Catalog
382300282 CONTROL BOX
No. PART NUMBER QTY NAME NOTE PAGE
1 382301062 1 FRAME OF CONTROL BOX whatsapp 86-18630852087
2 382300971 1 CONTROL CASE UPPER COVER
3 380402277 1 CONTROL CASE LOWER COVER whatsapp 86-18630852087

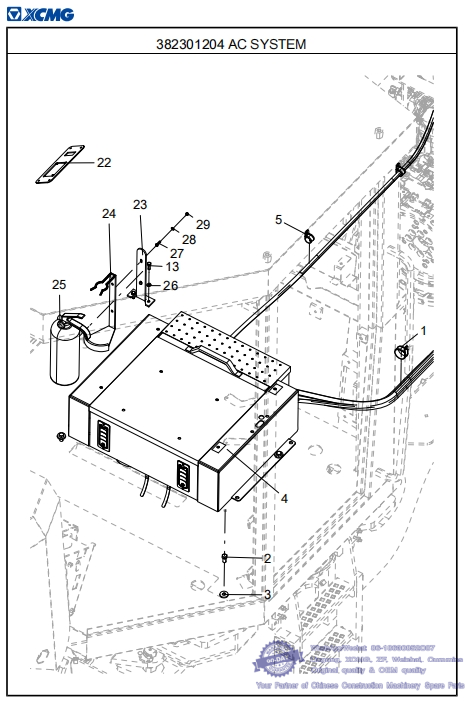

143 382301204 AC SYSTEM-- XCMG Motor Grader GR2205T Spare Parts Catalog
382301662 MOTOR GRADER
No. PART NUMBER QTY NAME NOTE PAGE
1 803300795 3 CUTTING SLEEVE Φ45 TJBC whatsapp 86-18630852087
2 805046469 3 BOLT M12×25 (DACROMET) GB/T5783-2000
3 329900298 3 THICKENED LARGE WASHER
4 803597418 1 AIR CONDITIONING SYSTEM ASSEMBLY 296
5 803199329 6 CUTTING SLEEVE Φ26 TJBC
13 805046509 6 BOLT M8×25 (DACROMET) GB/T5783-2000
22 380402555 1 CONTROLLER MOUNTING PLATE whatsapp 86-18630852087
23 380904653 1 FIRE EXTINGUISHER BRACET
24 819948838 1 FIRE EXTINGUISHER BRACET
25 819947986 1 FIRE EXTINGUISHER
26 329900301 2 THICKENED FLAT WASHER whatsapp 86-18630852087
27 805002094 2 BOLT M6×20 GB/T5783-2000
28 805338827 2 WASHER 6 GB/T97.1-2002
29 805201417 2 NUT M6 GB/T6170-2000 whatsapp 86-18630852087

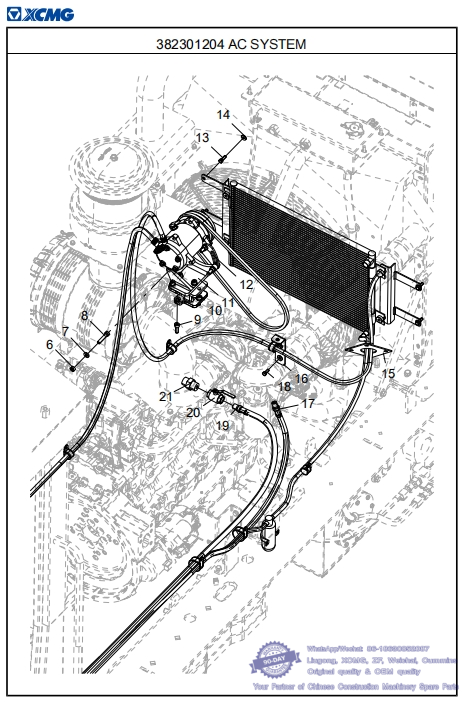

144 382301204 AC SYSTEM-- XCMG Motor Grader GR2205T Spare Parts Catalog
382301662 MOTOR GRADER
No. PART NUMBER QTY NAME NOTE PAGE
6 805238371 4 NUT M10 (DACROMET) GB/T6170-2000 whatsapp 86-18630852087
7 329900302 14 THICKENED FLAT WASHER
8 805046533 4 BOLT M10×50 (DACROMET) GB/T5783-2000
9 805139764 6 SCREW M10×30 (DACROMET) GB/T70.1-2008
10 382301198 1 COMPRESSOR BRACKET
11 380901000 1 COMPRESSOR BRACKET whatsapp 86-18630852087
12 380900836 1 ADJUSTING PLATE
13 805046509 6 BOLT M8×25 (DACROMET) GB/T5783-2000
14 329900296 6 THICKENED LARGE WASHER
15 380401919 1 BAFFLE
16 382301205 1 PIPELINE FIXING PLATE whatsapp 86-18630852087
17 380900888 1 JOINT BODY
18 805046508 2 BOLT M8×20 (DACROMET) GB/T5783-2000
19 380900970 1 JOINT BODY
20 800752773 1 BALL VALVE whatsapp 86-18630852087
21 380300754 1 JOINT BODY

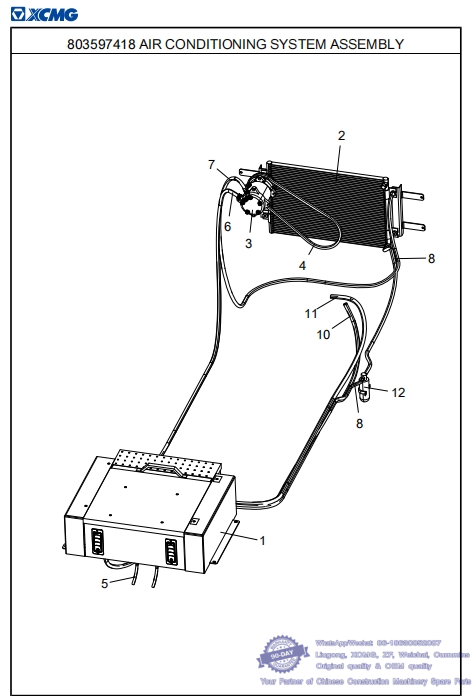

145 803597418 AIR CONDITIONING SYSTEM ASSEMBLY-- XCMG Motor Grader GR2205T Spare Parts Catalog
382301204 AC SYSTEM
No. PART NUMBER QTY NAME NOTE PAGE
1 382301200 1 EVAPORIMETER whatsapp 86-18630852087
2 380605054 1 AIR CONDITIONING CONDENSER
3 380604126 1 AIR CONDITION COMPRESSOR
4 382301328 1 COMPRESSOR BELT
5 803594113 2 CONDENSING WEEP PIPE (L=1000)
6 382301192 1 SUCTION HOSE
7 382301191 1 EXHAUST HOSE whatsapp 86-18630852087
8 382301193 2 LIQUID HOSE
10 380901184 1 HOSE Φ16
11 380901220 1 HOSE Φ16
12 380604107 1 STORE FLUID POT whatsapp 86-18630852087
